L2 PRO 90W bt PoE Switches
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 850 nm, reach up to 0,5 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 850 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 0,5 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot
In stock, ships immediately · delivery 1-2 days
1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 1310 nm, reach up to 2 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 1310 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 2 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot
In stock, ships immediately · delivery 1-2 days
Industrial-grade SFP transceiver for gigabit links over single-mode fibre. It runs at 1.25 Gbps on a centre wavelength of 1310 nm and reaches up to 40 km on 9/125 µm fibre, with an LC connector. The DFB laser diode transmits at -3 to 3 dBm, the receiver works between -3 and -24 dBm, and supply voltage is 3.3 V. Operating and storage range are -40 °C to 85 °C at 5 to 90 % humidity, non-condensing, which covers cabinets without climate control. Form factor 55.9 x 14.69 x 12.39 mm, MSA compliant, certified to IEC 825, EN 60825-1 and FDA 21 CFR 1040.10 and 1040.11.
Not in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- C62-044-91-380
- EAN / GTIN
- 4711502640170
Description

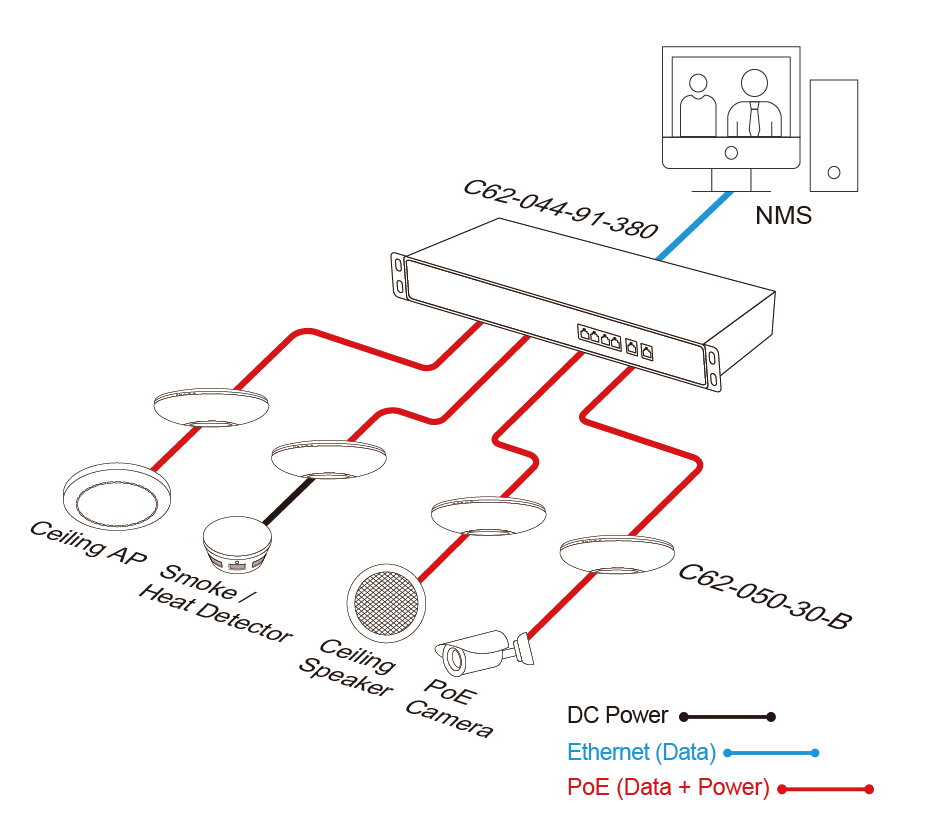

Managed L2 PRO switch with four PoE ports to IEEE 802.3bt up to 90 W and two Gigabit RJ45 ports.

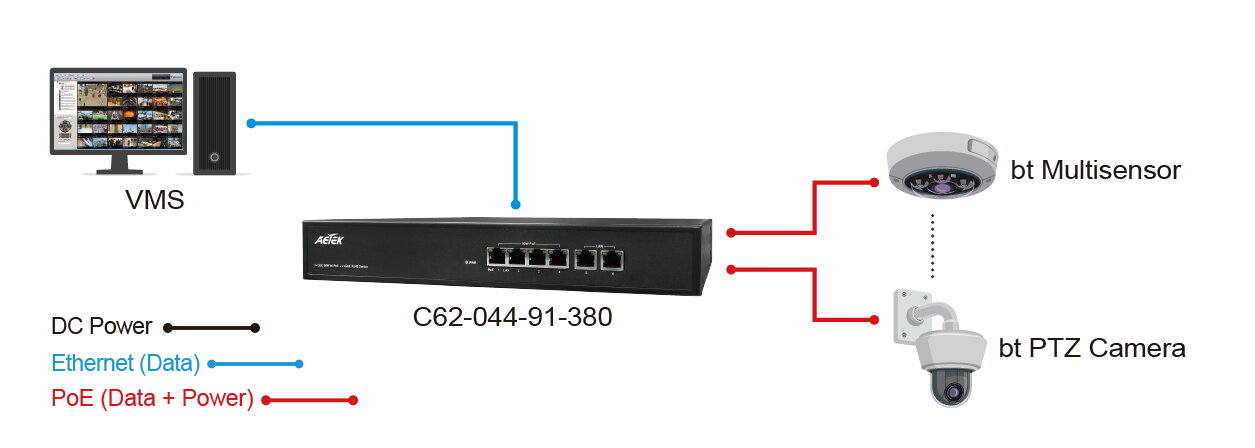

The bt ports feed devices needing more than 25.5 W, such as IR PTZ and multi-sensor cameras. The PoE budget is 360 W, the switching capacity 16 Gbit/s and the forwarding capacity 11.904 Mpps.
Every PoE port carries 6 kV of surge protection and the supply is 100 to 240 V AC. Dimensions 320 × 207 × 44 mm, weight 3 kg, operating temperature 0 °C to 50 °C.
- Four PoE ports to IEEE 802.3bt up to 90 W
- Two Gigabit RJ45 ports
- L2 PRO management through the NTS interface
- 360 W PoE budget, 16 Gbit/s switching capacity
- 6 kV surge protection per PoE port
- 320 × 207 × 44 mm, 3 kg, 0 °C to 50 °C
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (3)
- Certifications EMC
- CE,FCC,VCCI,C-Tick Class A
- Safety
- EN62368-1
- Surge
- EN61000-4-5
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- 0°C ~ 50°C (32°F ~ 122°F)
- Environmental Specifications – Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
Mechanical Specifications (2)
- Mechanical Specifications – Dimensions (L x W x H)
- 320 x 207 x 44 mm
- Mechanical Specifications – Weight
- 3KG
Networking Specifications (10)
- Networking Specifications – 1Gbps Full Duplex&100Mbps Full / Half Duplex&10Mbps Full / Half Duplex
- Support
- Networking Specifications – Auto MDI / MDIX
- Support
- Networking Specifications – Forwarding Capacity
- 11.904Mpps
- Networking Specifications – Gigabit PoE Port (10M / 100M / 1G) IEEE 802.3 10BaseT/IEEE 802.3u 100BaseTX/IEEE 803.3ab 1000BaseTX
- 4 x 90W bt PoE
- Networking Specifications – Gigabit RJ45 Port
- 2
- Networking Specifications – Jumbo Frames
- 9,216 Bytes
- Networking Specifications – Mac Table
- 8 k
- Networking Specifications – Switching Capacity
- 16 Gbps
- Networking Specifications – Total Gigabit Ports
- 8
- SFP Slots (100M/1G)
- 2
Power Specifications (3)
- Power Specifications – Input Voltage
- 100VAC ~ 240VAC
- Power Specifications – Output Voltage Range / per PoE Port 54 VDC PoE IEEE 802.3af (Max. 15.4W) output PoE+ IEEE802.3at (Max. 30W) output PoE++ IEEE802.3bt (Max. 90W) output PoE Power Budget
- 360W
- Power Specifications – Surge Protection /each PoE Port
- 6KV
