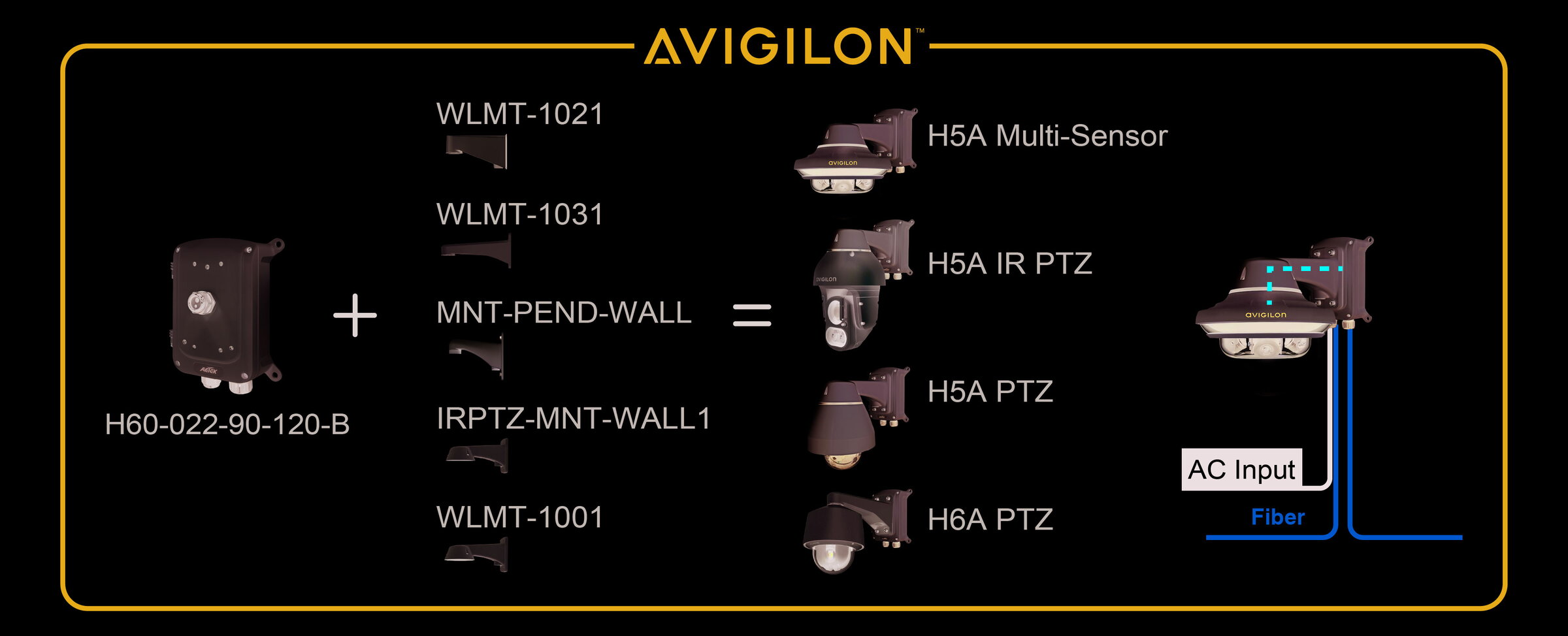

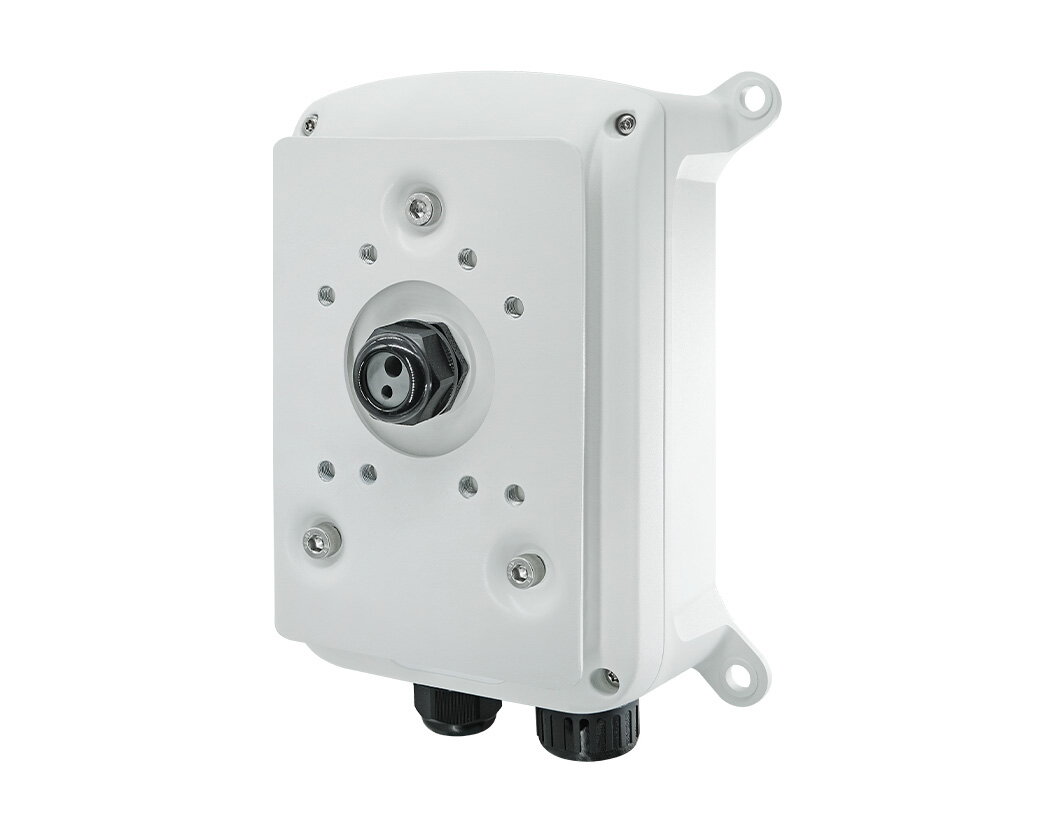

Outdoor IP67/IK10 L2 PRO 2-Port 90W bt/PoH PoE + 2-Port SFP Gigabit PoE Switch for Avigilon & Hanwha & Axis PTZ / Multi-Sensor Cameras and Compatible Mounts

1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 850 nm, reach up to 0,5 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 850 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 0,5 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot

1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 1310 nm, reach up to 2 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 1310 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 2 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot

Industrial1.25G Ethernet Transceiver, Industrial ModelSingle-mode,SFP Type,1310nm,FP-LD-10Km,Duplex LC, DC 3.3V

Industrial-grade SFP transceiver for gigabit links over single-mode fibre. It runs at 1.25 Gbps on a centre wavelength of 1310 nm and reaches up to 40 km on 9/125 µm fibre, with an LC connector. The DFB laser diode transmits at -3 to 3 dBm, the receiver works between -3 and -24 dBm, and supply voltage is 3.3 V. Operating and storage range are -40 °C to 85 °C at 5 to 90 % humidity, non-condensing, which covers cabinets without climate control. Form factor 55.9 x 14.69 x 12.39 mm, MSA compliant, certified to IEC 825, EN 60825-1 and FDA 21 CFR 1040.10 and 1040.11.

Pole mount adapter for the AETEK outdoor range. It takes the A10, A50, P20, P60, M20 and M60 enclosures, the JB-100, JB-110 and JB-200 junction boxes, the PB-024-1AC and PB-024-2AC power boxes, the H21, H42, H40 and H60 outdoor switches and the I46 and I49 outdoor injectors. The adapter measures 156.7 × 68.9 × 240 mm and weighs 1.26 kg. Pole mount adapter for AETEK outdoor equipmentFor A10, A50, P20, P60, M20, M60 enclosuresFor JB-100, JB-110, JB-200 junction boxesFor H21, H42, H40, H60 outdoor switchesFor I46 and I49 injectors and PB-024 power boxes156.7 × 68.9 × 240 mm, 1.26 kg

Retractable pole mount adapter for the AETEK outdoor range. Unlike the fixed AT-100 its length adjusts from 136 mm to 280.7 mm, so it takes pole diameters from 100 to 230 mm. It fits the same components as the fixed adapter: A10, A50, P20, P60, M20 and M60 enclosures, the JB-100, JB-110 and JB-200 junction boxes, the PB-024-1AC and PB-024-2AC power boxes, the H21, H42, H40 and H60 outdoor switches and the I46 and I49 injectors. Dimensions 136 × 275 × 240 mm, weight 4.85 kg. Retractable pole mount adapter, 136 to 280.7 mmFor pole diameters 100 to 230 mmFor A10, A50, P20, P60, M20, M60 enclosuresFor JB-100, JB-110, JB-200 junction boxesFor H21, H42, H40, H60 switches and I46, I49 injectors136 × 275 × 240 mm, 4.85 kg

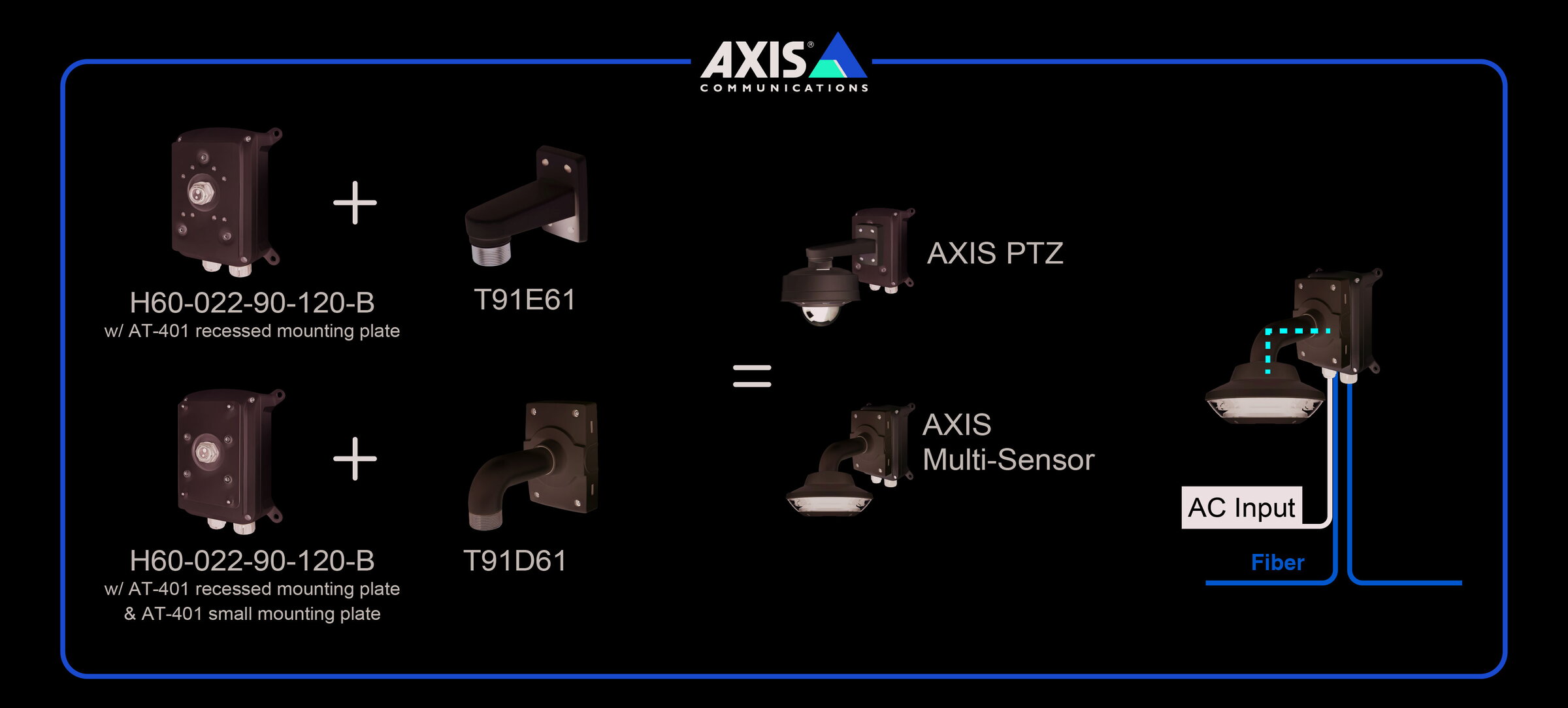

Adapter plate for mounting the H40-022-91-120-B and H60-022-90-120-B outdoor switches on AXIS wall brackets. The set covers two brackets: the T91E61 uses the recessed adapter, the T91D61 the recessed adapter together with the small adapter. The recessed adapter measures 195 × 135 × 13 mm, the small adapter 180 × 120 × 18 mm. Colour white. Adapter for AXIS wall bracketsFor the H40-022-91-120-B and H60-022-90-120-B switchesT91E61: recessed adapterT91D61: recessed adapter plus small adapterRecessed adapter 195 × 135 × 13 mmSmall adapter 180 × 120 × 18 mm, white

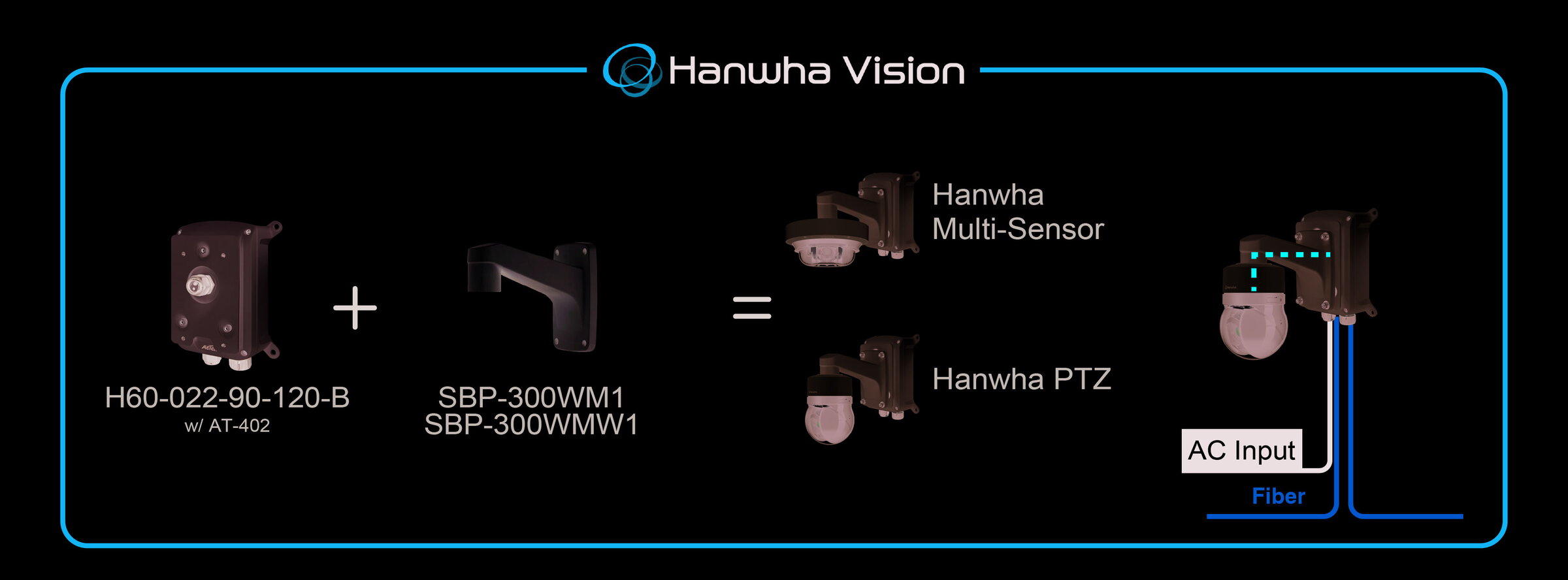

Adapter plate for mounting the H40-022-91-120-B and H60-022-90-120-B outdoor switches on the Hanwha SBP-300WM1 and SBP-300WMW1 wall brackets. The plate measures 195 × 135 × 13 mm and weighs 0.51 kg. Colour white. Adapter for Hanwha wall bracketsFor the SBP-300WM1 and SBP-300WMW1 bracketsFor the H40-022-91-120-B and H60-022-90-120-B switches195 × 135 × 13 mmWeight 0.51 kgWhite
