Outdoor IP67/IK10 2-Port 90W bt Gigabit PoE Switch for Avigilon, Axis & Hanwha PTZ / Multi-Sensor Cameras and Compatible Mounts
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 850 nm, reach up to 0,5 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 850 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 0,5 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot
In stock, ships immediately · delivery 1-2 days
1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 1310 nm, reach up to 2 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 1310 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 2 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot
In stock, ships immediately · delivery 1-2 days
Industrial-grade SFP transceiver for gigabit links over single-mode fibre. It runs at 1.25 Gbps on a centre wavelength of 1310 nm and reaches up to 40 km on 9/125 µm fibre, with an LC connector. The DFB laser diode transmits at -3 to 3 dBm, the receiver works between -3 and -24 dBm, and supply voltage is 3.3 V. Operating and storage range are -40 °C to 85 °C at 5 to 90 % humidity, non-condensing, which covers cabinets without climate control. Form factor 55.9 x 14.69 x 12.39 mm, MSA compliant, certified to IEC 825, EN 60825-1 and FDA 21 CFR 1040.10 and 1040.11.
Not in stock · delivery 2-3 weeks
Pole mount adapter for the AETEK outdoor range. It takes the A10, A50, P20, P60, M20 and M60 enclosures, the JB-100, JB-110 and JB-200 junction boxes, the PB-024-1AC and PB-024-2AC power boxes, the H21, H42, H40 and H60 outdoor switches and the I46 and I49 outdoor injectors. The adapter measures 156.7 × 68.9 × 240 mm and weighs 1.26 kg. Pole mount adapter for AETEK outdoor equipmentFor A10, A50, P20, P60, M20, M60 enclosuresFor JB-100, JB-110, JB-200 junction boxesFor H21, H42, H40, H60 outdoor switchesFor I46 and I49 injectors and PB-024 power boxes156.7 × 68.9 × 240 mm, 1.26 kg
In stock, ships immediately · delivery 1-2 days
Retractable pole mount adapter for the AETEK outdoor range. Unlike the fixed AT-100 its length adjusts from 136 mm to 280.7 mm, so it takes pole diameters from 100 to 230 mm. It fits the same components as the fixed adapter: A10, A50, P20, P60, M20 and M60 enclosures, the JB-100, JB-110 and JB-200 junction boxes, the PB-024-1AC and PB-024-2AC power boxes, the H21, H42, H40 and H60 outdoor switches and the I46 and I49 injectors. Dimensions 136 × 275 × 240 mm, weight 4.85 kg. Retractable pole mount adapter, 136 to 280.7 mmFor pole diameters 100 to 230 mmFor A10, A50, P20, P60, M20, M60 enclosuresFor JB-100, JB-110, JB-200 junction boxesFor H21, H42, H40, H60 switches and I46, I49 injectors136 × 275 × 240 mm, 4.85 kg
In stock, ships immediately · delivery 1-2 days

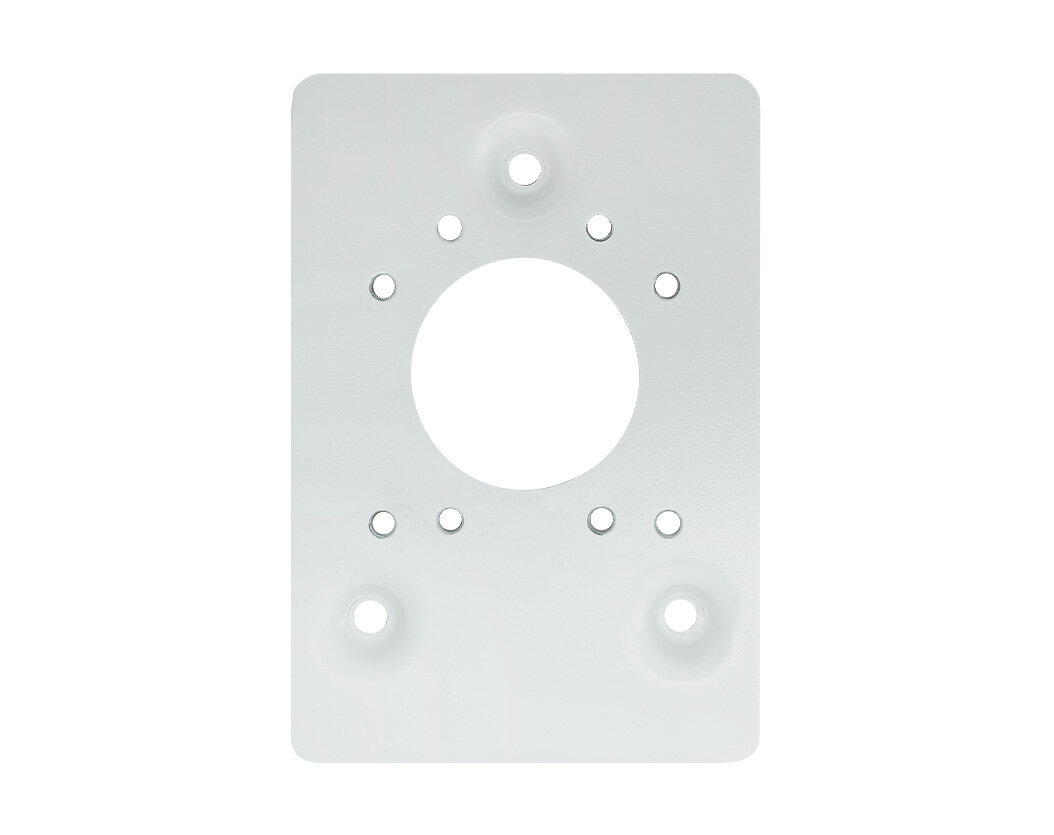

Adapter plate for mounting the H40-022-91-120-B and H60-022-90-120-B outdoor switches on AXIS wall brackets. The set covers two brackets: the T91E61 uses the recessed adapter, the T91D61 the recessed adapter together with the small adapter. The recessed adapter measures 195 × 135 × 13 mm, the small adapter 180 × 120 × 18 mm. Colour white. Adapter for AXIS wall bracketsFor the H40-022-91-120-B and H60-022-90-120-B switchesT91E61: recessed adapterT91D61: recessed adapter plus small adapterRecessed adapter 195 × 135 × 13 mmSmall adapter 180 × 120 × 18 mm, white
Not in stock · delivery 2-3 weeks

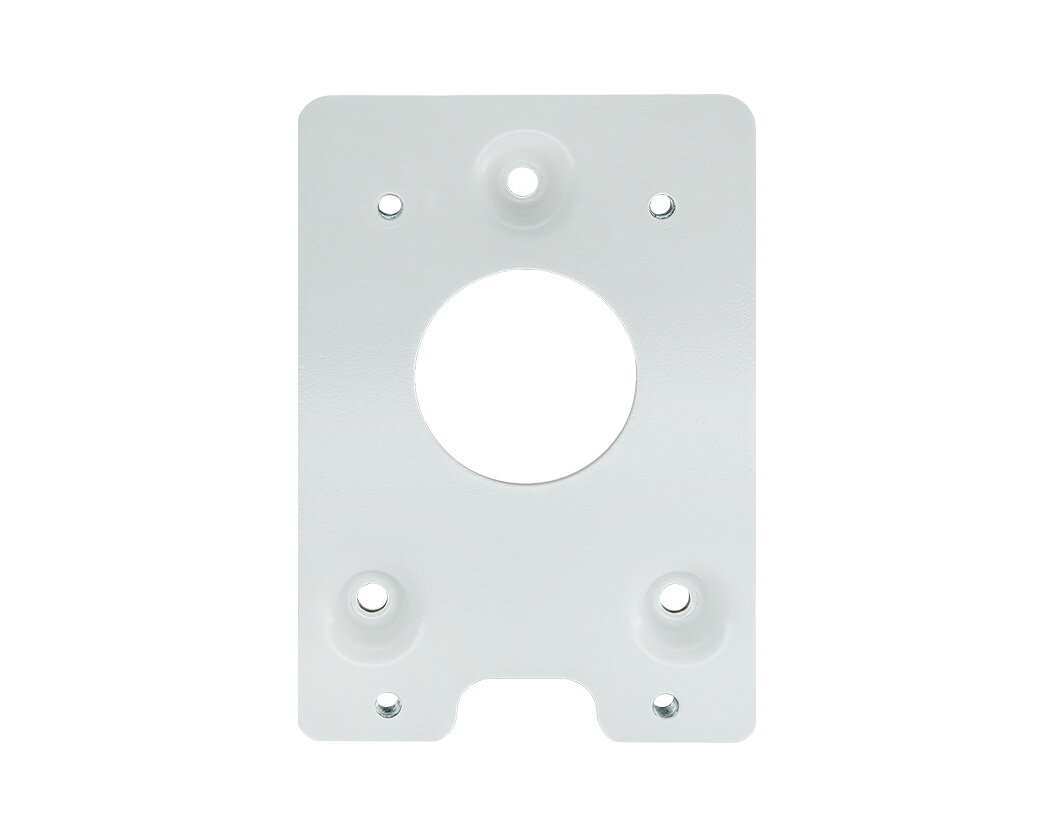

Adapter plate for mounting the H40-022-91-120-B and H60-022-90-120-B outdoor switches on the Hanwha SBP-300WM1 and SBP-300WMW1 wall brackets. The plate measures 195 × 135 × 13 mm and weighs 0.51 kg. Colour white. Adapter for Hanwha wall bracketsFor the SBP-300WM1 and SBP-300WMW1 bracketsFor the H40-022-91-120-B and H60-022-90-120-B switches195 × 135 × 13 mmWeight 0.51 kgWhite
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- AETEK
- Article number
- H40-022-91-120-B
- EAN / GTIN
- 4711502643911
Description

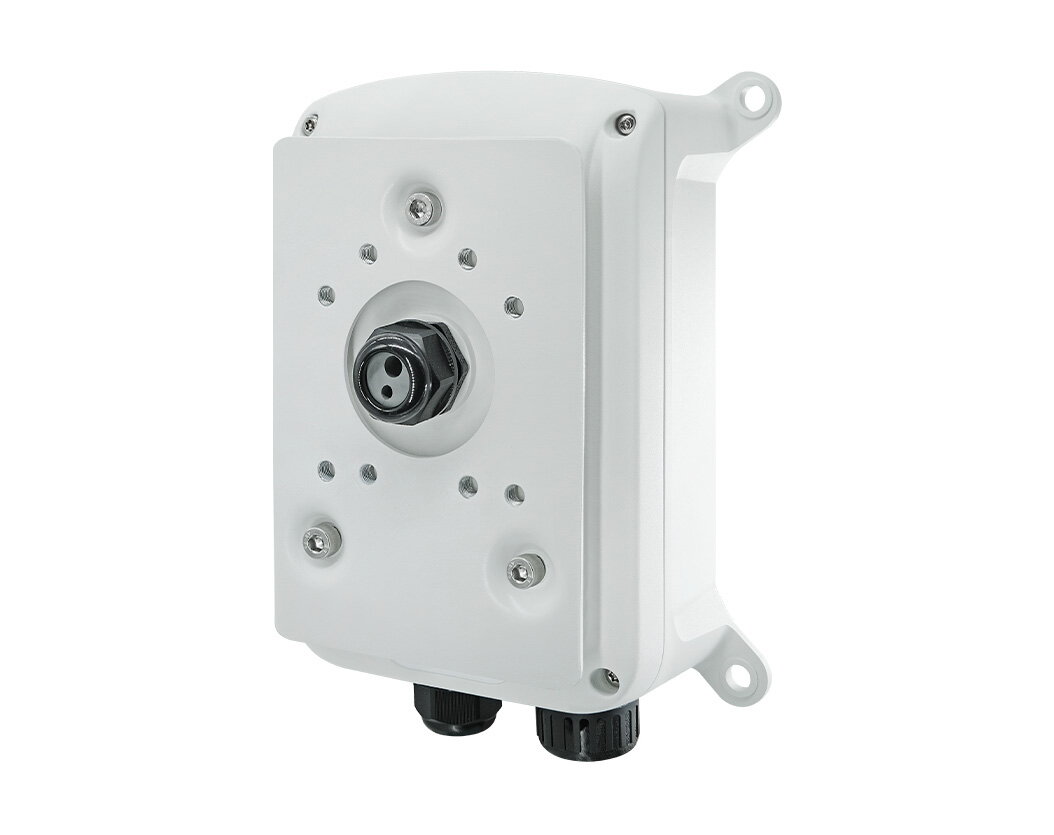

Outdoor switch with two PoE ports to IEEE 802.3bt up to 90 W and two SFP slots, built for PTZ and multi-sensor cameras from Avigilon, Axis and Hanwha.

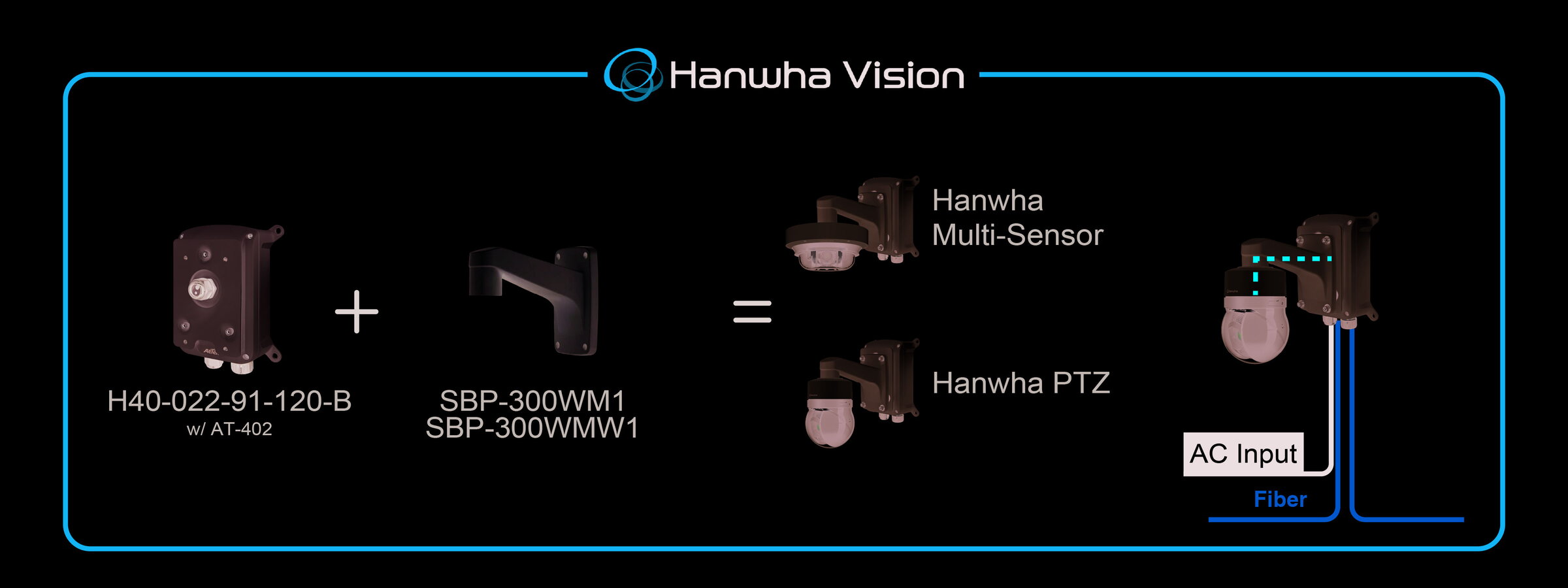

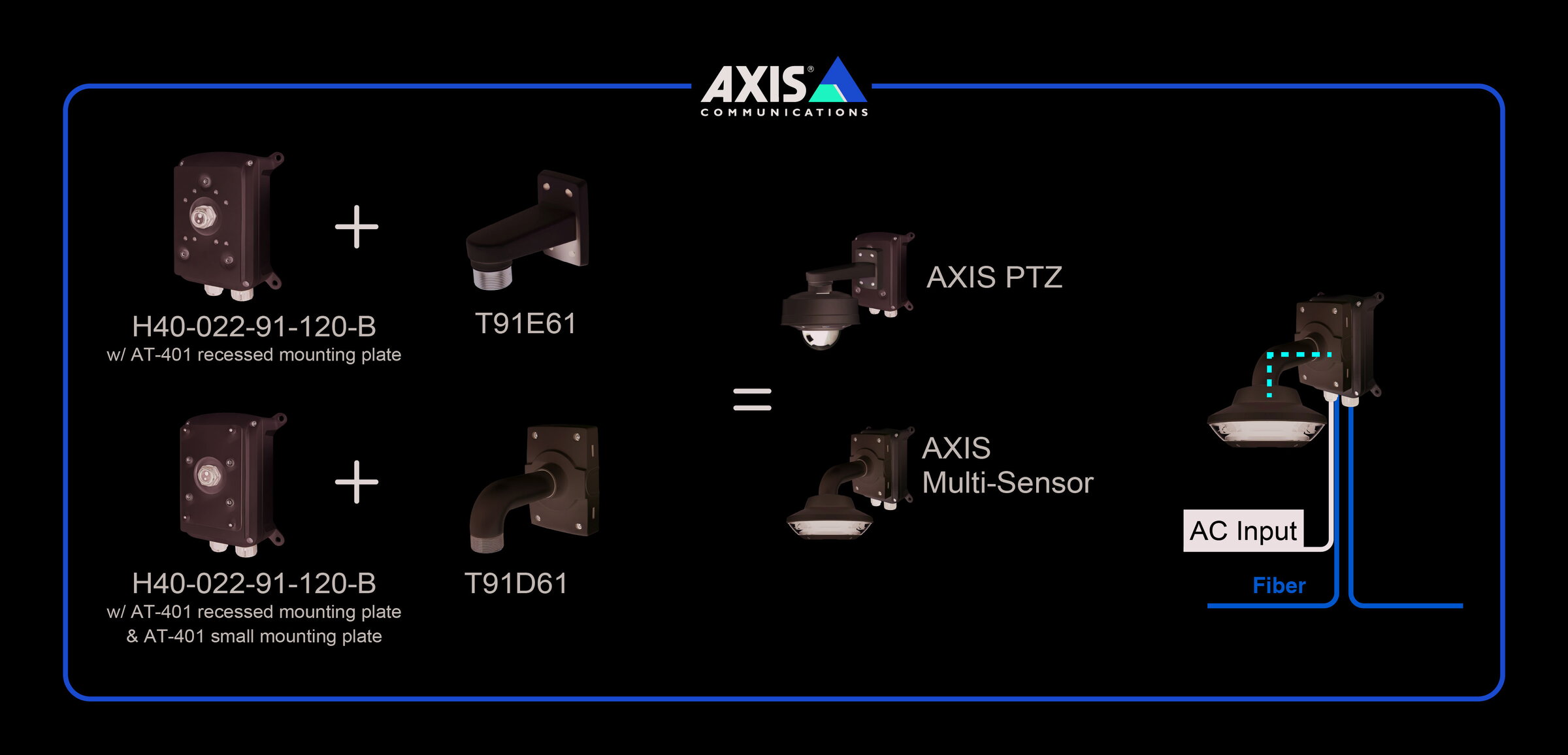

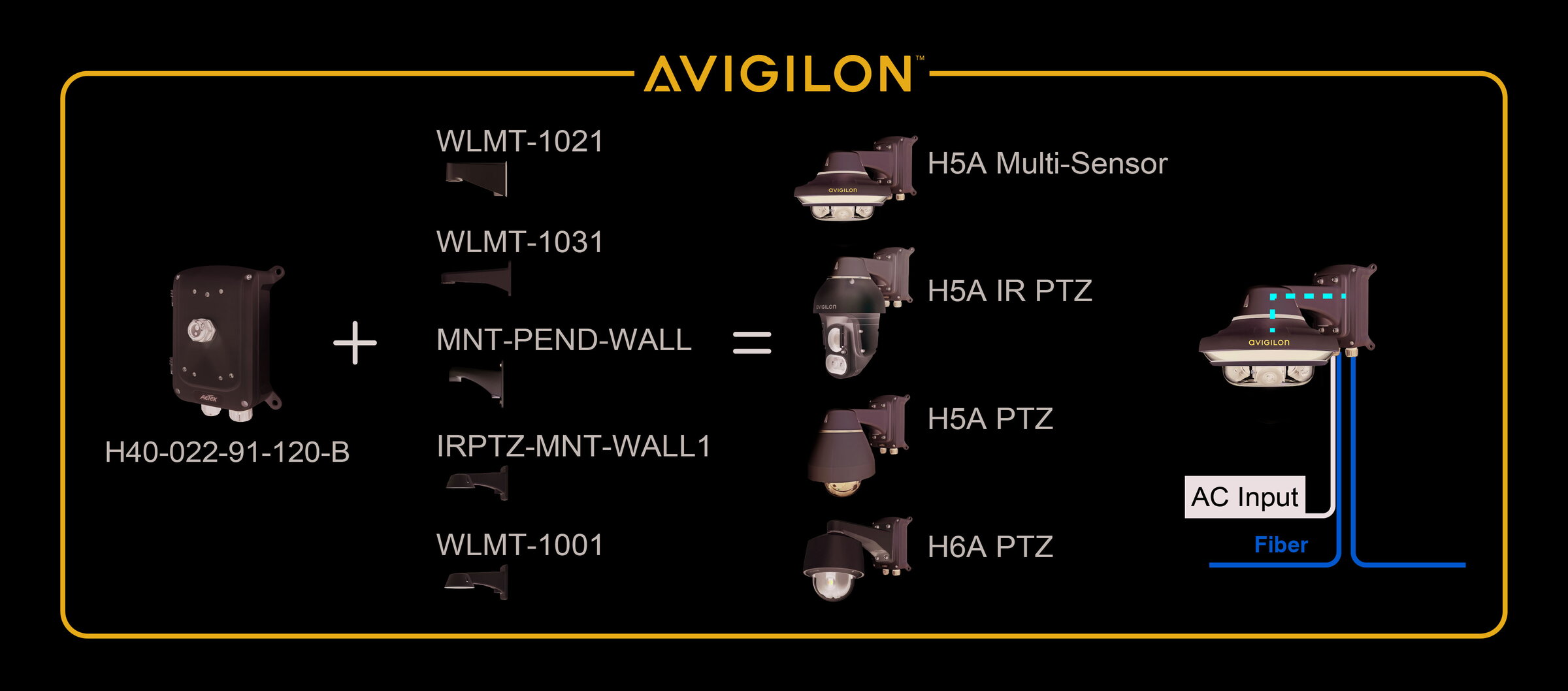

Avigilon cameras mount directly; the AT-401 and AT-402 adapter plates cover Axis and Hanwha. The PoE budget is 120 W, the switching capacity 8 Gbit/s and the power draw without PoE 5 W.
The housing meets IP67 and IK10 and the switch works between -40 °C and 65 °C, so it is built for unprotected outdoor use. Every Ethernet port carries 6 kV of surge protection and the AC supply 40 kV. Besides 100 to 240 V AC the switch accepts 48 to 56 V DC as a backup and changes over by itself if the main supply fails.
- Two PoE ports to IEEE 802.3bt up to 90 W
- Two SFP slots for a fibre uplink
- For Avigilon, Axis and Hanwha PTZ and multi-sensor cameras
- Direct mounting on Avigilon, AT-401 and AT-402 adapters
- 120 W PoE budget, 8 Gbit/s switching capacity
- IP67, IK10, -40 °C to 65 °C, DC backup input
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (3)
- Certifications EMC
- CE, FCC, VCCI, C-Tick Class A
- Safety
- EN62368-1
- Surge
- EN61000-4-5
Environmental (5)
- Environmental IK Rating
- IK10
- Environmental IP Rating
- IP67
- Environmental – Operating Humidity
- 5% ~ 95% non-condensing
- Environmental – Operating Temperature
- -40°C ~ 65°C (-40°F ~ 149°F)
- Environmental – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical (2)
- Dimensions (W x D x H)
- 199.9 x 255.2 x 130 mm
- Mechanical Weight
- 3.2 kg (7.05 lb)
Networking (7)
- Networking Forwarding Capacity
- 5.952Mpps
- Networking Jumbo Frames
- 9,216 Bytes
- Networking Mac Table
- 8K
- Networking Switching Capacity
- 8 Gbps
- Networking – Gigabit Ethernet 802.3af/at/bt PoE Ports
- 2 x 90W bt PoE
- Networking – Gigabit Ethernet SFP Ports (100M/1G)
- 2
- Networking – Total Gigabit Ethernet Ports
- 4
Power (5)
- PoE Output Power Budget
- 120W
- Power – Input Voltage 100~240VAC and 48-56VDC Backup Input Power Output Power per PoE Port PoE IEEE 802.3af (Max. 15.4W) PoE+ IEEE 802.3at (Max. 30W) PoE++ IEEE 802.3bt (Max. 90W) Output PoE Power Pin Assignment
- 12(-), 36(+), 45(+), 78(-)
- Surge Protection for AC power
- 10KV
- Surge Protection per PoE Port
- 6KV
- System Power Consumption
- 5W
