Outdoor IP67/IK10 4-Port 30W PoE + 2-Port SFP + 2-Port RJ45 Gigabit PoE Switch
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 850 nm, reach up to 0,5 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 850 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 0,5 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot
In stock, ships immediately · delivery 1-2 days
1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 1310 nm, reach up to 2 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 1310 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 2 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot
In stock, ships immediately · delivery 1-2 days
Industrial-grade SFP transceiver for gigabit links over single-mode fibre. It runs at 1.25 Gbps on a centre wavelength of 1310 nm and reaches up to 40 km on 9/125 µm fibre, with an LC connector. The DFB laser diode transmits at -3 to 3 dBm, the receiver works between -3 and -24 dBm, and supply voltage is 3.3 V. Operating and storage range are -40 °C to 85 °C at 5 to 90 % humidity, non-condensing, which covers cabinets without climate control. Form factor 55.9 x 14.69 x 12.39 mm, MSA compliant, certified to IEC 825, EN 60825-1 and FDA 21 CFR 1040.10 and 1040.11.
Not in stock · delivery 2-3 weeks

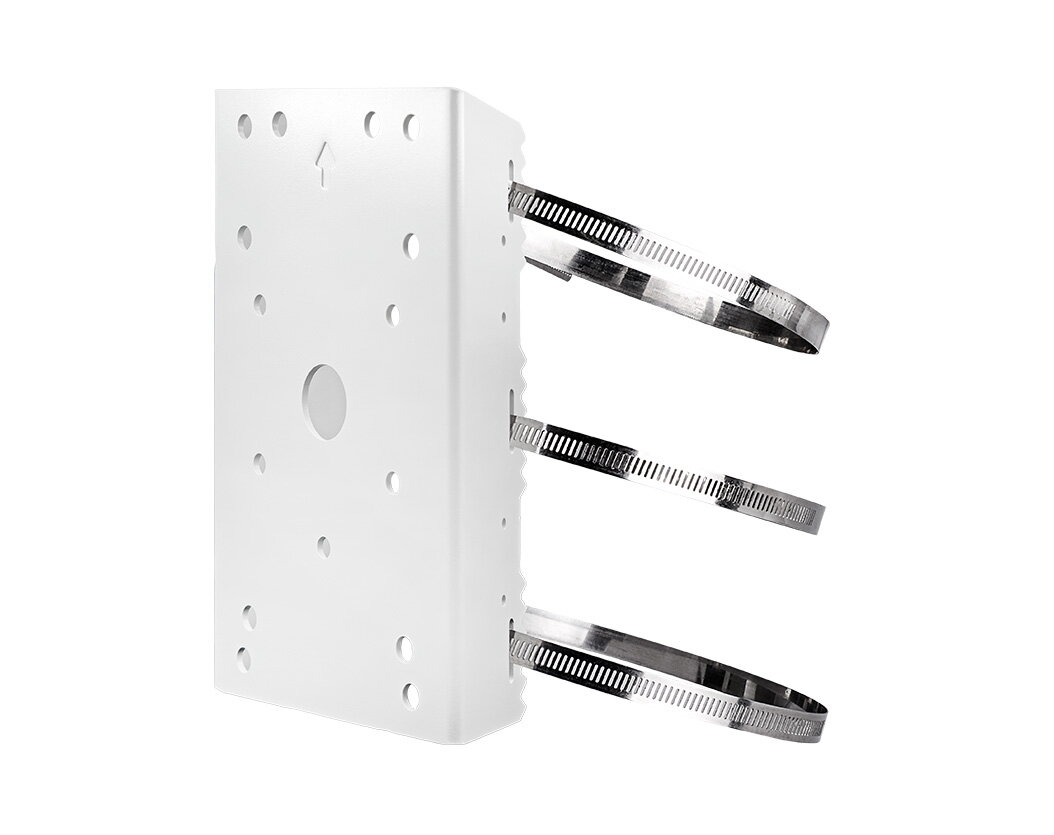

Pole mount adapter for the AETEK outdoor range. It takes the A10, A50, P20, P60, M20 and M60 enclosures, the JB-100, JB-110 and JB-200 junction boxes, the PB-024-1AC and PB-024-2AC power boxes, the H21, H42, H40 and H60 outdoor switches and the I46 and I49 outdoor injectors. The adapter measures 156.7 × 68.9 × 240 mm and weighs 1.26 kg. Pole mount adapter for AETEK outdoor equipmentFor A10, A50, P20, P60, M20, M60 enclosuresFor JB-100, JB-110, JB-200 junction boxesFor H21, H42, H40, H60 outdoor switchesFor I46 and I49 injectors and PB-024 power boxes156.7 × 68.9 × 240 mm, 1.26 kg
In stock, ships immediately · delivery 1-2 days

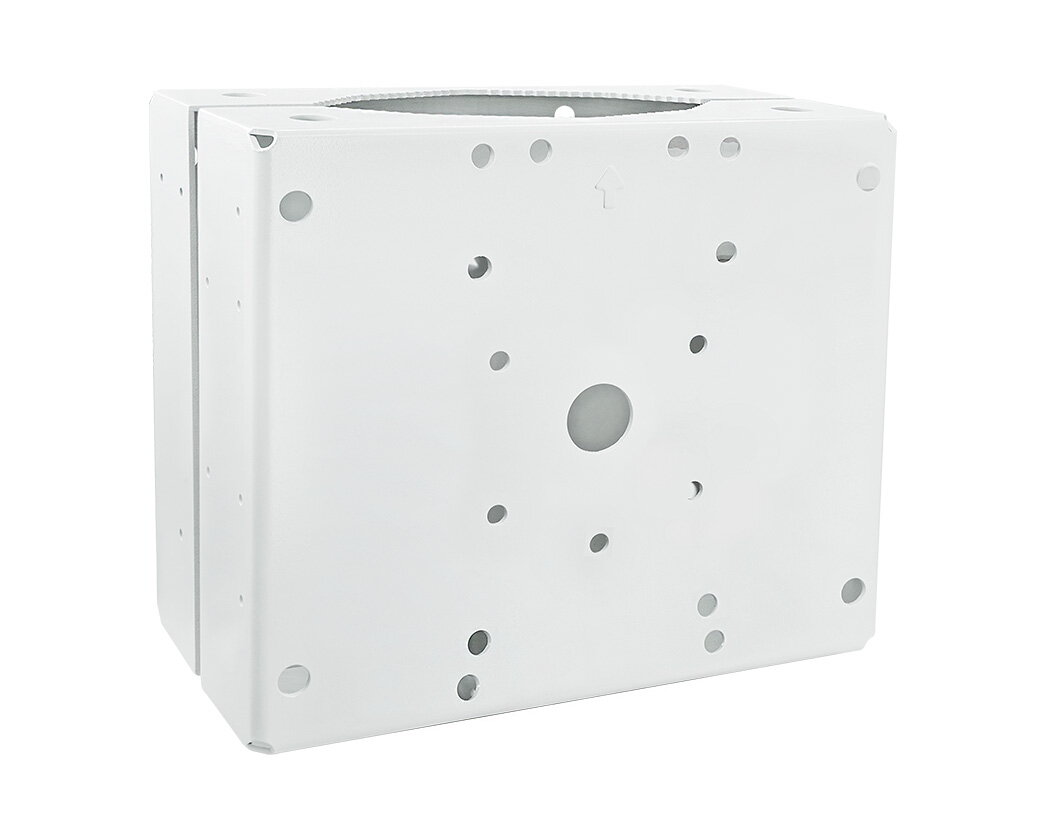

Retractable pole mount adapter for the AETEK outdoor range. Unlike the fixed AT-100 its length adjusts from 136 mm to 280.7 mm, so it takes pole diameters from 100 to 230 mm. It fits the same components as the fixed adapter: A10, A50, P20, P60, M20 and M60 enclosures, the JB-100, JB-110 and JB-200 junction boxes, the PB-024-1AC and PB-024-2AC power boxes, the H21, H42, H40 and H60 outdoor switches and the I46 and I49 injectors. Dimensions 136 × 275 × 240 mm, weight 4.85 kg. Retractable pole mount adapter, 136 to 280.7 mmFor pole diameters 100 to 230 mmFor A10, A50, P20, P60, M20, M60 enclosuresFor JB-100, JB-110, JB-200 junction boxesFor H21, H42, H40, H60 switches and I46, I49 injectors136 × 275 × 240 mm, 4.85 kg
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- AETEK
- Article number
- H40-044-30-150-V3
- EAN / GTIN
- 4711502640385
Description

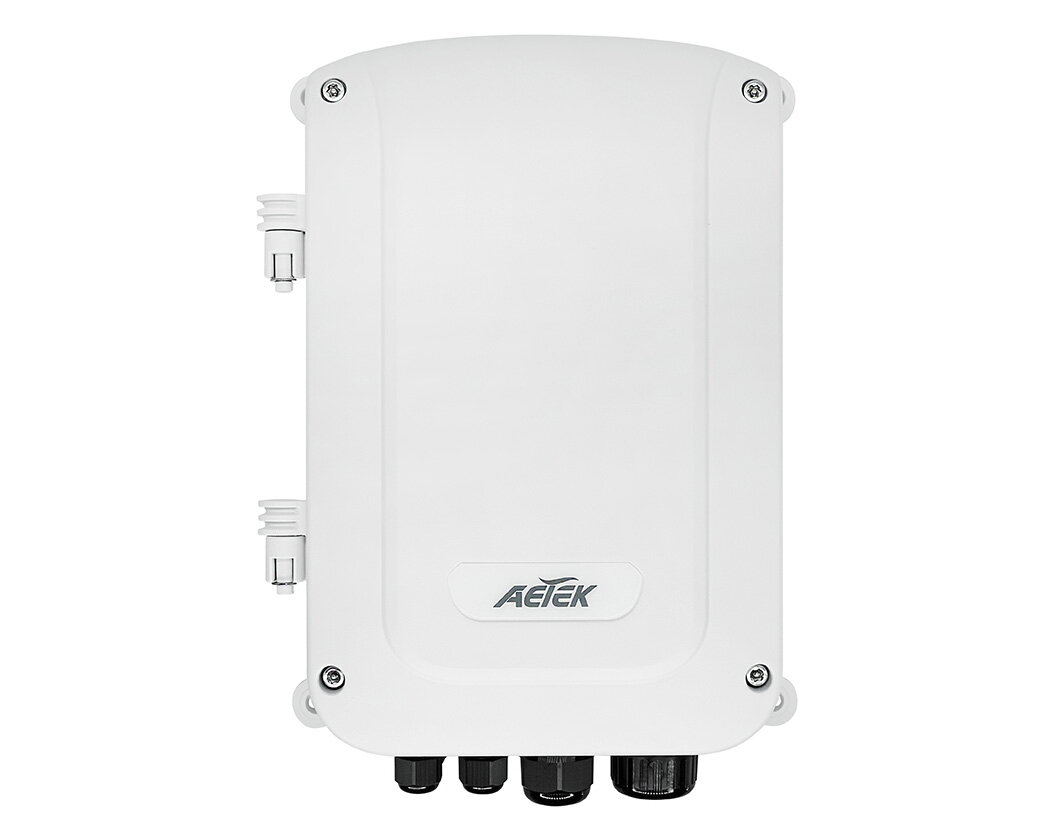

Outdoor switch with four Gigabit PoE ports up to 30 W, two additional Gigabit RJ45 ports and two SFP slots for the uplink.
The supply delivers 150 W of which 120 W is available as PoE budget; the switching capacity is 16 Gbit/s. At idle the switch draws 7.6 W at 110 V and 10 W at 240 V.
The housing meets IP67 and IK10 and the switch works between -40 °C and 65 °C, so it is built for unprotected outdoor use. Every Ethernet port carries 6 kV of surge protection and the AC supply 40 kV. Besides 100 to 240 V AC the switch accepts 48 to 56 V DC as a backup and changes over by itself if the main supply fails.
- Four Gigabit PoE ports up to 30 W
- Two additional Gigabit RJ45 ports
- Two SFP slots for a fibre uplink
- 150 W supply, 120 W PoE budget
- 16 Gbit/s switching capacity
- IP67, IK10, -40 °C to 65 °C, DC backup input
Made by

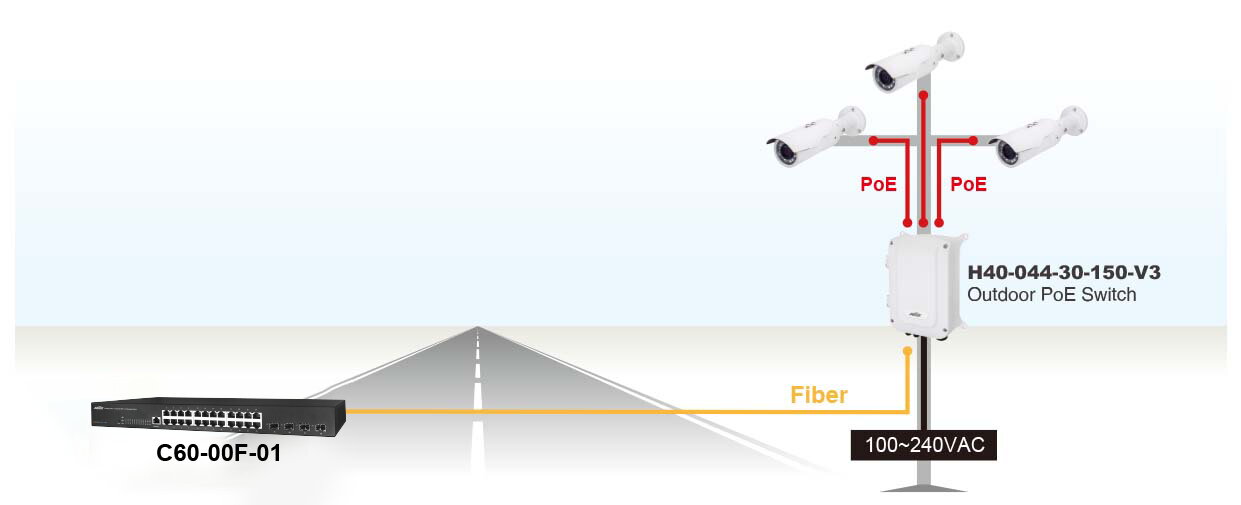

AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental limits (4)
- Environmental limits – Operating Humidity
- 5% ~ 95% non-condensing
- Environmental limits – Operating Temperature
- -40°C ~ 65°C (-40°F ~ 149°F)
- Environmental limits – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- IP Rating / IK Rating
- IP67 / IK10
Mechanical (3)
- Dimensions (W x D x H)
- 245.8 x 315.4 x 118 mm (9.7 x 12.4 x 4.6 in)
- Mechanical Weight
- 4.2 kg (9.26 lb)
- Mechanical – Connectors PF 3/4 x1 M25 cable gland with 5x5mm holes x1 M16 cable gland with x6.5mm hole x4 Cooling Fan
- Fanless
Networking (8)
- Gigabit Ethernet RJ45 Ports
- 2
- Networking Forwarding Capacity
- 11.904Mpps
- Networking Jumbo Frames
- 9,216 Bytes
- Networking Mac Table
- 8K
- Networking Switching Capacity
- 16 Gbps
- Networking – Gigabit Ethernet 802.3af/at PoE Ports
- 4
- Networking – Gigabit Ethernet SFP Ports (100M/1G)
- 2
- Networking – Total Gigabit Ethernet Ports
- 8
Optional Accessories (3)
- Fiber Splice Tray
- AT-303-V2
- Mounting Brackets
- AT-100 / AT-101 / AT-200
- SFP Module
- SFP Module Model Table
Power (7)
- Power – Input Power 100~240V AC and 48-56V DC Backup Input Power ESD
- Contact ±6 KV, Air ±8 KV
- Power – Output Power per PoE Port PoE IEEE 802.3af (Max. 15.4W) PoE+ IEEE 802.3at (Max. 30W) Output PoE Power Pin Assignment
- 12(+), 36(-)
- Power – Power Supply
- 150W
- Power – Standby Power Consumption 110V AC: 7.6W 240V AC: 10W PoE Output Power Budget
- 120W
- Power – Surge Protection for AC Power Input
- 40KV
- Redundant Mode
- AC Primary / DC Secondary
- Surge Protection per PoE Port
- Common mode : ±6 KV
Regulatory/ Approvals (4)
- Regulatory/ Approvals EMC
- CE, FCC, VCCI, C-Tick Class A
- Regulatory/ Approvals MTBF
- > 50000 hours
- Regulatory/ Approvals Safety
- EN62368-1
- Regulatory/ Approvals Surge
- EN61000-4-5
