IP Speaker / Microphone / LED Combo
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
Conduit hole adaptor made of aluminium and finished in white to RAL9003. It measures 54.1x43.5x40mm and weighs 27g. The conduit hole has a diameter of 19.1mm and corresponds to M25. Listed supported products are QNV-C6083R, QNV-C8083R, QNV-C9083R and PNM-C16013RVQ. Aluminium, white RAL9003Dimensions 54.1x43.5x40mmWeight 27gConduit hole 19.1mm (M25)For QNV-C6083R, QNV-C8083R, QNV-C9083R, PNM-C16013RVQ
Not in stock · delivery 3-4 days

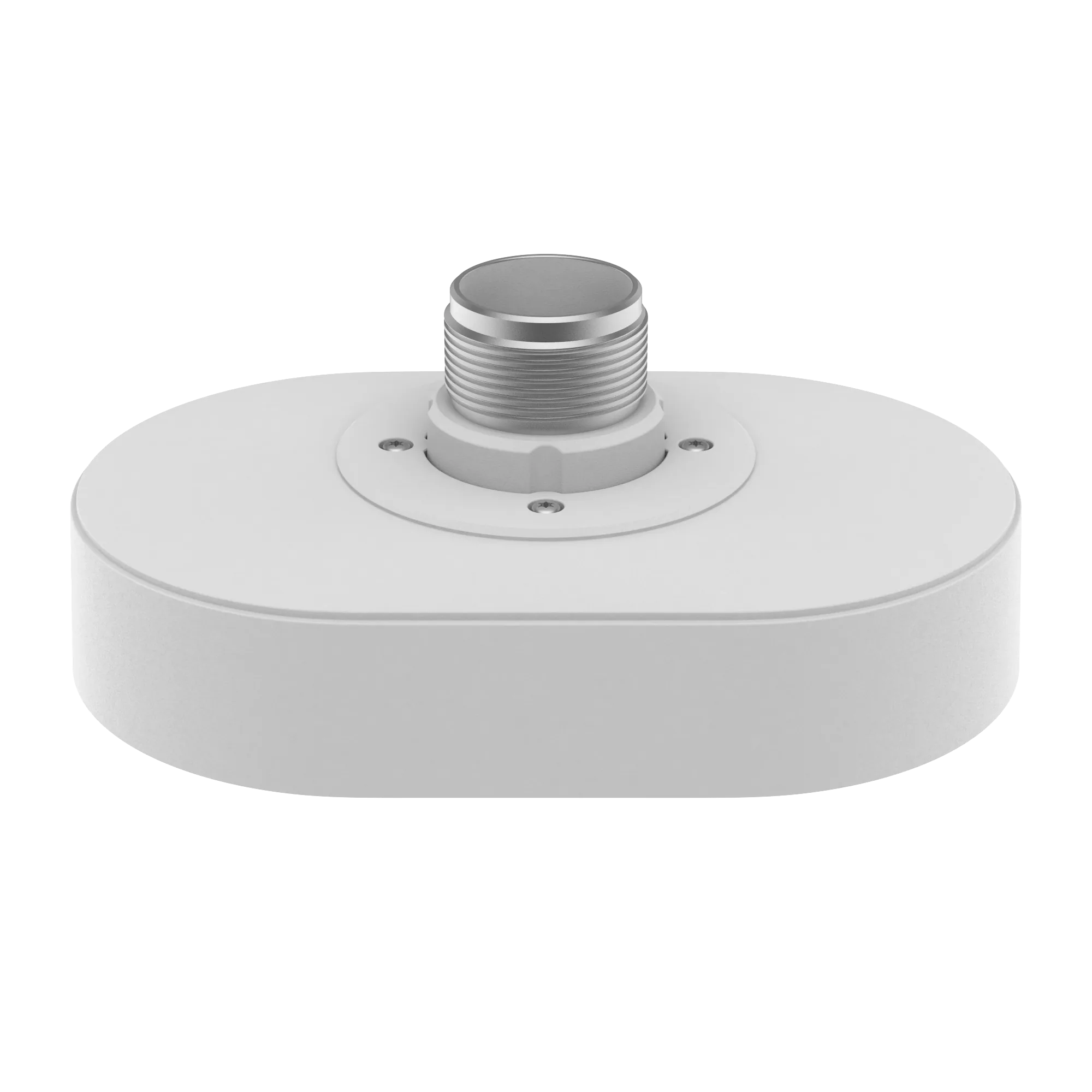

The SBP-215HMW is a hanging adaptor made from polycarbonate (PC) and aluminium in white to RAL9003. It measures 226.9 x 92.5 x 146.9 mm and weighs 275 g. TR20 is specified as the mount screw size and the maximum load is 3 kg. The manufacturer lists the PNM-C12083RVD and the PNM-C7083RVD as supported cameras, with further compatible models available. Hanging adaptor in PC and aluminiumWhite RAL9003226.9 x 92.5 x 146.9 mmWeight 275 gMount screw size TR20, 3 kg loadFor PNM-C12083RVD and PNM-C7083RVD
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SPS-A100M
- EAN / GTIN
- 8801089234506
- Weight
- 1.19 kg
- Dimensions (W×H×D)
- 252 × 189 × 93 mm
Description

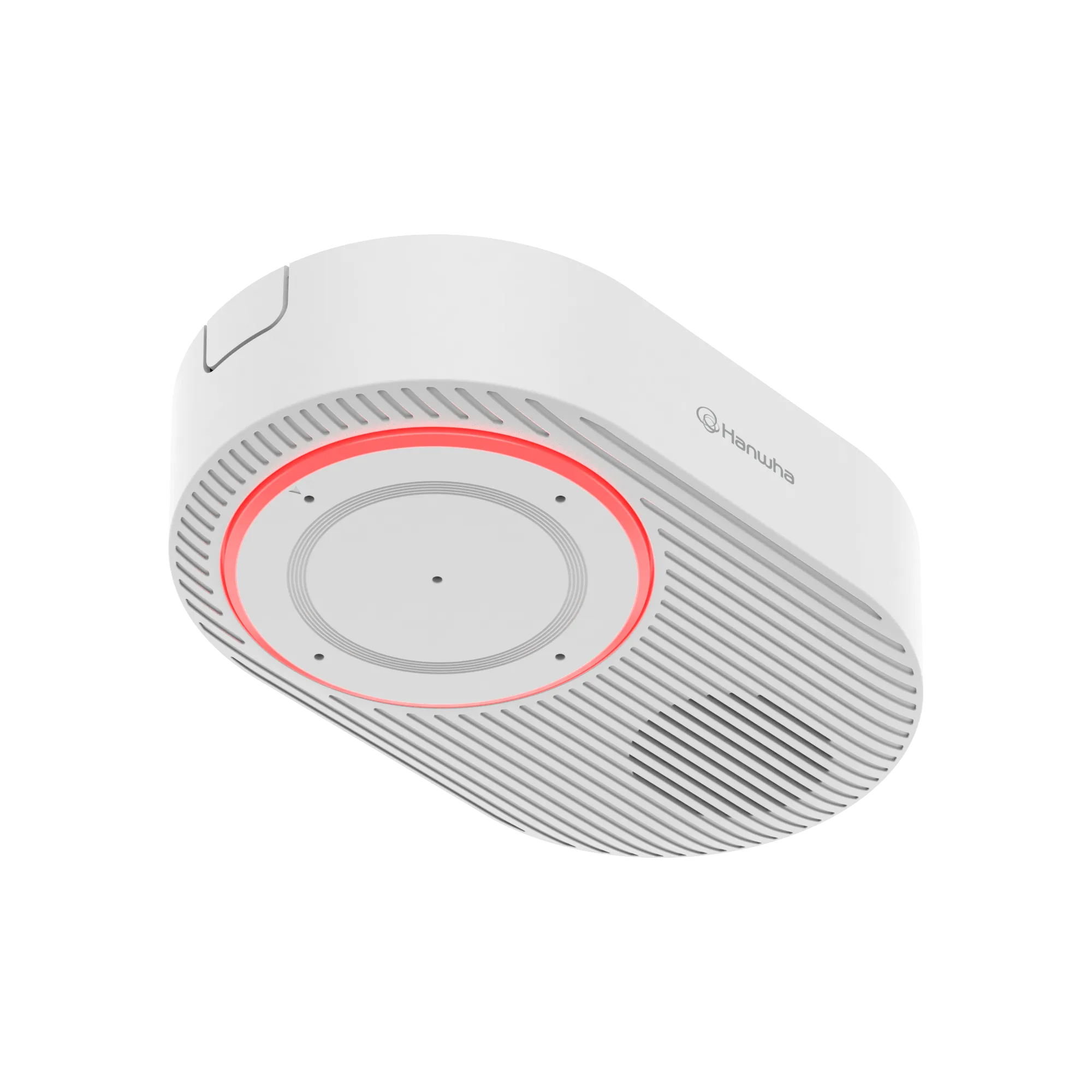

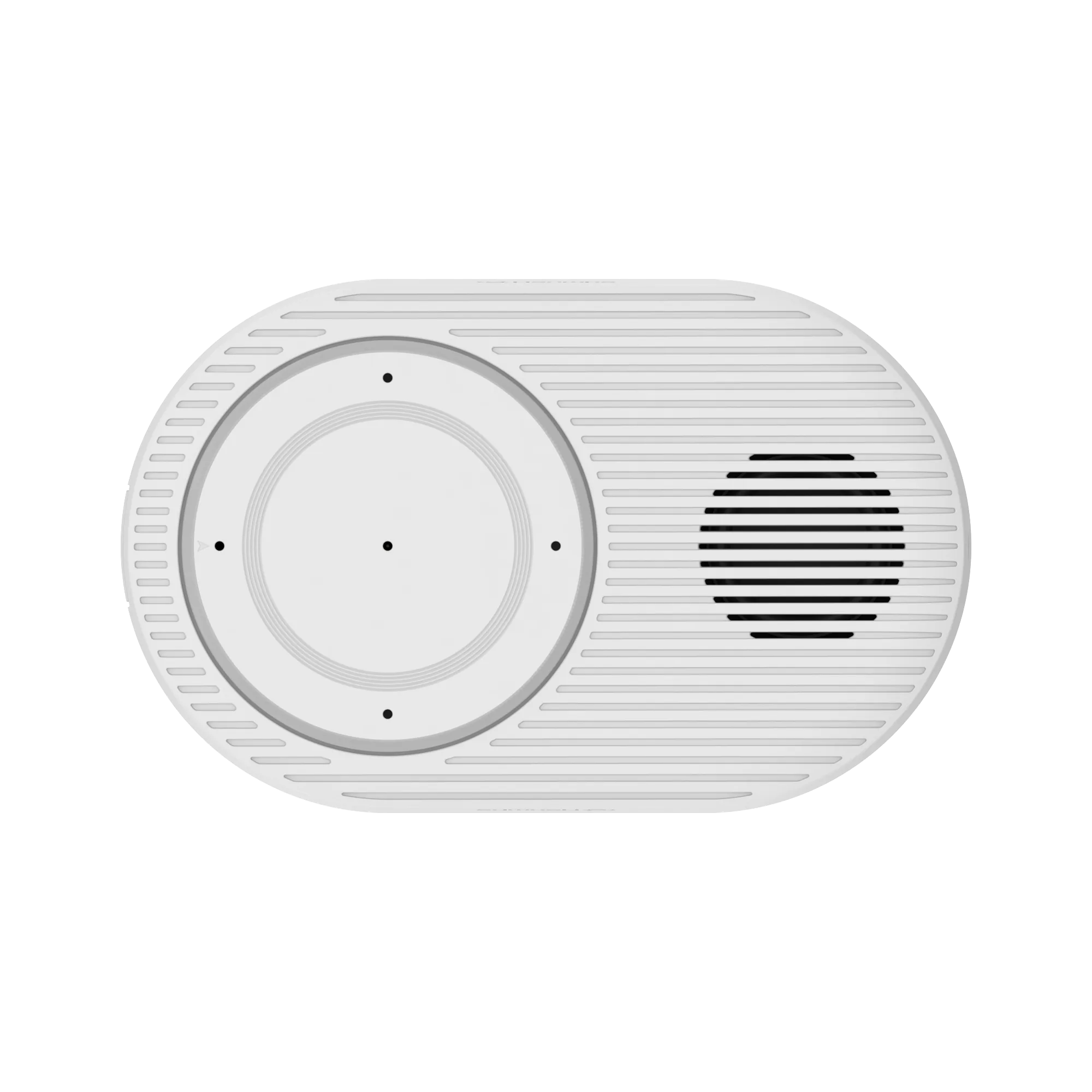

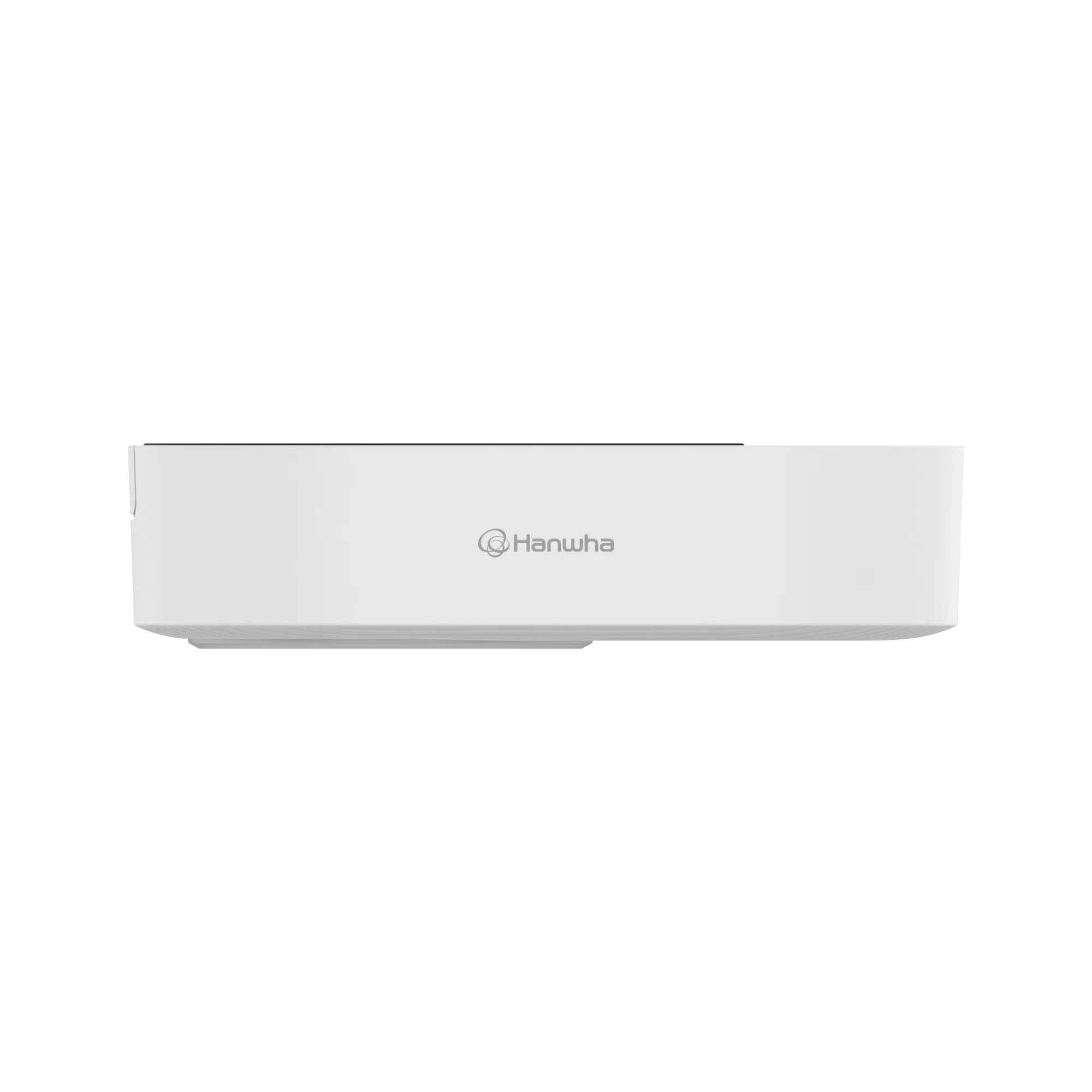

The SPS-A100M is an audio beacon fitted with five built-in MEMS microphones and a speaker rated at a maximum sound pressure level of 90dB at 1m(3.28ft) across a frequency range of 144Hz~20kHz. Audio streaming is selectable between two-way and one-way, runs full duplex and applies echo cancellation and noise reduction. AI-based sound classification distinguishes crashing glass, screaming, vehicle horn and tire screech, returning metadata for sound type, sound direction, confidence, timestamp, best sound audio file and dB(±10dB); ceiling mounting resolves direction to ±15 degrees. Alarm triggers include analytics, network disconnect, alarm input, app event, time schedule and MQTT subscription, and a triggered event can upload audio by e-mail or FTP, send an e-mail notification, drive the alarm output or hand over to a PTZ preset. Two configurable I/O ports, an LED ring in green, blue, red, pink, sky blue and purple for event actions and RJ-45(10/100 BASE-T) with unicast for up to six users complete the device.
- Full-duplex two-way audio, one-way selectable
- Five built-in MEMS microphones
- Speaker with max. 90dB at 1m(3.28ft)
- AI-based sound classification with event metadata
- Sound direction ±15 degrees at ceiling mounting
- Six-colour LED ring for event action
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (4)
- Analytics – Analytics Events Based on AI Engine
- Sound classification
- Classified Sound Type
- Crashing glass, Screaming, Vehicle horn, Tire screech
- Event Metadata
- Sound type, Sound direction, Confidence, Timestamp, Best sound(audio file), dB(±10dB)
- Sound Direction
- Ceiling mounting: ±15 degrees
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A
- Certifications & Standards – Environment
- IEC/EN 63000
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC/EN 62471
Environmental & Electrical (6)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -20°C~+55°C(-4°F~+122°F)
- Environmental & Electrical / Power Consumption – PoE
- Max 18.5W, typical 8.2W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4)
General (2)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Mechanical (7)
- Compatible Conduit Hole
- Support conduit compatibility via optional adaptor
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Plastic, Aluminum
- Mechanical – Product Dimensions
- 215.1(W)x135.1(D)x52.8(H)mm(8.47"x5.32"x2.08")
- Mechanical – Product Weight
- 973g(2.15 lb)
- Mechanical – RAL Code
- RAL9003
Network (8)
- Network / Application Programming Interface – ONVIF
- S
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform, AI Sound Classification pack included
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 6 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 16kHz(48kbps)
- Network – Ethernet
- RJ-45(10/100 BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT, SIP 2.0(RFC 3261 and companion RFCs)
Operational (7)
- Alarm Interface
- 2 configurable I/O ports
- Audio Streaming
- Two-way/one-way selectable, Full duplex, Echo cancellation, Noise reduction
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(audio): e-mail/FTP, Notification: e-mail, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback(6MB, WAV), MQTT: publication, LED, Speaker
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event(Sound classification), Time schedule, MQTT subscription, Case tampering
- Operational – Audio In
- Built-in MEMS 5mics
- Operational – Audio Out
- Built-in speaker, Max. Sound Pressure Level 90dB at 1m(3.28ft), Frequency Range: 144Hz~20kHz
- Operational – Light Type
- LED Ring(Green, Blue, Red, Pink, Sky blue, Purple), for event action
Security (10)
- Security Certificate
- Secure element(FIPS 140-3 level3, CC EAL6+)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- SRTP, HTTPS, WSS(WebSocket Secure)
- Security – Secure Storage
- Secure element
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (5)
- Max. Framerate Others
- Static image video
- Video / Max. Framerate – H.265/H.264
- 10fps
- Video / Max. Framerate – MJPEG
- 5fps
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- USB: Micro USB Type C, setting true north point using Wisenet installation
