IP Ceiling Speaker
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SPA-C100W
- EAN / GTIN
- 8801089187420
- Weight
- 3.05 kg
- Dimensions (W×H×D)
- 347 × 347 × 315 mm
Description

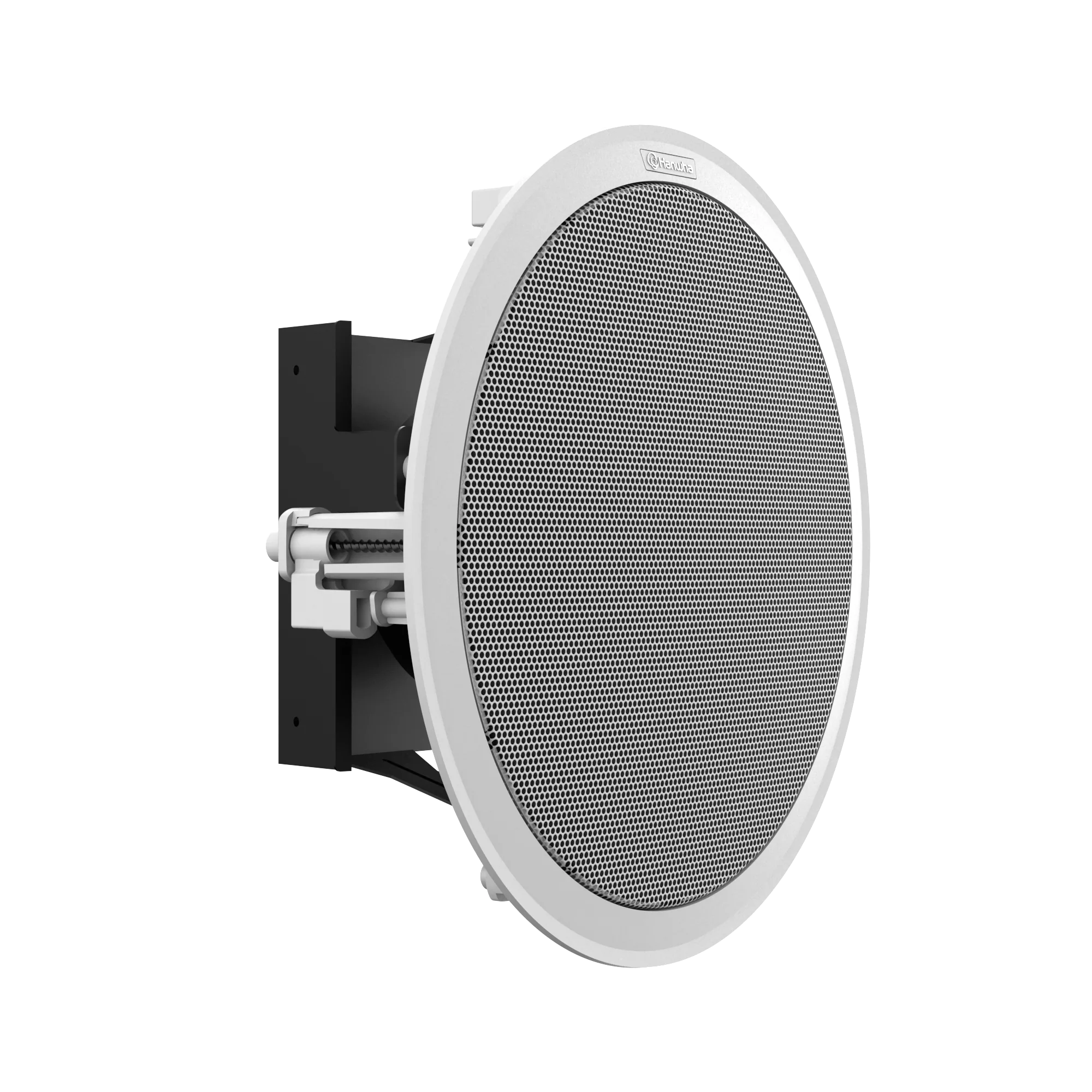

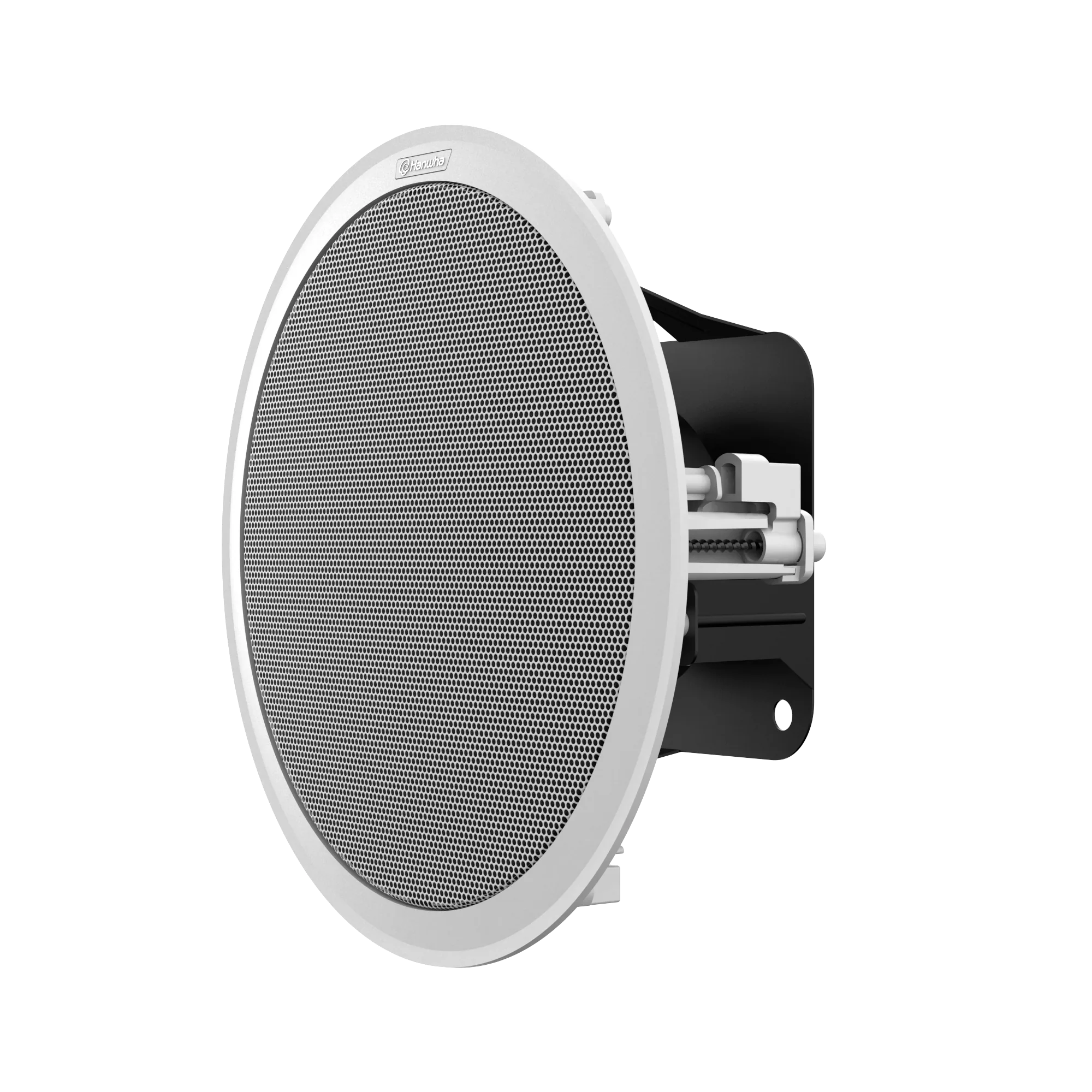

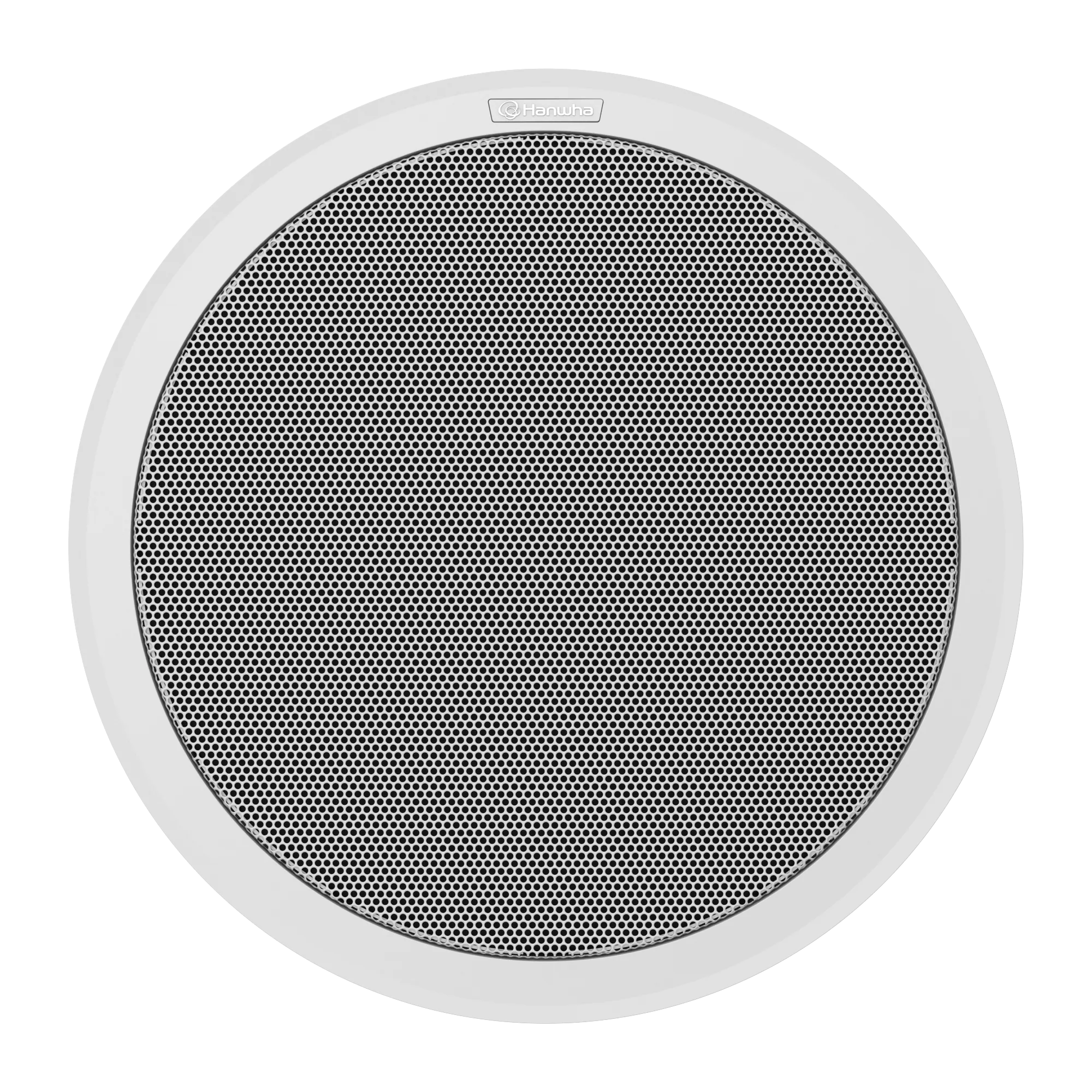

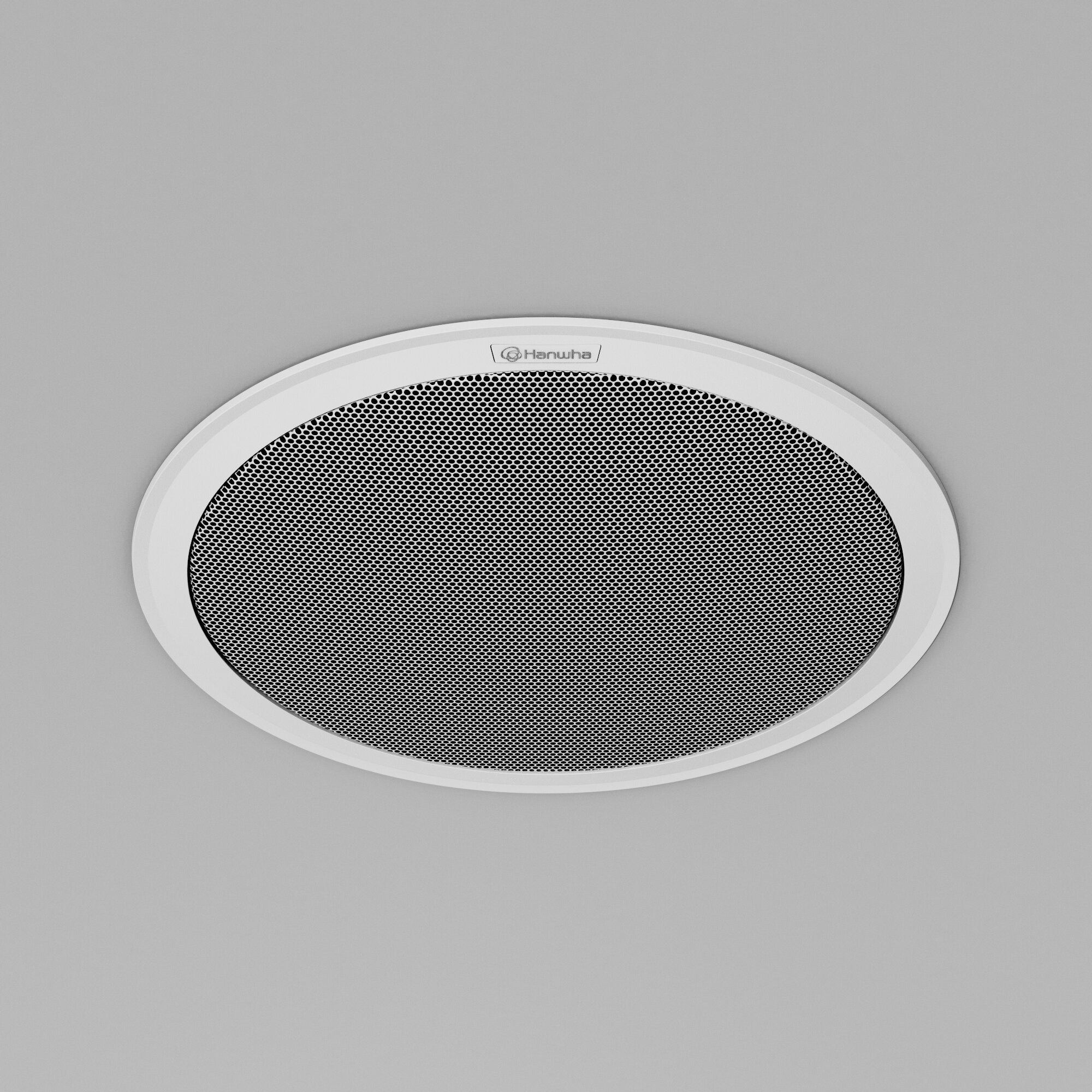

The SPA-C100W is an IP ceiling speaker in white with a built-in 10 W Class D amplifier and a 10/100 Base-T network connection. The line output provides +6 dBV within a 3 dB tolerance, frequency response covers 20 Hz to 20 kHz, distortion stays below 0.1 percent and the signal-to-noise ratio exceeds 91 dB. Acoustic figures are given as a maximum sound pressure level of 99 dB, a frequency range of 120 Hz to 20 kHz at -10 dB and a sensitivity of 90 dB at 1 watt. Audio files can be held in 1 GByte of internal memory or on a micro SD card, SDHC up to 32 GB (SANDISK), and one dry contact input plus one dry contact output are available. Power is supplied by PoE per IEEE 802.3af Type 1 Class 3 or PoE+ per IEEE 802.3at Type 2 Class 4. The enclosure measures 269 mm in diameter by 142.5 mm high, weighs 1.8 kg and is specified from -20 to +50 C at 10 to 85 percent non-condensing humidity.
- Built-in 10 W Class D amplifier
- Frequency response 20 Hz to 20 kHz
- Max. sound pressure level 99 dB
- Sensitivity 90 dB at 1 watt
- PoE 802.3af or PoE+ 802.3at
- 1 GByte internal memory
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Amplifier (1)
- Description
- Built in 10W Class D
Audio (1)
- Supported Audio Format
- WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz
Contact (2)
- Contact Input. Dry contact
- One Channel
- Contact Output. Dry contact
- One channel
Embeded MIC (2)
- Embeded MIC Frequency Response
- Sound Level Meter
- Input Sensitivity
- Sound Level Meter
General (7)
- Certificate
- EMC : KS C 9832/9835, EN 55032/55035, Safety : KC 62368-1
- General Color
- White
- General Operating Humidity
- 10~85%RH(Non-Condensing)
- General Operating Temperature
- -20°~+50°C(-4°F~+122°F)
- General Weight
- 1.8Kg (3.97lb)
- IP Code
- N/A
- Size
- ø269*142.5(H)mm
Line Ouput (4)
- Frequency Response
- 20Hz~20kHz
- Output Level
- +6 dBV ±3 dB
- S/N Ration (20kHz LPF, A-WTD)
- Greater than 91 dB
- THD + N Ration (AES17LPF)
- Less than 0.1%
Memory (2)
- External Memory (Micro SD)
- SDHC upto 32GB (SANDISK)
- Internal Memory
- 1 GBytes
Network (1)
- Network – Ethernet
- 10/100 Base-T
Network Protocol (2)
- Network Protocol Security
- Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log)
- Network Protocol – Supported Protocols
- IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP
Power (2)
- PoE+
- (IEEE 802.3 at type 2 Class 4)
- Power PoE
- PoE (IEEE 802.3 af type 1 Class 3)
Product (1)
- IP Audio Type
- IP Ceiling Speaker
Speaker (6)
- Coverage Pattern
- (HxV) : 90° (1 kHz) / 60° (4 kHz)
- Frequency Range (-10 dB)
- 120 Hz~20 kHz
- Max. Sound Pressure Level
- 96 dB
- Sensitivity (1 Watt)
- 90 dB
- Speaker Component
- 2 Way 8" LF Drive & 2" HF Driver. Passive type
- Speaker – Max. Sound Pressure Level (PoE+)
- 100 dB
System Integration (7)
- Audio Monitoring
- Speaker test by graphic level meter (Built in test tool)
- Event & Preset
- Virtual Contact, Dry contact
- Functional Monitoring
- Connection verification, Built-in system logging
- System Integration – Application Programming Interface
- SUNAPI(HTTP API), ONVIF Profile S
- System Integration – Multi-source Dynamic PA control
- Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 20 Zone Control (Unicast), Up to 255 Groups
- TTS
- English (US, UK), German, French, Spanish, Russian
- VoIP
- Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000
