3x 2MP Outdoor Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBP-250C covers the remaining hole after a camera has been fitted or taken down. The material is polycarbonate (PC) and the colour is white to RAL9003. At ø263 x 10 mm and 146 g the cover has a flat profile. The PNM-C16083RVQ and the PNM-C32083RVQ are given as supported products, and further compatible models are available. Mounting hole coverPolycarbonate (PC)White RAL9003ø263 x 10 mm, 146 gFor PNM-C16083RVQ and PNM-C32083RVQ
Not in stock · delivery 3-4 days

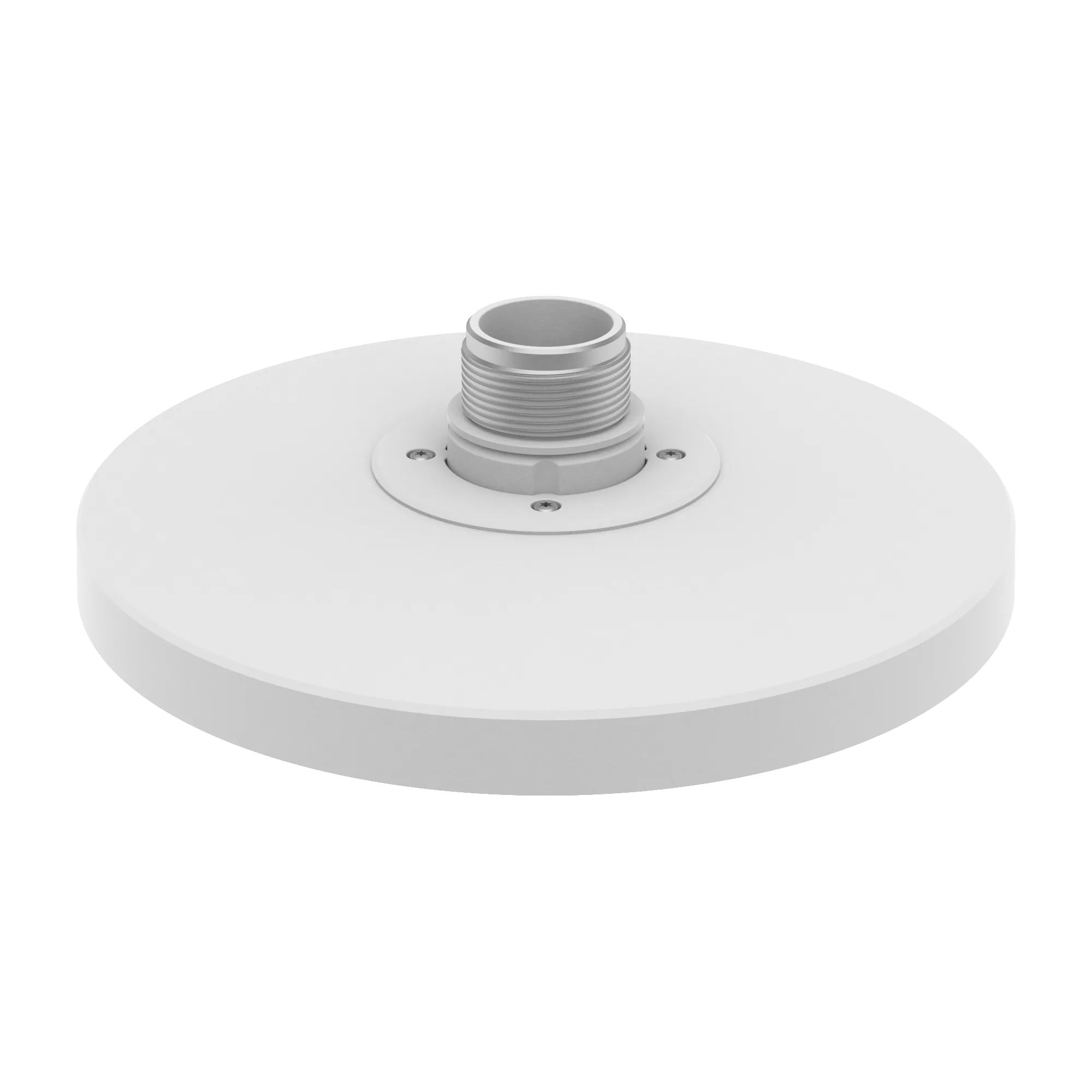

The SBP-250HMW acts as a hanging cap for the suspended installation of multi-sensor cameras. It combines polycarbonate (PC) with aluminium and is finished in white to RAL9003. Dimensions are ø265 x 74 mm at 450 g, the mount thread size is PF 1 1/2 inch male and the mount screw size is TR20. Maximum load is rated at 3.5 kg. Supported cameras are PNM-9084QZ, PNM-9084QZ1, PNM-C16083RVQ and PNM-C32083RVQ. Hanging cap in PC and aluminiumWhite RAL9003ø265 x 74 mm, 450 gMount thread PF 1 1/2 inch maleMount screw size TR20, 3.5 kg loadFor PNM-9084QZ, PNM-C16083RVQ, PNM-C32083RVQ
Not in stock · delivery 3-4 days

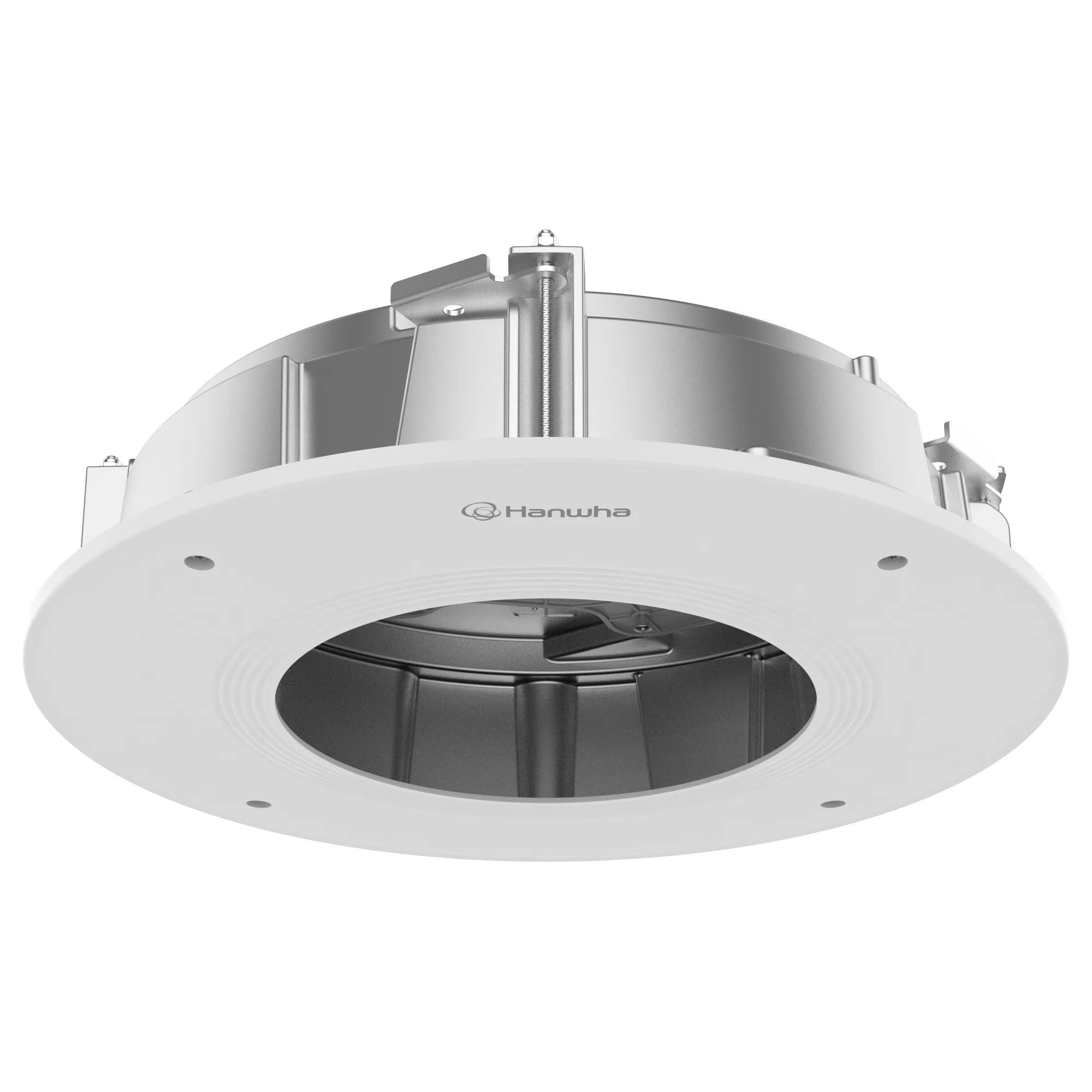

The SHD-2510FPW is an in-ceiling housing with an aluminium body and a rim made of PC (polycarbonate). It is finished in white to RAL9003. At ø352x106mm (ø13.86x4.17") and a weight of 2100g (4.63lb) it is one of the larger ceiling enclosures in the range. It is intended for the camera models PNM-9084QZ and PNM-8082VT. In-ceiling housingBody aluminium, rim PC (polycarbonate)White RAL9003ø352x106mm (ø13.86x4.17") / 2100g (4.63lb)For PNM-9084QZ, PNM-8082VT
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- PNM-8082VT
- EAN / GTIN
- 8801089216403
- Weight
- 3.26 kg
- Dimensions (W×H×D)
- 329 × 319 × 186 mm
Description

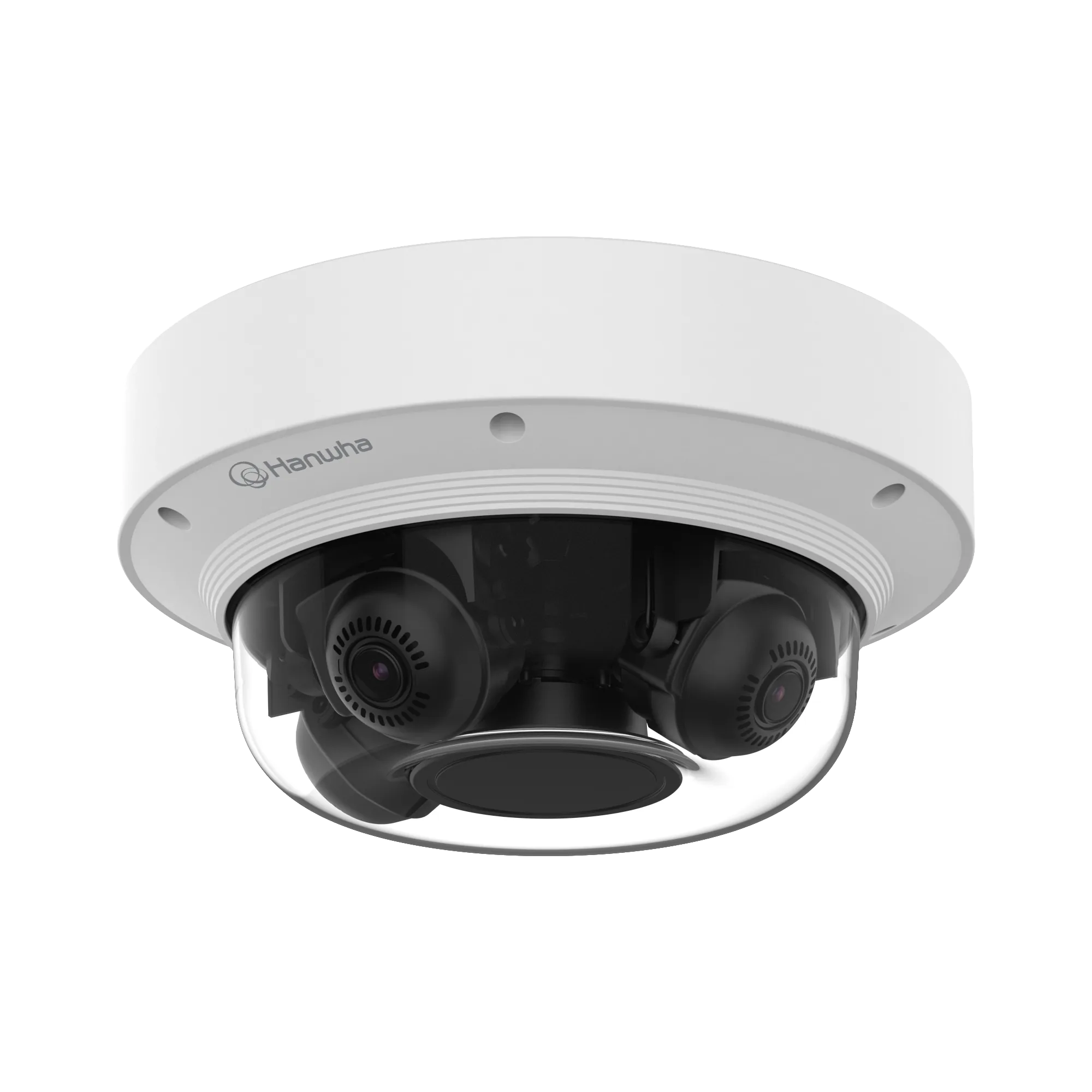

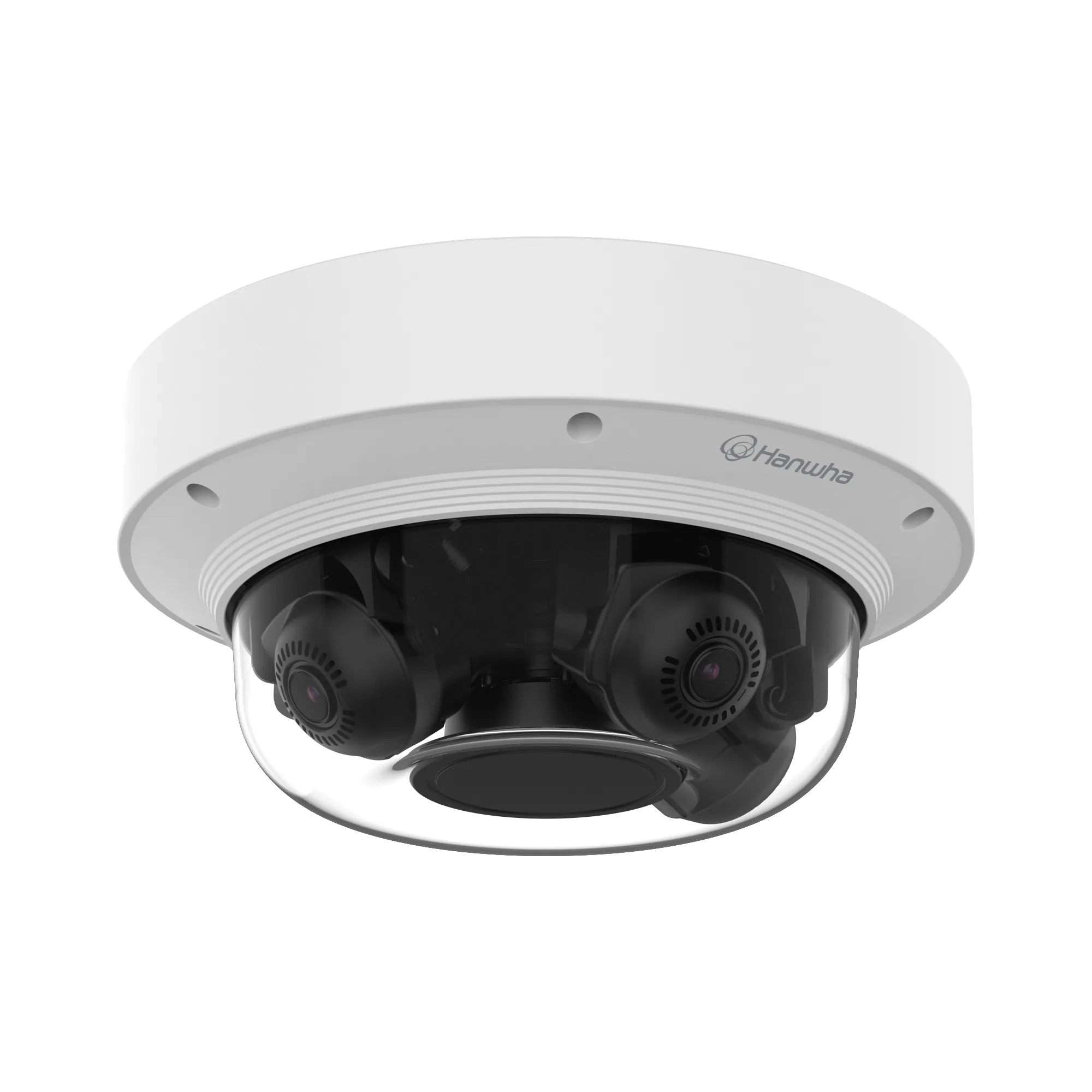

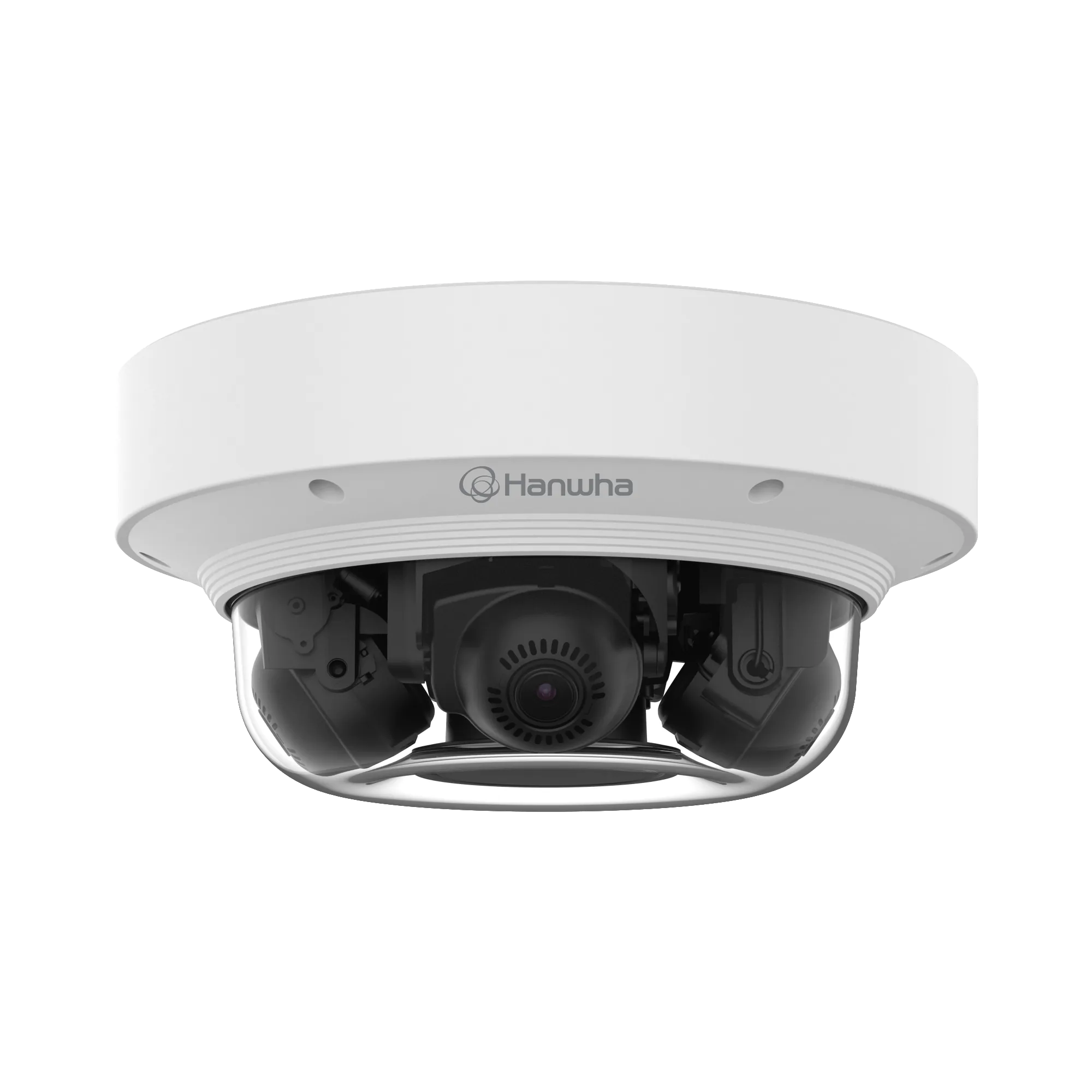

The PNM-8082VT brings together three 2MP channels in one multi-directional H.265 camera. Every channel uses a 1/2.8-inch CMOS sensor with a maximum of 1920x1080 pixels and reaches 30fps/25fps (60Hz/50Hz) in H.265 and H.264 plus 30fps in MJPEG, with multiple streaming available. The motorised 3.0 to 6.0 mm varifocal lenses with 2x zoom open to F2.2 and F3.1 respectively and span 107° to 56° horizontally. Low-light performance is stated as 0.04 lux in colour and 0.004 lux in black and white, with automatic ICR switching. Video analytics, WiseStream II and IP66, IK10 and NEMA4X ratings are included, while a CVBS output assists during installation.
- Three 2MP channels
- Max. 1920x1080 at 30fps
- 3.0-6.0 mm varifocal, 2x optical
- Video analytics and WiseStream II
- IP66, IK10, NEMA4X
- CVBS output for installation
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
Certifications & Standards (1)
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 71.8m(28.27ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 28.4m(11.18ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 7.8m(3.07ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 2.8m(1.10ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 28.7m(11.30ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 11.4m(4.49ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 14.4m(5.67ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 5.7m(2.24ft)
Environmental & Electrical (6)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max : 16.5W, Typical : 8.2W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 126°~64°
- Lens / Angular Field of View – Horizontal
- 107°~56°
- Lens / Angular Field of View – Vertical
- 57°~31°
- Lens / Max Aperture Ratio (F number) – Tele
- 3.1
- Lens / Max Aperture Ratio (F number) – Wide
- 2.2
- Lens / Zoom Ratio – Optical
- 2x
- Lens – Focal Length (mm)
- 3~6
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- Fixed iris
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 19.1mm(3/4")(M25)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- Ø251x116.5mm
- Mechanical – Product Weight
- 3,000g(6.61lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (19)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – LDC
- Support
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 150
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~90°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~73°
Security (8)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP)
- Security – Secure Communication
- HTTPS, SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.004
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.04
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
