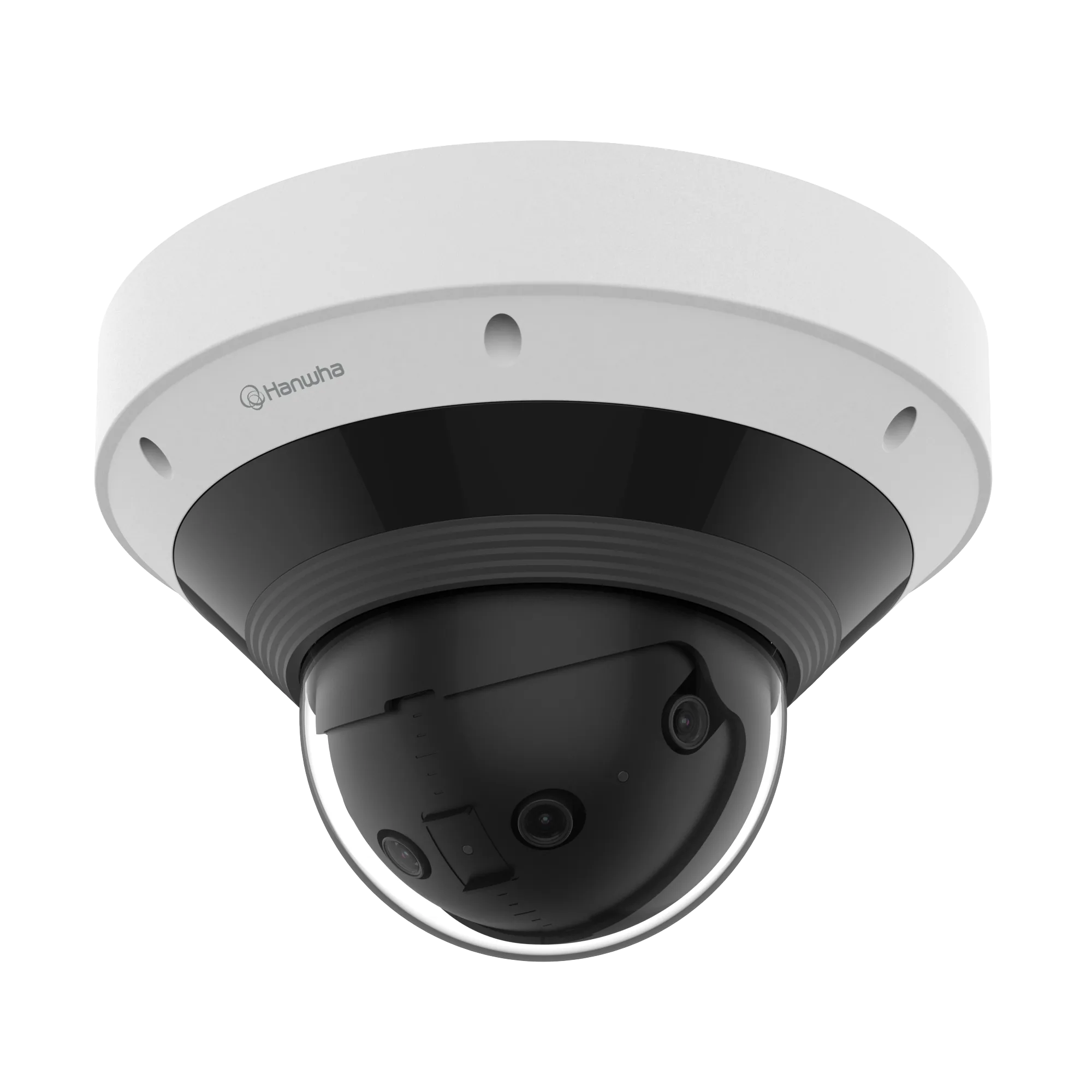

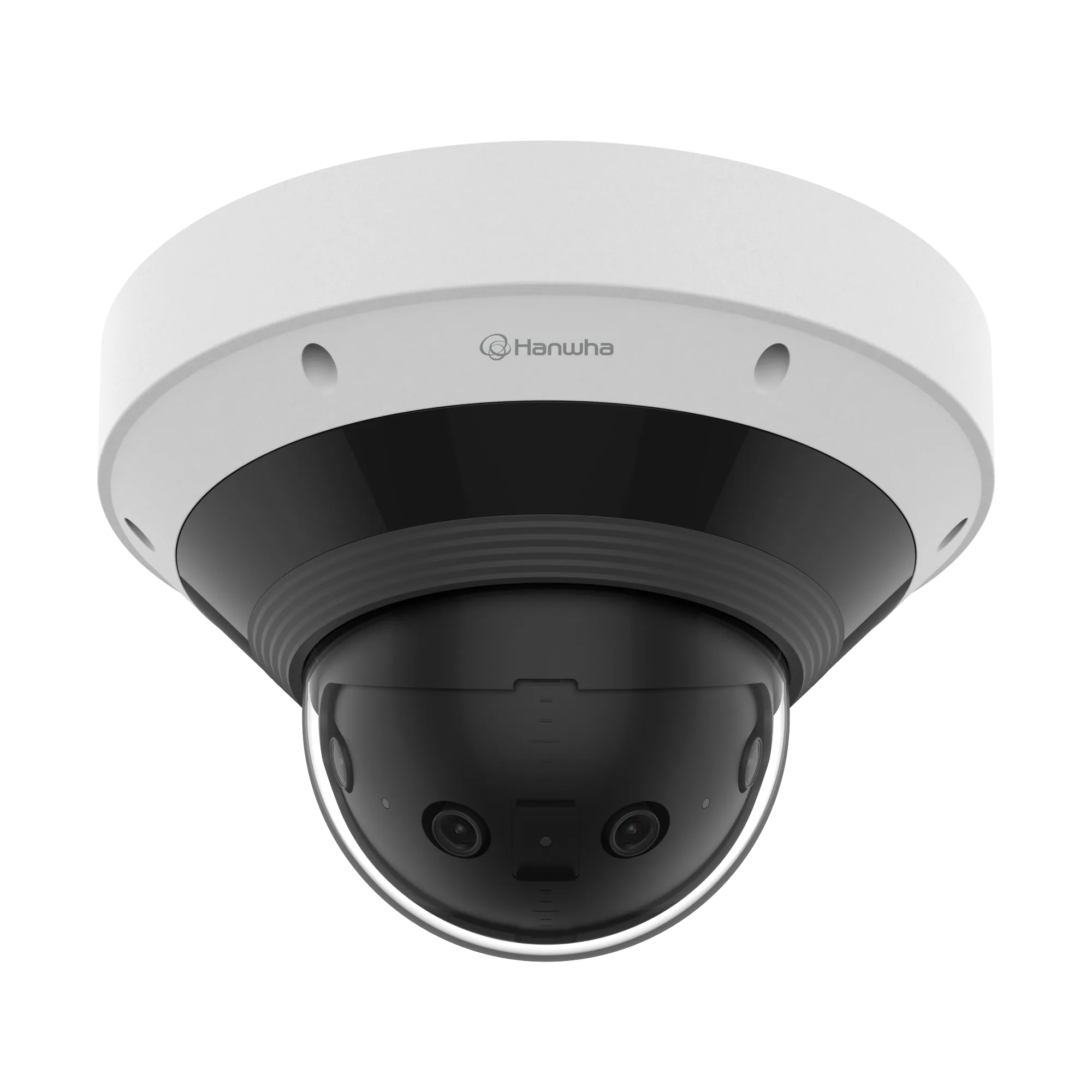

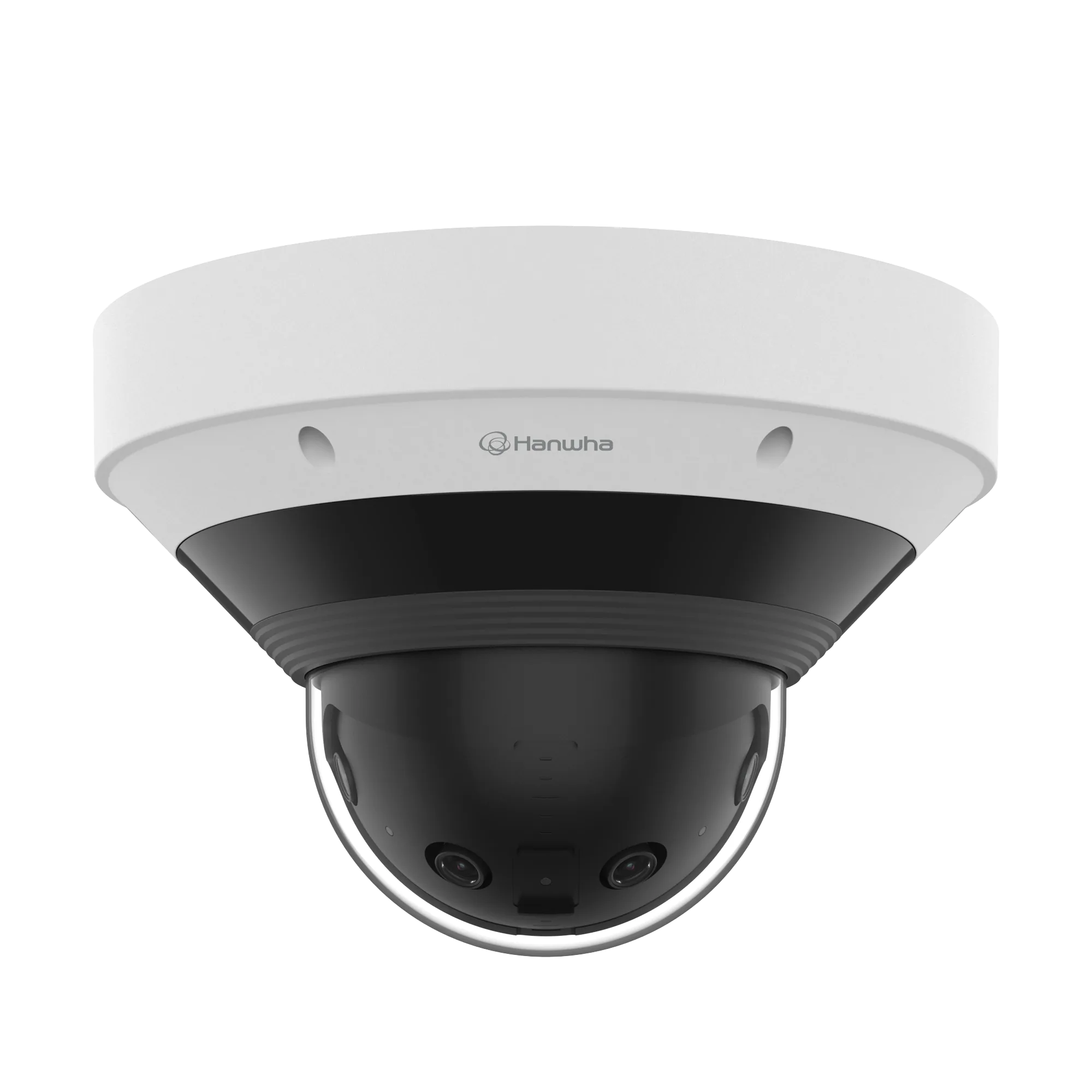

8MP AI IR Panoramic Outdoor Vandal Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBP-250C covers the remaining hole after a camera has been fitted or taken down. The material is polycarbonate (PC) and the colour is white to RAL9003. At ø263 x 10 mm and 146 g the cover has a flat profile. The PNM-C16083RVQ and the PNM-C32083RVQ are given as supported products, and further compatible models are available. Mounting hole coverPolycarbonate (PC)White RAL9003ø263 x 10 mm, 146 gFor PNM-C16083RVQ and PNM-C32083RVQ
Not in stock · delivery 3-4 days
The SBP-250HMW acts as a hanging cap for the suspended installation of multi-sensor cameras. It combines polycarbonate (PC) with aluminium and is finished in white to RAL9003. Dimensions are ø265 x 74 mm at 450 g, the mount thread size is PF 1 1/2 inch male and the mount screw size is TR20. Maximum load is rated at 3.5 kg. Supported cameras are PNM-9084QZ, PNM-9084QZ1, PNM-C16083RVQ and PNM-C32083RVQ. Hanging cap in PC and aluminiumWhite RAL9003ø265 x 74 mm, 450 gMount thread PF 1 1/2 inch maleMount screw size TR20, 3.5 kg loadFor PNM-9084QZ, PNM-C16083RVQ, PNM-C32083RVQ
Not in stock · delivery 3-4 days

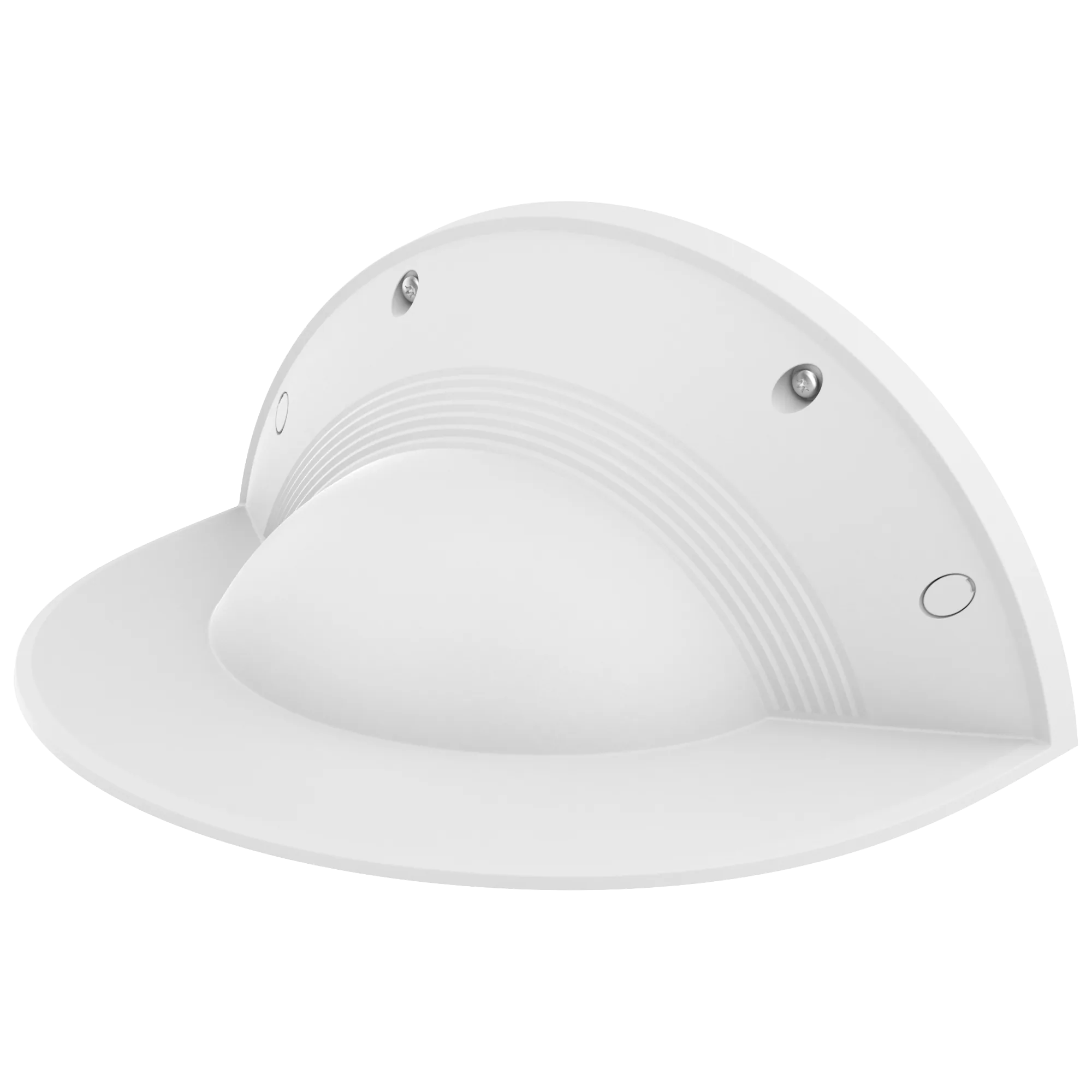

The SBV-253WCW is a weather cap made from polycarbonate (PC) in a white finish. Its dimensions are 248(W)x107.8(H)x175.2(D)mm (9.76"x4.24"x6.9"). The cap weighs 200g (0.44lb). The specification names the PNM-9031RV and PNM-9022V as supported products. Polycarbonate weather capWhite finishDimensions 248x107.8x175.2mmWeight 200g (0.44lb)Supports PNM-9031RV, PNM-9022V
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- PNM-C9022RV
- EAN / GTIN
- 8801089217493
- Weight
- 3.72 kg
- Dimensions (W×H×D)
- 335 × 324 × 246 mm
Description
The PNM-C9022RV stitches several 1/2.8-inch CMOS sensors into a panoramic image of up to 8MP at 5120x1568 pixels. H.265, H.264 and MJPEG each run at 20fps, and IR illumination with WiseIR reaches a maximum of 20 m. The fixed 2.8 mm lens at F2.0 captures 209° horizontally and 60° vertically, using a fixed iris and a 5 m minimum object distance. Sensitivity is quoted at 0.1 lux in colour and 0.01 lux in black and white, supported by ICR day and night switching, BLC, SSDR and extremeWDR at 120 dB. The AI engine classifies people and vehicles and underpins WiseNR II and WiseStream III, with SSNR V alongside. The dome bubble is hard-coated, and the camera pans 0° to 360° and tilts 0° to 65°.
- Panoramic image up to 5120x1568
- 20fps in H.265, H.264 and MJPEG
- Fixed 2.8 mm lens, F2.0
- 209° horizontal, 60° vertical view
- Up to 20 m IR reach with WiseIR
- extremeWDR 120 dB, WiseNR II
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (4)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
- Analytics – Classified Object Type
- Person, Vehicle
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 52.2m(171.25ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 5.2m(17.13ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 20.9m(68.50ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 10.4m(34.25ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 22W, typical 10.4W
- Environmental & Electrical / Power Consumption – PoE
- Max. 24.5W, typical 11.3W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
- Environmental & Electrical – Power Redundance Failover
- Support
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (8)
- Lens / Angular Field of View – Horizontal
- 209°
- Lens / Angular Field of View – Vertical
- 60°
- Lens / Max Aperture Ratio (F number) – Wide
- 2.0
- Lens / Zoom Ratio – Optical
- 4x
- Lens – Focal Length (mm)
- 2.8
- Lens – Focus Control
- Fixed
- Lens – Lens Type
- Fixed iris
- Lens – Min. Object Distance
- 5m(16.4ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 19.1mm(3/4")(M25)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø253x170mm(9.96x6.69")
- Mechanical – Product Weight
- 2,900g(6.39lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (23)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 20m(65.62ft) 4 individual zones with Automatic/Manual level adjustment
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White
- Operational / Privacy Masking – Quantity
- 10ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Digital PTZ
- Support
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (2)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~65°
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 20fps/20fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 20fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.01
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.1
- Video – Resolution
- 5120x1568, 3648x1152, 2560x784, 1280x392
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
