4MP x 4, AI, IR mini multi-directional camera
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories

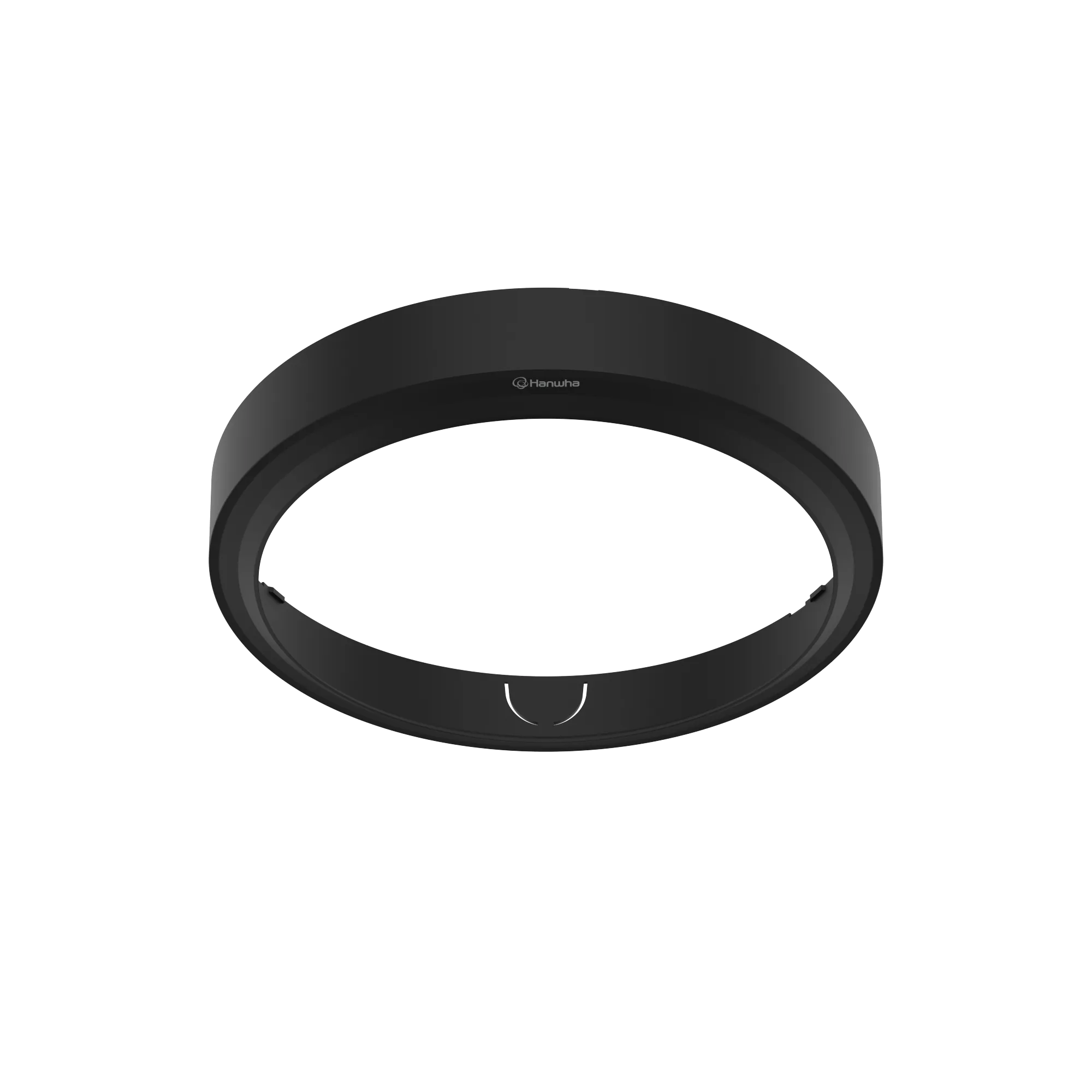

The SBC-200B is a skin cover in black. Polycarbonate is stated as the material by the manufacturer. Its dimensions are Ø199.9 x 33.9 mm and the weight is 65 g. Each package holds a total of three pieces. Black skin coverPolycarbonate materialDimensions Ø199.9 x 33.9 mmWeight 65 gThree pieces per package
Not in stock · delivery 3-4 days
Conduit hole adaptor made of aluminium and finished in white to RAL9003. It measures 54.1x43.5x40mm and weighs 27g. The conduit hole has a diameter of 19.1mm and corresponds to M25. Listed supported products are QNV-C6083R, QNV-C8083R, QNV-C9083R and PNM-C16013RVQ. Aluminium, white RAL9003Dimensions 54.1x43.5x40mmWeight 27gConduit hole 19.1mm (M25)For QNV-C6083R, QNV-C8083R, QNV-C9083R, PNM-C16013RVQ
Not in stock · delivery 3-4 days

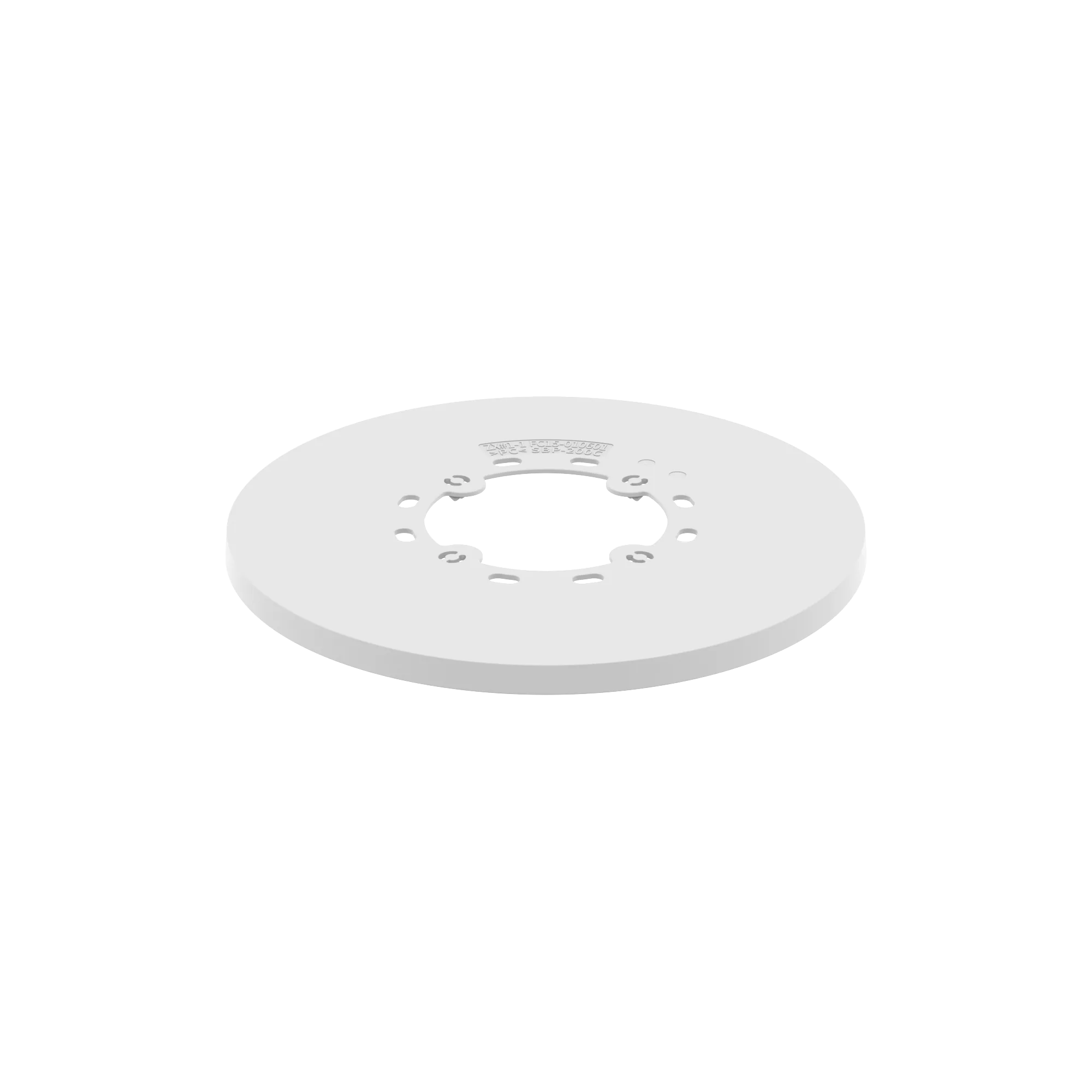

The SBP-200C closes off the mounting hole after a camera has been relocated or removed. The cover is produced from polycarbonate (PC) in white to RAL9003. It has a diameter of 211 mm at a height of 10 mm and weighs 87 g. The PNM-C16013RVQ is given as the supported product, and further compatible models are available. Mounting hole coverPolycarbonate (PC)White RAL9003ø211 x 10 mm, 87 gFor PNM-C16013RVQ
Not in stock · delivery 3-4 days

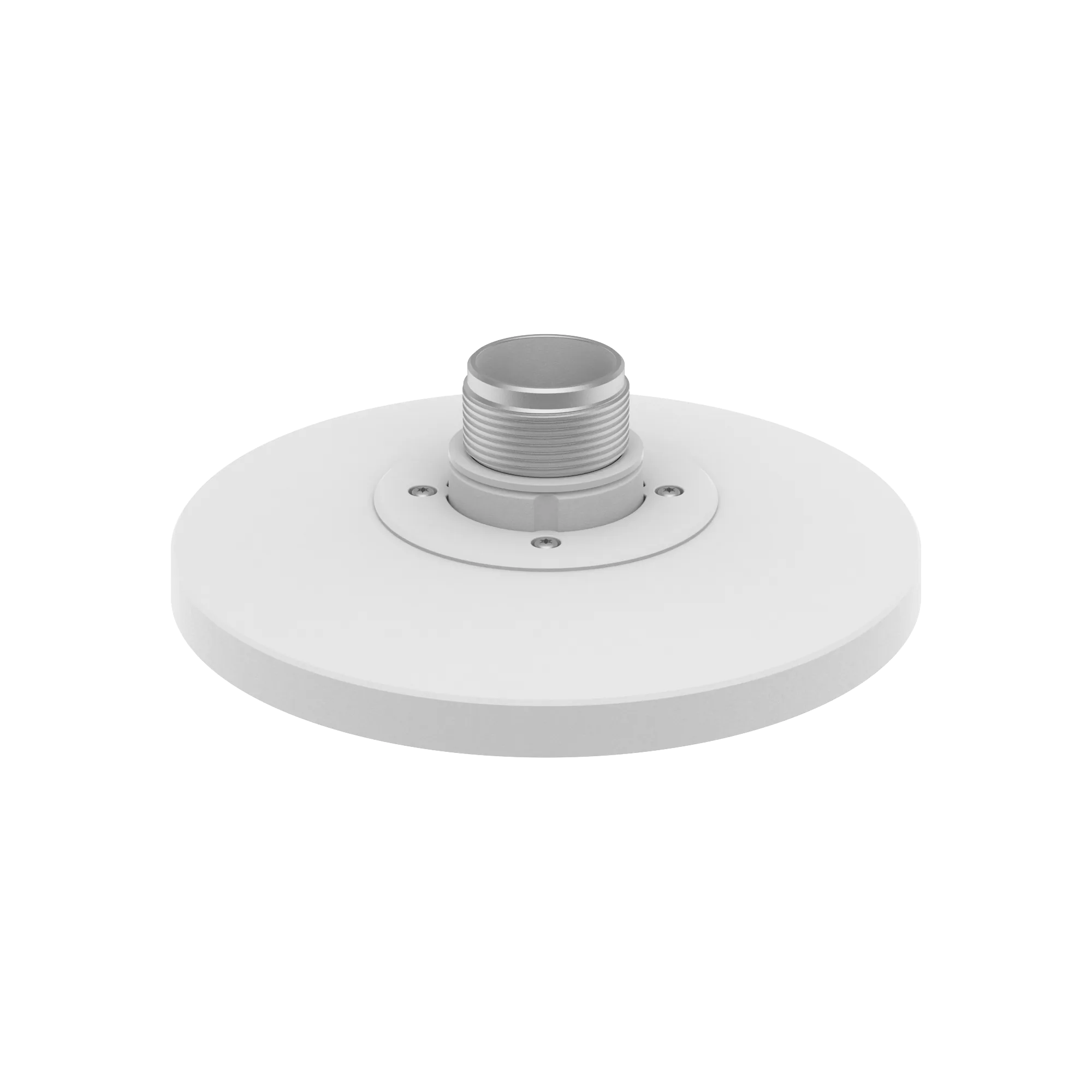

The SBP-200HMW is a hanging adaptor for suspended camera installation. It is built from polycarbonate (PC) and aluminium in a white RAL9003 finish. Dimensions are ø215 x 67 mm and the weight is 350 g. The mount screw size is TR20 and the maximum load amounts to 3 kg. The PNM-C16013RVQ is supported, and further compatible models are available. Hanging adaptor in PC and aluminiumWhite RAL9003ø215 x 67 mm, 350 gMount screw size TR20Maximum load 3 kgFor PNM-C16013RVQ
Not in stock · delivery 3-4 days
The SBP-250WMW is a wall and pole mount made from polycarbonate (PC) and aluminium in white to RAL9003. It measures 315.8 x 137 x 183 mm, weighs 1,940 g and uses a TR30 mount screw size. The maximum load is 20 kg and three conduit holes of 19.1 mm (M25) each are available for cable routing. Supported products include XND-C6083RV, XNV-6083R and QNV-C6083R. Depending on the application an additional adaptor is required: SBP-115PA for PTZ plus, SBP-115PFA for a hanging adaptor. Wall and pole mount in PC and aluminiumWhite RAL9003315.8 x 137 x 183 mm, 1,940 gMount screw size TR30, 20 kg loadThree conduit holes 19.1 mm (M25)SBP-115PA or SBP-115PFA adaptor depending on application
In stock, ships immediately · delivery 1-2 days
The SBP-400WMW is an outdoor wall and pole mount produced from polycarbonate and aluminium in white to RAL9003. It is certified to IP66 and NEMA 4X. Measurements are 449.3 x 200 x 263.1mm (17.69 x 7.87 x 10.36") at a weight of 4,622g (10.19lb). Mount screw size is T30, maximum load is 20kg, and the conduit hole measures 19.1mm (M25). Supported products include SBP-115PFA, SBP-115PA, SPO-8315, SPO-6011, XNV-6083R and QNV-6083R. Outdoor wall and pole mountIP66, NEMA 4XPolycarbonate and aluminium, white RAL9003Size 449.3 x 200 x 263.1mm, 4,622gT30 mount screw, max. load 20kgConduit hole 19.1mm (M25)
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- PNM-C16013RVQ
- EAN / GTIN
- 8801089225283
- Weight
- 1.65 kg
- Dimensions (W×H×D)
- 244000 × 134000 × 244000 mm
Description
Wisenet P series network vandal outdoor mini Multi-Directional camera 4CH x 4MP @ 15FPS, Fix Lens 3.19mm (FoV H: 97°, V: 54°), triple codec H.265/H.264/MJPEG, 120dB WDR; IR viewable length 20m (65.6ft), USB port for easy installation, Analytics events based on AI engine: Object detection (Person/Vehicle (car/truck/bus/bicycle/bike)), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear, WiseNR Ⅱ(using AI engine), WiseStreamⅢ(Based on AI engine), I/O Box compatibility; TPM with FIPS 140-2 level2, IP66, IK10, NEMA4X, PoE+, Ø: 200mm, H: 80mm, (HPoE Injector is not included)
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
