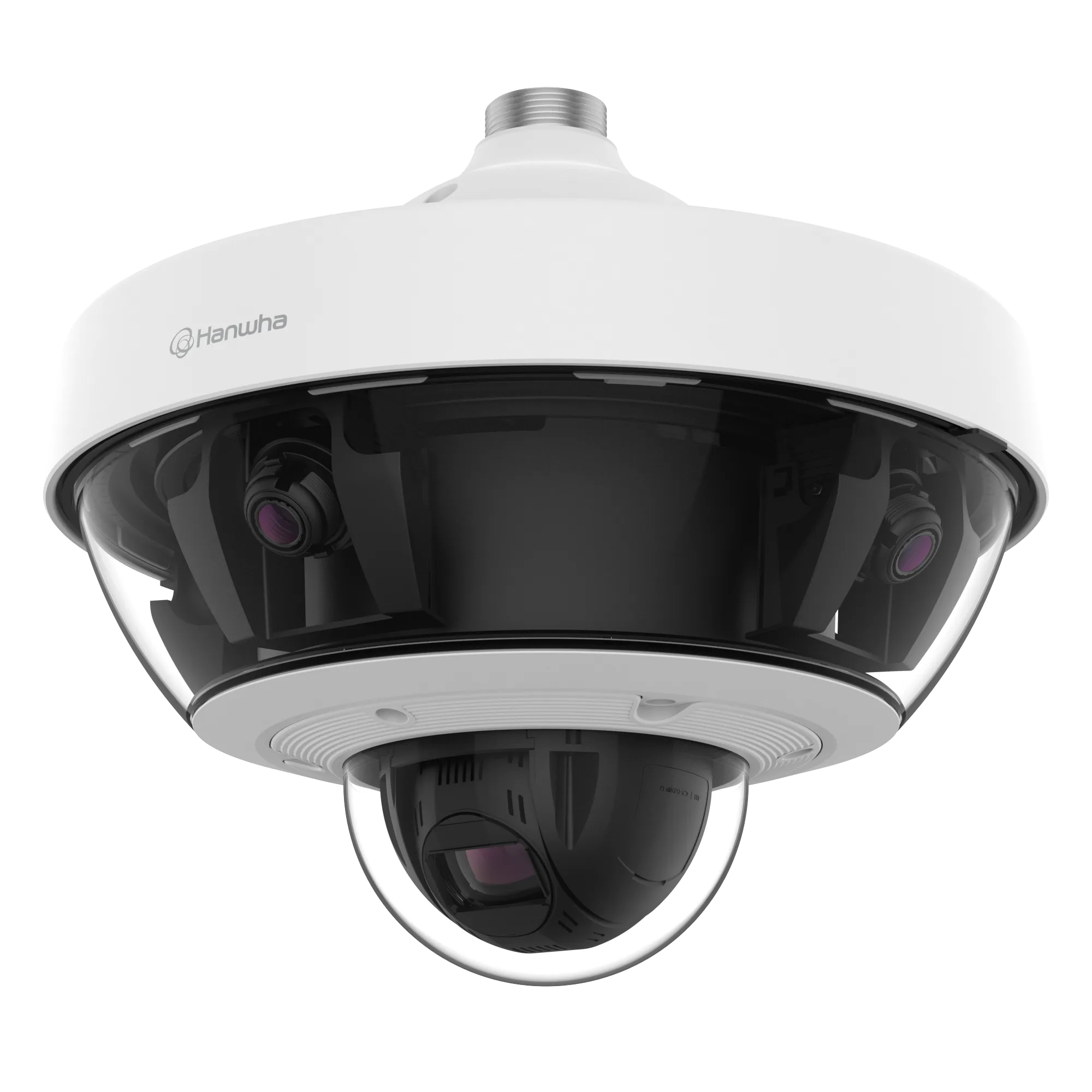

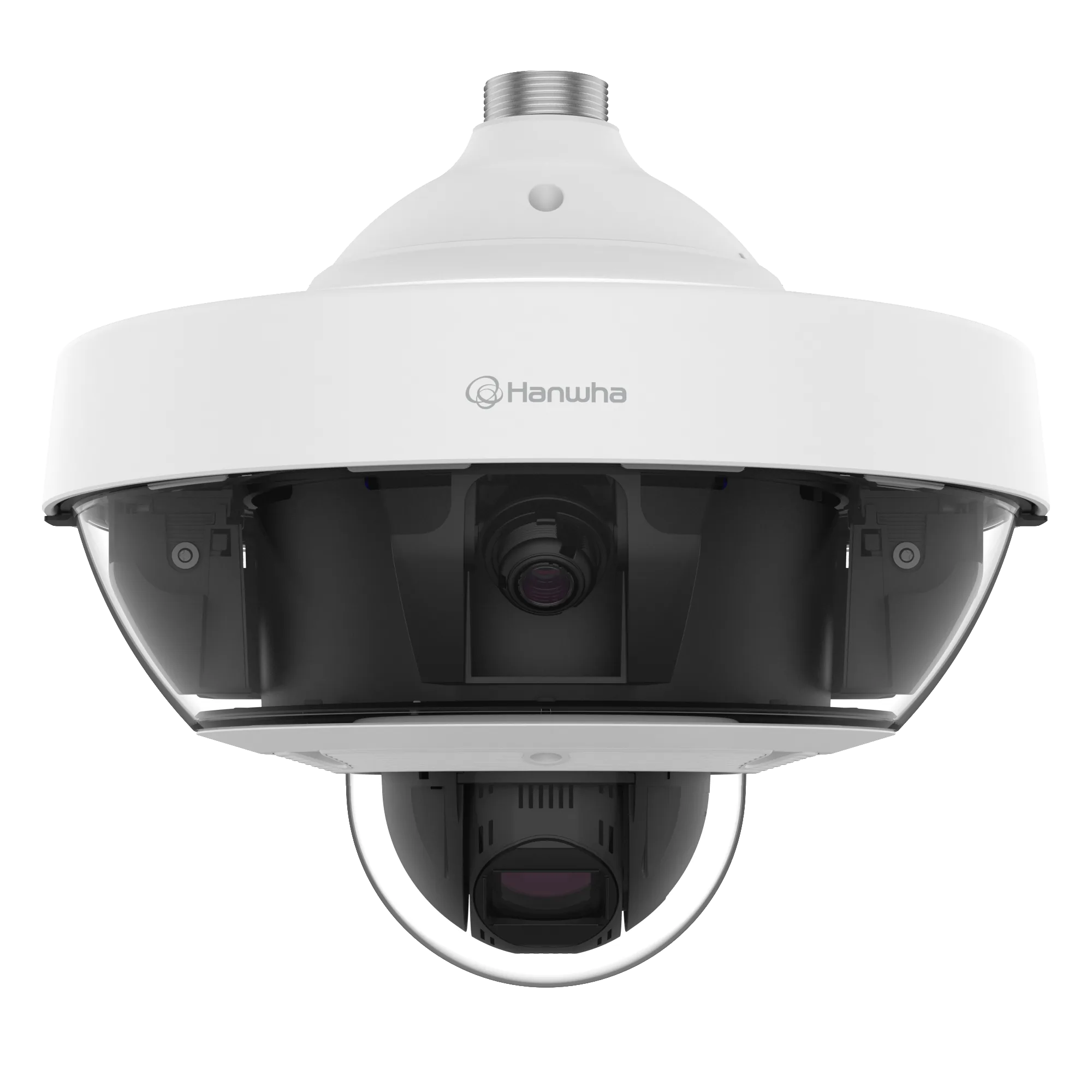

5CH 32x Zoom Multi-sensor with integral PTZ
This article is being discontinued and will not be restocked. Ask us about remaining stock and successor models.
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- PNM-9322VQP
- EAN / GTIN
- 8801089176615
- Weight
- 11.92 kg
- Dimensions (W×H×D)
- 542 × 542 × 378 mm
Description
The PNM-9322VQP pairs four exchangeable 2MP or 5MP lens modules with a PTZ channel to form a five-channel camera. Depending on the module combination, total resolution runs from 10MP to 22MP, at a maximum of 60fps with 2MP and 30fps with 5MP in H.265 and H.264. Fixed lenses of 2.4 mm, 2.8 mm, 3.6 mm, 6 mm and 12 mm are available for the 2MP modules and 3.7 mm, 4.6 mm and 7 mm for the 5MP modules, while the PTZ channel uses a 4.44 to 142.6 mm lens with 32x optical zoom and ICR day and night switching. Image processing adds 150 dB WDR with 2MP and 120 dB with 5MP, plus BLC, HLC, SSDR, SSNR V, digital image stabilisation and defog, with H.265, H.264 and MJPEG encoding and WiseStream II. Networking covers metal-shielded RJ-45 at 10/100BASE-T and ONVIF profiles S and T, together with one alarm input and output, a selectable audio input and a line output. The housing is rated IP66 and IK10 and offers five SD, SDHC and SDXC card slots.
- Four exchangeable 2MP or 5MP modules
- 10MP to 22MP total resolution
- PTZ lens 4.44-142.6 mm, 32x optical
- 150 dB WDR at 2MP, 120 dB at 5MP
- Five SD/SDHC/SDXC card slots
- IP66, IK10, ONVIF S and T
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Fog detection, Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual area(Appear/Disappear), Virtual line(Crossing, Direction)
Environmental & Electrical (6)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- HPoE: Max 65W, Typical 34W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE++(IEEE802.3bt type4, Class8)
General (1)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 4slot(Total 1TB)
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø367.8x335.7mm(ø144.8"x132.2")
- Mechanical – Product Weight
- 7.05kg(15.54lb
- Mechanical – RAL Code
- RAL9003
Network (8)
- Network / Application Programming Interface – ONVIF
- S, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (14)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output
- Operational – Alarm Triggers
- Analytics, Network disconnect
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Wide Dynamic Range (dB)
- 120
Security (5)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP)
- Security – Secure Communication
- HTTPS
- Security – User authentication
- Digest authentication
