IP-CAMERA FE9192-H
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2 weeks
Matching accessories
The AM-117 is a pendant pipe of 40cm length with a 1-1/2" PS thread, held in version V02 under part number 900014401G. It is produced from aluminum alloy with a white finish and carries a PF 1-1/2" pipe thread. Dimensions are Ø 51 x 400 mm at an own weight of 902g. A single box measures 470 (L) x 71 (W) x 68 (H) mm and weighs 1014g. A carton holds 10 pieces, measures 490 (L) x 365 (W) x 160 (H) mm and weighs 10870g. 40cm pendant pipeAluminum alloy, white finishPF 1-1/2" pipe threadDimensions Ø 51 x 400 mmOwn weight 902g
Not in stock · delivery 2 weeks

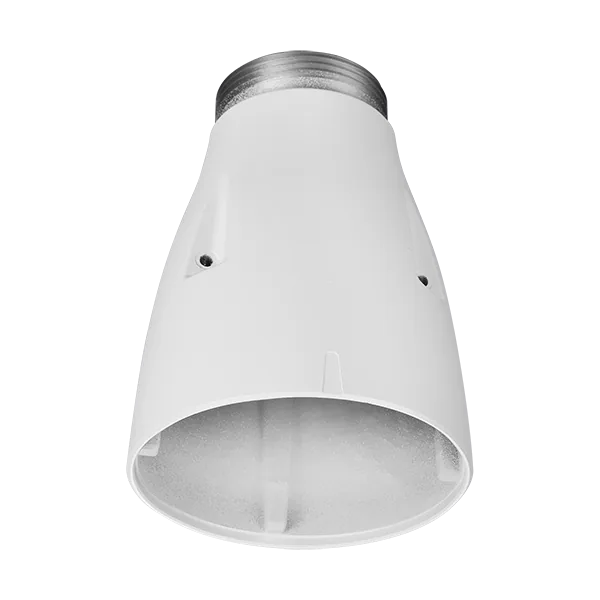

The AM-52F is a pendant mounting kit listed under part number 100B10700G. It is made from aluminum alloy in a white finish and terminates in a 1-1/2" PS male pipe thread. Dimensions are Ø87 x 118 mm at a weight of 208g. The kit is specified for the FD9182-H and FE9192-H models. Packed singly, the box measures 133 (L) x 133 (W) x 104 (H) mm at 328g, while a carton of 20 pieces measures 438 (L) x 376 (W) x 294 (H) mm and weighs 6556g. Pendant mounting kitAluminum alloy, white1-1/2" PS male pipe threadDimensions Ø87 x 118 mm, 208gFor FD9182-H and FE9192-H
Not in stock · delivery 2 weeks
Product data
- Manufacturer
- Vivotek
- Article number
- VIO100254700
- EAN / GTIN
- 4710469352607
- Weight
- 0.6 kg
- Dimensions (W×H×D)
- 140 × 130 × 170 mm
Description
The FE9192-H is a 12MP fisheye panoramic camera with AI functions. Its 1/2.3" progressive CMOS sensor operates in 4056x3040 and outputs a maximum of 2944x2944, at 30 fps with WDR off and 20 fps with WDR on. The fixed-focal f = 1.22 mm lens with a fixed F2.0 iris spans 180.0° horizontally, vertically and diagonally, with minimum illumination of 0.1 lux @ F2.0 in color and <0.005 lux @ F2.0 in black and white and an S/N ratio of 56.9 dB. Processing runs on a multimedia SoC with 8 GB flash and 2 GB RAM, offering WDR Pro, local dewarp, ePTZ with 12x digital zoom and three video streams with up to eight configurable profiles in H.265, H.264 or MJPEG. Smart motion detection, Smart VCA with Vision Object Analytics and Trend Micro IoT Security extend the analysis, while recording goes to MicroSD/SDHC/SDXC up to 1TB or to network-attached storage.
- 12MP fisheye, 1/2.3" progressive CMOS in 4056x3040
- 2944x2944 maximum at 30 fps with WDR off
- 180.0° coverage, f = 1.22 mm, F2.0
- S/N ratio of 56.9 dB
- Smart VCA with Vision Object Analytics
- Local dewarp and ePTZ with 12x digital zoom
Made by
Vivotek, a maker of IP cameras from Taiwan since 2000 and part of the Delta Group, is in the catalogue with dome, bullet, fisheye, multi-sensor and PTZ cameras, network recorders, PoE switches, SFP modules, hard drives, SD cards and the VAST video management system. Current models bring deep-learning analytics for people and vehicles. AI4Vision is an authorised distributor; every article comes with technical data and the manufacturer's German or English data sheet, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
AI Analytics (4)
- AI Analytics – Application available with license
- Smart VCA - Group 3 Running detection, Parking Violation Detection, Restricted Zone Detection
- Applications
- Deep Learning VCA (Smart Motion Detection, Smart VCA)
- Compute Capability
- SoC with built-in hardware deep learning accelerator
- Vision Object Analytics
- Object Detection: People Vehicle (4-wheeled, 2-wheeled) Human / Vehicle Bestshot Attribute Extraction: People (gender, clothing color, bag, hat) Path Extraction Vehicle (bike, bus, car, motorcycle, truck, color) Human face Bestshot Re-Search Extraction
Alarm and Event (2)
- Alarm and Event Action
- Event notification via email, HTTP, FTP, NAS server, SD card, audio clip File upload via email, HTTP, FTP, NAS server, SD card, Camera link
- Event Trigger
- Motion detection, Camera tampering detection, Audio detection, Manual trigger, Periodical trigger, System boot, Recording notification, SD card life expectancy, Shock detection, Cybersecurity events (brute force attack event, cyberattack event)
Audio (4)
- Audio Capability
- One-way Audio
- Audio Interface
- Built-in microphone
- Compression
- G.711, G.726, MPEG-2 AAC-LC
- Effective Range
- 5 meters
Camera Specifications (15)
- Built-in Installation Aids
- Pixel calculator
- Camera Specifications Aperture
- F2.0
- Camera Specifications Storage
- Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
- Camera Specifications – Field of View
- 180.0° (Horizontal) 180.0° (Vertical) 180.0° (Diagonal)
- Camera Specifications – Focal Length
- f = 1.22 mm
- Camera Specifications – Image Sensor
- 1/2.3" Progressive CMOS in 4056x3040
- Camera Specifications – Lens Type
- Fixed-focal
- Camera Specifications – Max. Resolution
- 2944x2944
- Camera Specifications – Minimum Illumination
- 0.1 lux @ F2.0 (Color)
- Day/Night
- Yes
- Iris Type
- Fixed Iris
- Pan/Tilt/Zoom Functionalities
- ePTZ: 12x digital zoom (12x on IE plug-in)
- Removable IR-cut filter
- Yes
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
DORI (EN 62676-4 Standard) (4)
- Detection (25PPM/ 8PPF)
- 31.5 m (103.3 ft)
- Identification (250PPM/ 76PPF)
- 3.1 m (10.2 ft)
- Observation (63PPM/ 19PPF)
- 12.5 m (41.0 ft)
- Recognition (125PPM/ 38PPF)
- 6.3 m (20.7 ft)
General (10)
- General Certifications
- EMC CE (EN 55032 Class B, EN 55035, EN 50121-4), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B) Safety UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment IP54 (IEC 60529) IA BI
- General Connectors
- RJ-45 cable connector for 10/100 Mbps PoE network connection
- General Dimensions
- 82 (D) x 122 (H) mm
- General Humidity
- 90% RH (non-condensing)
- General LED Indicator
- System power and status indicator
- General Operating Temperature
- Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- General Power Consumption
- Max. 9W
- General Power Input
- IEEE 802.3af PoE Class 0
- General Weight
- 353 g
- Warranty
- 60 months
Included Accessories (1)
- Packing Contents
- Quick installation guide, desiccant bag
Network (5)
- Network Interface
- 10BASE-T/100BASE-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- Network Security
- Access list, Account block, Audit log, Session timeout, Configurable password strength protection, Digest authentication, CSRF protection, HTTPS, IEEE 802.1x, Secure boot, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack ev
- ONVIF
- Profile G, S, T, M supported, specification available at www.onvif.org
- Protocols
- 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Users
- Live viewing for up to 10 clients
Solution Integration (1)
- VADP Package
- Stratocast, Trend Micro IoT Security (3-year free trial)
System Information (3)
- Flash
- 8 GB
- RAM
- 2 GB
- System Information CPU
- Multimedia SoC (System-on-Chip)
System Requirements (3)
- Other Players
- VLC: 1.1.11 or above
- System Requirements – Operating System
- Microsoft Windows 10/8/7 Mac 10.12 (Chrome only)
- System Requirements – Web Browser
- Chrome 58.0 or above Internet Explorer 11
Video (8)
- Display Mode
- Client Dewarping Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One
- Dynamic Range
- 120 dB
- Image Settings
- General settings video title and time stamp overlay, video orientation (flip, mirror), day/night settings
- Maximum Frame Rate
- 30 fps @ 2944x2944 (WDR off) 20 fps @ 2944x2944 (WDR on)
- Maximum Streams
- 3 video streams (Up to 8 configurable profiles)
- S/N Ratio
- 56.9 dB
- Video Compression
- H.265, H.264, MJPEG
- Video Streaming
- Adjustable resolution, quality and constant bit rate control, Smart Stream III
