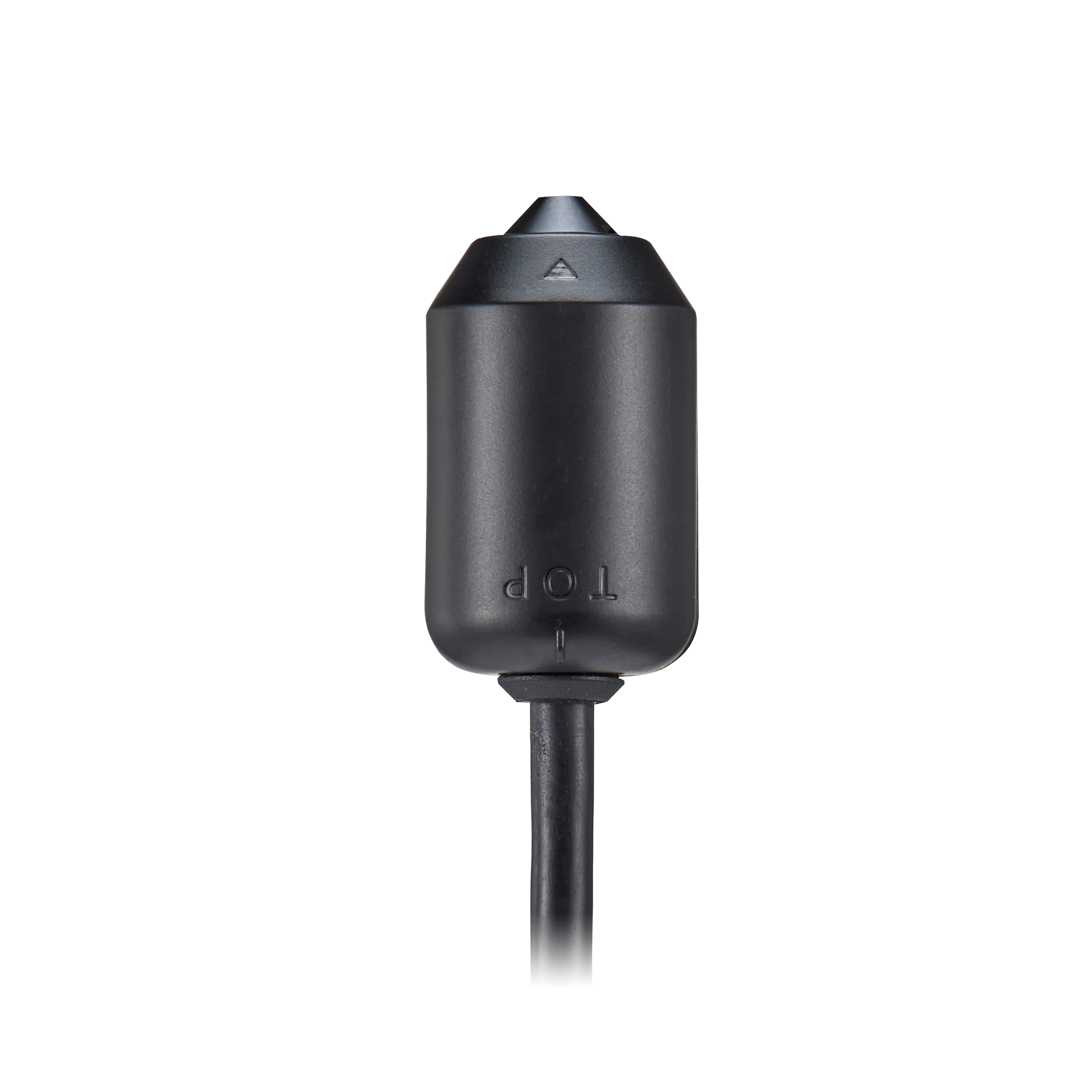

4.6mm Lens/Imager straight body for PNM-9000QB (8.0m cable)
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBL-100D is a ceiling housing for remote head cameras. It is moulded from polycarbonate and coloured white to RAL9003. Its diameter is 89.9mm with a height of 54.7mm, and it weighs only 65g. The housing is intended for the SLA-T2480 and SLA-T2480A camera modules. The manufacturer publishes further compatible models on its website and in its Toolbox. Ceiling housing for remote head camerasPolycarbonate, white RAL9003ø89.9x54.7mm, 65gFor SLA-T2480 and SLA-T2480A
Not in stock · delivery 3-4 days
The SBL-101C is a polycarbonate housing for remote head cameras. Its finish is white to RAL9003. The unit measures 124.3mm wide, 115mm deep and 56mm high, with a weight of 90g. It accepts the SLA-T2480 and SLA-T2480A camera modules. For models beyond those, the manufacturer refers to its website and its Toolbox. Housing for remote head camerasPolycarbonate, white RAL9003124.3x115x56mm, 90gFor SLA-T2480 and SLA-T2480A
Not in stock · delivery 3-4 days
The SCL-150 is an extension cable for remote head lenses. It is supplied as a single cable with a length of 15m (49.2Ft). This extends the distance between the camera body and the remote lens head by 15m. The cable is intended for the PNM-C20000QB and PNM-9000QB as well as the SLA-T4680A, SLA-T4680VA, SLA-T2480A, SLA-T2480VA and SLA-T1080FA. Extension cable for remote head lensesLength 15m (49.2Ft)Supplied as 1 pieceFor PNM-C20000QB and PNM-9000QBFor SLA-T4680A, SLA-T2480A, SLA-T1080FA
Not in stock · delivery 3-4 days
Fits
The PNM-9000QB is a remote-head unit for four 2MP channels with a maximum of 1920x1080 pixels. H.265 and H.264 operate at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, while HDMI provides single or quad view output. Optional lens modules are supported, and SCL-150 with a length of 15 m is listed as the compatible connecting cable. Image processing covers BLC, HLC, 120 dB WDR, SSDR, SSNR V noise reduction, digital image stabilisation, defog, LDC and WiseStream II. Eight motion detection zones as 8-point polygons, 32 four-point privacy masks in seven display options, white balance from ATW to manual, flip and mirror rotation and an electronic shutter from 2 to 1/12,000 sec complete the feature set. Four 2MP channelsHDMI single and quad view120 dB WDR, SSNR V, WiseStream II32 privacy masks, 8 motion zonesShutter 2 to 1/12,000 secSCL-150 connecting cable (15 m)
Not in stock · delivery 3-4 days
The SBL-100D is a ceiling housing for remote head cameras. It is moulded from polycarbonate and coloured white to RAL9003. Its diameter is 89.9mm with a height of 54.7mm, and it weighs only 65g. The housing is intended for the SLA-T2480 and SLA-T2480A camera modules. The manufacturer publishes further compatible models on its website and in its Toolbox. Ceiling housing for remote head camerasPolycarbonate, white RAL9003ø89.9x54.7mm, 65gFor SLA-T2480 and SLA-T2480A
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SLA-T4680A
- EAN / GTIN
- 8801089195913
- Weight
- 0.46 kg
- Dimensions (W×H×D)
- 183 × 139 × 53 mm
Description
The SLA-T4680A is a 2MP lens module pairing a 1/2.8-inch CMOS sensor with a fixed 4.6 mm lens at F2.5. It covers 73° horizontally, 39° vertically and 85° diagonally, and minimum illumination is 0.06 lux in colour as well as black-and-white. Focus is fixed and the main unit is connected over RJ12. The black plastic body measures Ø24 x 49.8 mm and weighs 310 g, with an operating range from -10 °C to +55 °C. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B.
- Fixed 4.6 mm focal length, F2.5
- 73° x 39° x 85° field of view
- 1/2.8-inch CMOS, 0.06 lux
- Plastic body Ø24 x 49.8 mm, 310 g
- RJ12 connection to the main unit
- SCL-150 lens module cable (15 m)
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental & Electrical (4)
- Environmental & Electrical / Operating Condition – Humidity
- Less than 90% RH
- Environmental & Electrical / Operating Condition – Temperature
- -10°C ~ +55°C (+14°F ~ +131°F)
- Environmental & Electrical / Storage Condition – Humidity
- Less than 90% RH
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
Lens (8)
- Lens / Angular Field of View – Diagonal
- 85°
- Lens / Angular Field of View – Horizontal
- 73°
- Lens / Angular Field of View – Vertical
- 39°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.5
- Lens / Max Aperture Ratio (F number) – Wide
- 2.5
- Lens – Focal Length (mm)
- 4.6
- Lens – Focus Control
- Fixed
- Lens – Mount Type
- RJ12 connected with main unit
Mechanical (5)
- Mechanical Supported Products
- XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B
- Mechanical – Color
- Black
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- Ø24xL49.8mm
- Mechanical – Product Weight
- 310g
Video (4)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.06
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.06
