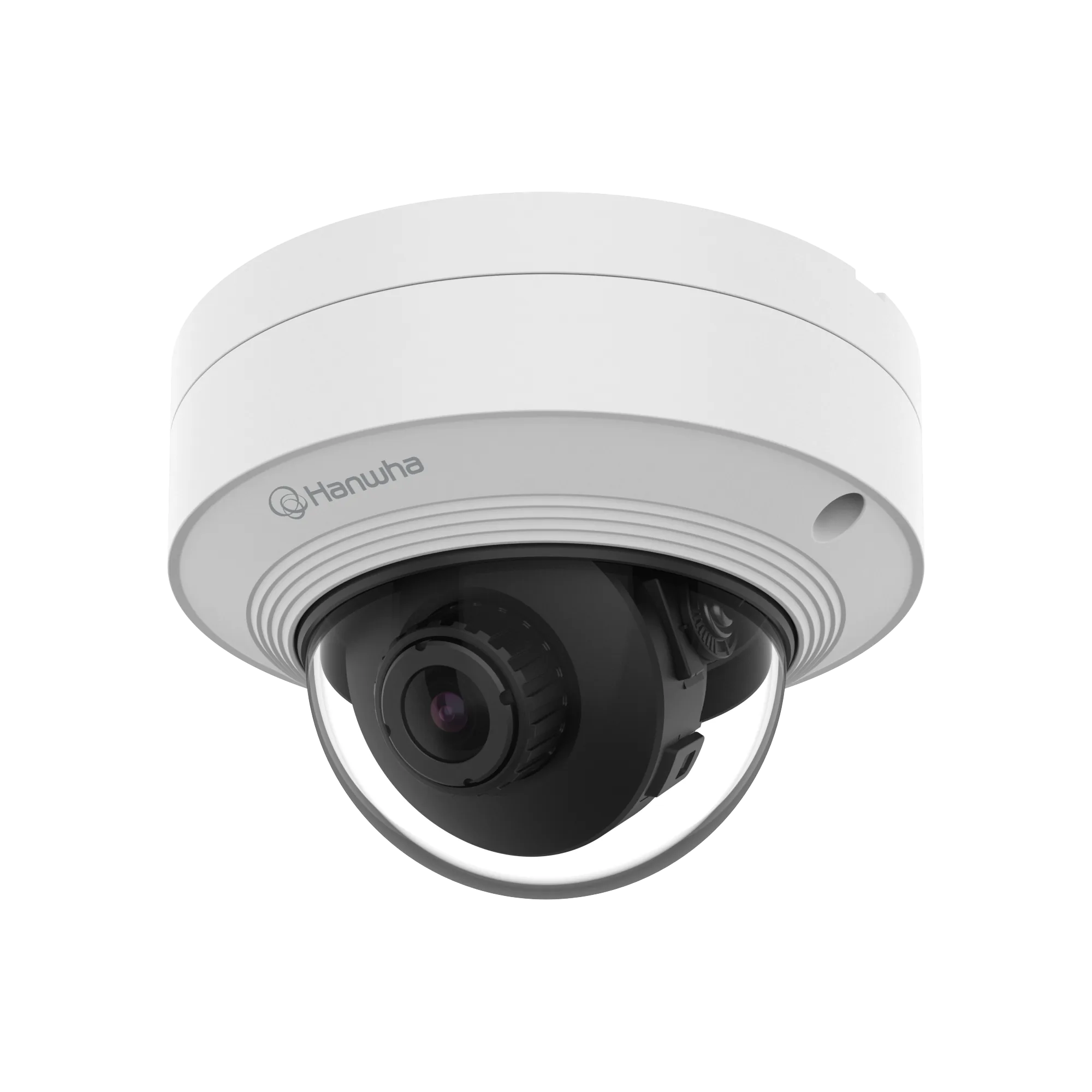

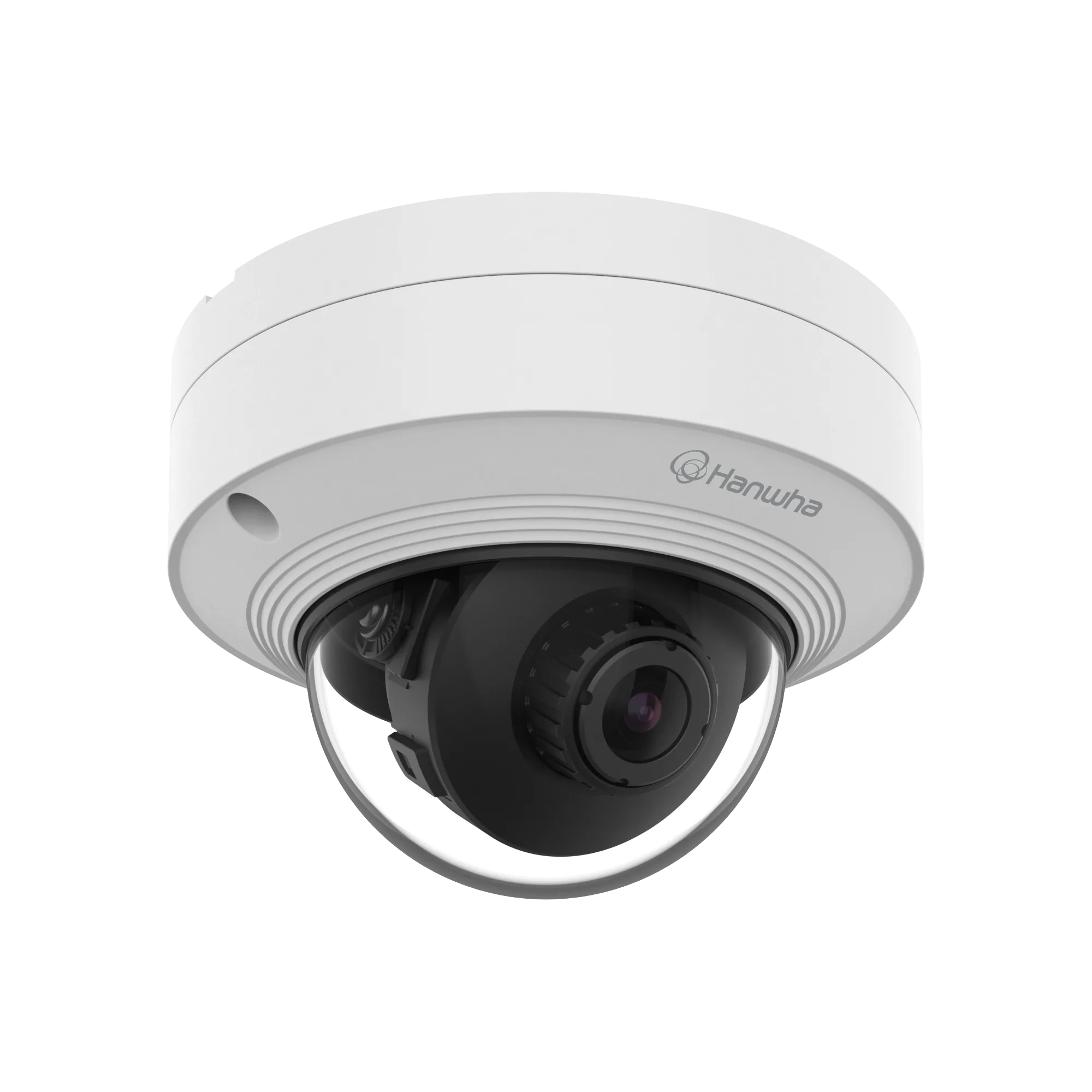

2MP Waterproof Dome Lens Module

The PNM-9000QB is a remote-head unit for four 2MP channels with a maximum of 1920x1080 pixels. H.265 and H.264 operate at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, while HDMI provides single or quad view output. Optional lens modules are supported, and SCL-150 with a length of 15 m is listed as the compatible connecting cable. Image processing covers BLC, HLC, 120 dB WDR, SSDR, SSNR V noise reduction, digital image stabilisation, defog, LDC and WiseStream II. Eight motion detection zones as 8-point polygons, 32 four-point privacy masks in seven display options, white balance from ATW to manual, flip and mirror rotation and an electronic shutter from 2 to 1/12,000 sec complete the feature set. Four 2MP channelsHDMI single and quad view120 dB WDR, SSNR V, WiseStream II32 privacy masks, 8 motion zonesShutter 2 to 1/12,000 secSCL-150 connecting cable (15 m)

2MP network camera built as a remote head with lens modules. Resolution peaks at 1920x1080, running 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with multiple streaming and WiseStreamII available. Day and night switching is electrical, extremeWDR is rated 120dB, and BLC, HLC, SSDR, WiseNR with SSNRⅤ, defog, digital image stabilisation and LDC (not supported for fisheye lenses) are included. The electronic shutter covers 2 to 1/12,000sec and adds anti flicker plus a prefer shutter control mode, while white balance offers ATW, NarrowATW, AWC, manual, indoor and outdoor. Analytics include tampering, loitering, directional detection, fog detection, audio detection, sound classification, heatmap, people counting, queue management, face detection, motion detection and handover. The listed lens modules are SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A and SLA-T4680VA. 2MP, 1920x1080 at 60fps/50fpsRemote head with lens modulesextremeWDR 120dB, defog, DIS, WiseStreamIIWiseNR and SSNRⅤHeatmap, people counting, queue management, face detectionShutter 2~1/12,000sec with anti flicker
