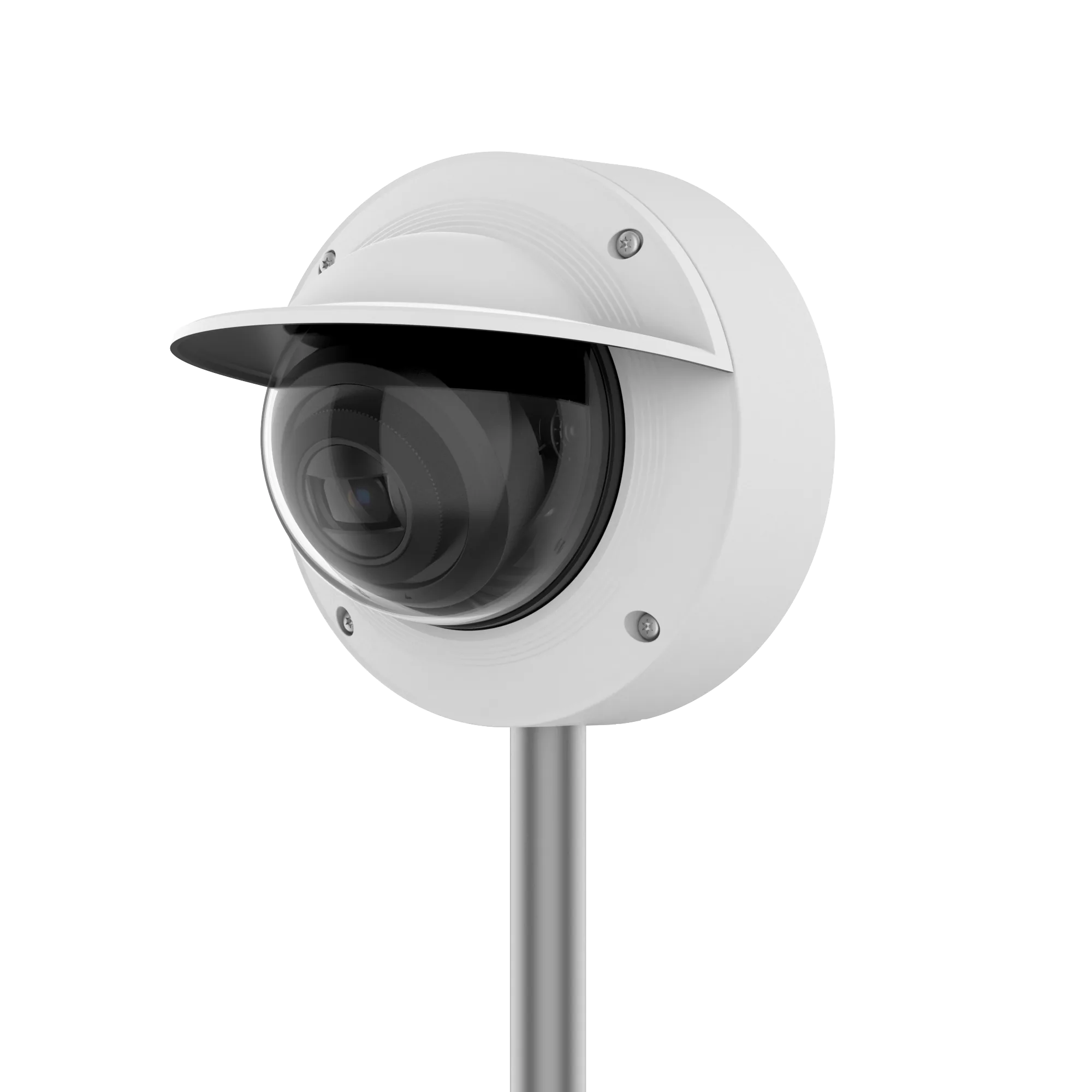

Weather Cap

The PND-A9081RV is a dome network camera with deep-learning based AI video analytics. A 1/1.8-inch CMOS sensor supplies up to 3840x2160 pixels, running at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 30fps in MJPEG, with H.265, H.264 and MJPEG codecs alongside WiseStream II. Focal length spans 4.5 to 10 mm at 2.2x optical zoom, with F1.6 at the wide end, F2.65 at tele and a horizontal field of view of 101.4° to 45.5°. Low-light figures are given as 0.05 lux in colour and 0.005 lux in black and white, backed by ICR day and night switching and 120 dB WDR. Mechanical adjustment covers 0° to 360° pan, -45° to 85° tilt and 0° to 355° rotation; minimum object distance is 0.5 m. 1/1.8-inch CMOS sensorUp to 3840x2160 resolution4.5-10 mm lens, 2.2x optical0.05 lux colour / 0.005 lux BW120 dB WDR, day and night (ICR)Deep-learning AI video analytics

The PNV-A6081R is a vandal resistant IR dome camera delivering 2MP (1920x1080) from a 1/2-inch CMOS sensor. Its AI engine identifies people, faces, vehicles and licence plates and filters motion events down to shorter, more relevant event lists, complemented by video analytics using virtual line and virtual area rules for intrusion, entering, exiting, appearing and loitering, plus social distancing checks and face mask detection. H.265 and H.264 reach up to 120fps/100fps (60Hz/50Hz), dropping to a maximum of 60/50fps with AI enabled, while MJPEG runs at 15fps. Minimum illumination is 0.007 lux in colour and 0.0007 lux in black and white. The IR corrected P iris lens spans 4.38~9.33mm with 2.13x zoom at F1.3 to F2.15 and covers 103.1°~44.5° horizontally. 2MP (1920x1080) on a 1/2-inch CMOS sensorAI detection of person, face, vehicle and licence plateVirtual line and virtual area video analyticsUp to 120/100fps, 60/50fps maximum with AI on4.38~9.33mm lens with 2.13x zoomMinimum illumination 0.007 lux colour / 0.0007 lux BW

The PNV-A7082RZ is a modular outdoor vandal dome camera with AI and IR, using a 1/1.8-inch CMOS sensor at 4MP (2592x1520). With WDR switched off it records at 60fps/50fps (60Hz/50Hz), and at 30fps/25fps with WDR on, while MJPEG runs at 30fps and is limited to 5fps at 4MP. The IR corrected P iris lens spans 4.6~9.35mm with 2.0x optical zoom at F1.3 wide and F2.15 tele, covering 105°~47° horizontally with a minimum object distance of 1.5m. Being a PTRZ model, it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with automatic ICR day and night switching. 4MP (2592x1520) on a 1/1.8-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles4.6~9.35mm lens with 2.0x optical zoom60/50fps with WDR off, 30/25fps with WDR onMinimum illumination 0.03 lux colour / 0.003 lux BW

The PNV-A9082RZ is an outdoor vandal dome camera with AI, using a 1/1.2-inch CMOS sensor at 8MP (3840x2160). H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and is capped at 5fps when 8MP is selected. The IR corrected P iris lens covers 5.9~13.3mm with 2.25x optical zoom at F1.5 wide and F2.9 tele, spanning 109°~49° horizontally, and the minimum object distance is 0.8m. As a PTRZ model it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR day and night switching. 8MP (3840x2160) on a 1/1.2-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles5.9~13.3mm lens with 2.25x optical zoomMinimum illumination 0.015 lux colour / 0.0015 lux BWHorizontal field of view 109°~49°

The XND-C6083RV is a 2MP AI IR dome camera whose 1/2.8" CMOS sensor outputs a maximum of 1920x1080. A motorised 2.8 to 12 mm varifocal lens opens from F1.4 wide to F3.6 tele and takes in 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from a 0.5 m minimum object distance. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) while MJPEG stays at 30fps, and minimum illumination is stated as 0.01 lux in colour and 0.001 lux in black-and-white. Image conditioning offers BLC, HLC, WDR and SSDR alongside automatic ICR day and night switching. Focus is available as simple focus or manual, alignment spans 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and preview and installation run over Micro USB Type B. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, F1.4 to F3.660fps/50fps in H.265 and H.2640.01 lux colour, 0.001 lux B/WBLC, HLC, WDR and SSDR0°–360° pan, 0°–75° tilt

The XNV-A6084R is a vandal-resistant AI IR dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 1920 x 1080 pixels (2 MP). Its motorised 2.8 to 12 mm varifocal lens provides 4.3x optical zoom, opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from 0.5 m. Focusing works by simple focus or manually, the aperture is regulated by an IR-corrected P iris, and automatic ICR day and night switching is included. H.265 and H.264 allow up to 60 fps or 50 fps and MJPEG 30 fps, with minimum illumination of 0.02 lux in colour and 0.002 lux in black and white. The USB Type-C port is intended for preview and installation only and needs a WiFi dongle, while adjustment covers 0°~360° pan, 0°~75° tilt and 0°~355° rotation. 2 MP resolution (1920 x 1080)2.8~12 mm motorised varifocal lens (4.3x)IR-corrected P iris with simple focusUp to 60 fps in H.265/H.2640.02 lux colour, 0.002 lux black and whiteDay and night (ICR)

Built around a 1/2.8-inch CMOS sensor, the XNV-A8084R is a vandal-resistant dome camera with infrared illumination and AI analytics that records at up to 2560x1920 pixels. H.265 and H.264 streams run at 30fps in 60Hz mode and 25fps in 50Hz mode, while MJPEG reaches 30fps and is limited to 5fps at 5MP. Its 3.3 to 9.3mm lens provides 2.8x optical zoom with an aperture of F1.3 at the wide end and F2.3 at tele, covering 99 to 31 degrees horizontally and 71 to 23 degrees vertically. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black and white, with automatic day and night switching via ICR. Installation is supported by a pan range of 0 to 360 degrees, tilt of 0 to 75 degrees and rotation of 0 to 355 degrees; the USB Type C output serves preview and setup only and needs a WiFi dongle. 5MP, up to 2560x1920 pixels1/2.8-inch CMOS sensor3.3-9.3mm lens with 2.8x optical zoom0.04 lux colour / 0.004 lux BWP iris, IR correctedDay & Night Auto (ICR)

The XNV-A9084R is an 8MP vandal-resistant IR dome camera whose 1/1.8-inch CMOS sensor reaches resolutions up to 3840x2160 pixels. H.265 and H.264 run at 30fps in 60Hz mode and 25fps in 50Hz mode, while MJPEG achieves 30fps and no more than 5fps at 8MP. The IR-corrected P iris lens spans 4.4 to 9.3mm with 2.1x optical zoom, F1.3 at the wide end and F2.15 at tele, giving 113 to 47 degrees horizontally and 138 to 54 degrees diagonally. Usable images are specified down to 0.04 lux in colour and 0.004 lux in black and white, with ICR switching between day and night automatically. Focus can be set through simple focus or manually, and the camera is aligned across 0 to 360 degrees of pan, 0 to 75 degrees of tilt and 0 to 355 degrees of rotation. 8MP, up to 3840x2160 pixels1/1.8-inch CMOS sensor4.4-9.3mm lens, 2.1x optical zoomF1.3 wide / F2.15 tele0.04 lux colour / 0.004 lux BWDay & Night Auto (ICR)

The XNV-C6083R is the infrared version of the vandal-resistant 2MP AI dome range. Its 1/2.8-inch CMOS sensor works at up to 1920x1080 pixels and delivers as much as 60fps at 60Hz or 50fps at 50Hz in H.265 and H.264, with MJPEG running at 30fps. The varifocal lens covers 2.8 to 12mm with 4.3x optical zoom and uses an IR-corrected DC auto iris with Hall sensor, opening from F1.4 to F3.6. Field of view measures 120 to 27 degrees horizontally, 63 to 15 degrees vertically and 143 to 32 degrees diagonally, with a minimum object distance of 0.5m. Usable images are produced down to 0.01 lux in colour and 0.001 lux in black and white, supported by automatic ICR day/night switching plus 0 to 360 degrees of pan, 0 to 75 degrees of tilt and 0 to 355 degrees of rotation. 2MP, 1920x1080 pixelsVarifocal 2.8-12mm, 4.3x optical zoomUp to 60fps in H.265/H.264DC auto iris with Hall sensor, IR corrected0.01 lux colour / 0.001 lux BWDay & Night Auto (ICR)

The XNV-C8083R is a vandal-resistant IR dome camera with AI functions and 6MP imaging on a 1/1.8-inch CMOS sensor that resolves up to 3328x1872 pixels. H.265 and H.264 achieve 30fps at 60Hz and 25fps at 50Hz, while MJPEG runs at 30fps and is limited to 5fps at 6MP. Its IR-corrected P iris lens covers 4.4 to 9.3mm with 2.1x optical zoom and an aperture from F1.3 wide to F2.15 tele, capturing 113 to 47 degrees horizontally and 138 to 54 degrees diagonally. Minimum illumination is specified at 0.04 lux in colour and 0.004 lux in black and white, with an automatic ICR governing the day and night transition. Focusing uses simple focus or manual control, and alignment is available across 0 to 360 degrees of pan, 0 to 75 degrees of tilt and 0 to 355 degrees of rotation. 6MP, up to 3328x1872 pixels1/1.8-inch CMOS sensor4.4-9.3mm lens, 2.1x optical zoomF1.3 wide / F2.15 tele0.04 lux colour / 0.004 lux BWDay & Night Auto (ICR)

Offering 4K resolution up to 3840x2160 pixels from a 1/1.8-inch CMOS sensor, the XNV-C9083R is a vandal-resistant IR dome camera with AI analytics for demanding outdoor positions. H.265 and H.264 provide 30fps at 60Hz or 25fps at 50Hz, and MJPEG runs at 30fps, dropping to a maximum of 5fps at 8MP. The IR-corrected P iris lens works from 4.4 to 9.3mm with an aperture of F1.3 to F2.15 and a field of view of 113 to 47 degrees horizontally and 58 to 26 degrees vertically, focusing from 0.5m. Difficult lighting is handled by BLC, HLC, WDR and SSDR, while minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black and white. Setup is supported by simple focus or manual focus control together with 0 to 360 degrees of pan, 0 to 75 degrees of tilt and 0 to 355 degrees of rotation. 4K, up to 3840x2160 pixels1/1.8-inch CMOS sensor4.4-9.3mm lens, IR-corrected P irisBLC, HLC, WDR, SSDR0.04 lux colour / 0.004 lux BWDay & Night Auto (ICR)
