6MP AI IR Vandal Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
The SBO-147BA is an adaptor for conduit holes. Its cover is aluminium while the top cover is polycarbonate, and the finish is white. It measures 48.5mm wide, 41mm high and 56.7mm deep, weighing 45g. The conduit hole is sized at 19.1mm (3/4 in, M25). Conduit hole adaptorAluminium with polycarbonate top coverWhite48.5x41x56.7mm, 45g19.1mm (M25) conduit hole
Not in stock · delivery 3-4 days
The SBP-160WMW1 holds a camera on a wall or pole and is classified for indoor use. Its body is aluminium and its cover polycarbonate, finished in white to RAL9003. The mount measures 169.7(W)x118.3(H)x214.8(D)mm (6.68x4.66x8.46"), weighs 696g (1.53lb) and takes a permitted load of 5kg. The conduit hole is 19.1mm (3/4", M25), the gangbox hole supports single, double, 4" octagon and 4" square, and fixing uses a TR20 screw. Supported models are the XND-C6083RV, XND-C7083RV, XND-C8083RV and XND-C9083RV. Wall and pole mounting, indoorAluminium body with polycarbonate cover169.7x118.3x214.8mm / 696gMax. load 5kgConduit hole 19.1mm (M25)Gangbox single, double, 4" octagon, 4" square
Not in stock · delivery 3-4 days

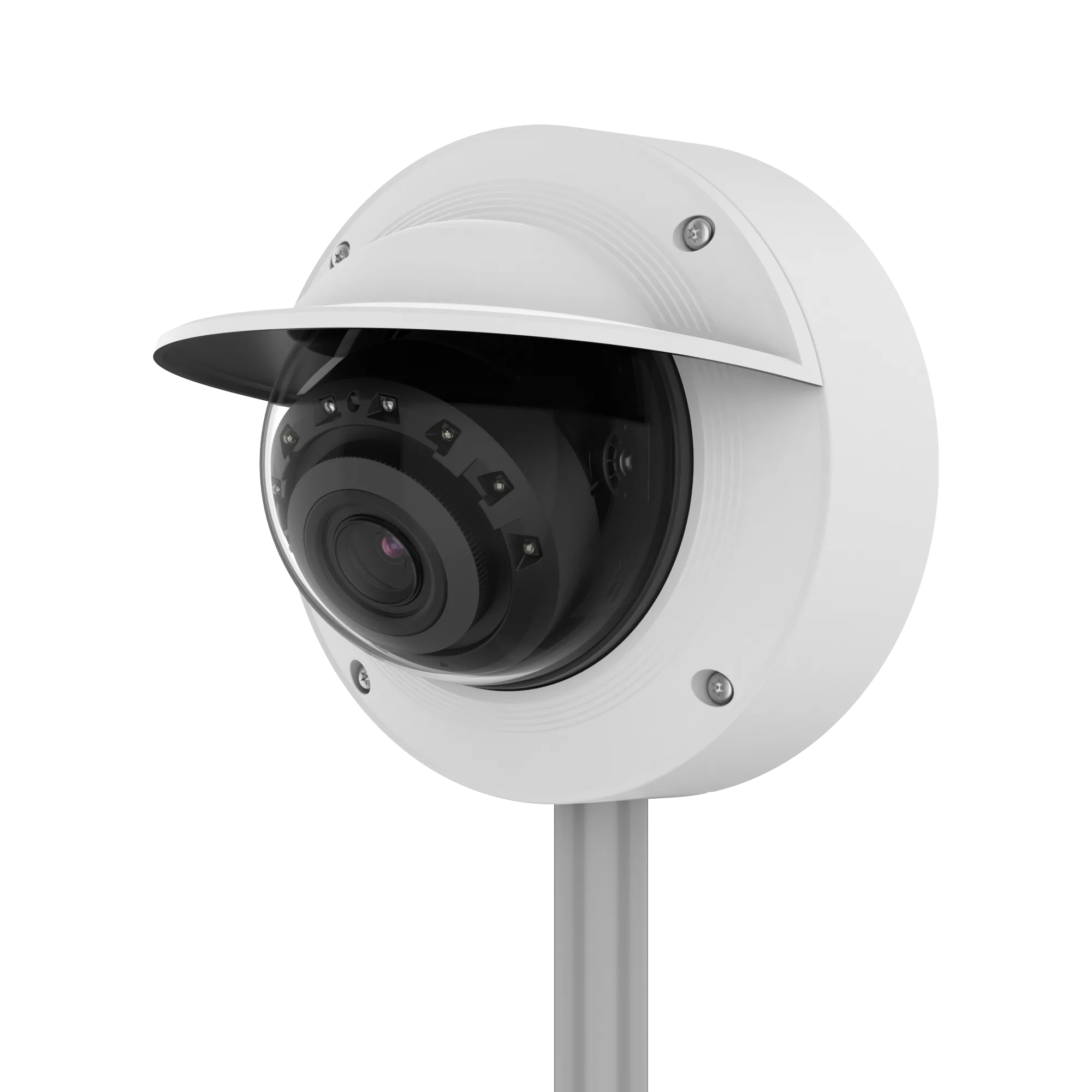

The SBV-161WCW is a polycarbonate (PC) weather cap finished in white to RAL9003. At 155.3x95.8x62.2mm and 49g it stays small and light. The cap is intended for the XNV-C6083R, XNV-C7083R, XNV-C8083R and XNV-C9083R. Further compatible models are listed on the manufacturer's website or in the Toolbox. Polycarbonate weather capWhite, RAL9003Dimensions 155.3x95.8x62.2mmWeight 49gSupports XNV-C6083R to XNV-C9083R
Not in stock · delivery 3-4 days
SHD-1350FPW is an in-ceiling housing made of aluminium with a polycarbonate part, finished white to RAL 9003. At ø205x163 mm (8.07x6.42") it is one of the larger in-ceiling enclosures in the range, and it weighs 1,170 g (2.58 lb). Conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25) are provided for cable routing. The supported model stated is XND-6083RV. In-ceiling housing in aluminium and polycarbonateWhite, RAL 9003ø205x163 mm1,170 gConduit holes 12.7 mm (M20) and 19.1 mm (M25)For XND-6083RV
In stock, ships immediately · delivery 1-2 days

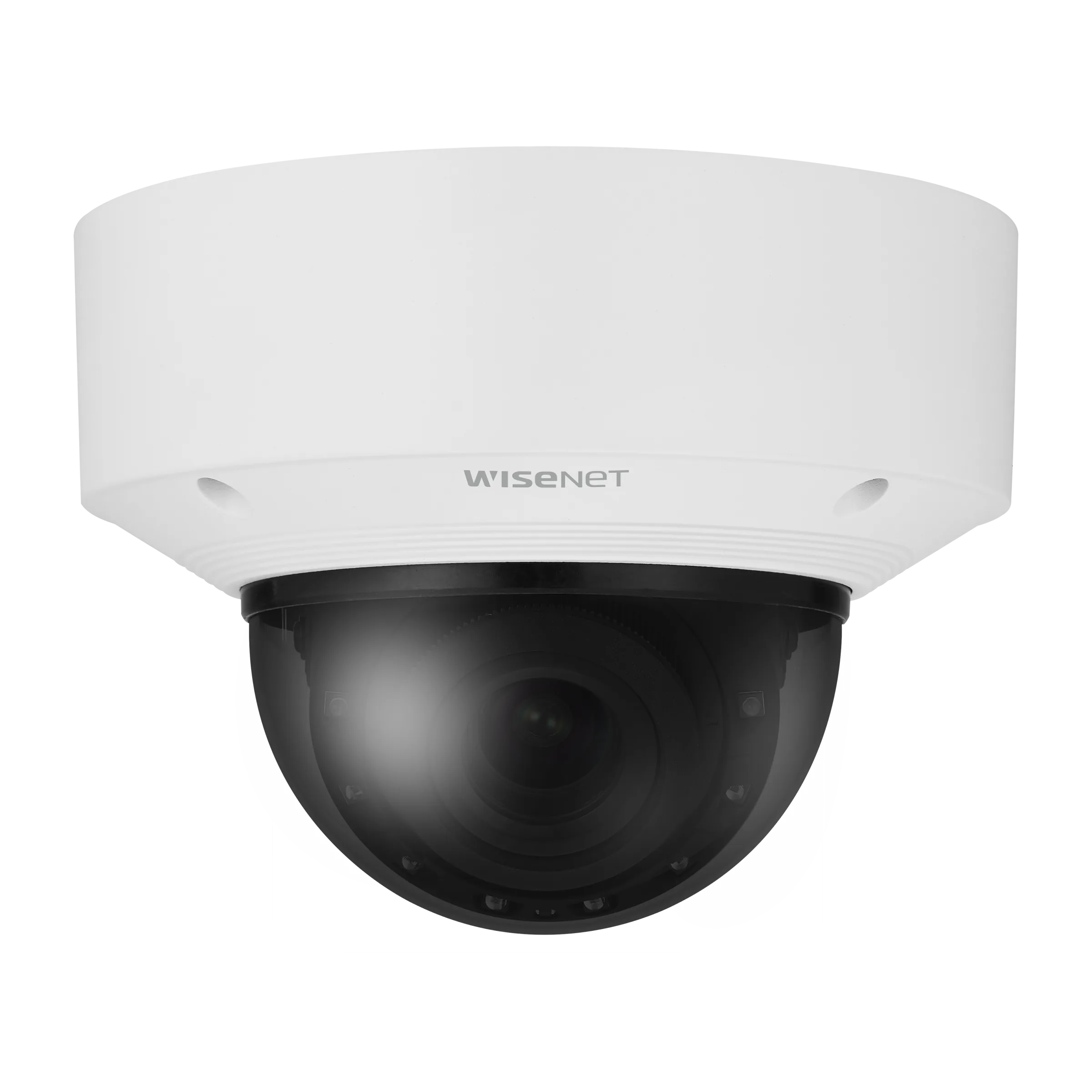

The SPB-VAN88W is a smoked dome cover made of aluminium with a polycarbonate (PC) dome bubble. Its white finish corresponds to RAL9003. The cover measures Ø160x118mm (Ø6.30"x4.65") and weighs 400 g (0.88lb). The manufacturer lists XNV-C6083R, XNV-C7083R, XNV-C8083R and XNV-C9083R as supported products; further compatible models are documented in the manufacturer's compatibility overview. Smoked dome coverAluminium cover, polycarbonate dome bubbleWhite, RAL9003Dimensions Ø160x118mmWeight 400 gFor XNV-C6083R, XNV-C7083R, XNV-C8083R, XNV-C9083R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNV-C8083R
- EAN / GTIN
- 8801089208071
- Weight
- 1.9 kg
- Dimensions (W×H×D)
- 219 × 219 × 195 mm
Description

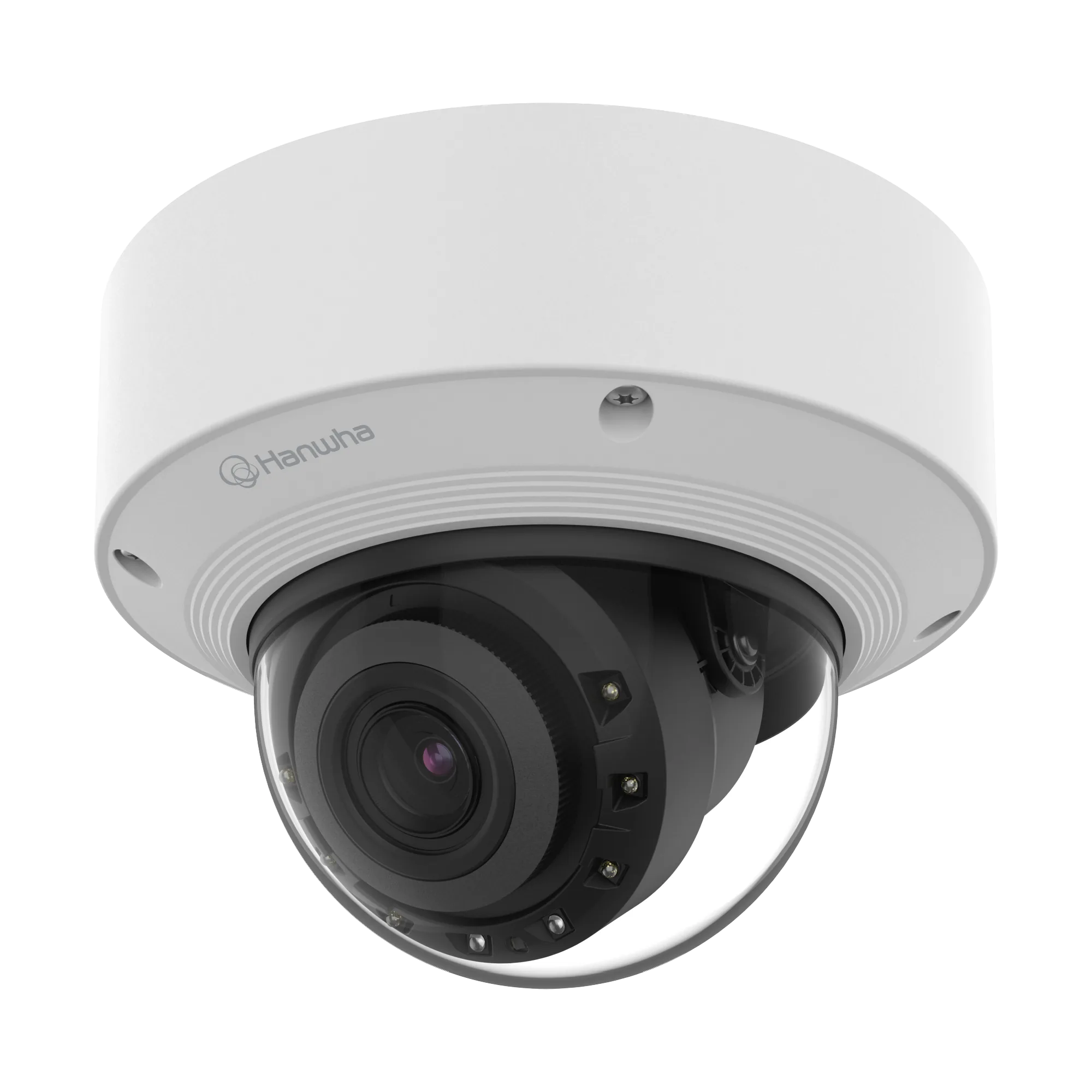

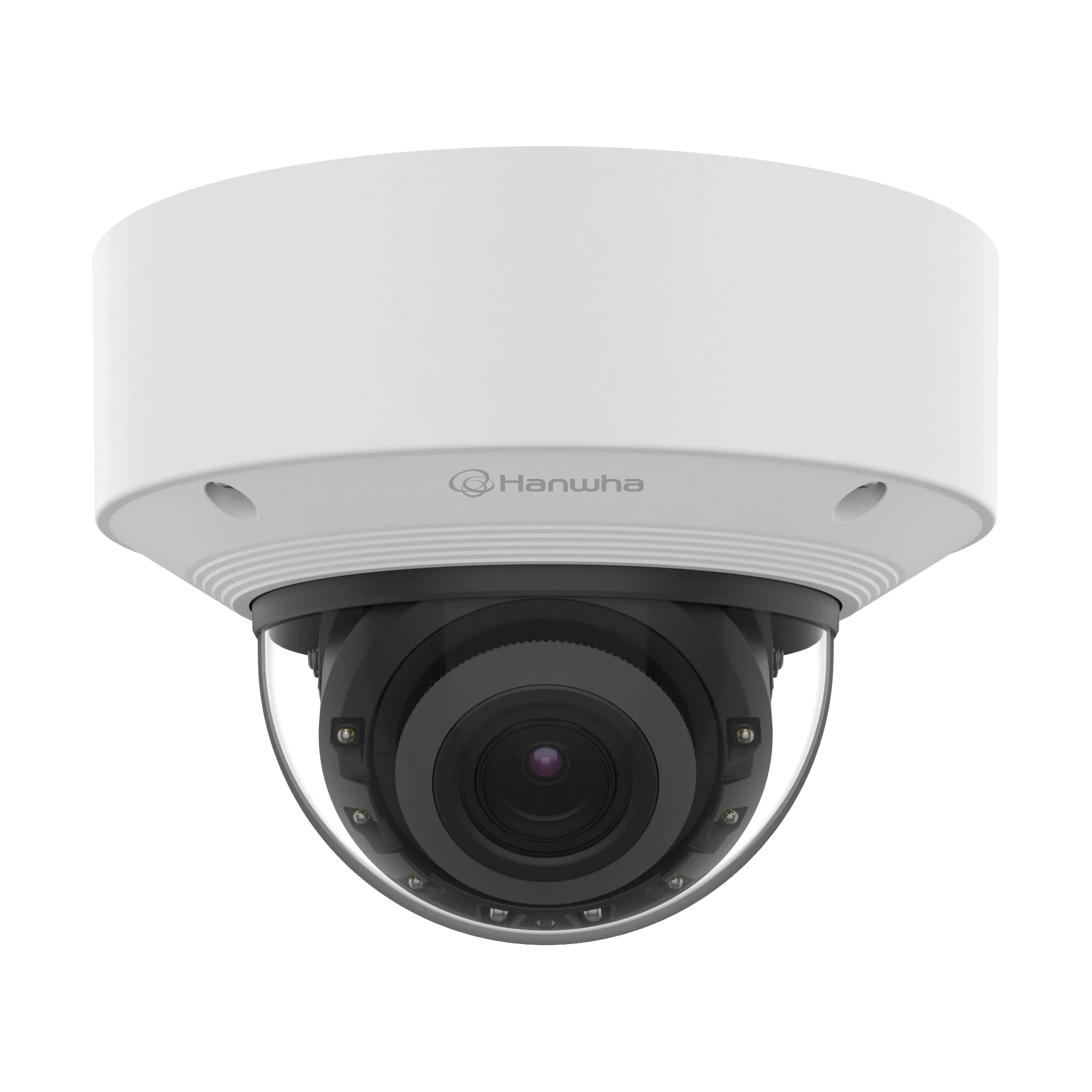

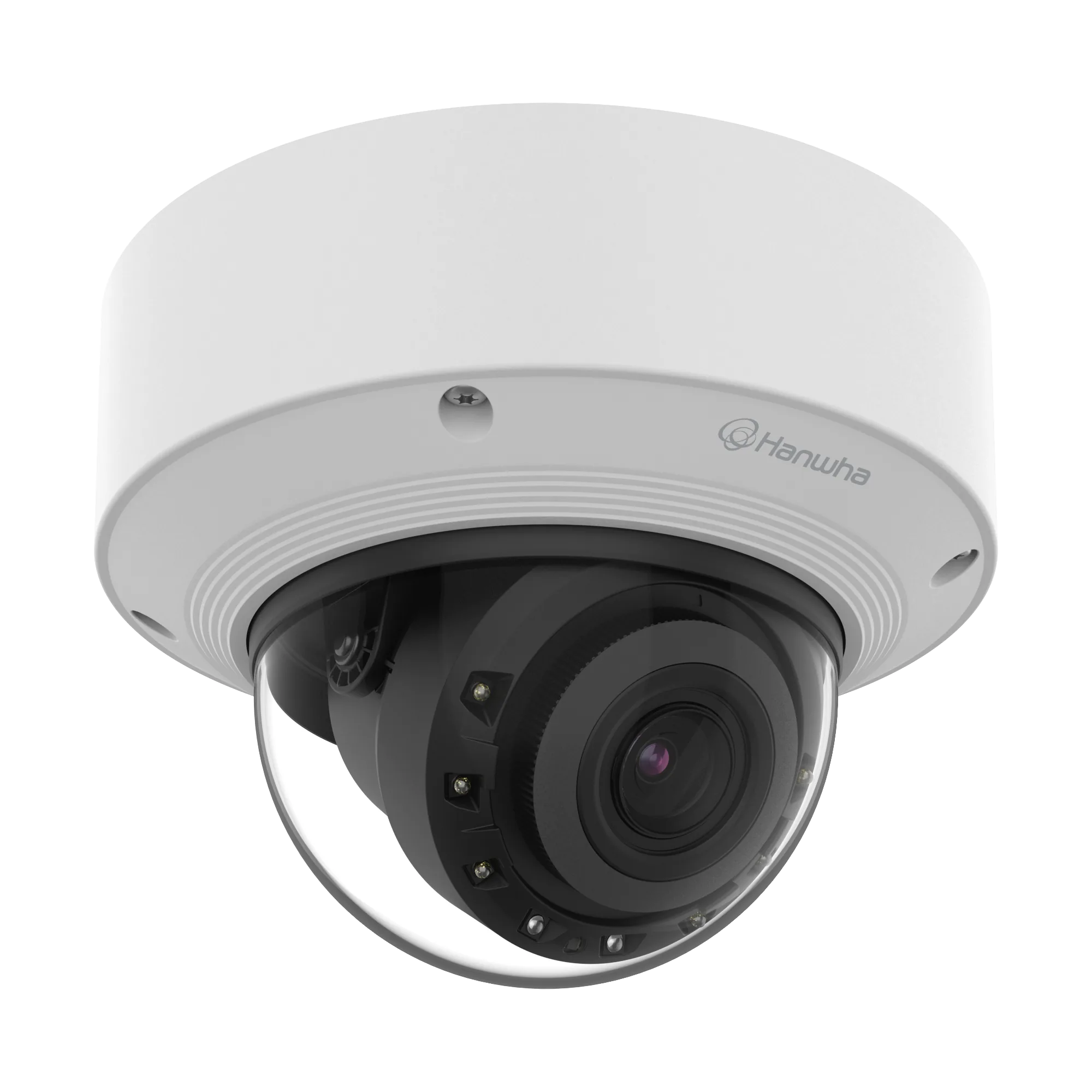

The XNV-C8083R is a vandal-resistant IR dome camera with AI functions and 6MP imaging on a 1/1.8-inch CMOS sensor that resolves up to 3328x1872 pixels. H.265 and H.264 achieve 30fps at 60Hz and 25fps at 50Hz, while MJPEG runs at 30fps and is limited to 5fps at 6MP. Its IR-corrected P iris lens covers 4.4 to 9.3mm with 2.1x optical zoom and an aperture from F1.3 wide to F2.15 tele, capturing 113 to 47 degrees horizontally and 138 to 54 degrees diagonally. Minimum illumination is specified at 0.04 lux in colour and 0.004 lux in black and white, with an automatic ICR governing the day and night transition. Focusing uses simple focus or manual control, and alignment is available across 0 to 360 degrees of pan, 0 to 75 degrees of tilt and 0 to 355 degrees of rotation.
- 6MP, up to 3328x1872 pixels
- 1/1.8-inch CMOS sensor
- 4.4-9.3mm lens, 2.1x optical zoom
- F1.3 wide / F2.15 tele
- 0.04 lux colour / 0.004 lux BW
- Day & Night Auto (ICR)
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (6)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle)
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- DetectionShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 153.1m(502.22ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 44.1m(144.54ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 15.3m(50.22ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.4m(14.45ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 61.2m(200.89ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 17.6m(57.82ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 30.6m(100.44ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 8.8m(28.91ft)
Environmental & Electrical (9)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -20°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 13.2W, typical 10.8W
- Environmental & Electrical / Power Consumption – PoE
- Max. 12.95W, typical 11.2W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – EPA(Effective Projected Area)
- 0.02㎡
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 1slot
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 138°~54°
- Lens / Angular Field of View – Horizontal
- 113°~47°
- Lens / Angular Field of View – Vertical
- 58°~26°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.15
- Lens / Max Aperture Ratio (F number) – Wide
- 1.3
- Lens / Zoom Ratio – Optical
- 2.1x
- Lens – Focal Length (mm)
- 4.4~9.3
- Lens – Focus Control
- Simple focus, Manual
- Lens – Lens Type
- P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 12.7mm(1/2")(M20)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- ø160x118mm(6.30x4.65")
- Mechanical – Product Weight
- 1,450g(3.20lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (25)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 40m(131.23ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~75°
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/1.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@6MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.004
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.04
- Video – Resolution
- 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
