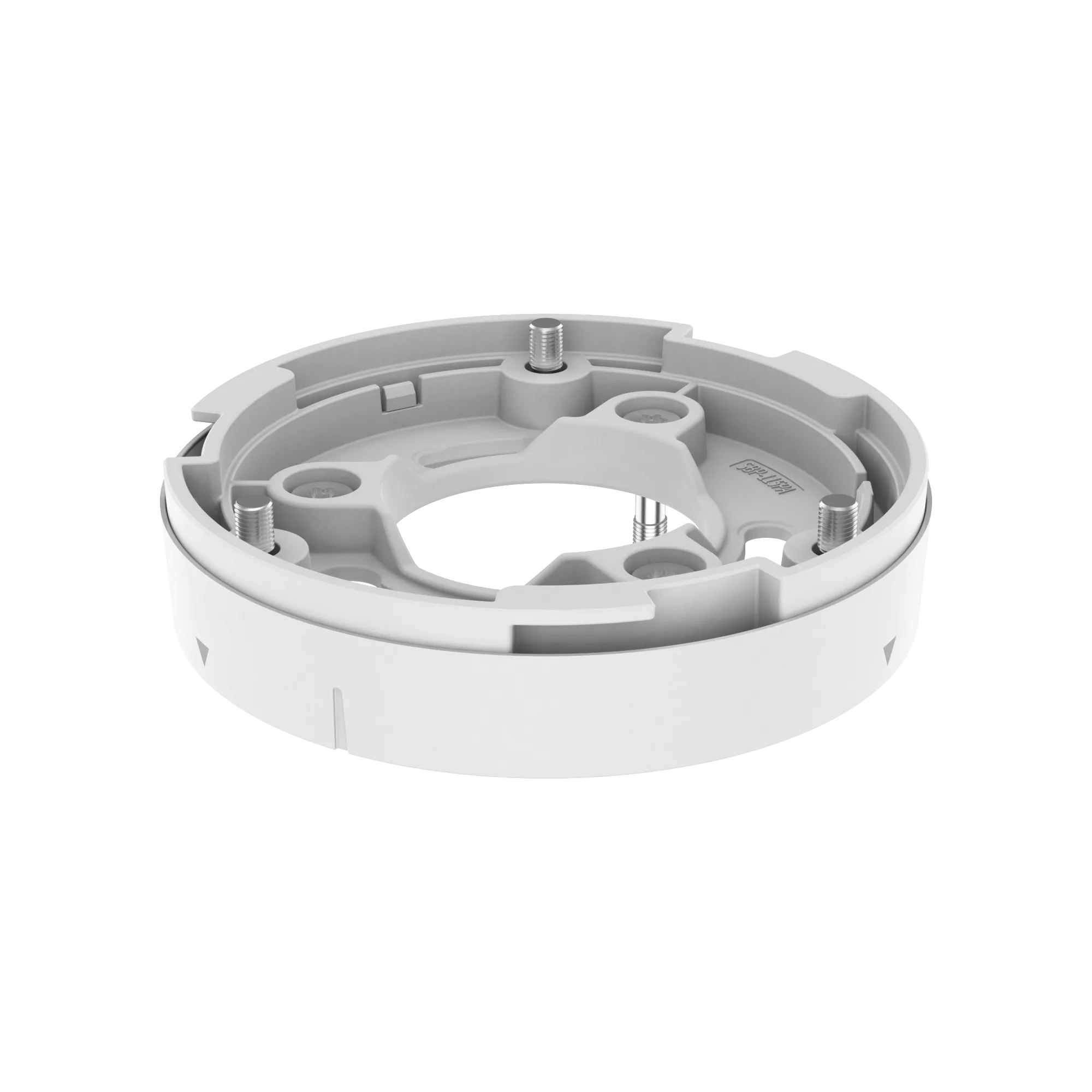

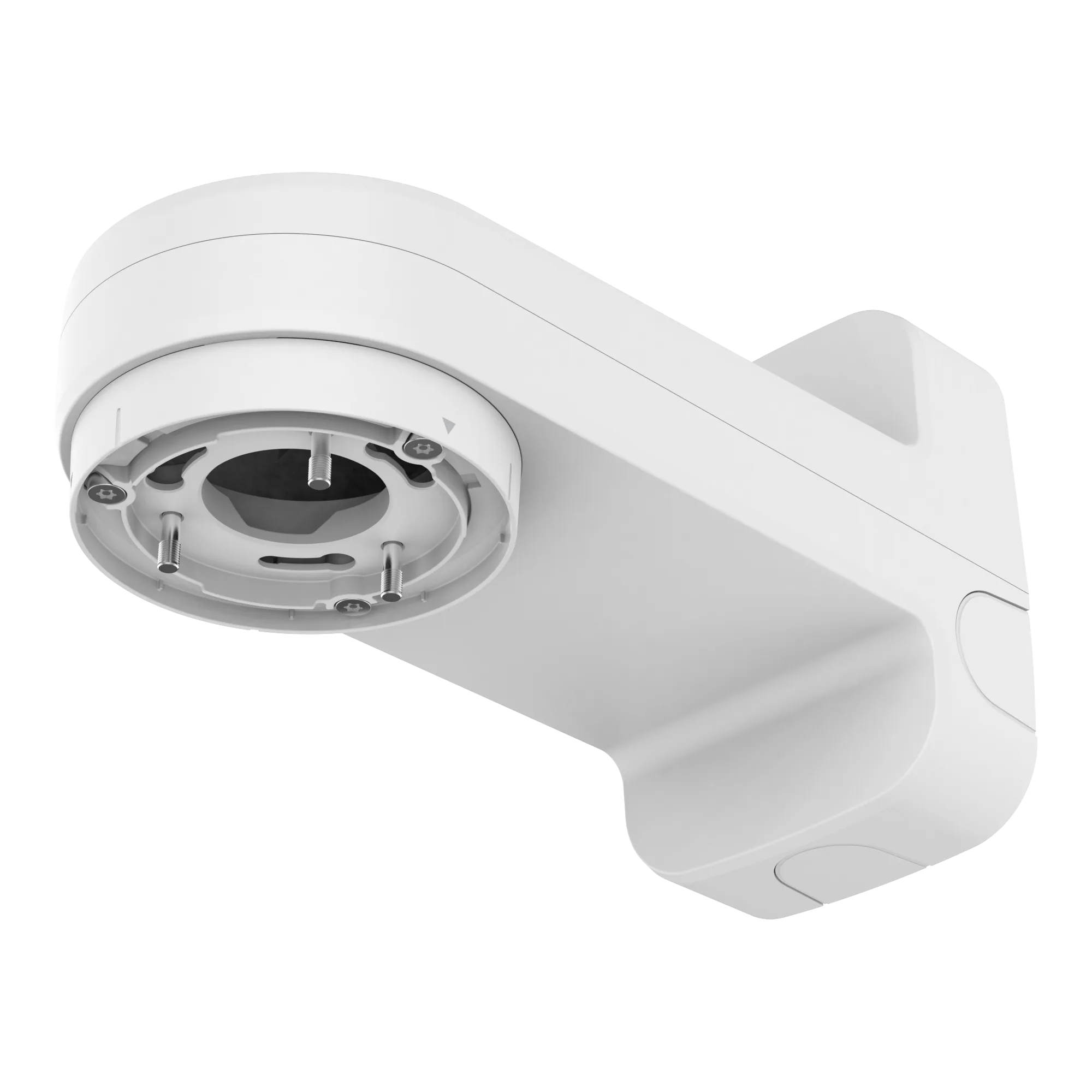

Wall&Pole Mount

Built around a 1/2.8 inch CMOS sensor, this PTZ network camera resolves up to 1920x1080 and encodes at 60fps/50fps (60Hz/50Hz) in H.265 and H.264, or 30fps in MJPEG. Its lens runs from 4.25 to 170 mm with 40x optical and 32x digital zoom, opens to F1.6 wide and F4.95 tele and covers 65.66 to 1.88 degrees horizontally. At 1/30 sec and 30 IRE it reaches 0.05 lux in colour and 0.005 lux in black and white, with a minimum object distance of 5 m (16.4ft). Panning is endless over 360 degrees and tilt spans 90 to -20 degrees, at up to 700 degrees per second on presets and 0.024 to 250 degrees per second under manual control. The feature set includes ICR day and night operation, WDR at 150 dB, DIS with a gyro sensor, intelligent analytics with object auto tracking for persons and vehicles and WiseStream II, in a housing rated IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9). 4.25~170 mm, 40x optical, 32x digital zoom1920x1080, 60fps/50fps in H.265/H.264WDR 150 dB, DIS with gyro sensorObject auto tracking for person and vehicle360 degree endless pan, up to 700 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

This AI PTZ camera in PTZ PLUS design uses a 1/2.8 inch CMOS sensor and delivers up to 1920x1080, encoding H.265 and H.264 at 60fps/50fps (60Hz/50Hz) and MJPEG at 30fps. The lens spans 4.25 to 170 mm and provides 40x optical plus 32x digital zoom, 1280x in total, at F1.6 wide and F4.95 tele. Horizontal field of view runs from 65.66 to 1.88 degrees and vertical from 39.4 to 1.09 degrees, with a minimum object distance of 5 m (16.4ft). At 1/30 sec it reaches 0.05 lux in colour and 0.005 lux in black and white; pan is endless across 360 degrees at up to 700 degrees per second and tilt covers 90 to -20 degrees at up to 500 degrees per second. Intelligent analytics with object auto tracking for persons and vehicles, target lock tracking, WiseStream II and a housing rated IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) complete the specification. 4.25~170 mm, 40x optical, 32x digital, 1280x total1920x1080, 60fps/50fps in H.265/H.2640.05 lux colour / 0.005 lux BWObject auto tracking and target lock tracking360 degree endless pan, up to 700 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

This 4MP AI IR PTZ camera is based on a 1/1.8 inch CMOS sensor with a maximum resolution of 2592x1520. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) with WDR off and 30fps/25fps with WDR on, while MJPEG runs at 30fps and a maximum of 5fps at 4MP. The motorised varifocal lens from 6.91 to 214.7 mm supplies 31x optical and 32x digital zoom, F1.36 wide and F4.6 tele, and a horizontal field of view of 59.4 to 2.54 degrees. Wise IR reaches 300 m (984ft), and sensitivity is quoted as 0.04 lux in colour and 0.004 lux in black and white, falling to 0 lux with the IR LED on. Focusing options include oneshot AF, focus save, focus scan and Wise auto focus, alongside WDR at 120 dB, AI-based WiseNR II and WiseStream III, DIS with a gyro sensor and IP66/IP67, IK10 and NEMA4X ratings. 6.91~214.7 mm, 31x optical, 32x digital zoom1/1.8 inch CMOS, up to 2592x1520Wise IR up to 300 m (984ft)WDR 120 dB, WiseNR II, prefer shutterWise auto focus and focus saveIP66/IP67, IK10, NEMA4X

This AI PTZ camera in PTZ PLUS design records at up to 3328x1872 and encodes H.265 and H.264 at 30fps/25fps (60Hz/50Hz), with MJPEG at 30fps and no more than 5fps at 6MP. Its lens runs from 5 to 125 mm, provides 25x optical and 32x digital zoom for 800x in total, and opens to F1.6 wide and F3.73 tele. Horizontal coverage is 57.42 to 2.71 degrees and vertical coverage 33.54 to 1.55 degrees, with a minimum object distance of 5 m (16.4ft). Sensitivity at 1/30 sec is quoted as 0.1 lux in colour and 0.01 lux in black and white; pan is endless over 360 degrees at up to 700 degrees per second and tilt covers 90 to -20 degrees at up to 500 degrees per second. The specification also lists intelligent analytics with object auto tracking for persons and vehicles, target lock tracking, WiseStream II and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings. 5~125 mm, 25x optical, 32x digital, 800x totalUp to 3328x1872, 30fps/25fps in H.265/H.2640.1 lux colour / 0.01 lux BWObject auto tracking and target lock tracking360 degree endless pan, up to 700 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

This 8MP AI PTZ camera in PTZ PLUS design offers a maximum resolution of 3840x2160 and encodes H.265 and H.264 at 30fps/25fps (60Hz/50Hz). MJPEG reaches 30fps and a maximum of 5fps at 8MP, while minimum illumination is given as 0.1 lux in colour and 0.01 lux in black and white. The lens spans 5 to 125 mm and supplies 25x optical plus 32x digital zoom, 800x in total, at F1.6 wide and F3.73 tele. Coverage runs from 57.42 to 2.71 degrees horizontally and 33.54 to 1.55 degrees vertically, with a minimum object distance of 5 m (16.4ft). Pan is endless across 360 degrees at up to 700 degrees per second and tilt covers 90 to -20 degrees at up to 500 degrees per second, complemented by object auto tracking, target lock tracking, WiseStream II and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings. 5~125 mm, 25x optical, 32x digital, 800x totalUp to 3840x2160, 30fps/25fps in H.265/H.2640.1 lux colour / 0.01 lux BWObject auto tracking and target lock tracking360 degree endless pan, up to 700 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

This AI IR PTZ camera uses a 1/1.8 inch CMOS sensor and reaches 4K resolution of up to 3840x2160 at 30fps/25fps (60Hz/50Hz) in H.265 and H.264. MJPEG runs at 30fps and a maximum of 5fps at 8MP, with minimum illumination quoted as 0.06 lux in colour and 0.006 lux in black and white, or 0 lux with the IR LED on. The motorised varifocal lens covers 6.91 to 214.7 mm, gives 31x optical and 32x digital zoom at F1.36 to F4.6, and spans 60.6 to 2.59 degrees horizontally and 68.8 to 2.97 degrees diagonally. Wise IR reaches 250 m (820ft), and focusing can be automatic, manual, oneshot AF, focus save, focus scan or Wise auto focus. Pan is endless over 360 degrees at up to 550 degrees per second, supported by WDR at 120 dB, AI-based WiseNR II and WiseStream III, DIS with a gyro sensor and IP66/IP67, IK10 and NEMA4X ratings. 6.91~214.7 mm, 31x optical, 32x digital zoom1/1.8 inch CMOS, up to 3840x2160Wise IR up to 250 m (820ft)0.06 lux colour / 0.006 lux BWWDR 120 dB, WiseNR II, Wise auto focusIP66/IP67, IK10, NEMA4X
