The HCO-6070R is an analog HD bullet camera with infrared illumination and a 3.2 to 10mm varifocal lens at F1.6, covering 110° to 32° horizontally, 55° to 18° vertically and 128° to 37° diagonally. A 1/2.8-inch CMOS sensor produces 1920x1080 at 30fps (NTSC) or 25fps (PAL), and focus is set manually through an IR-corrected DC auto iris from a 0.5m object distance. The camera still works at 0.11 lux in colour and 0.011 lux in black and white, and with the IR LED switched on it goes down to 0 lux with a 30m viewable length. The housing is rated IP66 and IK10. BNC output can be set to AHD, TVI, CVI or CVBS and spans up to 500m over 5C2V coaxial cable. Picture quality is supported by an automatic ICR filter, BLC, HLC, 120dB WDR, SSNRⅣ, defog and four motion detection areas, with plug-and-play installation and dual power. 3.2 to 10mm varifocal lens at F1.61/2.8-inch CMOS sensor, 1920x108030m IR viewable length, 0 lux with IR LEDIP66 and IK10 rated housing120dB WDR, SSNRⅣ, defogAHD/TVI/CVI/CVBS BNC output up to 500m

As an analog HD bullet camera with IR LEDs, the HCO-6080R uses a motorised 3.2 to 10mm varifocal lens offering 3.1x optical zoom and simple focus. Its 1/2.8-inch CMOS sensor captures 1920x1080 at 30fps (NTSC) or 25fps (PAL), with a field of view from 110.2° to 32° horizontally, 55.4° to 18° vertically and 128.4° to 36.6° diagonally. Sensitivity is stated as 0.11 lux in colour and 0.011 lux in black and white, dropping to 0 lux with the IR illumination active and a 30m viewable length. The enclosure meets IP66 and IK10, minimum object distance is 0.5m and the DC auto iris is IR corrected. AHD, TVI, CVI and CVBS can be selected at the BNC output, which carries up to 500m over 5C2V coaxial cable. An automatic ICR filter, BLC, HLC, 120dB WDR, SSNRⅣ and defog process the image, and installation is plug and play with dual power. Motorised 3.2 to 10mm varifocal lens (3.1x)Simple focus with IR-corrected DC auto iris1/2.8-inch CMOS sensor, 1920x108030m IR viewable length, IP66 and IK10120dB WDR, SSNRⅣ, defogAHD/TVI/CVI/CVBS BNC output up to 500m

The PNO-A6081R is a 2MP bullet camera with AI functions and IR support. Its 1/2-inch CMOS sensor supplies up to 1920x1080 pixels at 120fps/100fps (60Hz/50Hz) in H.265 and H.264, falling to a maximum of 60fps/50fps when AI is on, and 15fps in MJPEG. Analytics recognise people, faces, vehicles and licence plates and filter motion events down to the relevant information, which keeps event lists shorter. Intelligent video analysis covers virtual line and virtual area rules including intrusion, enter, exit, appear and loitering, plus social distancing compliance in crowds and face mask detection. The lens runs from 4.38 to 9.33 mm at 2.13x zoom, opens to F1.3 and F2.15 and covers 103.1° to 44.5° horizontally, at 0.007 lux in colour and 0.0007 lux in black and white with 120 dB WDR. 1/2-inch CMOS sensor, 1920x1080Up to 120fps/100fps, 60fps/50fps with AI on4.38-9.33 mm lens, 2.13x optical0.007 lux colour / 0.0007 lux BWObject detection and intelligent video analysis120 dB WDR, day and night (ICR)

The PNO-A9081R is a 4K bullet network camera with IR and deep-learning based AI video analytics. Its 1/1.8-inch CMOS sensor reaches up to 3840x2160 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, encoded in H.265, H.264 and MJPEG with WiseStream II. The 4.5 to 10 mm lens with 2.2x optical zoom opens to F1.6 wide and F2.65 tele, covering 101.4° to 45.5° horizontally and 120.7° to 52.3° diagonally, focusing from 0.5 m. In low light the manufacturer states 0.05 lux in colour and 0.005 lux in black and white, dropping to 0 lux with the IR LED on. ICR day and night switching, BLC, SSDR, 120 dB WDR and noise reduction through WiseNR II based on the AI engine plus SSNR V complete the picture. 1/1.8-inch CMOS sensor, 3840x216030fps/25fps in H.265 and H.2644.5-10 mm lens, 2.2x optical0.05 lux colour / 0.005 lux BW120 dB WDR, day and night (ICR)Deep-learning AI video analytics

The PNO-A9081RLP is a bullet camera built around a 1/1.8-inch CMOS sensor, delivering 4K images at 3840x2160 with IR illumination, and it ships with the Wisenet Road AI application pre-installed and licensed plus an SD card. Licence plate recognition (ANPR), make, model and colour recognition (MMCR) and vehicle classification all run on the camera itself, so no separate server is required. For city traffic monitoring it covers up to one traffic lane at speeds of up to 70kmh (45mph), while access control and licence plate list management address stop and go sites such as car parks and toll roads. Its 4.5~10mm lens offers 2.2x optical zoom at F1.6 wide and F2.65 tele, spanning 101.4°~45.5° horizontally, with minimum illumination of 0.05 lux in colour and 0.005 lux in black and white. Operation is web based without dedicated client software, and ICR day and night switching, 120dB WDR and SSNRⅤ complete the imaging chain. 4K resolution 3840x2160 at 30fps/25fps (H.265/H.264)Pre-installed, licensed ANPR, MMCR and vehicle classification analytics4.5~10mm lens with 2.2x optical zoomMinimum illumination 0.05 lux colour / 0.005 lux BW120dB WDR with BLC and SSDRCoverage of up to one traffic lane at up to 70kmh (45mph)

Delivering 2 megapixels (1920 x 1080) from a 1/2.8-inch CMOS sensor, the QNO-6012R1 is an IR bullet camera for network video. Its fixed 2.8 mm lens at F2.0 covers 114° horizontally, 62° vertically and 135° diagonally, with a minimum object distance of 0.5 m. H.265 and H.264 provide up to 30fps/25fps (60Hz/50Hz) at all resolutions, MJPEG reaches 15fps and a maximum of 4fps at 2MP, and multiple streaming is available. Colour holds from 0.03 lux, black and white from 0.003 lux, and the camera continues at 0 lux with the IR LED on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR meet motion, tampering and defocus detection. Hallway view at 90° and 270° and LDC are provided, and a Micro SD/SDHC/SDXC slot accepts up to 128 GB. 2MP resolution (1920 x 1080)2.8 mm fixed lens, F2.0120 dB WDR, ICR day/nightHallway view 90°/270°, LDC supportMicro SD/SDHC/SDXC slot up to 128 GB

As an IR bullet camera with a 1/2.8-inch CMOS sensor, the QNO-6022R1 captures up to 2 megapixels (1920 x 1080). Its fixed 4 mm lens at F1.6 shows 88° horizontally, 47° vertically and 105° diagonally, with a minimum object distance of 0.5 m. H.265 and H.264 work at up to 30fps/25fps (60Hz/50Hz) in all resolutions, MJPEG at 15fps and no more than 4fps at 2MP, with several streams running in parallel. Colour needs 0.03 lux, black and white 0.003 lux, and 0 lux once the IR LED is on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR complement motion, tampering and defocus detection. Hallway view at 90° and 270°, LDC support and a Micro SD/SDHC/SDXC slot for up to 128 GB round out the specification. 2MP resolution (1920 x 1080)4 mm fixed lens, F1.6120 dB WDR, ICR day/nightHallway view 90°/270°, LDC supportMicro SD/SDHC/SDXC slot up to 128 GB

With 4MP resolution and a 1/3-inch CMOS sensor, the QNO-7022R is an IR bullet camera recording up to 2560 x 1440 pixels. Its 4 mm fixed focal length at F1.6 produces a field of view of 79° horizontally, 42° vertically and 92° diagonally. H.265 and H.264 reach up to 30fps/25fps (60Hz/50Hz) at all resolutions, MJPEG 15fps and a maximum of 2fps at 4MP, and several streams can be output at the same time. Colour capture works from 0.15 lux (F1.6, 1/30sec), black and white from 0.015 lux, and from 0 lux with the IR LED active. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR meet motion, tampering and defocus detection across four zones. Hallway view at 90° and 270°, LDC support and a 128 GB Micro SD/SDHC/SDXC slot are available. 4MP resolution (2560 x 1440)4 mm fixed focal lens, F1.6Field of view 79° H, 42° V, 92° D120 dB WDR, hallway view 90°/270°, LDCMicro SD/SDHC/SDXC slot, 128 GB

Rated IP66 and IK10, the QNO-7032R is an IR bullet camera with 4MP resolution on a 1/3-inch CMOS sensor and up to 2560 x 1440 pixels. Its 6 mm fixed focal length at F2.0 gives a narrow field of view of 49° horizontally, 28° vertically and 56° diagonally, with an IR length of 30 m. H.265 and H.264 supply up to 30fps/25fps (60Hz/50Hz) at all resolutions, MJPEG 15fps and no more than 2fps at 4MP, each with multiple streaming. Colour images begin at 0.15 lux (F2.0, 1/30sec), black and white at 0.015 lux, and 0 lux with the IR LED switched on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR complement motion, tampering and defocus detection across four zones, joined by hallway view at 90° and 270°, LDC support and a 128 GB Micro SD/SDHC/SDXC slot. 4MP resolution (2560 x 1440)6 mm fixed focal lens, F2.0Field of view 49° H, 28° V, 56° D30 m IR length, IP66 and IK10 rated120 dB WDR, hallway view 90°/270°, LDC

The QNO-7082R is an IR bullet network camera with 4MP resolution, a 1/3-inch CMOS sensor and up to 2560 x 1440 pixels. Its motorised varifocal lens from 3.2 to 10 mm at 3.1x zoom covers 99° to 30° horizontally, 53° to 17° vertically and 116° to 35° diagonally, with an aperture from F1.6 to F2.9. H.265, H.264 and MJPEG are supported, H.265 and H.264 reaching up to 30fps/25fps (60Hz/50Hz) and MJPEG 15fps or a maximum of 2fps at 4MP, and multiple streaming is available. Colour needs only 0.1 lux (F1.6, 1/30sec), black and white 0.01 lux and 0 lux with the IR LED on, while the IR viewable length is 30 m (98.42ft). ICR day/night switching, 120 dB WDR, BLC and SSDR work together with motion, tampering and defocus detection plus hallway view at 90° and 270° and LDC, and focusing uses simple focus with a DC auto iris. 4MP resolution (2560 x 1440), up to 30fpsMotorised varifocal lens, 3.2 to 10 mm (3.1x)30 m IR viewable length120 dB WDR, ICR day/nightHallway view 90°/270°, LDC support

The QNO-8010R is an IR bullet network camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 5 megapixels (2592 x 1944). Its fixed 2.8 mm lens at F2.0 covers 105° horizontally, 77° vertically and 136° diagonally. H.265 and H.264 operate at 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps, dropping to a maximum of 2fps at 5MP, with multiple streaming supported. Colour capture is possible from 0.15 lux, black and white from 0.015 lux and from 0 lux with the IR LED active. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR complement tampering, motion and defocus detection across four motion zones. A CVBS output assists installation and the Micro SD/SDHC/SDXC slot holds up to 128 GB. 5MP resolution (2592 x 1944)2.8 mm fixed lens, F2.0Field of view 105° H, 77° V, 136° D120 dB WDR, ICR day/nightMicro SD/SDHC/SDXC slot up to 128 GB

As an IR bullet network camera, the QNO-8020R resolves up to 5 megapixels (2592 x 1944) through its 1/2.8-inch CMOS sensor. The fixed 4 mm lens at F1.6 shows 80° horizontally, 59° vertically and 106° diagonally. H.265 and H.264 reach 30fps/25fps (60Hz/50Hz), MJPEG 15fps and no more than 2fps at 5MP, each with multiple streaming. Colour images are produced from 0.15 lux, black and white from 0.015 lux, and 0 lux once the IR LED is on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR work together with tampering, motion and defocus detection over four motion zones. A CVBS output is available for commissioning, and the Micro SD/SDHC/SDXC slot accepts up to 128 GB. 5MP resolution (2592 x 1944)4 mm fixed lens, F1.6Field of view 80° H, 59° V, 106° D120 dB WDR, ICR day/nightMicro SD/SDHC/SDXC slot up to 128 GB

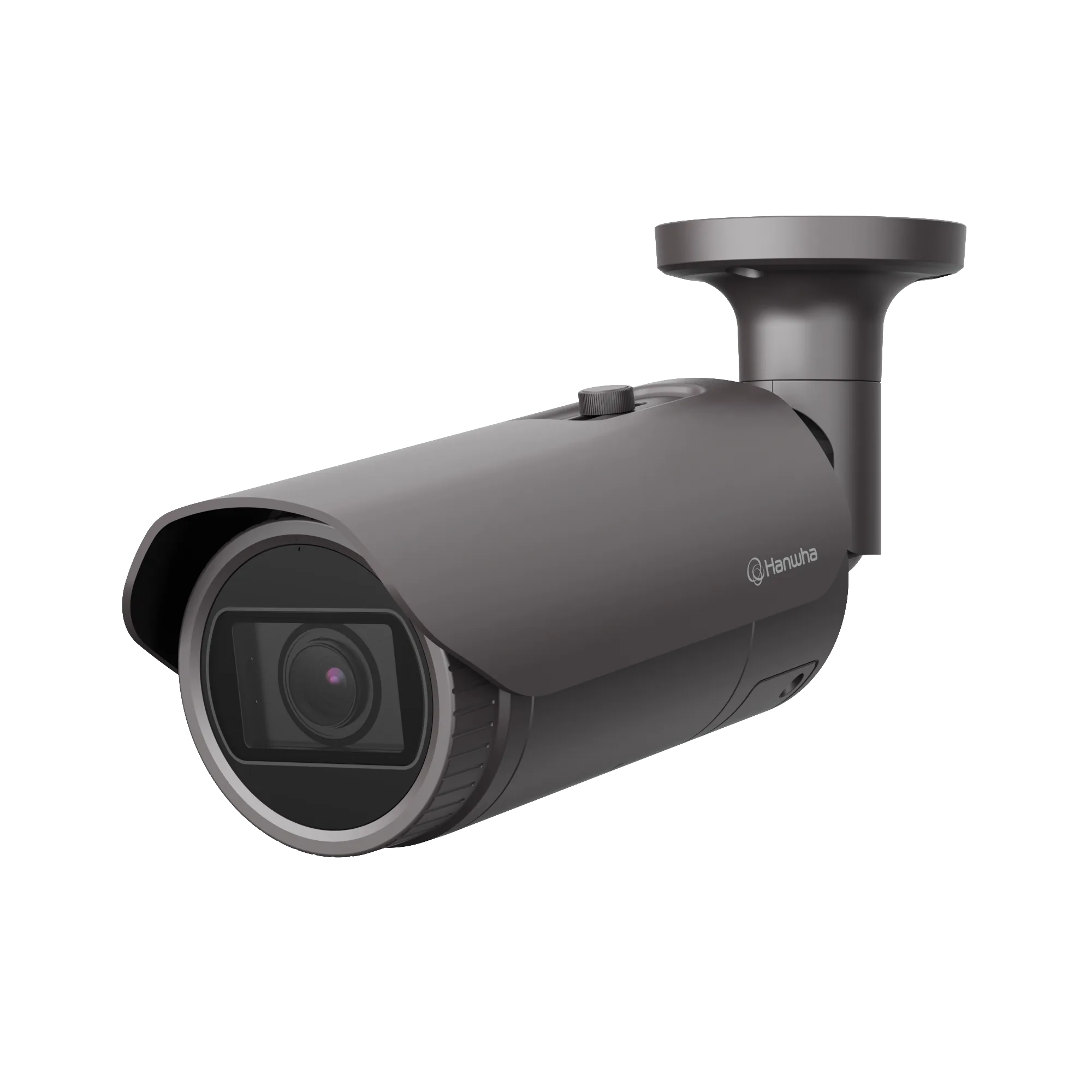

The QNO-8080R combines an IR bullet housing with a motorised varifocal lens spanning 3.2 to 10 mm at 3.1x optical zoom. Its 1/2.8-inch CMOS sensor delivers up to 5 megapixels (2592 x 1944), the angle of view runs from 101° to 31° horizontally, 73° to 23° vertically and 134° to 38° diagonally, and the aperture goes from F1.6 wide to F2.9 tele. H.265 and H.264 achieve 30fps/25fps (60Hz/50Hz), MJPEG 15fps and up to 2fps at 5MP, with multiple streaming also supported. Colour holds from 0.15 lux, black and white from 0.015 lux and 0 lux with the IR LED on, while simple focus and an IR-corrected DC auto iris handle focusing. ICR day/night switching, 120 dB WDR, BLC and SSDR complement tampering, motion and defocus detection, and the Micro SD/SDHC/SDXC slot takes up to 128 GB. 5MP resolution (2592 x 1944)Motorised varifocal lens, 3.2 to 10 mm (3.1x)F1.6 wide to F2.9 tele, DC auto iris120 dB WDR, ICR day/nightMicro SD/SDHC/SDXC slot up to 128 GB

The XNO-6080R captures up to 1920x1080 on a 1/2.8" CMOS imager, delivering 60fps/50fps (60Hz/50Hz) at all resolutions in H.265 and H.264 and 30fps in MJPEG. Its motorised varifocal lens spans 2.8~12 mm with 4.3x optical zoom, an aperture ratio from 1.4 at the wide end to 3.6 at the tele end, and a field of view of 119.5°~27.9° horizontally, 62.8°~15.7° vertically and 142.1°~32.0° diagonally. The lens is a DC auto iris type with IR correction, focused by simple focus or manually from 0.5 m. Sensitivity is 0.015 lux in colour and 0.0015 lux in black and white, with ICR handling the day and night change and WDR at 150 dB, BLC, HLC, SSDR, SSNR V and defog supporting the image. Listed analytics are loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering, motion detection and handover. SD/SDHC/SDXC cards of up to 512 GB are supported, as are WiseStream II and hallway view. Up to 1920x1080, 60fps2.8~12 mm motorised varifocal lens, 4.3xDC auto iris, IR correctedWDR 150 dB, defogHallway view, WiseStream IISD/SDHC/SDXC up to 512 GB

As an IR bullet network camera on a 1/1.8" CMOS imager, the XNO-8020R resolves up to 2560x1920. H.265 and H.264 are encoded at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps. The built-in 3.7 mm fixed lens at F1.6 takes in 97.5° horizontally, 71.9° vertically and 126.2° diagonally, working from 0.4 m with simple focus. Minimum illumination is stated as 0.16 lux in colour and 0.016 lux in black and white, and ICR performs the day and night change automatically. WDR of up to 120 dB, BLC, HLC, DWDR, SSDR, SSNR V, digital image stabilisation and defog condition the image. Motion detection provides 8 zones, an SD/SDHC/SDXC slot accepts cards of up to 512 GB, and the camera runs on PoE or 12 V DC. Up to 2560x19203.7 mm fixed lens, F1.697.5° horizontal field of viewWDR up to 120 dB, defogDigital image stabilisationSD/SDHC/SDXC up to 512 GB, PoE / 12 V DC

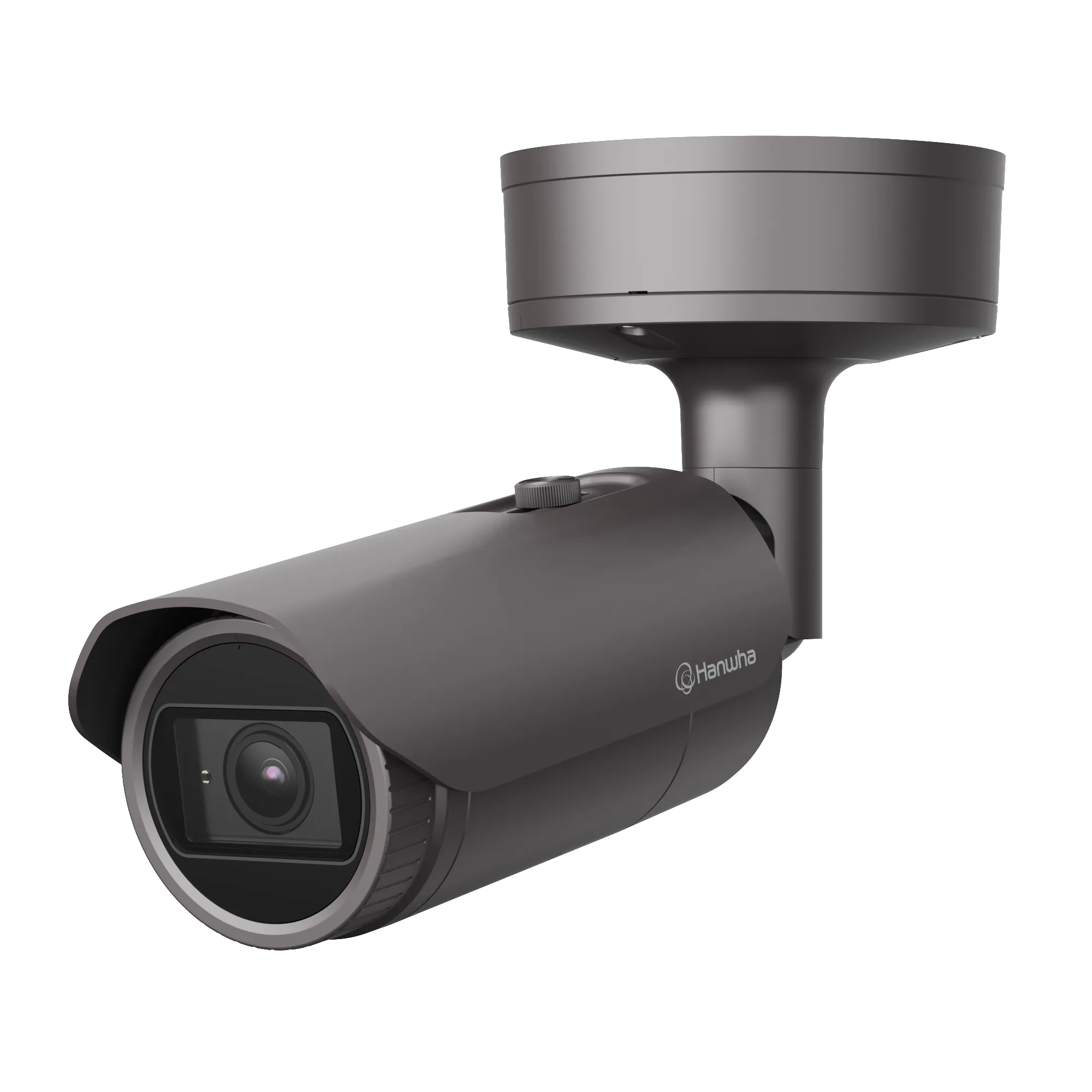

The XNO-8080R matches a 1/1.8" CMOS imager with a motorised varifocal lens of 3.7~9.4 mm and 2.5x optical zoom. Recording reaches 2560x1920, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps. Coverage runs from 100.2°~38.7° horizontally, 72.2°~29.0° vertically and 132.0°~48.6° diagonally, the wide aperture ratio is 1.2 and object distance starts at 0.5 m. The lens is a DC auto iris and P iris design with IR correction, adjusted through simple focus. At 0.07 lux in colour and 0.007 lux in black and white ICR switches over automatically, supported by WDR of up to 120 dB, BLC, HLC, DWDR, SSDR, SSNR V and digital image stabilisation. Listed functions include loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering, motion detection and handover, plus an SD/SDHC/SDXC slot for up to 512 GB. Up to 2560x19203.7~9.4 mm motorised varifocal lens, 2.5xF1.2 at the wide endDC auto iris and P iris, IR correctedWDR up to 120 dB, defogSD/SDHC/SDXC up to 512 GB
