5MP IR Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
The SBP-302PM is an aluminium pole mount intended for bullet and PTZ cameras. It comes in a dark grey finish. Overall size is 166 x 183 x 65.1 mm at a weight of 1300 g. Supported products are listed as QNO-6082R, XNO-8080R and PNO-A9081R. Further applicable models named by the manufacturer are PNO-9080R, SNO-8081R, SBO-100B1 and QNO-7080R, 6070R, 7010R, 7020R, 7030R, 6010R, 6020R and 6030R. Pole mount for bullet and PTZ camerasAluminium constructionDark grey finishSize 166 x 183 x 65.1 mm, 1300 gSupports QNO-6082R, XNO-8080R, PNO-A9081R
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNO-8080R
- EAN / GTIN
- 8801089142214
- Weight
- 2.816 kg
- Dimensions (W×H×D)
- 475 × 180 × 195 mm
Description

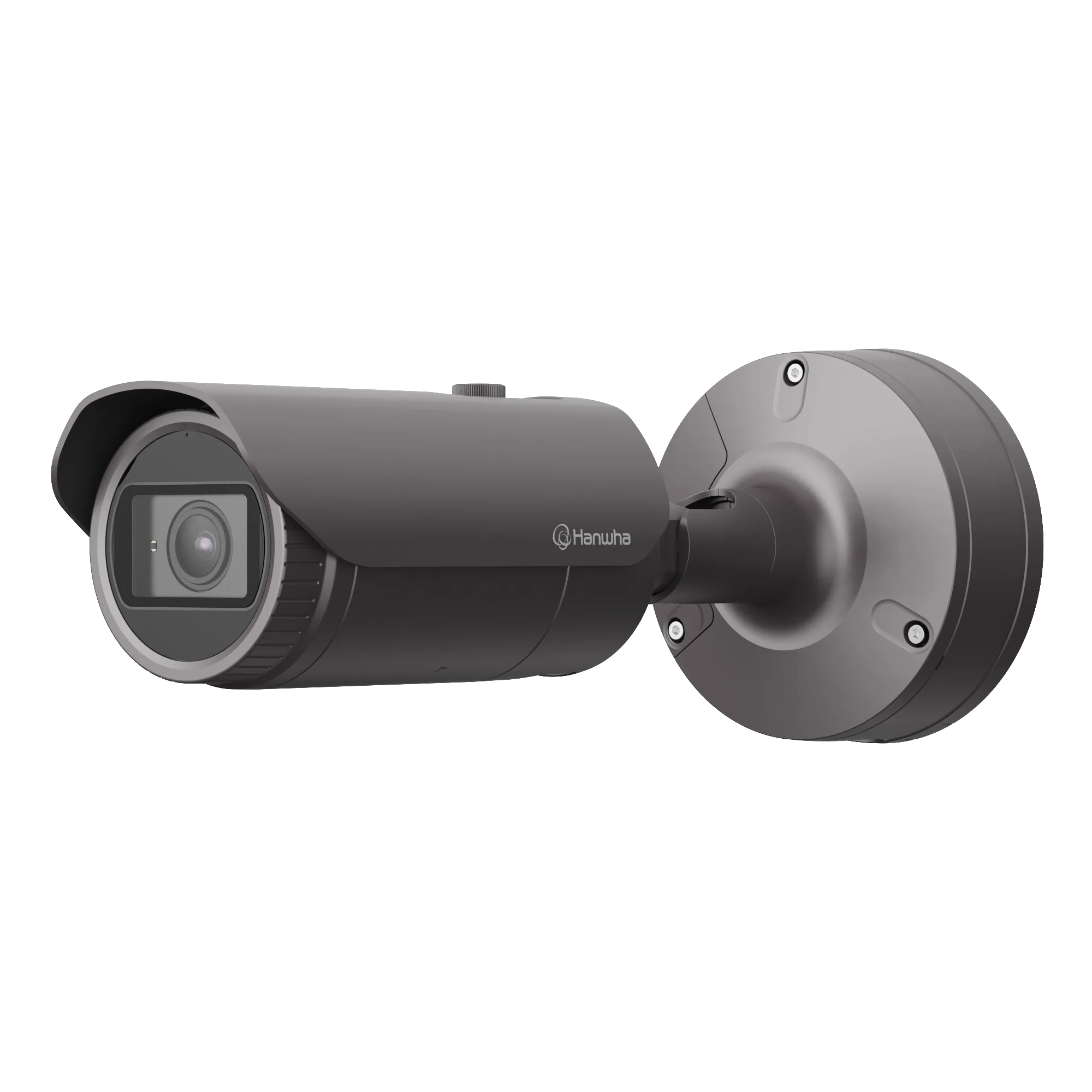

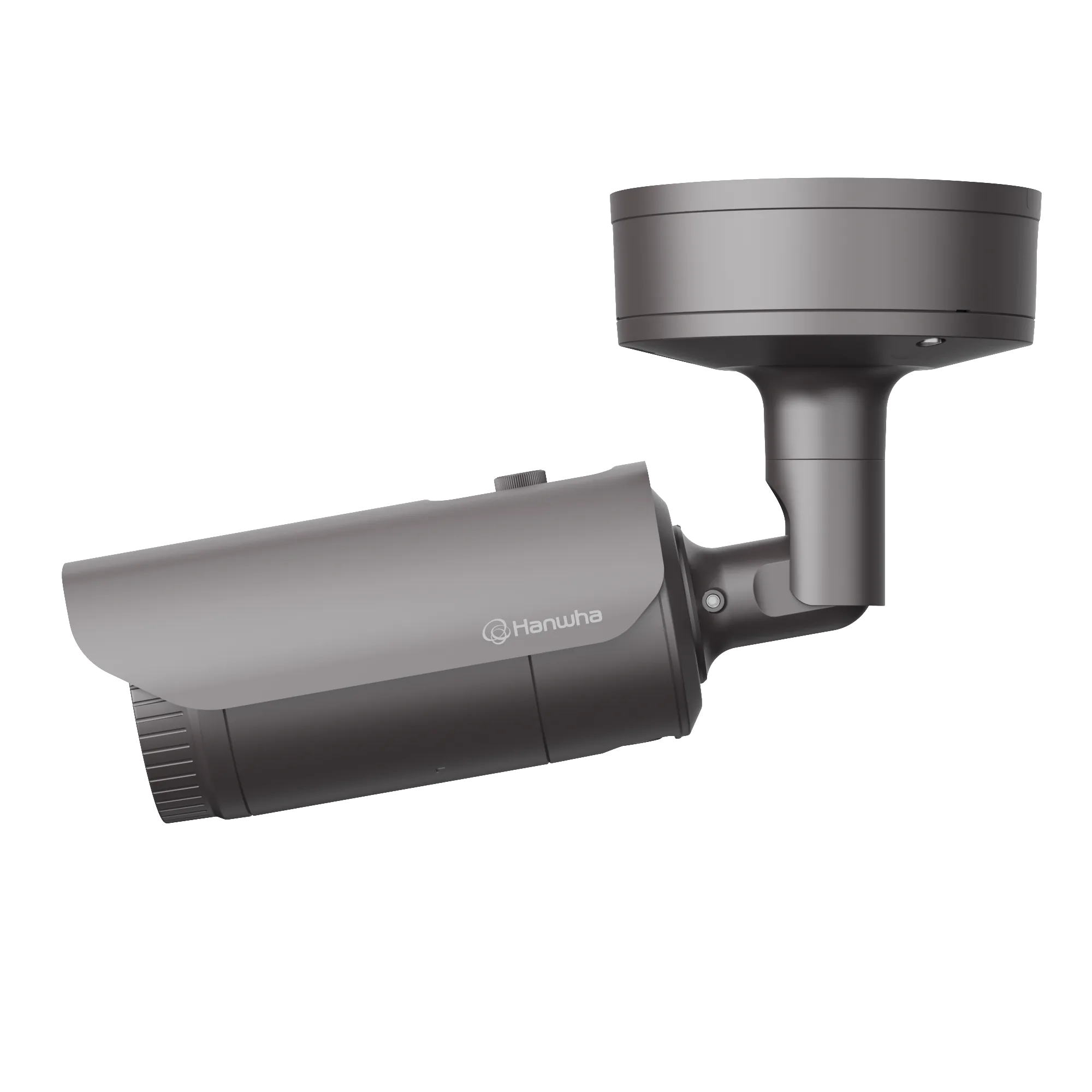

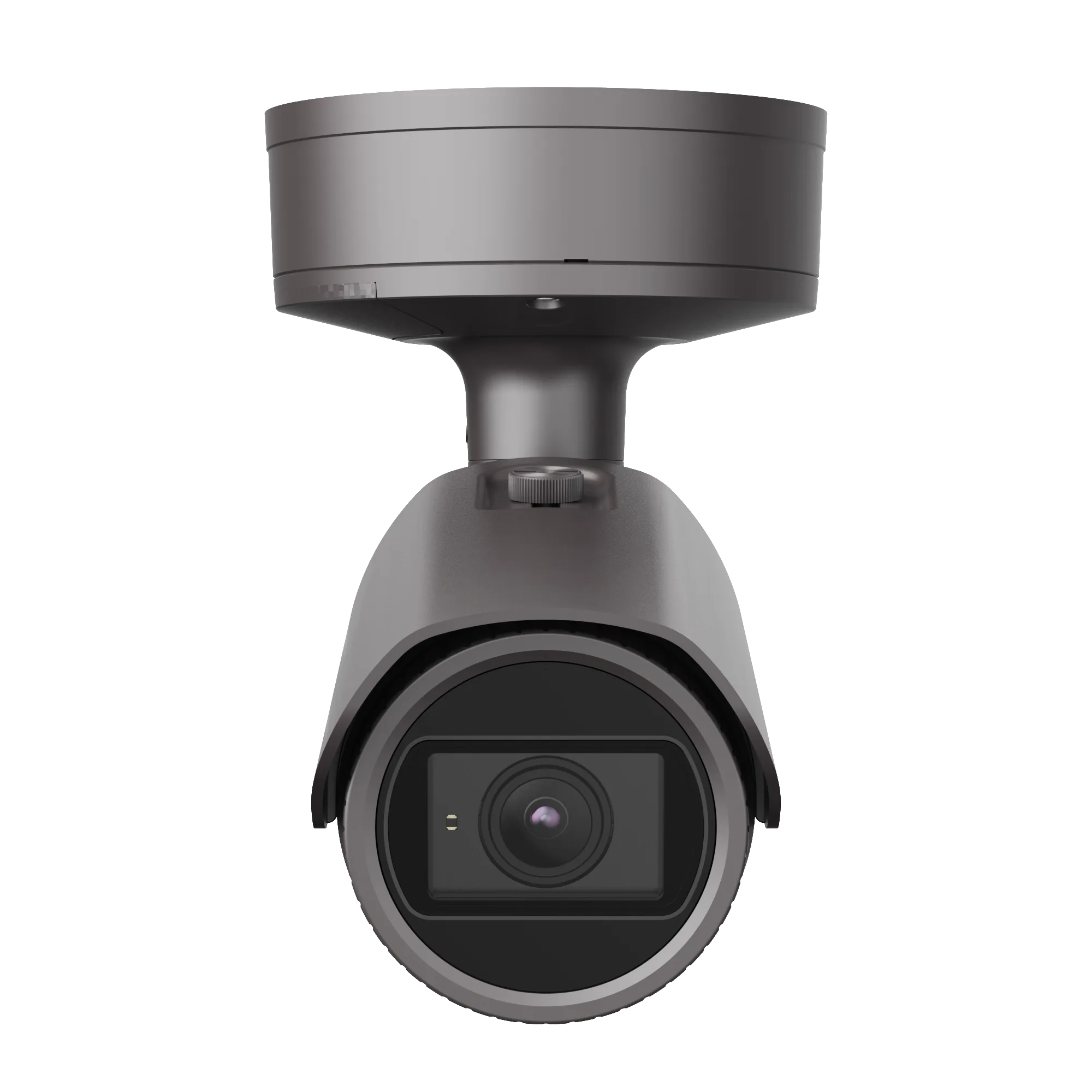

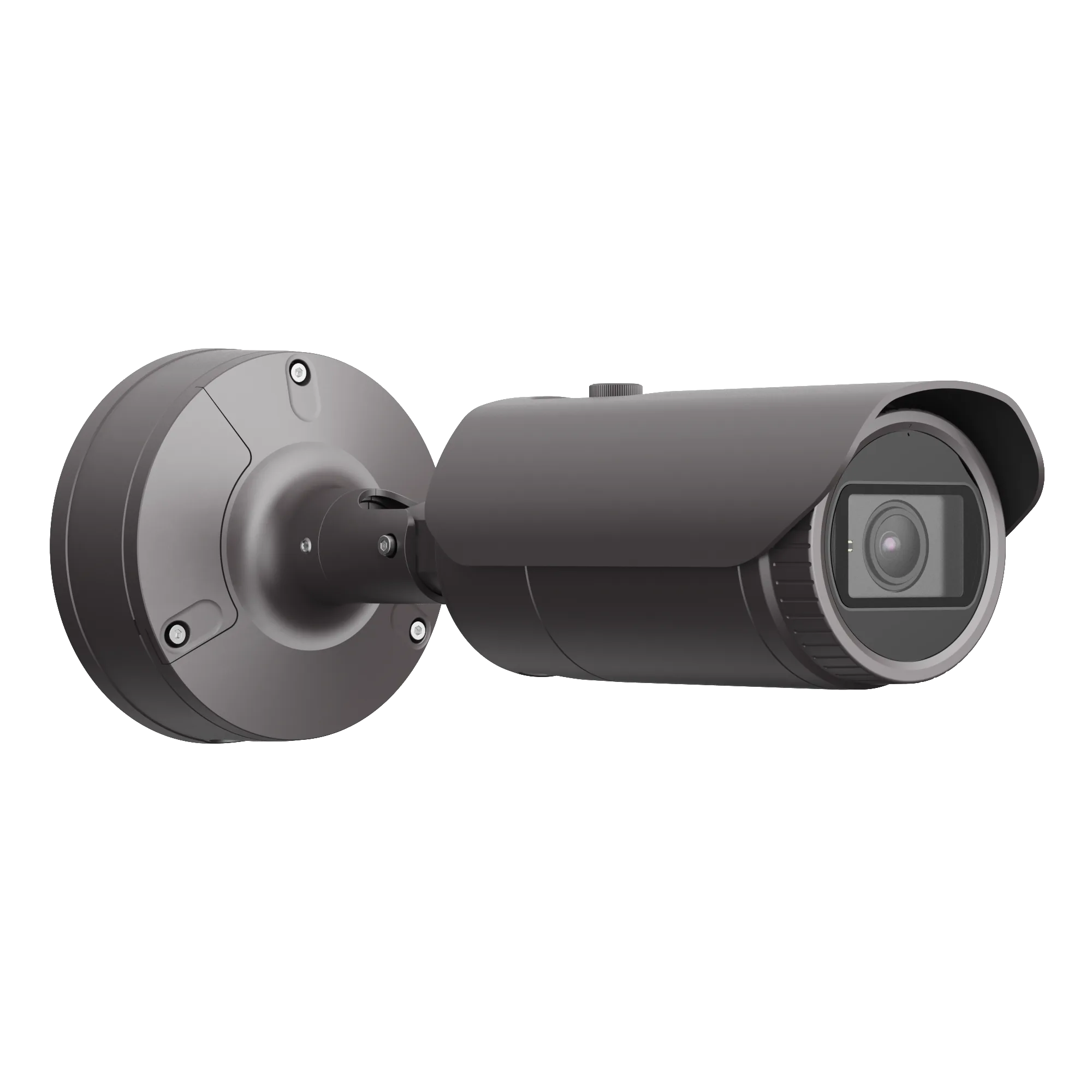

The XNO-8080R matches a 1/1.8" CMOS imager with a motorised varifocal lens of 3.7~9.4 mm and 2.5x optical zoom. Recording reaches 2560x1920, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps. Coverage runs from 100.2°~38.7° horizontally, 72.2°~29.0° vertically and 132.0°~48.6° diagonally, the wide aperture ratio is 1.2 and object distance starts at 0.5 m. The lens is a DC auto iris and P iris design with IR correction, adjusted through simple focus. At 0.07 lux in colour and 0.007 lux in black and white ICR switches over automatically, supported by WDR of up to 120 dB, BLC, HLC, DWDR, SSDR, SSNR V and digital image stabilisation. Listed functions include loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering, motion detection and handover, plus an SD/SDHC/SDXC slot for up to 512 GB.
- Up to 2560x1920
- 3.7~9.4 mm motorised varifocal lens, 2.5x
- F1.2 at the wide end
- DC auto iris and P iris, IR corrected
- WDR up to 120 dB, defog
- SD/SDHC/SDXC up to 512 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking
Certifications & Standards (1)
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 12.5W
- Environmental & Electrical / Power Consumption – 24VAC
- Max 14.5W
- Environmental & Electrical / Power Consumption – PoE
- Max 12.95W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC, 24VAC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 1GB
Lens (9)
- Lens / Angular Field of View – Diagonal
- 132.0°~48.6°
- Lens / Angular Field of View – Horizontal
- 100.2°~38.7°
- Lens / Angular Field of View – Vertical
- 72.2°~29.0°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.2
- Lens / Zoom Ratio – Optical
- 2.5x
- Lens – Focal Length (mm)
- 3.7~9.4
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris, P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (4)
- Mechanical – Color
- Dark grey
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- Ø91x368.6mm(Ø6.3x4.67")
- Mechanical – Product Weight
- 2180g(4.8lb)
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (25)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- 50m(164.04ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, DWDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Security (4)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP)
- Security – User authentication
- Digest authentication
Video (8)
- Video / Imaging Device – Size
- 1/1.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.007
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.07
- Video – Resolution
- 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
