5MP IR Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories

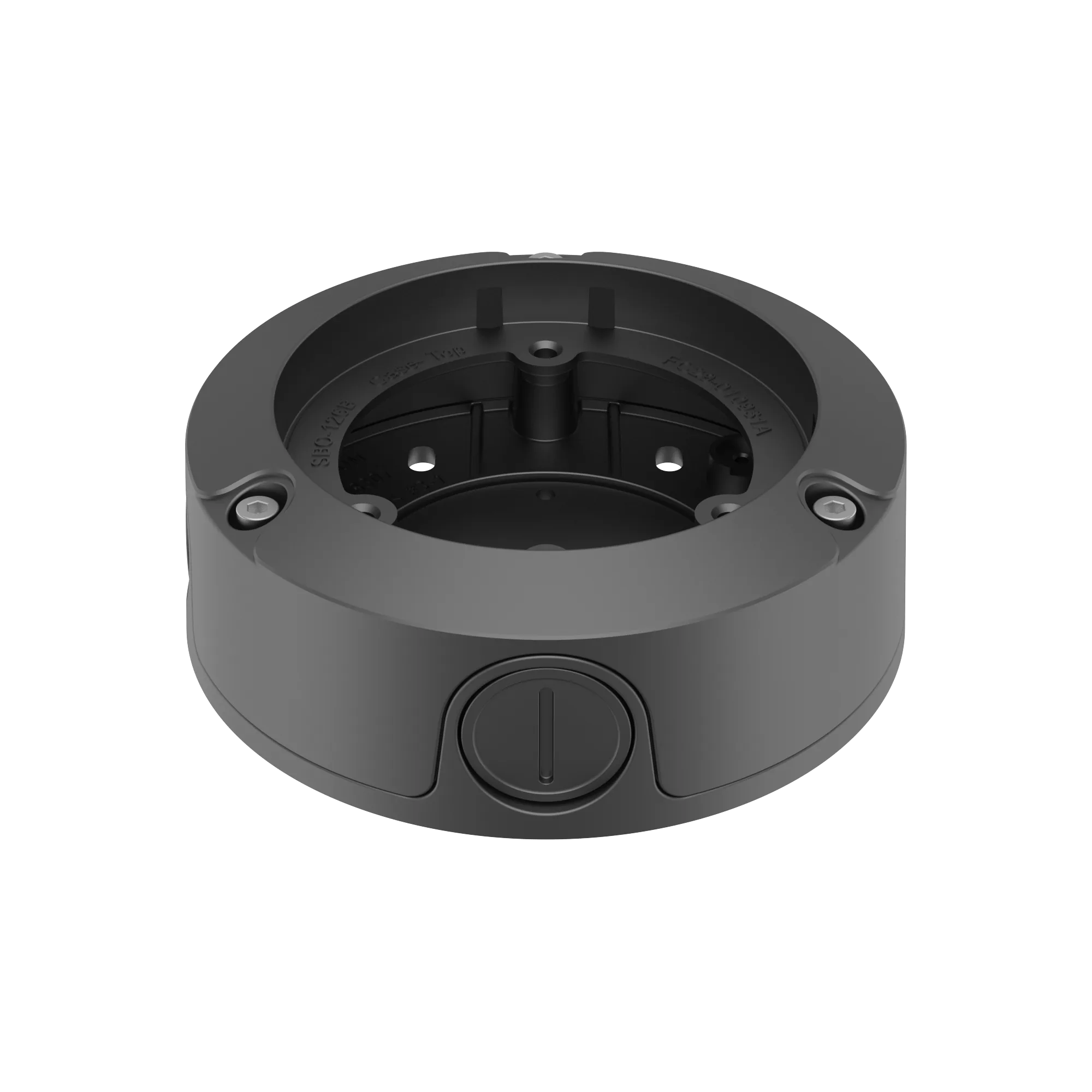

The SBO-126B is an aluminium back box in dark grey. It measures ø126x44mm and weighs 330g. The conduit hole is 19.1mm. Its stated operating range runs from -50 to 60 degrees Celsius at 0 to 100 percent humidity. The QNO-8080R is recorded as a supported camera, and further compatible models are published by the manufacturer online or in its Toolbox. Back boxAluminium, dark greyø126x44mm, 330g19.1mm conduit holeOperation -50 to 60 degrees Celsius, 0 to 100 percent
In stock, ships immediately · delivery 1-2 days
The SBP-302PM is an aluminium pole mount intended for bullet and PTZ cameras. It comes in a dark grey finish. Overall size is 166 x 183 x 65.1 mm at a weight of 1300 g. Supported products are listed as QNO-6082R, XNO-8080R and PNO-A9081R. Further applicable models named by the manufacturer are PNO-9080R, SNO-8081R, SBO-100B1 and QNO-7080R, 6070R, 7010R, 7020R, 7030R, 6010R, 6020R and 6030R. Pole mount for bullet and PTZ camerasAluminium constructionDark grey finishSize 166 x 183 x 65.1 mm, 1300 gSupports QNO-6082R, XNO-8080R, PNO-A9081R
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNO-8080R
- EAN / GTIN
- 8801089164292
- Weight
- 1.92 kg
- Dimensions (W×H×D)
- 180 × 475 × 190 mm
Description

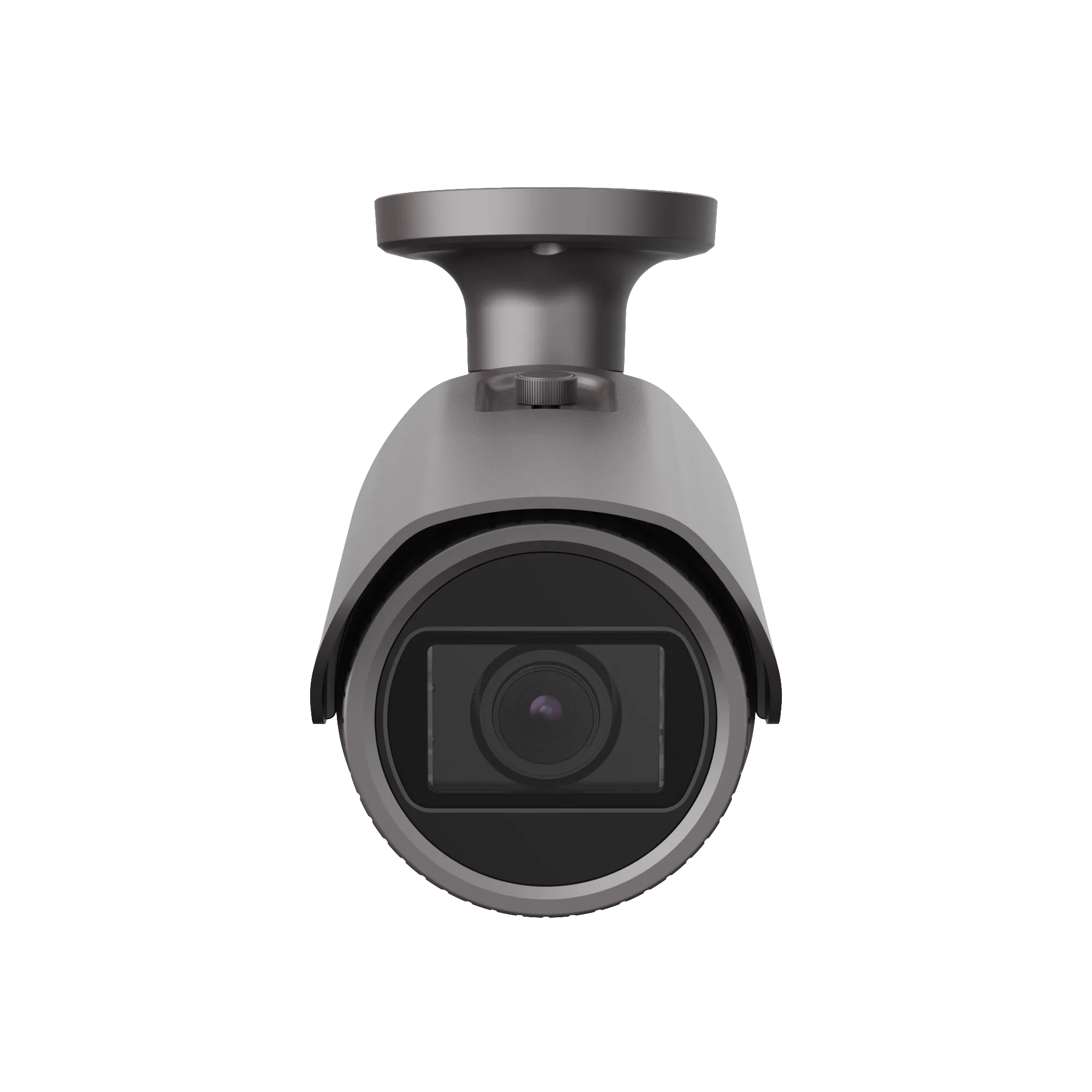

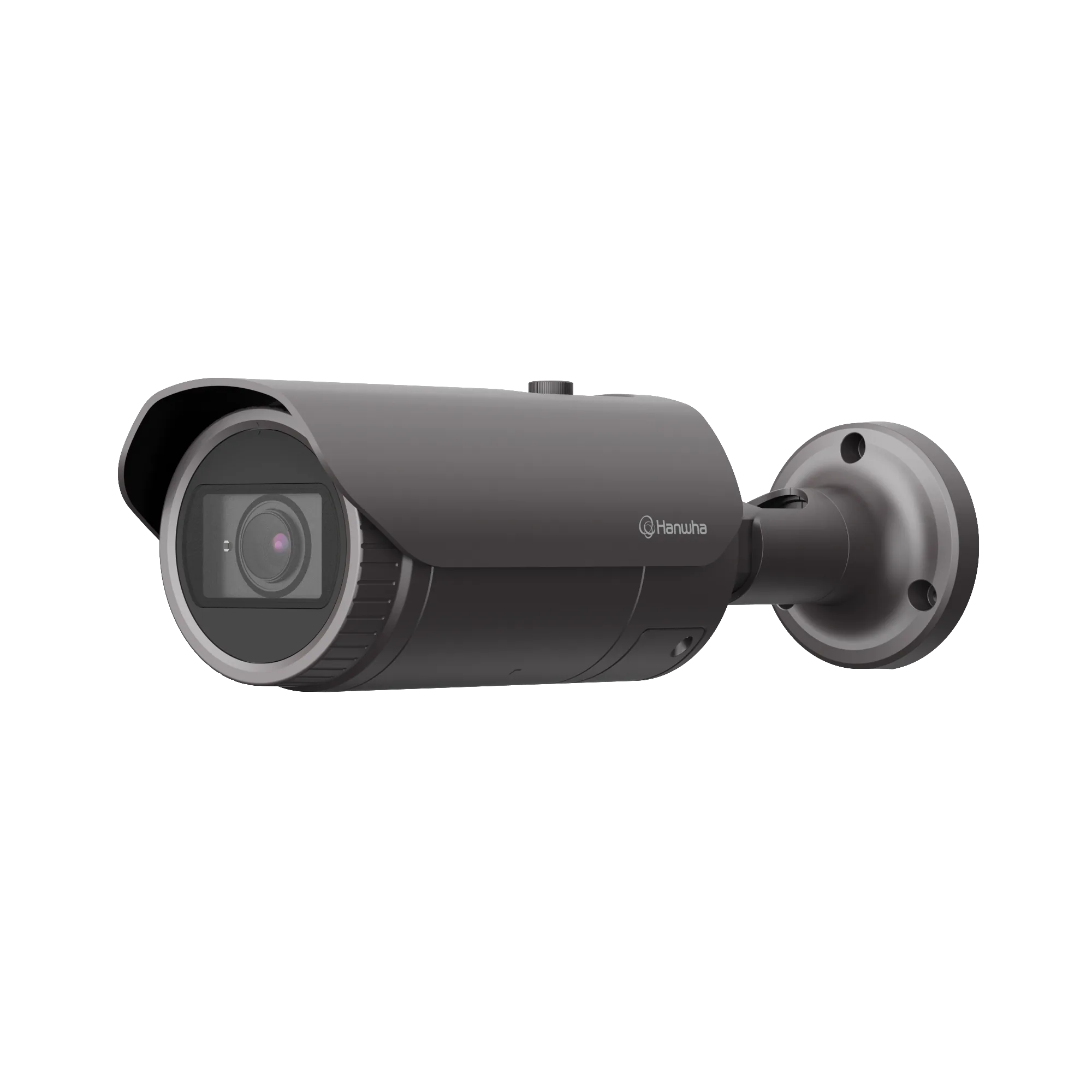

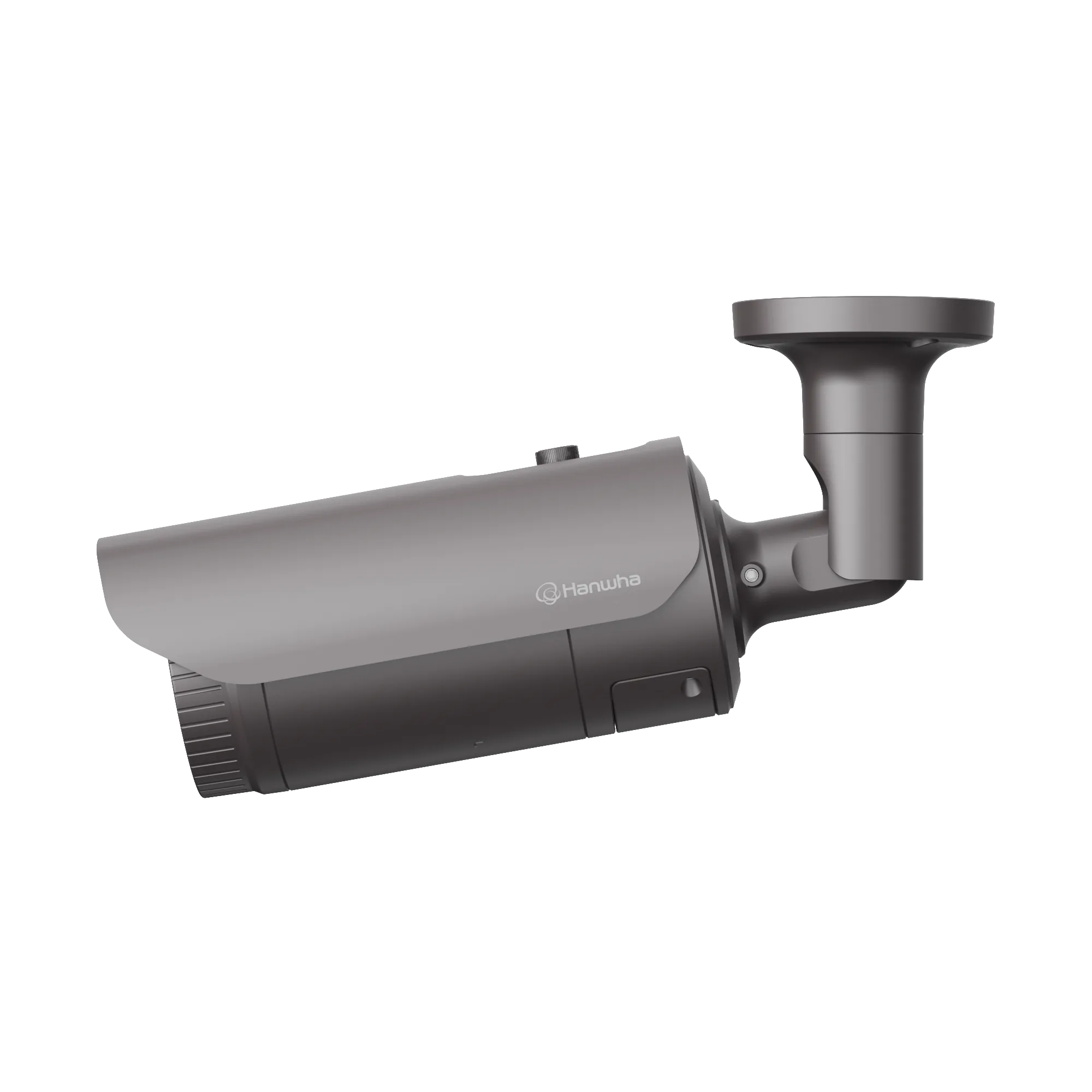

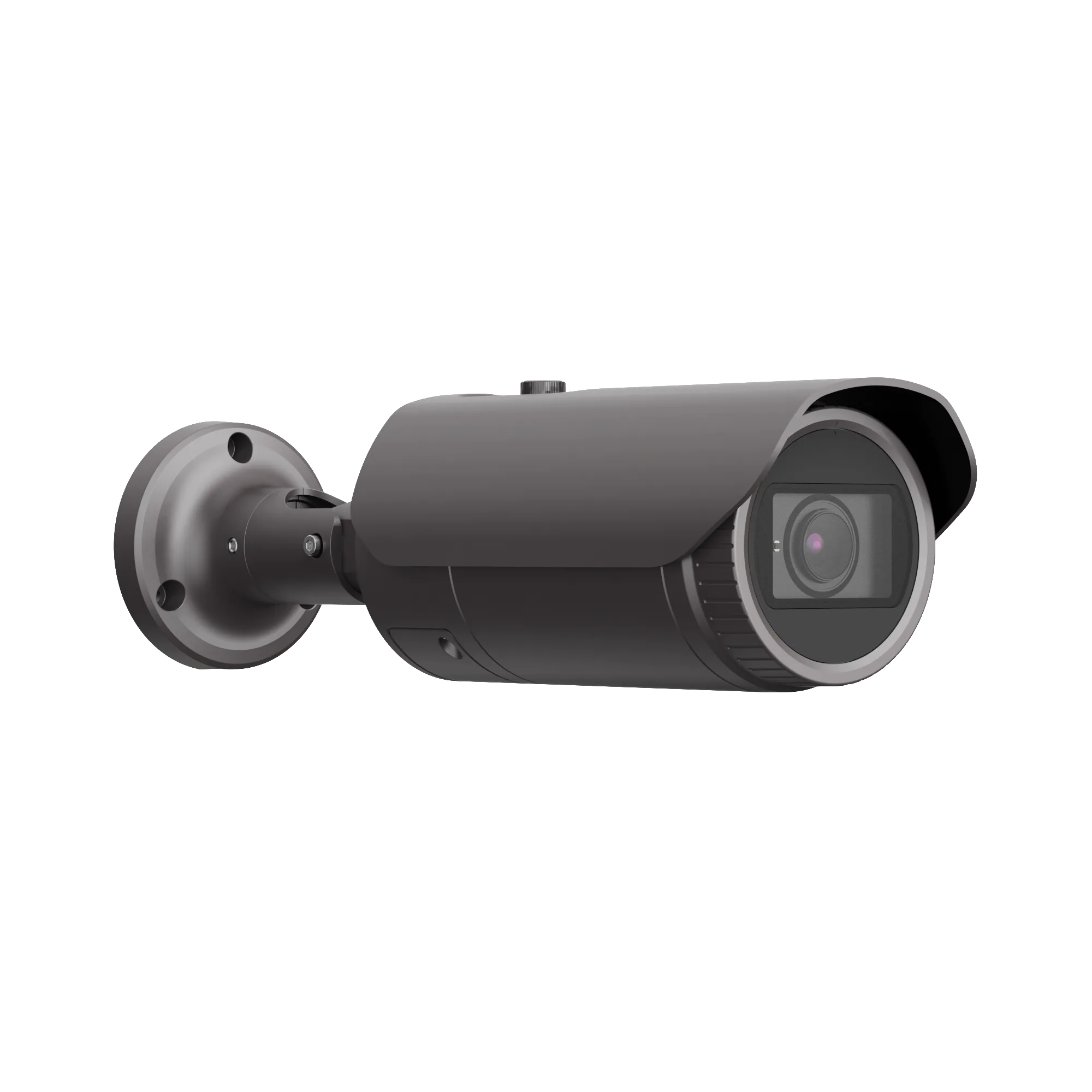

The QNO-8080R combines an IR bullet housing with a motorised varifocal lens spanning 3.2 to 10 mm at 3.1x optical zoom. Its 1/2.8-inch CMOS sensor delivers up to 5 megapixels (2592 x 1944), the angle of view runs from 101° to 31° horizontally, 73° to 23° vertically and 134° to 38° diagonally, and the aperture goes from F1.6 wide to F2.9 tele. H.265 and H.264 achieve 30fps/25fps (60Hz/50Hz), MJPEG 15fps and up to 2fps at 5MP, with multiple streaming also supported. Colour holds from 0.15 lux, black and white from 0.015 lux and 0 lux with the IR LED on, while simple focus and an IR-corrected DC auto iris handle focusing. ICR day/night switching, 120 dB WDR, BLC and SSDR complement tampering, motion and defocus detection, and the Micro SD/SDHC/SDXC slot takes up to 128 GB.
- 5MP resolution (2592 x 1944)
- Motorised varifocal lens, 3.2 to 10 mm (3.1x)
- F1.6 wide to F2.9 tele, DC auto iris
- 120 dB WDR, ICR day/night
- Micro SD/SDHC/SDXC slot up to 128 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (1)
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 62262 IK10
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 185.7m(609.09ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 43.3m(141.94ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 18.6m(60.91ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.3m(14.19ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 74.3m(243.64ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 17.3m(56.78ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 37.1m(121.82ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 8.7m(28.39ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -20°C
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 9.50W, typical 7.30W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (9)
- Lens / Angular Field of View – Diagonal
- 134°~38°
- Lens / Angular Field of View – Horizontal
- 101°~31°
- Lens / Angular Field of View – Vertical
- 73°~23°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.9
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.1x
- Lens – Focal Length (mm)
- 3.2~10
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris(IR corrected)
Mechanical (4)
- Mechanical – Color
- Dark grey
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø91x322.9mm(35.8x12.71")
- Mechanical – Product Weight
- 1190g(2.62lb)
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
- Network – Smart Codec
- WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (20)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 30m(98.42ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~100°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@5MP Max. 2fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.015
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.15
- Video – Resolution
- 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
