4MP IR Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBP-302PM is an aluminium pole mount intended for bullet and PTZ cameras. It comes in a dark grey finish. Overall size is 166 x 183 x 65.1 mm at a weight of 1300 g. Supported products are listed as QNO-6082R, XNO-8080R and PNO-A9081R. Further applicable models named by the manufacturer are PNO-9080R, SNO-8081R, SBO-100B1 and QNO-7080R, 6070R, 7010R, 7020R, 7030R, 6010R, 6020R and 6030R. Pole mount for bullet and PTZ camerasAluminium constructionDark grey finishSize 166 x 183 x 65.1 mm, 1300 gSupports QNO-6082R, XNO-8080R, PNO-A9081R
In stock, ships immediately · delivery 1-2 days

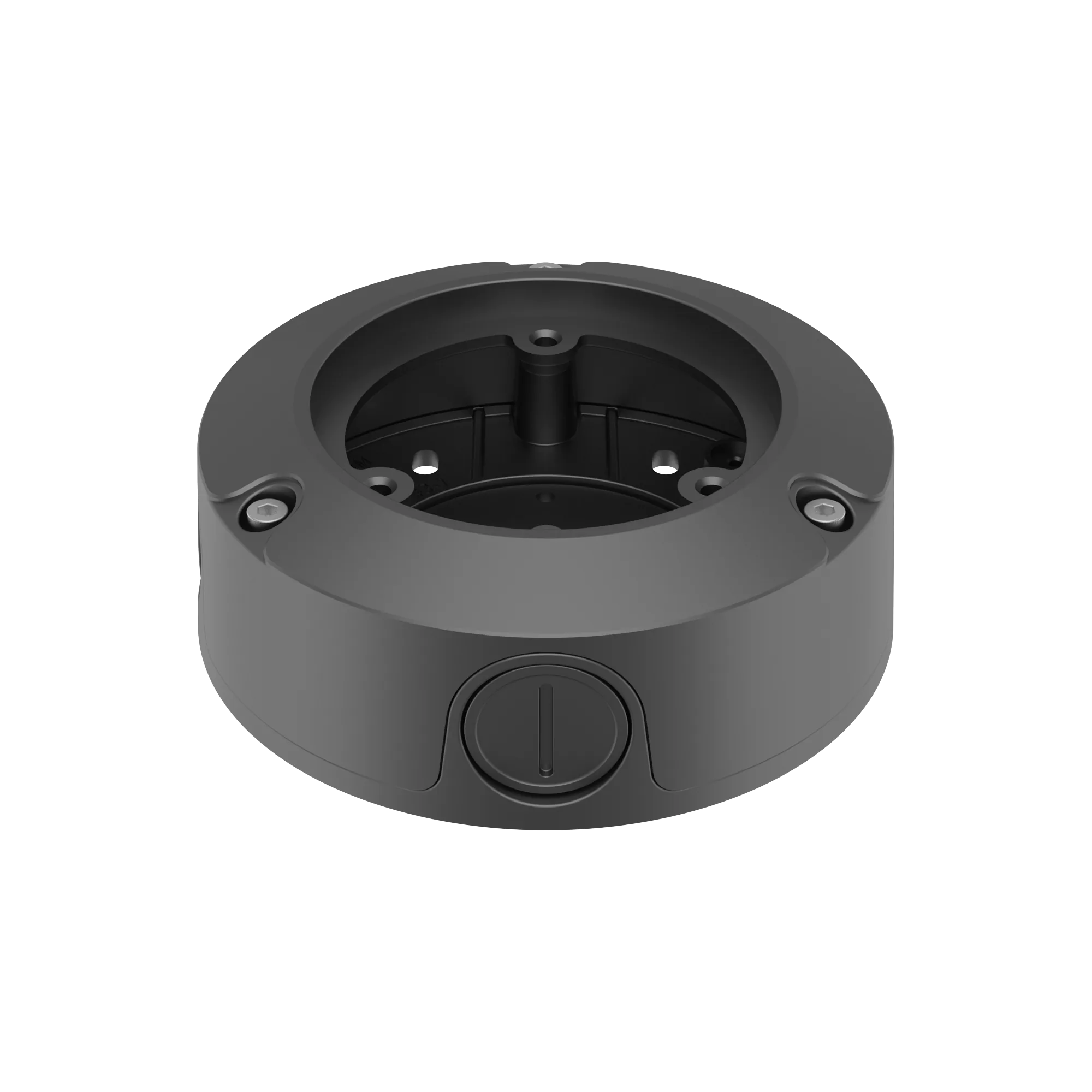

The SBO-100B1 is a back box for bullet cameras, its dark grey finish matched to those cameras. It is made from aluminium and measures ø125.6x45mm. Two conduit holes of 19.1mm each are provided. Gang box support covers double and single variants. Compatible cameras include the QNO-6010R, QNO-6082R, HCO-7080R and SCO-6083R among others. Back box for bullet camerasAluminium, dark greyø125.6x45mmTwo 19.1mm conduit holesDouble and single gang box support
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNO-7022R
- EAN / GTIN
- 8801089202420
- Weight
- 1.06 kg
- Dimensions (W×H×D)
- 285 × 122 × 110 mm
Description
With 4MP resolution and a 1/3-inch CMOS sensor, the QNO-7022R is an IR bullet camera recording up to 2560 x 1440 pixels. Its 4 mm fixed focal length at F1.6 produces a field of view of 79° horizontally, 42° vertically and 92° diagonally. H.265 and H.264 reach up to 30fps/25fps (60Hz/50Hz) at all resolutions, MJPEG 15fps and a maximum of 2fps at 4MP, and several streams can be output at the same time. Colour capture works from 0.15 lux (F1.6, 1/30sec), black and white from 0.015 lux, and from 0 lux with the IR LED active. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR meet motion, tampering and defocus detection across four zones. Hallway view at 90° and 270°, LDC support and a 128 GB Micro SD/SDHC/SDXC slot are available.
- 4MP resolution (2560 x 1440)
- 4 mm fixed focal lens, F1.6
- Field of view 79° H, 42° V, 92° D
- 120 dB WDR, hallway view 90°/270°, LDC
- Micro SD/SDHC/SDXC slot, 128 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10
- Certifications & Standards – Safety
- UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 63.0m(206.70ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.3m(20.67ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 25.2m(82.68ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 12.6m(41.34ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 9.1W, typical 6.8W
- Environmental & Electrical / Power Consumption – PoE
- Max. 10.7W, typical 8W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -40°C~+60°C(-40°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (6)
- Lens / Angular Field of View – Diagonal
- 92°
- Lens / Angular Field of View – Horizontal
- 79°
- Lens / Angular Field of View – Vertical
- 42°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens – Focal Length (mm)
- 4.0
- Lens – Focus Control
- Fixed
Mechanical (5)
- Mechanical – Color
- Dark grey
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø70.0x246.0mm(2.76x9.69")
- Mechanical – Product Weight
- 700g(1.54lb)
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PPPoE, PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (21)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 25m(82.02ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~100°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/3"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@4MP Max. 2fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.015
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.15
- Video – Resolution
- 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
