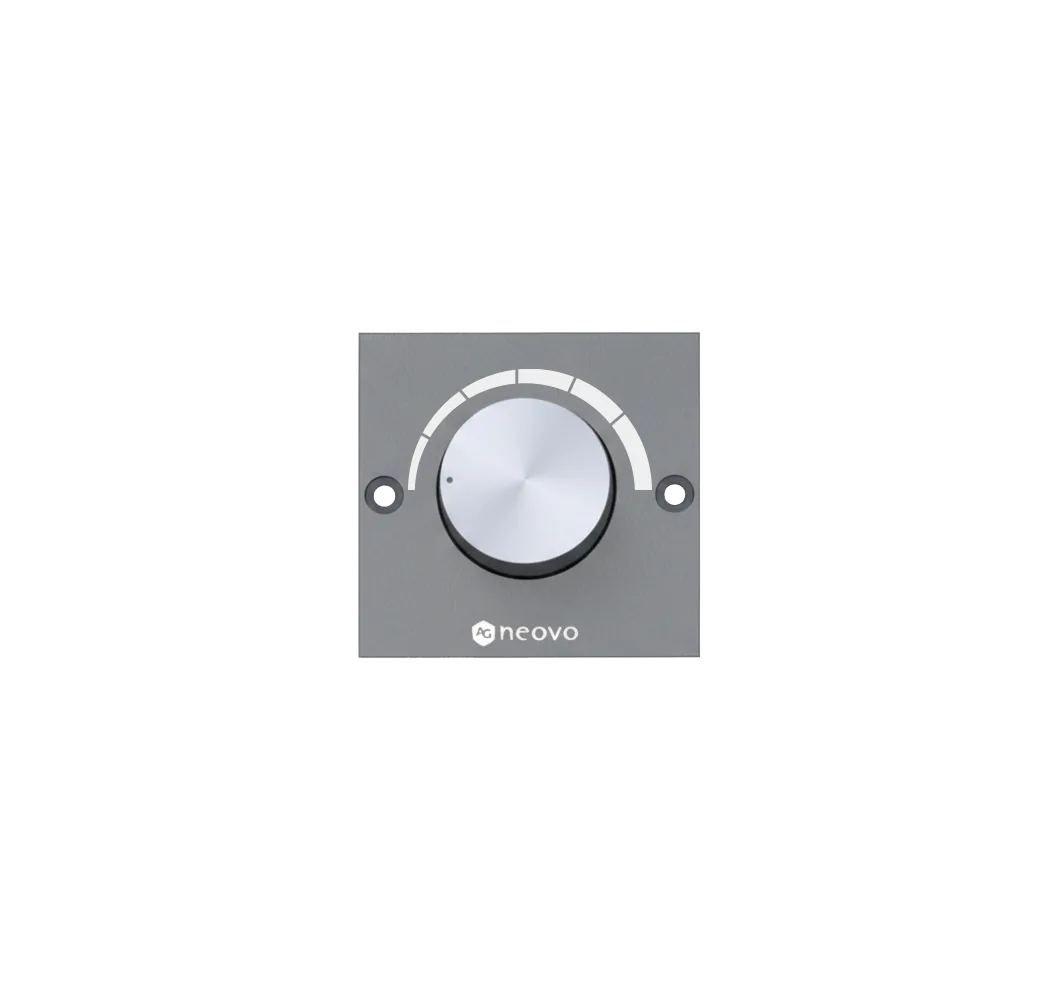

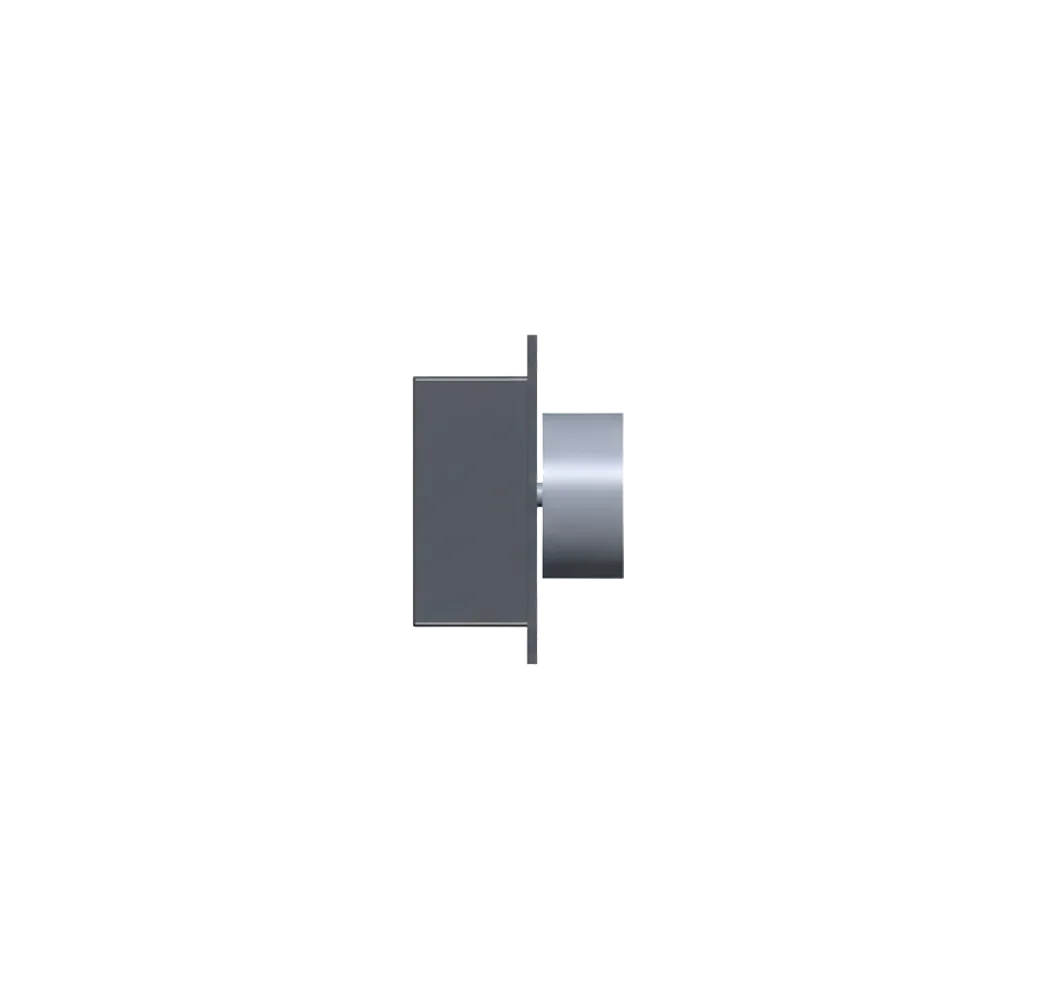

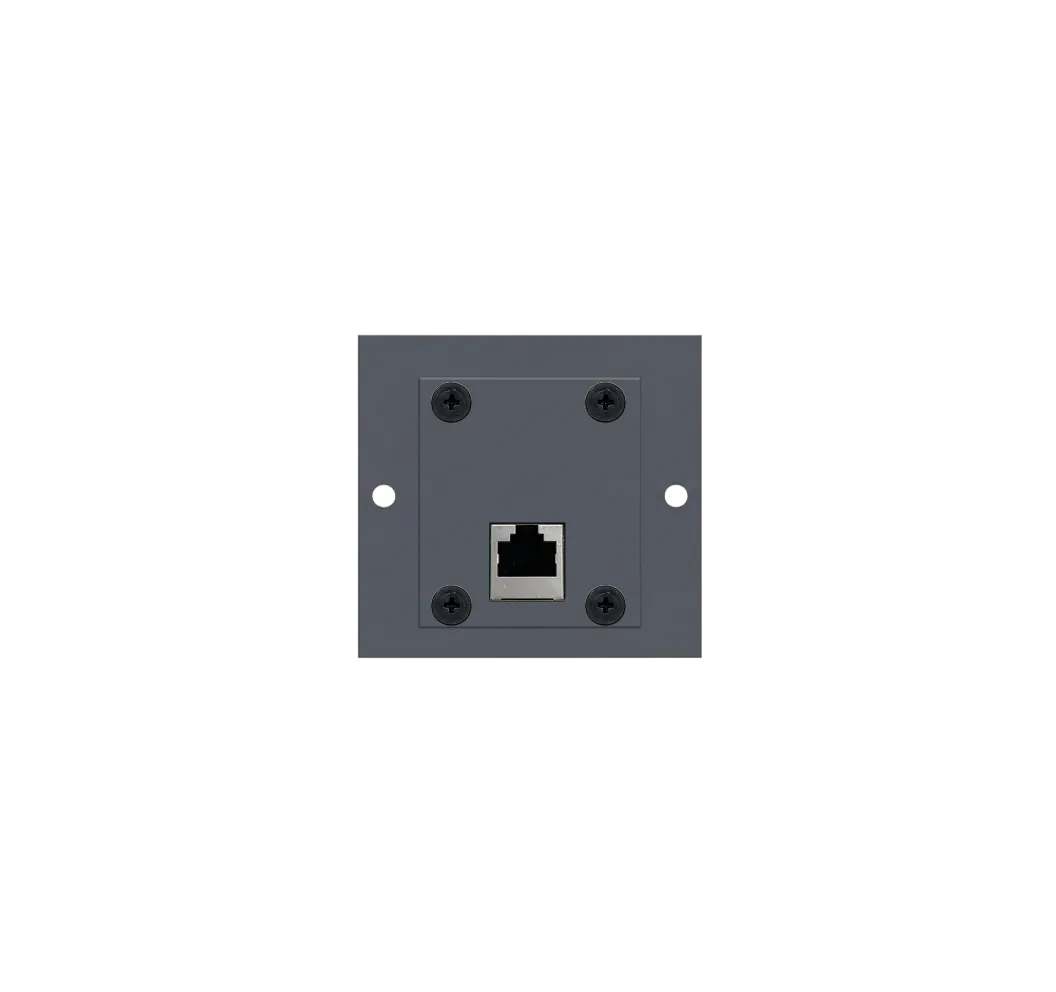

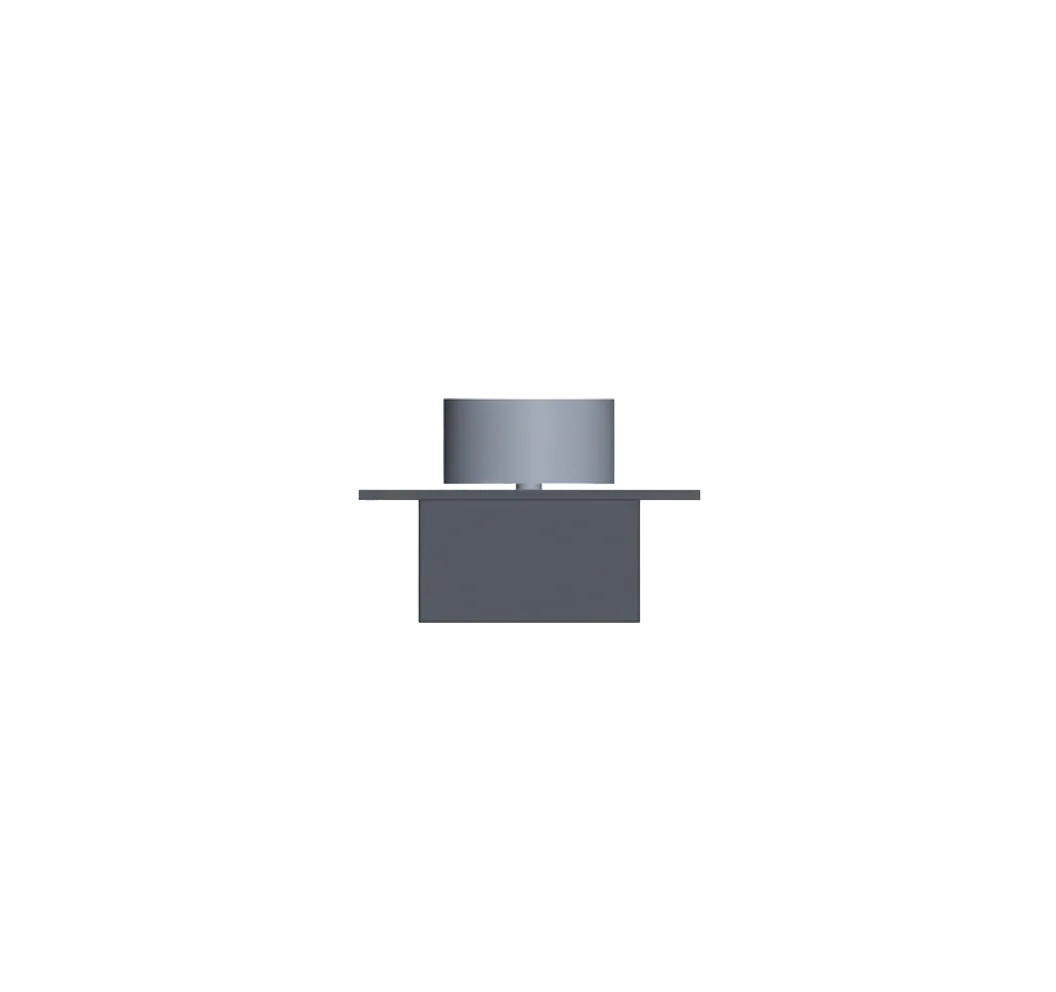

Control Knob for Display Backlight Control

This display combines a 27.0-inch VA panel with a maximum resolution of UHD 3840 x 2160 for workplaces fed by several sources at once. Four HDMI 2.0 inputs and one DisplayPort 1.2 are available, with DisplayPort and RS232 on the output side; IR out uses a 3.5 mm phone jack and RS232 in and out use 2.5 mm jacks. Daisy chain, RJ45 and RS232 handle external control, optionally extended by the KPD01 keypad, the KNB01 control knob and Neovo Controller software. The metal casing carries an IK10 rating and the even bezel measures 12.8 mm. Without base the unit is 653.2 x 392.0 x 57.0 mm and weighs 7.93 kg, drawing DC 24V, 5.5A and 33 W in on mode. 27.0-inch VA panel, UHD 3840 x 21604 x HDMI 2.0 and 1 x DisplayPort 1.2IK10 metal casingEven bezel 12.8 mmDaisy chain, RJ45 and RS232 control33 W (On) power consumption

Built around a 32.0-inch panel with a 0.182 mm pixel pitch, this display accepts up to four HDMI 2.0 sources plus one DisplayPort 1.2 signal. Outputs comprise DisplayPort and RS232, alongside an IR out on a 3.5 mm phone jack and RS232 in and out on 2.5 mm jacks. External control is available over daisy chain, RJ45 or RS232 and can be extended with the KPD01 keypad, the KNB01 control knob and Neovo Controller software. The metal casing meets IK10, the even bezel is 12.8 mm wide and the VESA pattern is 200 x 200 mm. Dimensions without base are 756.5 x 451.4 x 79.3 mm; power is DC 24V, 5.5A at 48 W in on mode and 86 W maximum, with 5% to 95% non-condensing humidity permitted. 32.0-inch panel, 0.182 mm pixel pitch4 x HDMI 2.0 and 1 x DisplayPort 1.2IK10 metal casingVESA 200 x 200 mm48 W (On), 86 W maximumDaisy chain, RJ45 and RS232 control

An IPS panel drives this display at a maximum resolution of UHD 3840 x 2160, with a 0.245 mm pixel pitch and 178-degree viewing angles both horizontally and vertically. Brightness is 450 cd/m², colour depth 1.07G, colour gamut NTSC 72% and response time 5 ms. The surface receives anti-glare treatment at haze 25% plus a 3H hard coating, and the unit handles 15 kHz to 136 kHz horizontally and 23 Hz to 76 Hz vertically. Connectivity covers four HDMI 2.0 ports and one DisplayPort 1.2, IR in and out on 3.5 mm jacks, RS232 in and out on 2.5 mm jacks, an RJ45 port and a USB 2.0 service port. Audio is delivered by two 12 W speakers or the 3.5 mm stereo jack output. IPS panel with UHD 3840 x 2160450 cd/m² brightness, 5 ms response time0.245 mm pixel pitch4 x HDMI 2.0 and 1 x DisplayPort 1.2Anti-glare haze 25% with 3H hard coating12 W x 2 internal speakers

This display uses an IPS panel with a maximum resolution of UHD 3840 x 2160, a pixel pitch of 0.372 mm and 178-degree viewing angles in both axes. It reaches 350 cd/m², reproduces 1.07G colours within an NTSC 72% gamut and responds in 5 ms. Anti-glare treatment at haze 25% and a 3H hard coating protect the surface, while the frequency range spans 15 kHz to 136 kHz horizontally and 23 Hz to 76 Hz vertically. Ports comprise four HDMI 2.0, one DisplayPort 1.2, IR in and out on 3.5 mm jacks, RS232 in and out on 2.5 mm jacks, RJ45 and a USB 2.0 service port. Sound output runs through two 10 W speakers or the 3.5 mm stereo jack. IPS panel with UHD 3840 x 2160350 cd/m² brightness, 5 ms response time0.372 mm pixel pitch4 x HDMI 2.0 and 1 x DisplayPort 1.2Anti-glare haze 25% with 3H hard coating10 W x 2 internal speakers
