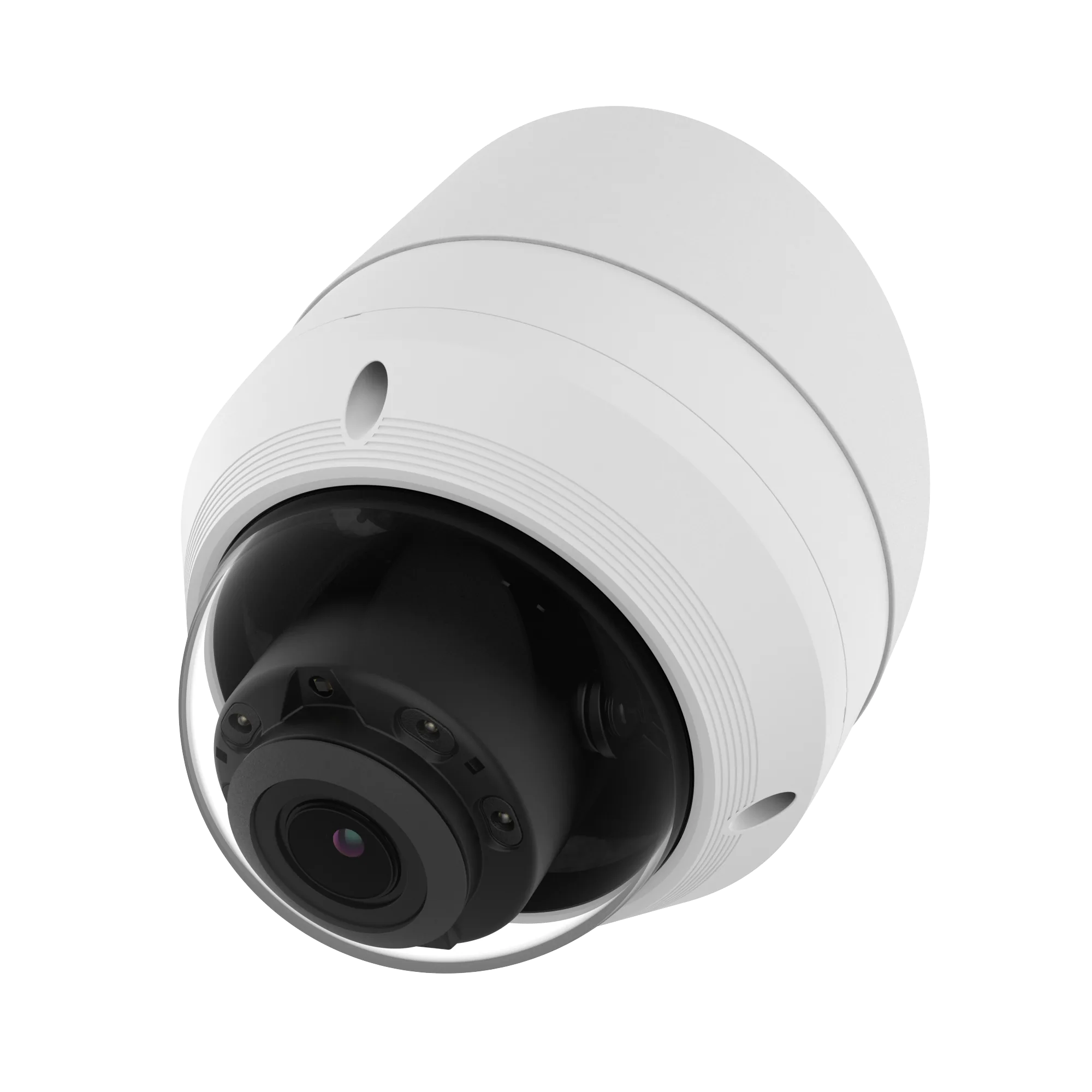

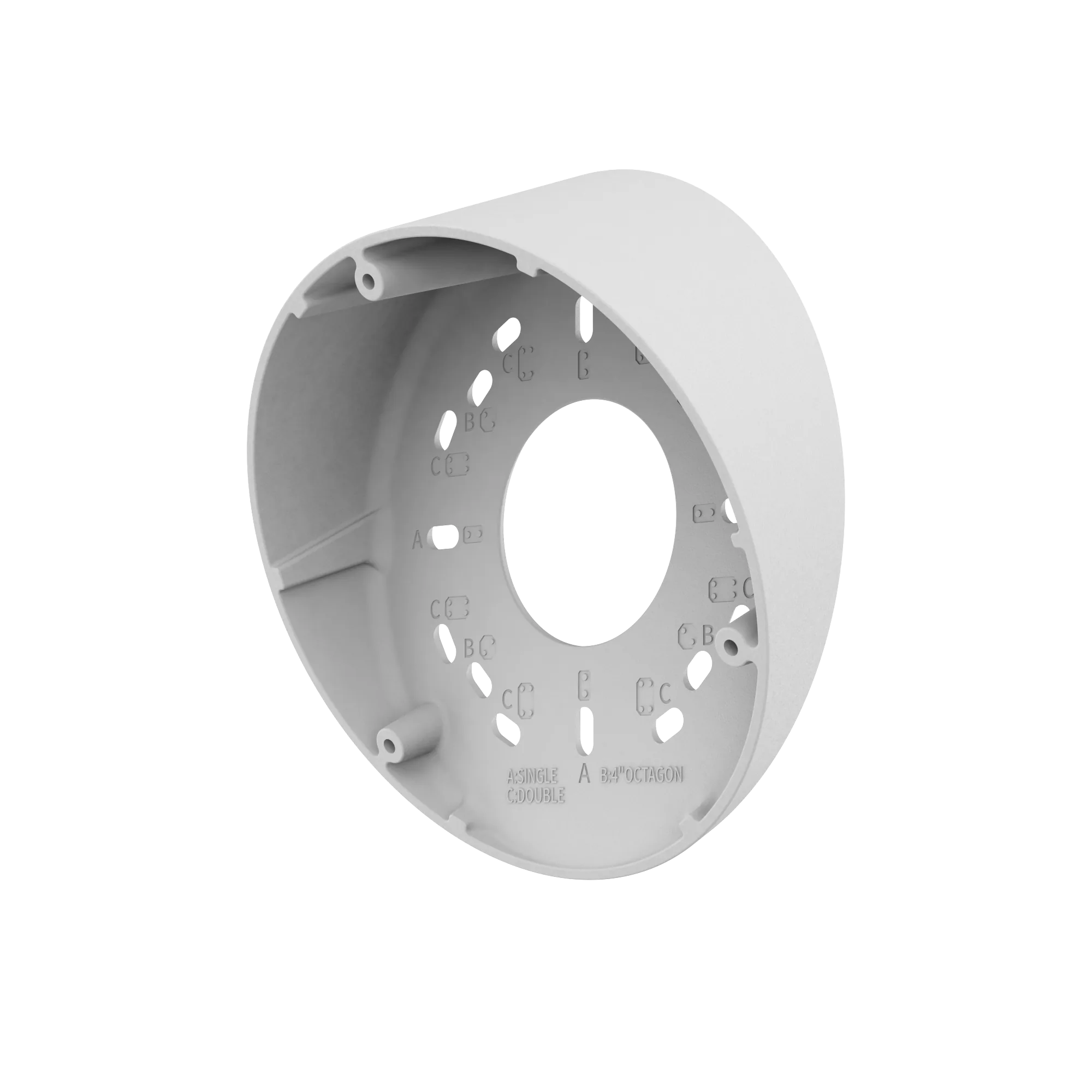

Dome Back Box

The QNV-6082R is a network dome camera with infrared illumination that delivers a maximum of 1920x1080 from a 1/2.8" CMOS sensor. Its varifocal lens runs from 3.2 to 10 mm (3.1x) at F1.6 wide and F2.9 tele, uses a DC auto iris with simple focus and covers 109 to 33 degrees horizontally, 58 to 18 degrees vertically and 132 to 38 degrees diagonally from 0.5 m. Streaming is available in H.265, H.264 and MJPEG at 30fps/25fps (60Hz/50Hz) and 15fps respectively, with a maximum of 4fps at 2MP and several streams at once. At 1/30 sec and 30 IRE the camera reaches 0.03 lux in colour and 0.003 lux in black and white, with day/night switching handled automatically by ICR. Motion, tampering and defocus detection, hallway view at 90 and 270 degrees, LDC and a Micro SD/SDHC/SDXC slot for up to 128 GB round out the specification, while alignment allows 0 to 350 degrees of pan, 0 to 67 degrees of tilt and 0 to 355 degrees of rotation. 3.2 to 10 mm varifocal lens (3.1x)1/2.8" CMOS, max. 1920x10800.03 lux colour / 0.003 lux BWSimple focus with DC auto irisHallway view 90/270 degrees, LDCMicro SD/SDHC/SDXC up to 128 GB

The QNV-7082R is a vandal-resistant network infrared dome camera with a 1/3" CMOS sensor delivering up to 2560x1440 and 30fps/25fps (60Hz/50Hz) in H.265/H.264, while MJPEG manages 15fps with a maximum of 2fps at 4MP and several streams can be output in parallel. Its motorised varifocal lens spans 3.2 to 10 mm (3.1x) at F1.6 wide and F2.9 tele, uses a DC auto iris with simple focus and covers 99 to 30 degrees horizontally, 53 to 17 degrees vertically and 116 to 35 degrees diagonally. Infrared reach is stated as 30 m (98.42ft) and minimum illumination as 0.1 lux in colour and 0.01 lux in black and white at 1/30 sec and 30 IRE. Difficult lighting is handled by ICR day/night switching, BLC, SSDR and 120 dB WDR. Motion, tampering and defocus detection, hallway view at 90 and 270 degrees and LDC are also on board, with 0 to 350 degrees of pan, 0 to 67 degrees of tilt and 0 to 355 degrees of rotation for alignment. 1/3" CMOS, max. 2560x1440 (4MP)3.2 to 10 mm motorised varifocal (3.1x)30 m (98.42ft) IR viewable length0.1 lux colour / 0.01 lux BW120 dB WDR, ICR day/night switchingHallway view 90/270 degrees, LDC

The QNV-8080R houses a 1/2.8 inch CMOS sensor reaching 2592x1944 pixels. Its motorised varifocal lens spans 3.2 to 10 mm with 3.1x optical zoom, F1.6 at the wide end and F2.9 at tele, giving a field of view of 101° to 31° horizontally, 73° to 23° vertically and 134° to 38° diagonally. Focusing works by Simple Focus and the DC auto iris is IR corrected. H.265 and H.264 reach 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG 15 fps and a maximum of 2 fps at 5 MP. Minimum illumination is stated as 0.15 lux in colour and 0.015 lux in black and white at 1/30 sec and 30 IRE, alongside 120 dB WDR, ICR day and night switching, BLC and SSDR. Hallway view, WiseStream II, tampering, motion and defocus detection and a Micro SD slot for up to 128 GB round off the camera. Motorised varifocal 3.2 to 10 mm, 3.1xF1.6 wide, F2.9 tele, IR corrected DC auto iris2592x1944 pixels on a 1/2.8 inch CMOS sensor120 dB WDR, ICR day and night switchingHallway view and WiseStream IIMicro SD/SDHC/SDXC up to 128 GB
