Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNV-6080R
- EAN / GTIN
- 8801089143280
- Weight
- 1.453 kg
- Dimensions (W×H×D)
- 205 × 250 × 177 mm
Description

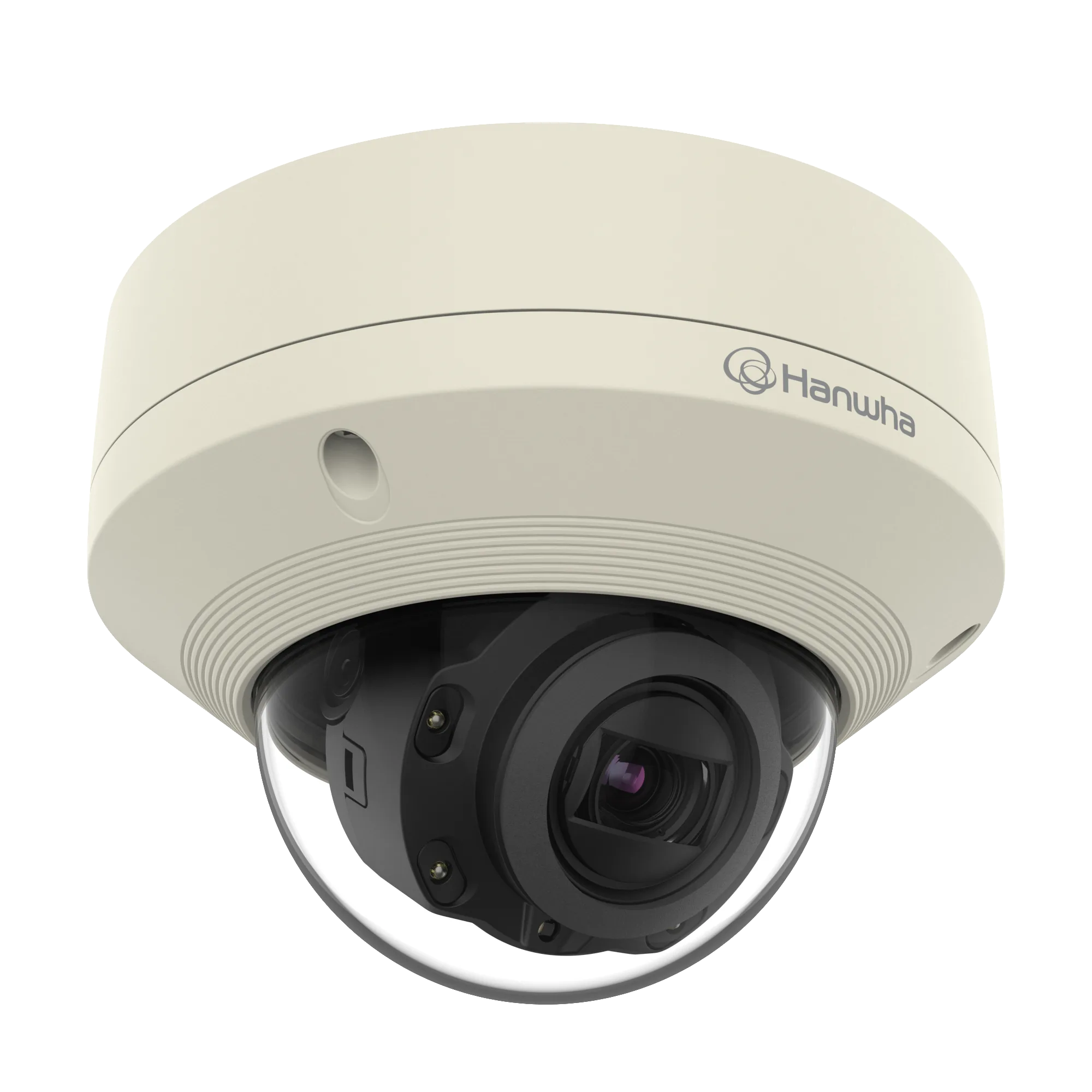

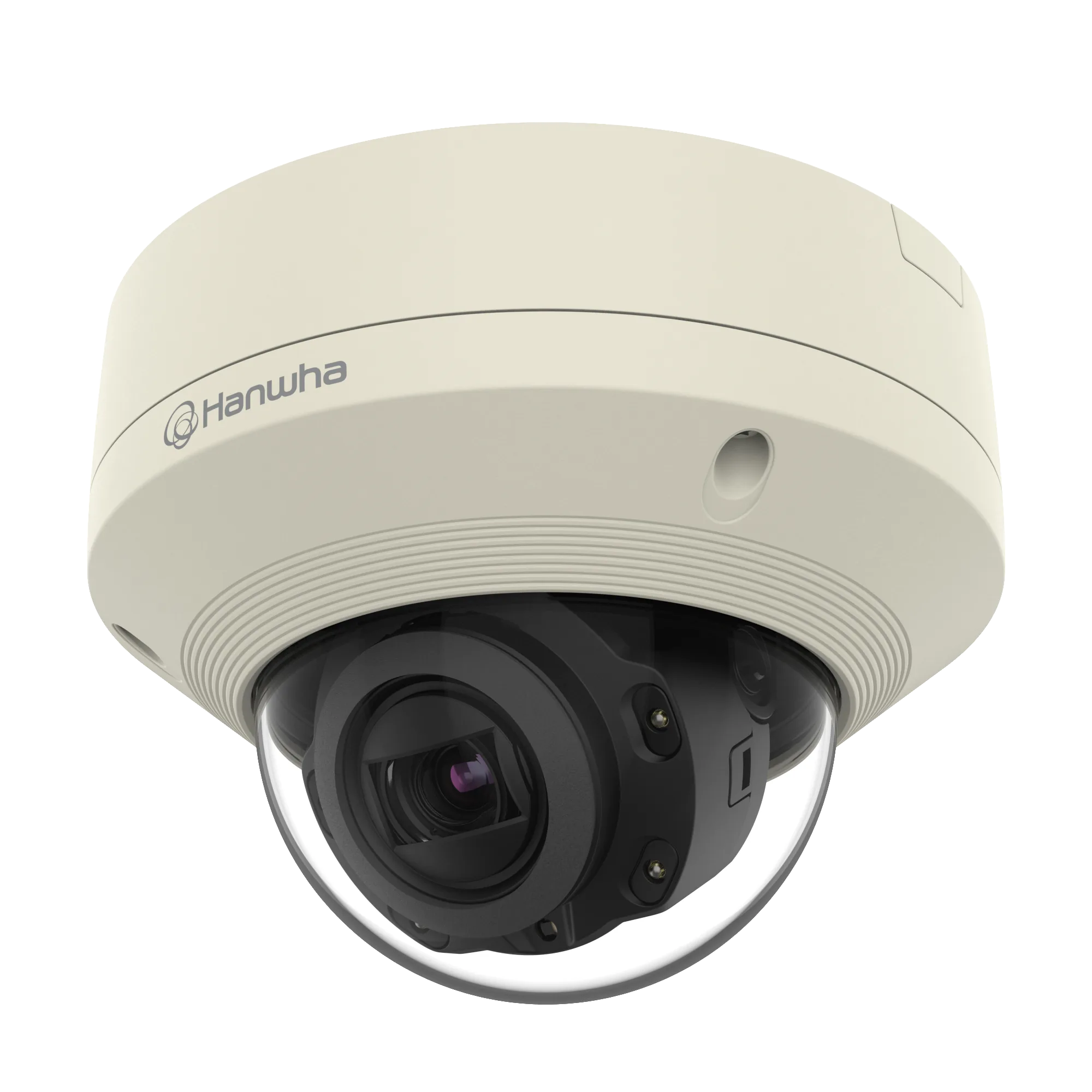

The XNV-6080R is a vandal-resistant IR network dome camera using a 1/2.8" CMOS sensor with a maximum of 1920 x 1080 pixels (2 MP). Its motorised 2.8~12 mm varifocal lens (4.3x optical, F1.4 wide) covers 119.5°~27.9° horizontally, 62.8°~15.7° vertically and 142.1°~32.0° diagonally and uses simple focus from 0.5 m, with IR-corrected DC auto iris and P iris. Frame rates reach 60 fps in H.265 and H.264 and 30 fps in MJPEG, while minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white. Image processing includes ICR day and night switching, wide dynamic range up to 150 dB, DWDR, BLC, HLC, SSDR and defog. Recordings can be held on SD/SDHC/SDXC cards up to 512 GB, and adjustment covers 0°~354°, 0°~67° and 0°~355°.
- 2 MP resolution (1920 x 1080)
- 2.8~12 mm motorised varifocal lens (4.3x)
- IR-corrected DC auto iris and P iris
- Wide dynamic range up to 150 dB, DWDR, SSDR
- SD/SDHC/SDXC slot up to 512 GB
- Defog and day/night (ICR)
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracki
Certifications & Standards (1)
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 11.5W
- Environmental & Electrical / Power Consumption – 24VAC
- Max. 14W
- Environmental & Electrical / Power Consumption – PoE
- Max. 12.95W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC, 24VAC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 1GB
Lens (9)
- Lens / Angular Field of View – Diagonal
- 142.1°~32.0°
- Lens / Angular Field of View – Horizontal
- 119.5°~27.9°
- Lens / Angular Field of View – Vertical
- 62.8°~15.7°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.4
- Lens / Zoom Ratio – Optical
- 4.3x
- Lens – Focal Length (mm)
- 2.8~12
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris(IR corrected), P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (5)
- Mechanical – Color
- Ivory
- Mechanical – Compatible Conduit Hole
- 12.7mm(1/2")(M20)
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø160x118.5mm(ø6.30x4.67")
- Mechanical – Product Weight
- 995g(2.19lb)
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (25)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- 50m(164.04ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, DWDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 150
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~354°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.0015
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.015
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
