The ANO-L6012R is an IR bullet camera whose 1/2.8 inch CMOS sensor records 2 megapixels at 1920x1080. Its 2.8mm F2.0 lens with fixed focus control spans 114 degrees horizontally, 62 degrees vertically and 135 degrees diagonally, with a minimum object distance of 0.5m. H.265, H.264 and MJPEG are supported with multiple streaming, at 30fps or 25fps in H.265/H.264 and 10fps in MJPEG. Picture quality is shaped by ICR day and night switching, 120dB WDR, SSDR, BLC and SSNR, with 0.03 lux in colour and 0.003 lux in black and white. Defocus, directional and motion detection in four zones, enter and exit and tampering detection, plus microSD/SDHC up to 32GB, PoE, hallway view and WiseStream II complete the camera. 2 megapixel, 1920x10802.8mm lens, F2.0, 114 degrees horizontal120dB WDR, ICR day and night0.03 lux colour, 0.003 lux B/WmicroSD/SDHC up to 32GB, PoEHallway view and WiseStream II

The ANO-L6022R is an IR bullet camera with a 1/2.8 inch CMOS sensor delivering 2 megapixels at 1920x1080. It carries a 4mm F2.0 lens with fixed focus control covering 85 degrees horizontally, 46 degrees vertically and 99 degrees diagonally, from a minimum object distance of 0.5m. Encoding uses H.265, H.264 and MJPEG with multiple streaming, at 30fps or 25fps in H.265/H.264 and 10fps in MJPEG. Image processing draws on ICR day and night switching, 120dB WDR, SSDR, BLC and SSNR at 0.03 lux in colour and 0.003 lux in black and white. Defocus, directional and motion detection in four zones, enter and exit, tampering, microSD/SDHC up to 32GB, PoE, hallway view and WiseStream II are all part of the feature set. 2 megapixel, 1920x10804mm lens, F2.0, 85 degrees horizontal120dB WDR, ICR day and night0.03 lux colour, 0.003 lux B/WmicroSD/SDHC up to 32GB, PoEHallway view and WiseStream II

The ANO-L6082R is an IR bullet camera with a 1/2.8 inch CMOS sensor providing 2 megapixels at 1920x1080. Its motorised varifocal lens spans 3.3 to 10.3mm with 3.1x optical zoom, works at F1.6 wide and F3.3 tele and uses DC auto iris together with Simple Focus. The field of view ranges from 106 to 30 degrees horizontal, 55 to 17 degrees vertical and 127 to 35 degrees diagonal, from 0.5m minimum object distance. Recording runs in H.265, H.264 and MJPEG with multiple streaming at 30fps or 25fps and 10fps in MJPEG, down to 0.03 lux in colour and 0.003 lux in black and white. ICR day and night switching, 120dB WDR, SSDR and BLC, virtual line crossing with directional detection, enter and exit, tampering and motion detection, microSD/SDHC up to 32GB, PoE, hallway view and WiseStream II are included. 2 megapixel, 1920x1080Motorised varifocal 3.3 to 10.3mm, 3.1x zoomSimple Focus and DC auto iris120dB WDR, ICR day and night0.03 lux colour, 0.003 lux B/WmicroSD/SDHC up to 32GB, PoE

The ANO-L7012R is an IR bullet camera using a 1/3 inch CMOS sensor for 4 megapixels at 2560x1440. Its fixed 3mm F1.6 lens shows 99 degrees horizontally, 55 degrees vertically and 115 degrees diagonally from a minimum object distance of 1.1m, and IR reaches 20m. H.265, H.264 and MJPEG can be streamed in parallel at up to 30fps or 25fps and 15fps in MJPEG. Minimum illumination of 0.13 lux in colour and 0.013 lux in black and white, ICR day and night switching, 120dB WDR, SSDR, BLC and SSNR secure the image. Defocus, directional and motion detection in four zones, enter and exit, tampering, plus hallway view at 90 and 270 degrees, LDC and WiseStream II extend the feature set. 4 megapixel, 2560x14403mm fixed lens, F1.6, 99 degrees horizontalIR viewable length 20m120dB WDR, ICR day and night0.13 lux colour, 0.013 lux B/WHallway view 90/270 degrees, LDC, WiseStream II

The ANO-L7022R captures 4 megapixels at 2560x1440 from a 1/3 inch CMOS sensor in an IR bullet housing. Its fixed 4.0mm F1.6 lens takes in 79 degrees horizontally, 43 degrees vertically and 92 degrees diagonally from 1.7m minimum object distance, with an IR viewable length of 25m. Up to 30fps or 25fps are available in H.265 and H.264 while MJPEG runs at 15fps, multiple streaming included. Minimum illumination is 0.13 lux in colour and 0.013 lux in black and white, backed by ICR day and night switching, 120dB WDR, SSDR, BLC and SSNR. Defocus, directional and motion detection in four zones, enter and exit, tampering, hallway view at 90 and 270 degrees, LDC and WiseStream II are also on board. 4 megapixel, 2560x14404.0mm fixed lens, F1.6, 79 degrees horizontalIR viewable length 25m120dB WDR, ICR day and night0.13 lux colour, 0.013 lux B/WHallway view 90/270 degrees, LDC, WiseStream II

The ANO-L7082R is an IR bullet camera with a 1/2.8 inch CMOS sensor recording 4 megapixels at 2560x1440. Its motorised varifocal lens from 3.3 to 10.3mm offers 3.1x optical zoom, F1.6 at wide and F3.3 at tele, DC auto iris and Simple Focus, with a field of view from 95 to 28 degrees horizontal and 51 to 15 degrees vertical. IR reaches 30m (98.42ft) and the minimum object distance is 0.5m. Capture runs at up to 30fps in H.265 and H.264 and 15fps in MJPEG, down to 0.1 lux in colour and 0.01 lux in black and white. ICR day and night switching, 120dB WDR, SSDR and BLC, defocus, directional and motion detection, enter and exit, tampering, hallway view at 90 and 270 degrees, LDC and WiseStream II are part of the specification. 4 megapixel, 2560x1440Motorised varifocal 3.3 to 10.3mm, 3.1x zoomIR viewable length 30m120dB WDR, ICR day and night0.1 lux colour, 0.01 lux B/WHallway view 90/270 degrees, LDC, WiseStream II

The QNO-C8083R is a 5MP infrared bullet camera using a 1/2.8" CMOS sensor with a maximum resolution of 2592x1944. Its motorised varifocal lens covers 3.2 to 10.2 mm (3.2x) at F1.6 wide and F3.1 tele, uses a DC auto iris with IR correction and simple focus, and spans 95 to 29 degrees horizontally, 69 to 21 degrees vertically and 126 to 36 degrees diagonally from 1.2 m. H.265/H.264 encoding runs at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps with a maximum of 5fps at 5MP, and up to five streaming profiles can be delivered at once, assisted by the AI-engine functions WiseStream III and WiseNR II. Sensitivity is 0.07 lux in colour and 0.007 lux in black and white at 1/30 sec and 30 IRE, infrared reach is 30 m (98.42ft), and 120 dB WDR works alongside automatic ICR switching. AI-engine (NPU) analytics provide object detection for people and vehicles (car, truck, bus, bicycle, motorcycle), motion detection, virtual line and virtual area rules, while a Micro SD/SDHC/SDXC slot holds up to 256 GB. 1/2.8" CMOS, max. 2592x19443.2 to 10.2 mm motorised varifocal (3.2x)0.07 lux colour / 0.007 lux BW30 m (98.42ft) IR viewable length120 dB WDR, WiseNR II, WiseStream IIIMicro SD/SDHC/SDXC up to 256 GB

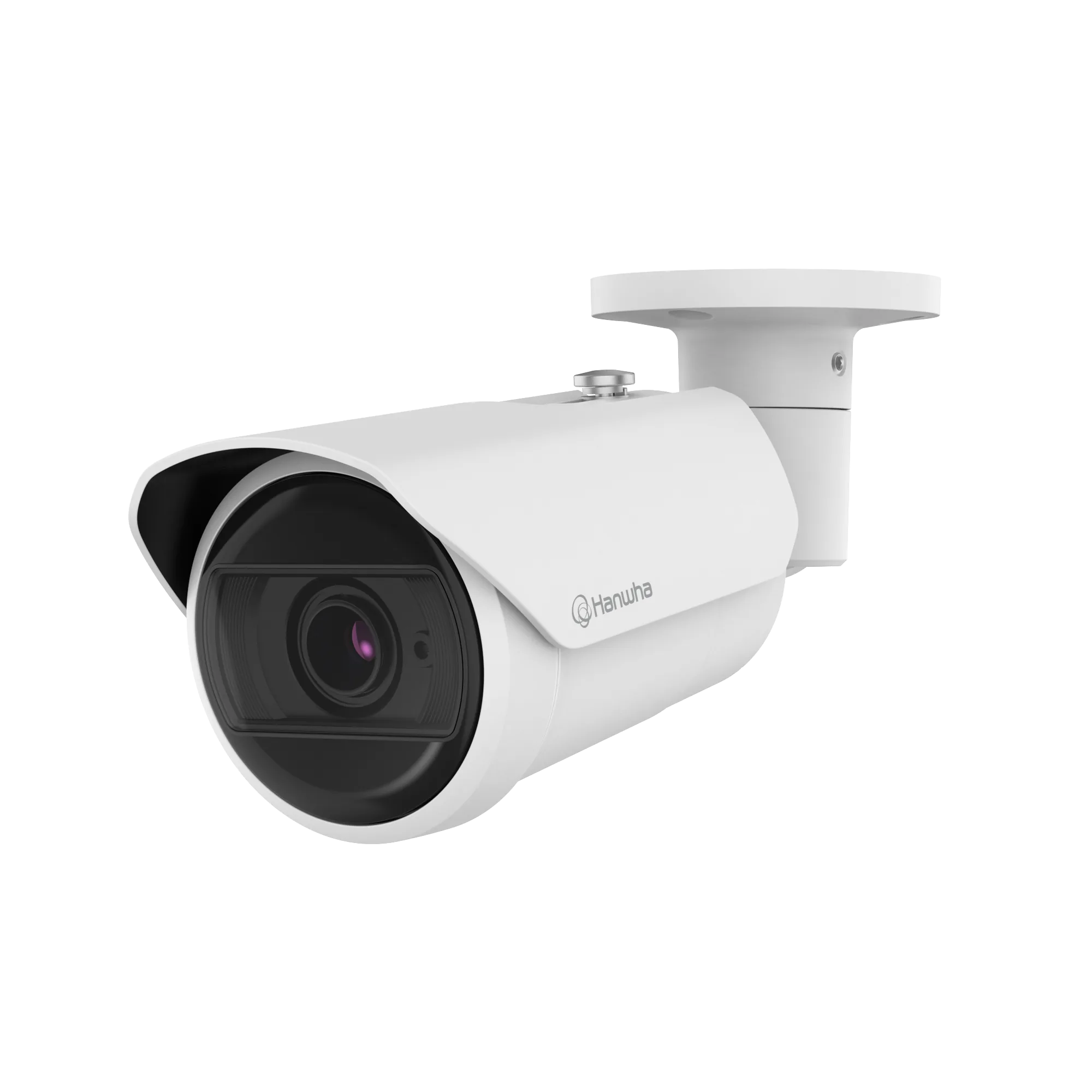

The QNO-C9083R is an infrared bullet camera with a 1/2.8" CMOS sensor delivering a maximum of 8MP at 3840x2160. Streaming is available in H.265, H.264 and MJPEG, running at 30fps/25fps (60Hz/50Hz) in H.265/H.264 and 30fps in MJPEG with a maximum of 5fps at 8MP, spread across up to five profiles. The motorised varifocal lens works from 3.2 to 10.2 mm (3.2x) at F1.6 wide and F3.1 tele, combines a DC auto iris with IR correction and simple focus, and covers 104 to 31 degrees horizontally, 55 to 17 degrees vertically and 124 to 35 degrees diagonally from 1.2 m. At 1/30 sec and 30 IRE the camera records 0.06 lux in colour and 0.006 lux in black and white, day/night switching is automatic via ICR, and WDR reaches 120 dB. Local recording is supported by a Micro SD/SDHC/SDXC slot for cards up to 256 GB. 1/2.8" CMOS, max. 3840x2160 (8MP)3.2 to 10.2 mm motorised varifocal (3.2x)0.06 lux colour / 0.006 lux BW120 dB WDR, ICR day/night switchingH.265, H.264, MJPEG, up to 5 profilesMicro SD/SDHC/SDXC up to 256 GB
