2MP IR Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
The SBO-090GP is a wall adaptor and gang plate. Its specified material is aluminium, with a white RAL9003 finish. The plate measures ø140x13.2mm and weighs 190g. TR20 screws are used to fix it in place. Supported cameras are the QNO-C6083R, QNO-C8083R and QNO-C9083R, with additional models listed by the manufacturer online or in its Toolbox. Wall adaptor and gang plateAluminium, white RAL9003ø140x13.2mm, 190gTR20 mount screwFor QNO-C6083R, QNO-C8083R, QNO-C9083R
Not in stock · delivery 3-4 days

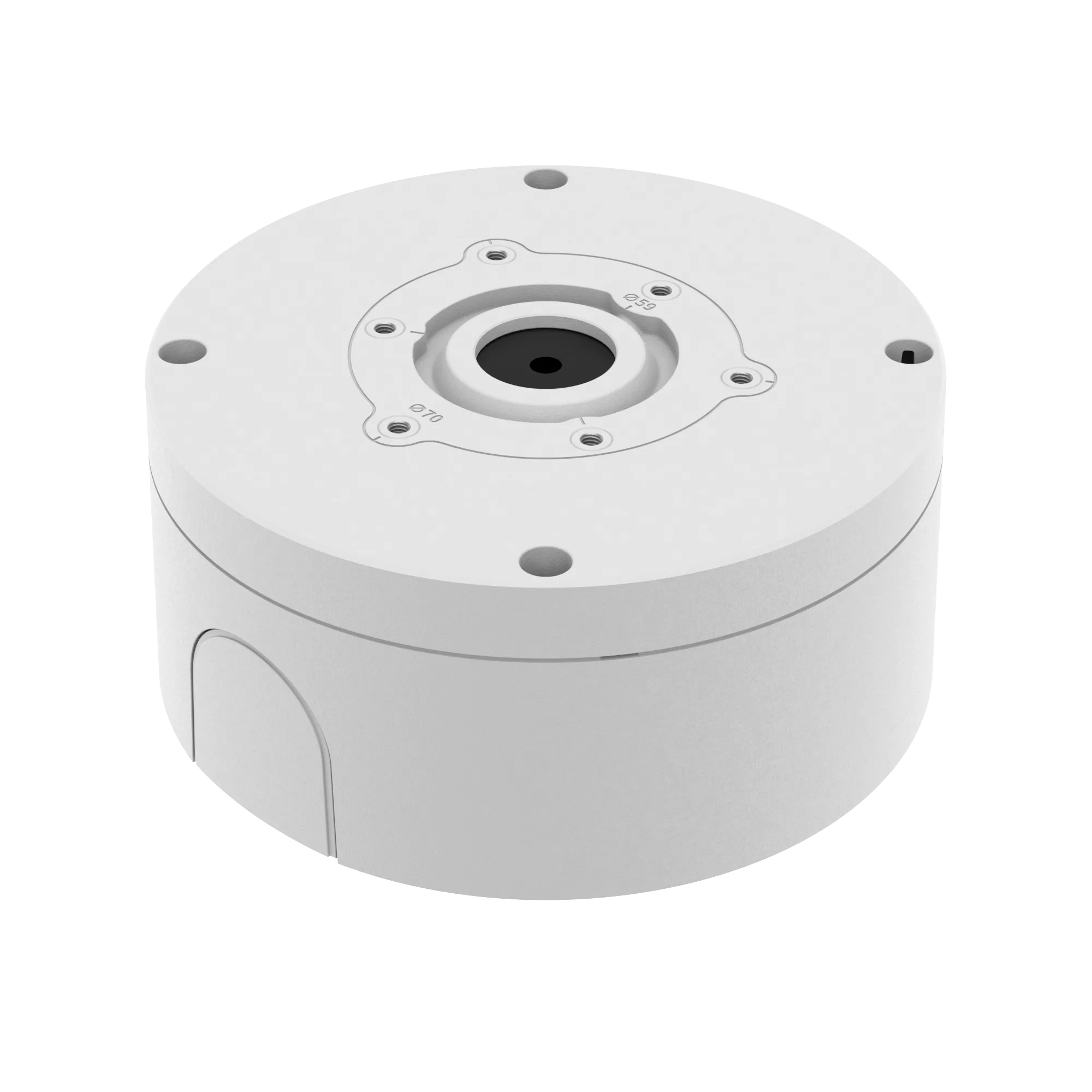

The SBO-140WW is a waterproof aluminium back box in white RAL9003. It carries IP66 and NEMA 4X certification. Diameter is 144.2mm, height 64.5mm and weight 870g. The conduit hole is 19.1mm (3/4 in, M25) and the maximum load 2kg. Fixing uses TR20 screws, and the supported cameras given are the QNO-C6083R, QNO-C8083R and QNO-C9083R. Waterproof back boxIP66, NEMA 4XAluminium, white RAL9003ø144.2x64.5mm, 870gMax. load 2kg, TR20 mount screw
In stock, ships immediately · delivery 1-2 days
The SBV-A14B is an aluminium back box finished in white to RAL9003. It adapts A and Q series cameras to standard gangboxes while providing conduit access and room for cabling. The housing measures ø144x51mm, weighs 450g and takes a maximum load of 2kg; the conduit hole is 19.1mm (3/4", M25) and the mount screw size is TR20. For corner installations the box can be fitted to the SBP-300KMW1. Supported cameras are the ANO-L6082R, ANO-L7082R, ANV-L6082R, ANV-L7082R, ANE-L6012R and ANE-L7012R. Aluminium back boxWhite, RAL9003Dimensions ø144x51mm, 450gMax. load 2kgConduit hole 19.1mm (3/4", M25)Corner mounting via SBP-300KMW1
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- ANO-L6082R
- EAN / GTIN
- 8801089228673
- Weight
- 0.66 kg
- Dimensions (W×H×D)
- 285 × 120 × 110 mm
Description

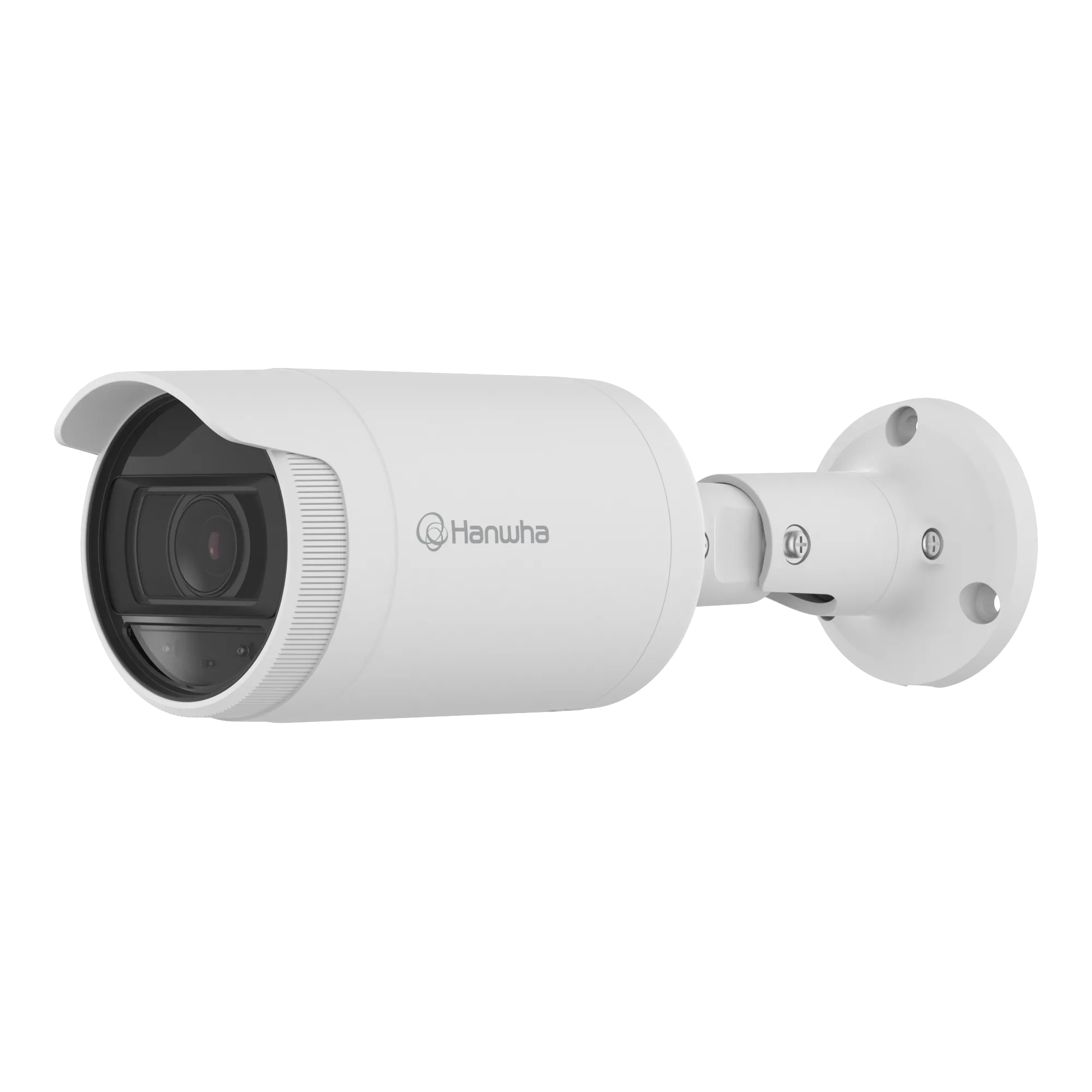

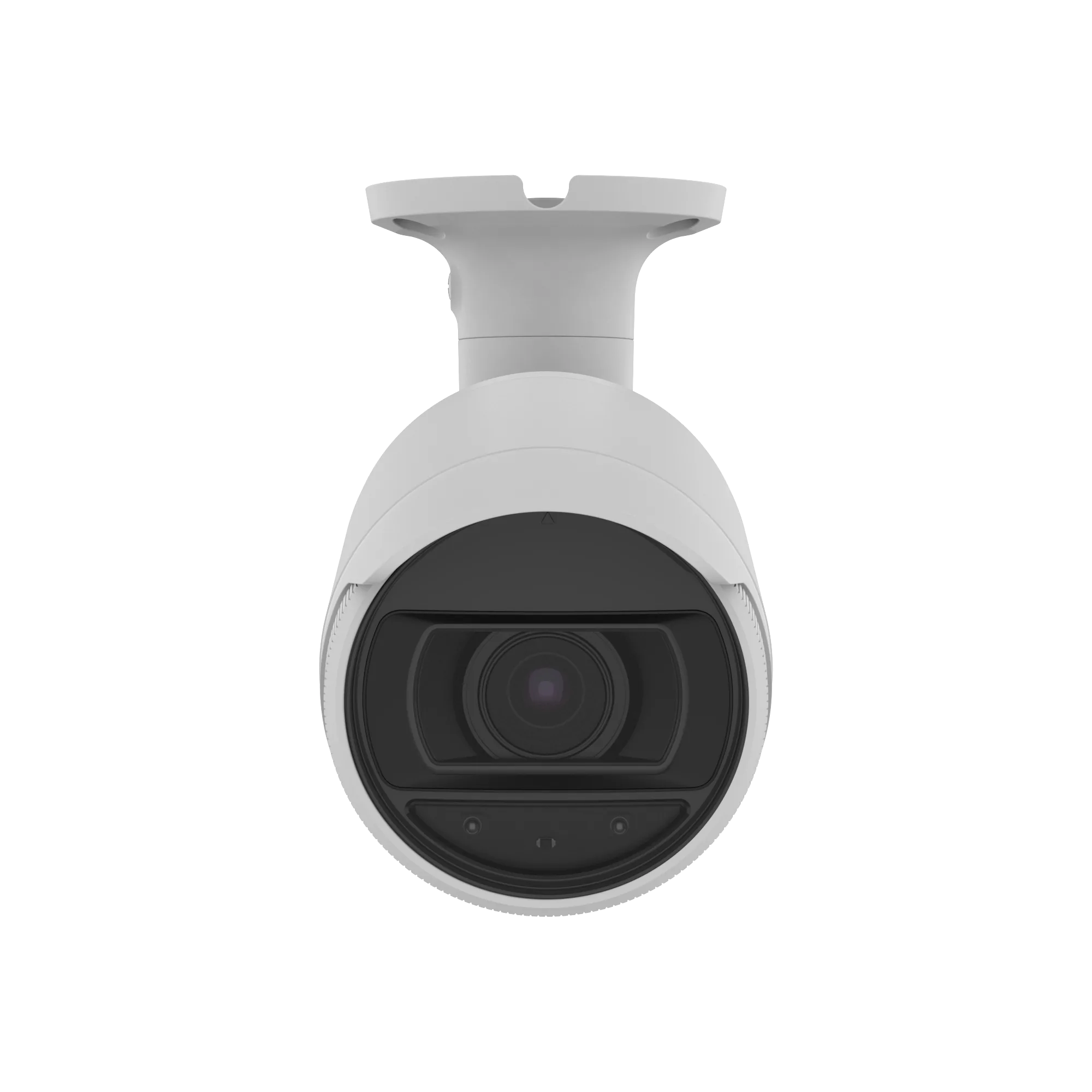

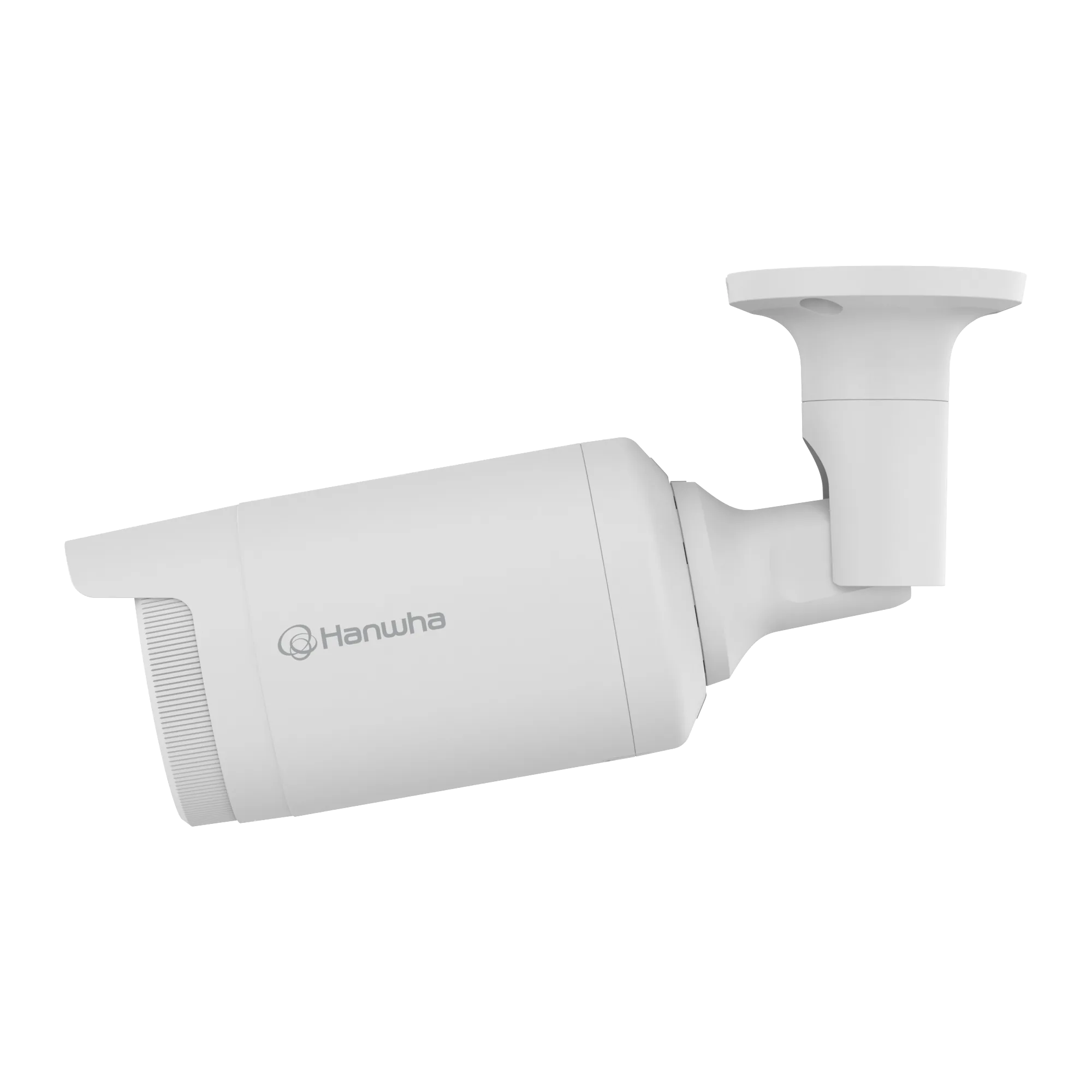

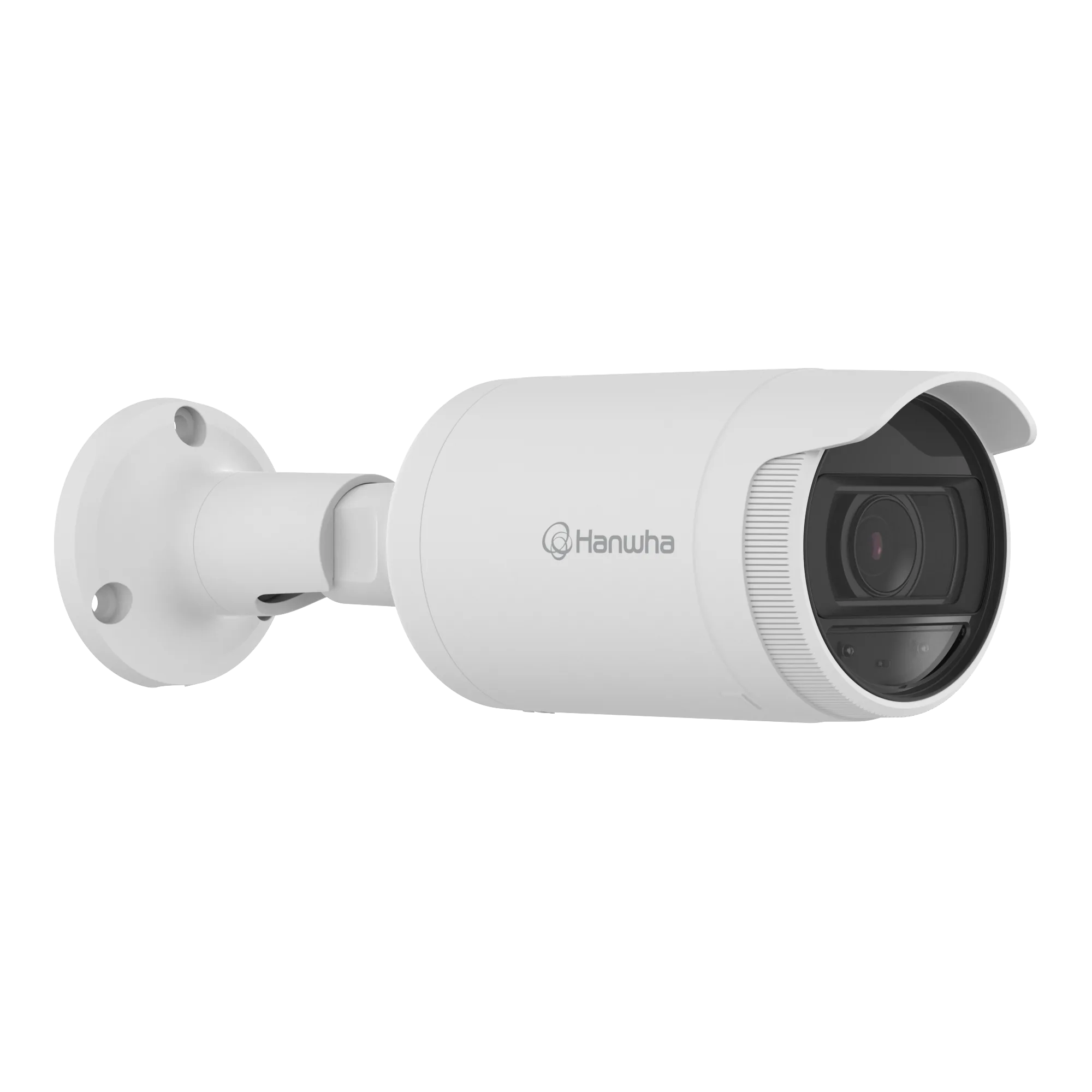

The ANO-L6082R is an IR bullet camera with a 1/2.8 inch CMOS sensor providing 2 megapixels at 1920x1080. Its motorised varifocal lens spans 3.3 to 10.3mm with 3.1x optical zoom, works at F1.6 wide and F3.3 tele and uses DC auto iris together with Simple Focus. The field of view ranges from 106 to 30 degrees horizontal, 55 to 17 degrees vertical and 127 to 35 degrees diagonal, from 0.5m minimum object distance. Recording runs in H.265, H.264 and MJPEG with multiple streaming at 30fps or 25fps and 10fps in MJPEG, down to 0.03 lux in colour and 0.003 lux in black and white. ICR day and night switching, 120dB WDR, SSDR and BLC, virtual line crossing with directional detection, enter and exit, tampering and motion detection, microSD/SDHC up to 32GB, PoE, hallway view and WiseStream II are included.
- 2 megapixel, 1920x1080
- Motorised varifocal 3.3 to 10.3mm, 3.1x zoom
- Simple Focus and DC auto iris
- 120dB WDR, ICR day and night
- 0.03 lux colour, 0.003 lux B/W
- microSD/SDHC up to 32GB, PoE
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66
- Certifications & Standards – Safety
- UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 143.3m(470.18ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 28.9m(94.94ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 14.3m(47.02ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 2.9m(9.49ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 57.3m(188.07ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 11.6m(37.97ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 28.7m(94.04ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 5.8m(18.99ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -20°C
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 7.0W, typical 5.0W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 32GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 127°~35°
- Lens / Angular Field of View – Horizontal
- 106°~30°
- Lens / Angular Field of View – Vertical
- 55°~17°
- Lens / Max Aperture Ratio (F number) – Tele
- 3.3
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.1x
- Lens – Focal Length (mm)
- 3.3~10.3
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- ø78.0x262.0mm(ø3.07x10.31”)
- Mechanical – Product Weight
- 390g(0.86lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
- Network – Smart Codec
- WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (19)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- 30m(98.43ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- Rectangler zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Operational – Alarm Triggers
- Analytics
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~100°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 10fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.003
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.03
- Video – Resolution
- 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
