8MP AI IR Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
The SBO-090GP is a wall adaptor and gang plate. Its specified material is aluminium, with a white RAL9003 finish. The plate measures ø140x13.2mm and weighs 190g. TR20 screws are used to fix it in place. Supported cameras are the QNO-C6083R, QNO-C8083R and QNO-C9083R, with additional models listed by the manufacturer online or in its Toolbox. Wall adaptor and gang plateAluminium, white RAL9003ø140x13.2mm, 190gTR20 mount screwFor QNO-C6083R, QNO-C8083R, QNO-C9083R
Not in stock · delivery 3-4 days
The SBO-140BW is an aluminium back box painted white to RAL9003. Its dimensions are ø143x50.8mm and it weighs 420g. The conduit hole measures 19.1mm (3/4 in, M25) and the permitted load is 5kg. TR20 screws are used for fixing. The manufacturer lists the QNO-C6083R, QNO-C8083R and QNO-C9083R as supported cameras. Back boxAluminium, white RAL9003ø143x50.8mm, 420g19.1mm (M25) conduit holeMax. load 5kg, TR20 mount screw
In stock, ships immediately · delivery 1-2 days
The SBO-140WW is a waterproof aluminium back box in white RAL9003. It carries IP66 and NEMA 4X certification. Diameter is 144.2mm, height 64.5mm and weight 870g. The conduit hole is 19.1mm (3/4 in, M25) and the maximum load 2kg. Fixing uses TR20 screws, and the supported cameras given are the QNO-C6083R, QNO-C8083R and QNO-C9083R. Waterproof back boxIP66, NEMA 4XAluminium, white RAL9003ø144.2x64.5mm, 870gMax. load 2kg, TR20 mount screw
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNO-C9083R
- EAN / GTIN
- 8801089212375
- Weight
- 1.36 kg
- Dimensions (W×H×D)
- 525 × 258 × 364 mm
Description

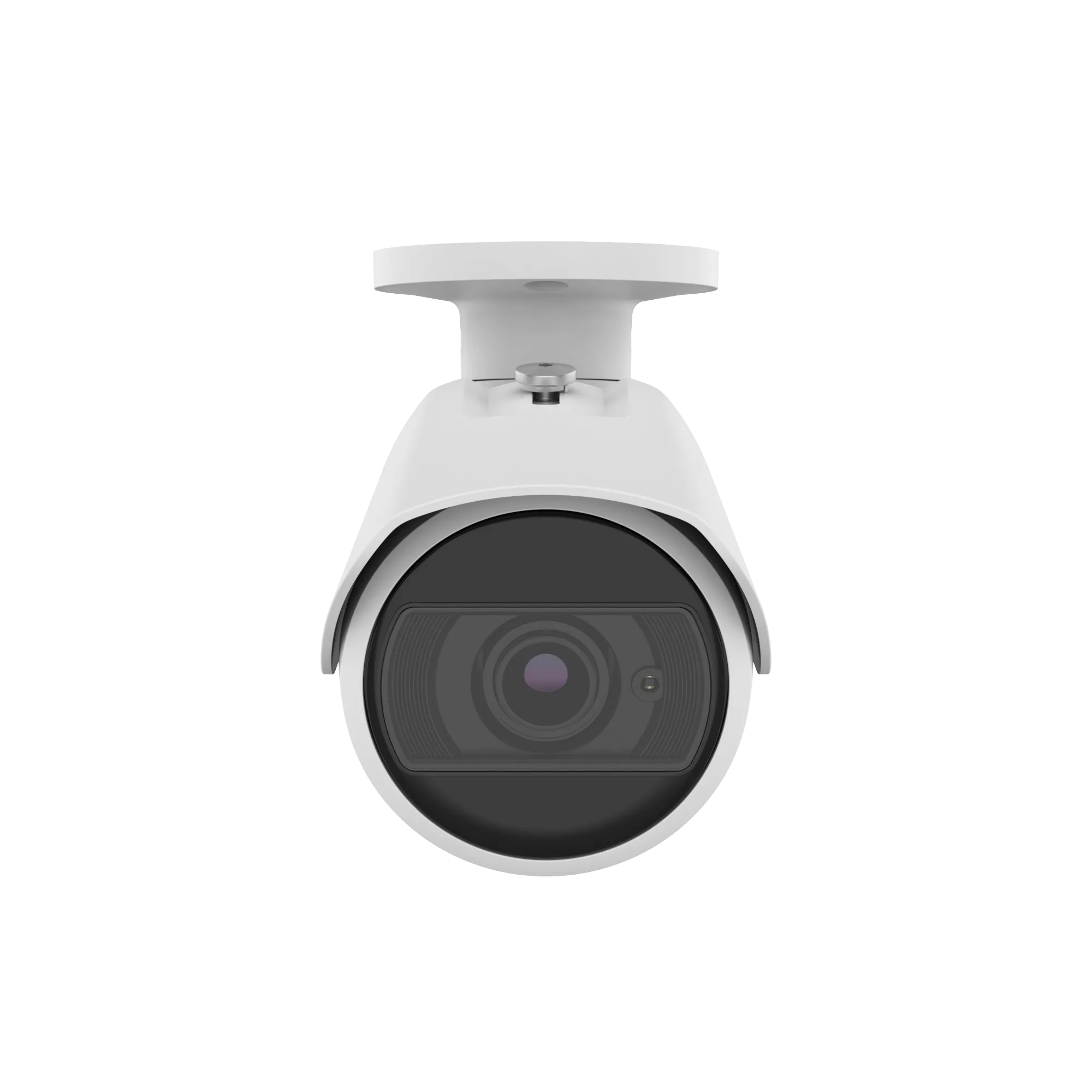

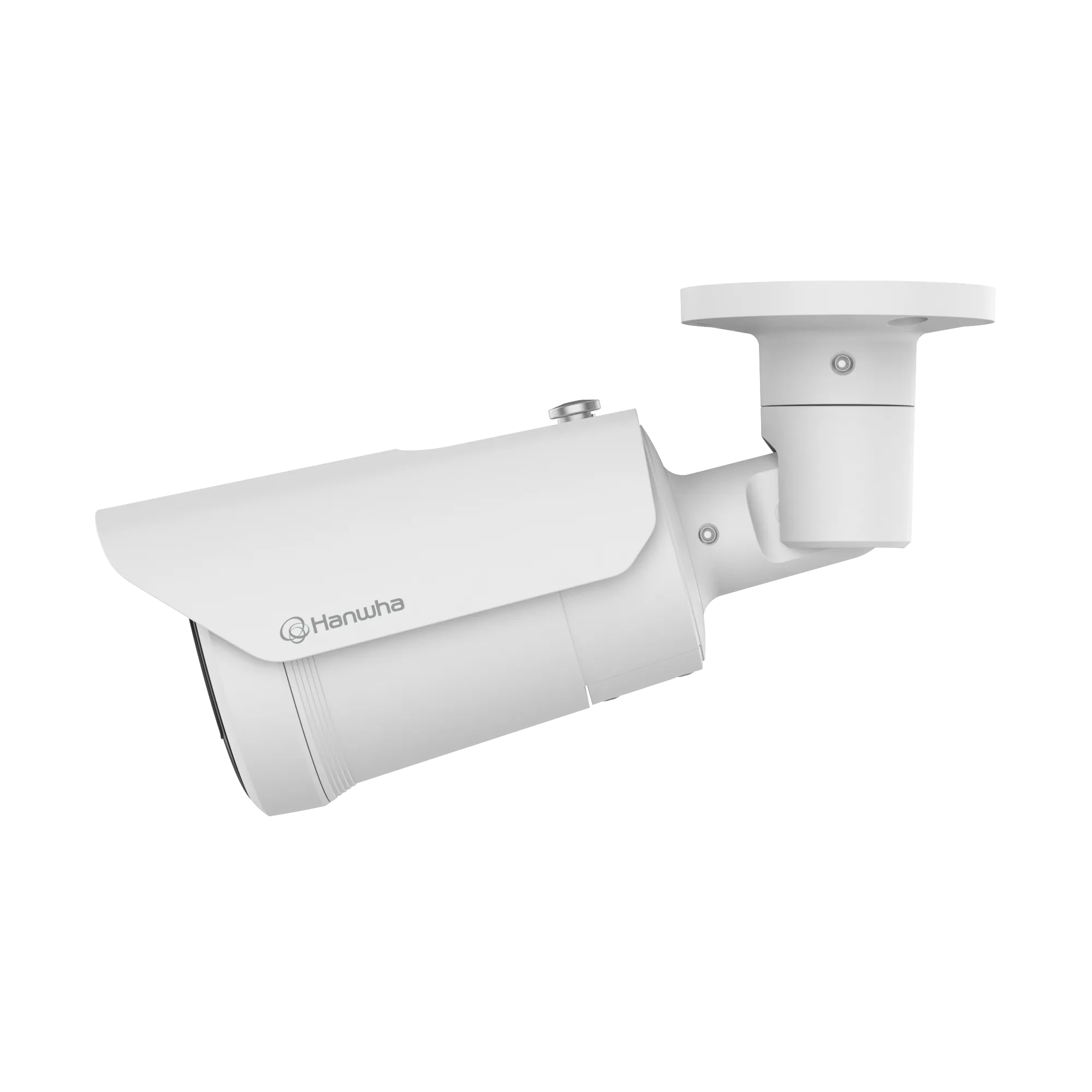

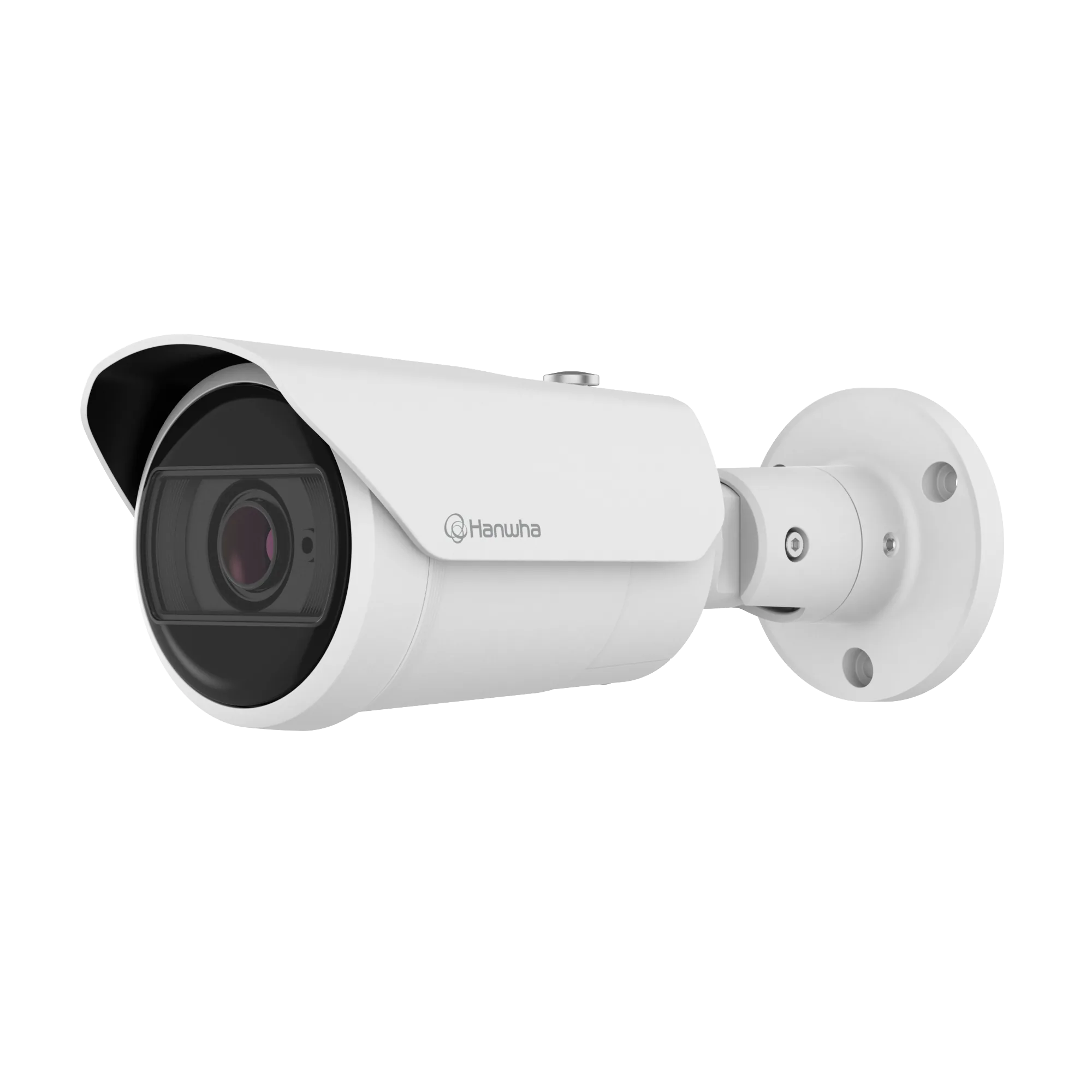

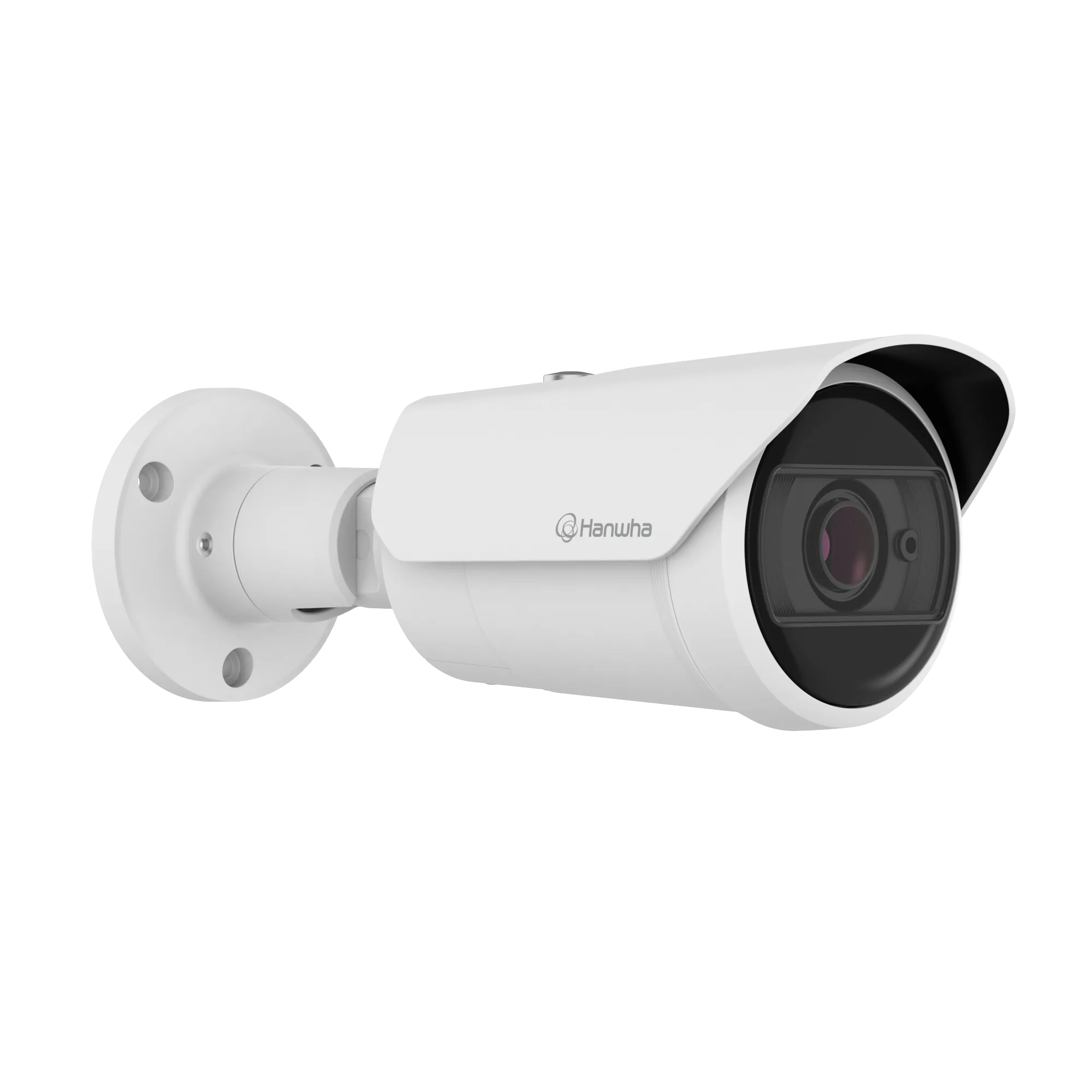

The QNO-C9083R is an infrared bullet camera with a 1/2.8" CMOS sensor delivering a maximum of 8MP at 3840x2160. Streaming is available in H.265, H.264 and MJPEG, running at 30fps/25fps (60Hz/50Hz) in H.265/H.264 and 30fps in MJPEG with a maximum of 5fps at 8MP, spread across up to five profiles. The motorised varifocal lens works from 3.2 to 10.2 mm (3.2x) at F1.6 wide and F3.1 tele, combines a DC auto iris with IR correction and simple focus, and covers 104 to 31 degrees horizontally, 55 to 17 degrees vertically and 124 to 35 degrees diagonally from 1.2 m. At 1/30 sec and 30 IRE the camera records 0.06 lux in colour and 0.006 lux in black and white, day/night switching is automatic via ICR, and WDR reaches 120 dB. Local recording is supported by a Micro SD/SDHC/SDXC slot for cards up to 256 GB.
- 1/2.8" CMOS, max. 3840x2160 (8MP)
- 3.2 to 10.2 mm motorised varifocal (3.2x)
- 0.06 lux colour / 0.006 lux BW
- 120 dB WDR, ICR day/night switching
- H.265, H.264, MJPEG, up to 5 profiles
- Micro SD/SDHC/SDXC up to 256 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (7)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Virtual area(Appear/Disappear)
- Analytics / Attributes – Person
- Upper/Lower clothes color
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Vehicle
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 276.9m(908.57ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 60.0m(196.86ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 27.7m(90.86ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.0m(19.69ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 111.7m(363.43ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 24.2m(78.74ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 55.4m(181.71ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 12.0m(39.37ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 12W, typical 5.3W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 1GB
- General / Memory – RAM
- 2GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 124°~35°
- Lens / Angular Field of View – Horizontal
- 104°~31°
- Lens / Angular Field of View – Vertical
- 55°~17°
- Lens / Max Aperture Ratio (F number) – Tele
- 3.1
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.2x
- Lens – Focal Length (mm)
- 3.2~10.2
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris(IR corrected)
- Lens – Min. Object Distance
- 1.2m(3.93ft)
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø93.4x245.8mm(ø3.68x9.68")
- Mechanical – Product Weight
- 930g(2.05Ib)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 5 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (24)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/25,000sec
- Operational / Light Viewable Length – IR
- 30m(98.42ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White
- Operational / Privacy Masking – Dynamic Privacy Masking: Color / Option
- Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~100°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@8MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.006
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.06
- Video – Resolution
- 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
