The AC-SFP-BIA-FXME carries 100 MBit/s across one multimode fibre and is connected through an LC/PC simplex connector. Its transmit wavelength is 1310 nm, the receive wavelength 1550 nm, and the link may span up to 2 km. Optical output power ranges from -10 dBm to 0 dBm, while sensitivity is -28 dBm at an input power of no more than 0 dBm. An optical budget of 18 dB is available with a minimum path attenuation of 0 dB. The module works between -40 °C and +85 °C and dissipates 4 BTU/h. 100 MBit/s data rateMultimode, 1 fibreLC/PC simplex connectorTX 1310 nm / RX 1550 nmUp to 2 km link distance18 dB optical budget

The AC-SFP-BIA-FXSE is built for singlemode links of up to 20 km and moves 100 MBit/s over a single fibre. It plugs in via LC/PC simplex, transmitting at 1310 nm and receiving at 1550 nm. Output power sits between -14 dBm and -8 dBm, optical sensitivity is -32 dBm and input power may reach 0 dBm. The optical budget amounts to 18 dB at a minimum path attenuation of 0 dB. Operation is rated from -40 °C to +85 °C with a thermal power loss of 4 BTU/h. 100 MBit/s data rateSinglemode, 1 fibreUp to 20 km link distanceTX 1310 nm / RX 1550 nm-32 dBm optical sensitivity18 dB optical budget

The AC-SFP-BIA-LXE provides 1 GBit/s on one singlemode fibre. Connected through LC/PC simplex, it bridges distances of up to 20 km, transmitting at 1310 nm and receiving at 1550 nm. Output level covers -9 dBm to -3 dBm, sensitivity is -21 dBm and input power must stay at or below -3 dBm. The specified optical budget is 12 dB with a minimum path attenuation of 0 dB. Operating temperature spans -40 °C to +85 °C at 4 BTU/h thermal power loss. 1 GBit/s data rateSinglemode, 1 fibreUp to 20 km link distanceLC/PC simplex connector12 dB optical budget-40 °C to +85 °C operating range

The AC-SFP-BIA-SXE is a gigabit SFP for short multimode runs of no more than 550 m. It works on a single fibre with an LC/PC simplex connector, sending at 1310 nm and receiving at 1550 nm. Optical output power lies between -8 dBm and 0 dBm, sensitivity is -18 dBm and maximum input power 0 dBm. The optical budget covers 10 dB with 0 dB minimum path attenuation. The module is approved from -40 °C to +85 °C and dissipates 4 BTU/h. 1 GBit/s data rateMultimode, 1 fibreUp to 550 m link distanceTX 1310 nm / RX 1550 nm10 dB optical budget4 BTU/h thermal power loss

As the counterpart to the A side, the AC-SFP-BIB-FXME transmits at 1550 nm and receives at 1310 nm. It handles 100 MBit/s on one multimode fibre with an LC/PC simplex connector, over a maximum distance of 2 km. Output power spans -10 dBm to 0 dBm, optical sensitivity is -28 dBm and input power tops out at 0 dBm. An optical budget of 18 dB is available at 0 dB minimum path attenuation. The temperature range runs from -40 °C to +85 °C at 4 BTU/h thermal power loss. 100 MBit/s data rateMultimode, 1 fibreTX 1550 nm / RX 1310 nmUp to 2 km link distance18 dB optical budgetLC/PC simplex connector

Forming the B side of a singlemode link, the AC-SFP-BIB-FXSE transmits at 1550 nm and receives at 1310 nm. One fibre and an LC/PC simplex connector carry 100 MBit/s across as much as 20 km. Output level ranges from -14 dBm to -8 dBm, sensitivity is -32 dBm and maximum optical input power 0 dBm. The optical budget comes to 18 dB with a minimum path attenuation of 0 dB. Rated operation covers -40 °C to +85 °C at 4 BTU/h thermal power loss. 100 MBit/s data rateSinglemode, 1 fibreTX 1550 nm / RX 1310 nmUp to 20 km link distance-32 dBm optical sensitivity18 dB optical budget

The AC-SFP-BIB-LXE delivers 1 GBit/s on a single singlemode fibre over distances of up to 20 km. It sends at 1550 nm, receives at 1310 nm and plugs in through LC/PC simplex. Optical output power stays within -9 dBm to -3 dBm, sensitivity is -21 dBm and permissible input power reaches -3 dBm at most. A 12 dB optical budget and a minimum path attenuation of 0 dB are specified. The module runs from -40 °C to +85 °C and gives off 4 BTU/h. 1 GBit/s data rateSinglemode, 1 fibreTX 1550 nm / RX 1310 nmUp to 20 km link distance12 dB optical budgetLC/PC simplex connector

The AC-SFP-BIB-SXE targets multimode connections of up to 550 m and transports 1 GBit/s over one fibre. Its transmit path runs at 1550 nm and its receive path at 1310 nm, using an LC/PC simplex connector. Output power extends from -8 dBm to 0 dBm, optical sensitivity is -18 dBm and maximum input power 0 dBm. The optical budget is 10 dB at a minimum path attenuation of 0 dB. Operation is intended for -40 °C to +85 °C with 4 BTU/h thermal power loss. 1 GBit/s data rateMultimode, 1 fibreUp to 550 m link distanceTX 1550 nm / RX 1310 nm10 dB optical budget4 BTU/h thermal power loss

Two multimode fibres and an LC/PC duplex connector are used by the AC-SFP-FXMME. Both the transmit and the receive path operate at 1310 nm, the data rate is 100 MBit/s and the reach ends at 2 km. Optical output power moves between -23.5 dBm and -14 dBm, sensitivity is -31 dBm and the highest permitted input power -8 dBm. This yields an optical budget of 7.5 dB at 0 dB minimum path attenuation. The operating range covers -40 °C to +85 °C and the net weight is 0.015 kg. 100 MBit/s data rateMultimode, 2 fibresLC/PC duplex connector1310 nm TX and RXUp to 2 km link distance7.5 dB optical budget

The AC-SFP-FXSME covers singlemode links of as much as 30 km at a data rate of 100 MBit/s. It occupies two fibres through an LC/PC duplex connector and uses 1310 nm in both directions. Output level lies between -15 dBm and -8 dBm, optical sensitivity is -32 dBm and maximum input power 0 dBm. The optical budget adds up to 17 dB with a minimum path attenuation of 0 dB. The module can be used from -40 °C to +85 °C at 4 BTU/h thermal power loss. 100 MBit/s data rateSinglemode, 2 fibresUp to 30 km link distance1310 nm TX and RX17 dB optical budgetLC/PC duplex connector

The AC-SFP-LX-E-10 moves 1 GBit/s across two singlemode fibres and reaches up to 10 km. Both directions work at 1310 nm and the connection is made through LC/PC duplex. Optical output power ranges from -9 dBm to -3 dBm, sensitivity is -21 dBm and maximum input power -3 dBm. The link is rated with a 12 dB optical budget and 0 dB minimum path attenuation. The module is specified from -40 °C to +85 °C and dissipates 4 BTU/h. 1 GBit/s data rateSinglemode, 2 fibresUp to 10 km link distance1310 nm TX and RX12 dB optical budgetLC/PC duplex connector

The AC-SFP-LX-E-20 builds gigabit links over two singlemode fibres for distances of up to 20 km. Both directions run at 1310 nm and the connector is LC/PC duplex. Output level covers -8 dBm to -2 dBm, optical sensitivity is -23 dBm and input power may not exceed -1 dBm. The optical budget stands at 15 dB with a minimum path attenuation of 0 dB. Its operating range spans -40 °C to +85 °C and the net weight is 0.018 kg. 1 GBit/s data rateSinglemode, 2 fibresUp to 20 km link distance15 dB optical budget-23 dBm optical sensitivityLC/PC duplex connector

Designed for long singlemode runs of up to 40 km, the AC-SFP-LX-E-40 carries 1 GBit/s over two fibres. Transmit and receive wavelengths are both 1310 nm and the module uses an LC/PC duplex connector. Output power lies between -4 dBm and 3 dBm, sensitivity is -24 dBm and maximum input power -1 dBm. Its optical budget is 20 dB, and a minimum path attenuation of 4 dB is required. Operation runs from -40 °C to +85 °C at 4 BTU/h thermal power loss. 1 GBit/s data rateSinglemode, 2 fibresUp to 40 km link distance20 dB optical budget4 dB minimum path attenuation1310 nm TX and RX

Spanning as much as 70 km on two singlemode fibres, the AC-SFP-LX-E-70 works at 1550 nm in both directions. The data rate is 1 GBit/s and the connection is LC/PC duplex. Optical output power extends from 0 dBm to 5 dBm, sensitivity is -30 dBm and input power must not exceed -9 dBm. With a 30 dB optical budget and a required minimum path attenuation of 14 dB, the module is tuned to long links. The temperature range covers -40 °C to +85 °C. 1 GBit/s data rateSinglemode, 2 fibresUp to 70 km link distance1550 nm TX and RX30 dB optical budget14 dB minimum path attenuation

The AC-SFP-SX-E is a gigabit module for two multimode fibres with a reach of up to 550 m. It operates at 850 nm in both directions and connects via LC/PC duplex. Output power lies between -9.5 dBm and -4 dBm, optical sensitivity is -18 dBm and maximum input power 0 dBm. The optical budget comes to 8.5 dB at 0 dB minimum path attenuation. Operation is foreseen from -40 °C to +85 °C with 4 BTU/h thermal power loss. 1 GBit/s data rateMultimode, 2 fibresUp to 550 m link distance850 nm TX and RX8.5 dB optical budgetLC/PC duplex connector

On two multimode fibres the AC-SFP-SXOM3-E achieves 1 GBit/s over a distance of up to 2 km. Transmit and receive wavelengths are 1310 nm and the module uses an LC/PC duplex connector. Output level moves between -23.5 dBm and -14 dBm, sensitivity is -31 dBm and maximum input power -8 dBm. A 7.5 dB optical budget and 0 dB minimum path attenuation are specified. The module is rated from -40 °C to +85 °C and has a gross weight of 0.023 kg. 1 GBit/s data rateMultimode, 2 fibresUp to 2 km link distance1310 nm TX and RX7.5 dB optical budgetLC/PC duplex connector

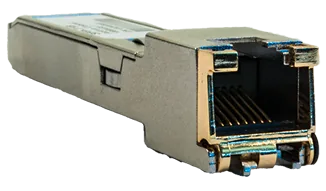

Rather than fibre, the AC-SFP-TX-T1A uses copper cabling of categories Cat5, Cat6 and Cat7. It terminates in RJ45, runs at 100 MBit/s and spans a maximum distance of 100 m. One conductor is specified, so optical characteristics do not apply to this version. The permitted operating temperature reaches from 0 °C to 50 °C at a thermal power loss of 4 BTU/h. Gross weight is 0.025 kg and net weight 0.023 kg. 100 MBit/s data rateRJ45 connectorCat5/6/7 conductor typeUp to 100 m link distance0 °C to 50 °C operating range4 BTU/h thermal power loss

The AC-SFP-TX-T2A is the gigabit variant for copper cabling and operates at 1 GBit/s. Cat5/6/7 is the specified conductor type, the connector is RJ45 and the link may be up to 100 m long. Optical values such as wavelengths or output power do not apply to this version. Operating temperature ranges from 0 °C to 50 °C at 4 BTU/h thermal power loss. The stated weights are 0.025 kg gross and 0.023 kg net. 1 GBit/s data rateRJ45 connectorCat5/6/7 conductor typeUp to 100 m link distance0 °C to 50 °C operating range0.023 kg net weight
