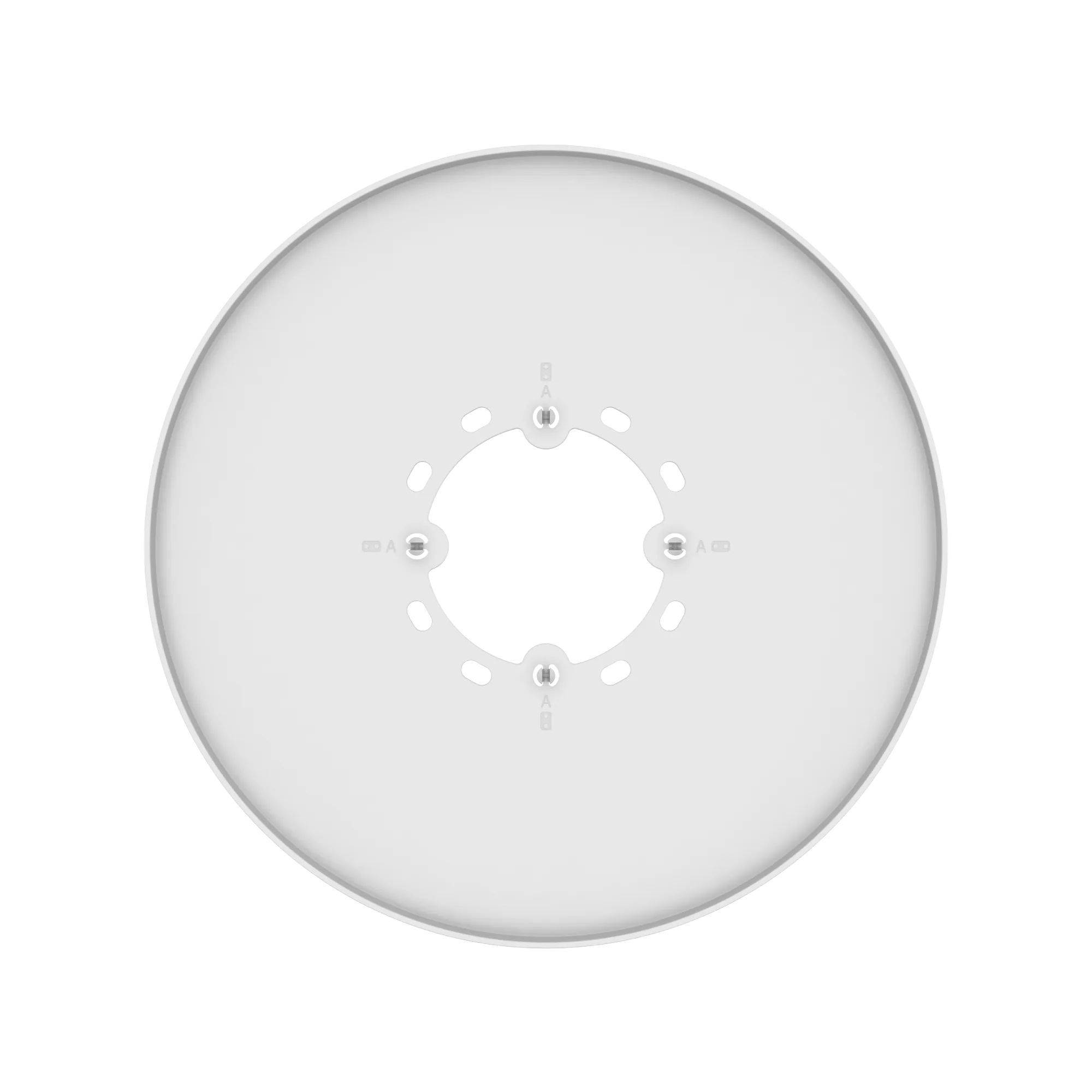

Mounting Hole Cover

The PNM-8082VT brings together three 2MP channels in one multi-directional H.265 camera. Every channel uses a 1/2.8-inch CMOS sensor with a maximum of 1920x1080 pixels and reaches 30fps/25fps (60Hz/50Hz) in H.265 and H.264 plus 30fps in MJPEG, with multiple streaming available. The motorised 3.0 to 6.0 mm varifocal lenses with 2x zoom open to F2.2 and F3.1 respectively and span 107° to 56° horizontally. Low-light performance is stated as 0.04 lux in colour and 0.004 lux in black and white, with automatic ICR switching. Video analytics, WiseStream II and IP66, IK10 and NEMA4X ratings are included, while a CVBS output assists during installation. Three 2MP channelsMax. 1920x1080 at 30fps3.0-6.0 mm varifocal, 2x opticalVideo analytics and WiseStream IIIP66, IK10, NEMA4XCVBS output for installation

The PNM-9031RV is a panoramic camera built from several 1/2.8-inch CMOS sensors and producing a stitched image of up to 6720x2240 pixels. H.265 and H.264 run at 20fps and MJPEG at 15fps, with automatic IR illumination applied across all image sensors. Its fixed 4.3 mm lens at F1.6 captures 195.3° to 197.0° horizontally and 63.6° vertically, with a minimum object distance of 5 m. Rated sensitivity is 0.1 lux in colour and 0.01 lux in black and white, supported by ICR day and night switching, BLC, SSDR, 120 dB WDR and SSNR V noise reduction. Multiple virtual channels can be created from the panoramic view and the unit connects over a single Ethernet link. The housing is rated IP66, IK10 and NEMA4X, the camera is NDAA compliant, and it pans 0° to 360° and tilts 0° to 60°. Panoramic image up to 6720x224020fps in H.265 and H.264Fixed 4.3 mm lens, F1.6195.3° to 197.0° horizontal view120 dB WDR, SSNR VIP66, IK10, NEMA4X, NDAA compliant

The PNM-C16083RVQ is a multi-directional outdoor camera with AI and IR that combines four 4MP channels for 16MP in total. Its 1/2.8-inch CMOS sensors reach 2592x1520 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, limited to 5fps at 4MP. The lenses cover 3.3 to 5.7 mm at 1.7x optical zoom, open to F1.5 wide and F1.9 tele and capture 100° to 53° horizontally and 125° to 61° diagonally. Low-light ratings are 0.075 lux in colour and 0.0075 lux in black and white, with automatic ICR day and night switching. Focusing is by simple focus from 1.3 m with a fixed iris, while the channels pan 0° to 360°, tilt 0° to 65° and rotate 0° to 90°. Four 4MP channels, 16MP totalMax. 2592x1520 at 30fps/25fps3.3-5.7 mm lens, 1.7x optical0.075 lux colour / 0.0075 lux BWFixed iris, simple focus from 1.3 mAutomatic day and night (ICR)

The PNM-C32083RVQ is a multi-directional outdoor camera with AI and IR that brings together four 4K channels for 32MP in total. Working from 1/2.8-inch CMOS sensors it reaches 3840x2160 pixels at 15fps in H.265, H.264 and MJPEG; MJPEG is capped at 5fps at 8MP, and up to 20fps is possible with AI switched off. The lenses span 3.3 to 5.7 mm at 1.7x optical zoom, open to F1.5 wide and F1.9 tele and capture 109° to 56° horizontally and 136° to 65° diagonally. Sensitivity is quoted at 0.1 lux in colour and 0.01 lux in black and white, with simple focus from 1.3 m and a fixed iris. Mechanical ranges are 0° to 360° pan, 0° to 65° tilt and 0° to 90° rotation. Four 4K channels, 32MP totalMax. 3840x2160 at 15fpsUp to 20fps with AI switched off3.3-5.7 mm lens, 1.7x optical0.1 lux colour / 0.01 lux BWFixed iris, simple focus from 1.3 m

The PNM-C9022RV stitches several 1/2.8-inch CMOS sensors into a panoramic image of up to 8MP at 5120x1568 pixels. H.265, H.264 and MJPEG each run at 20fps, and IR illumination with WiseIR reaches a maximum of 20 m. The fixed 2.8 mm lens at F2.0 captures 209° horizontally and 60° vertically, using a fixed iris and a 5 m minimum object distance. Sensitivity is quoted at 0.1 lux in colour and 0.01 lux in black and white, supported by ICR day and night switching, BLC, SSDR and extremeWDR at 120 dB. The AI engine classifies people and vehicles and underpins WiseNR II and WiseStream III, with SSNR V alongside. The dome bubble is hard-coated, and the camera pans 0° to 360° and tilts 0° to 65°. Panoramic image up to 5120x156820fps in H.265, H.264 and MJPEGFixed 2.8 mm lens, F2.0209° horizontal, 60° vertical viewUp to 20 m IR reach with WiseIRextremeWDR 120 dB, WiseNR II
