19" wall cabinet Pro, 12U, glass door, black
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Lanview
- Article number
- RWP126056BL
- Weight
- 22.61 kg
Description

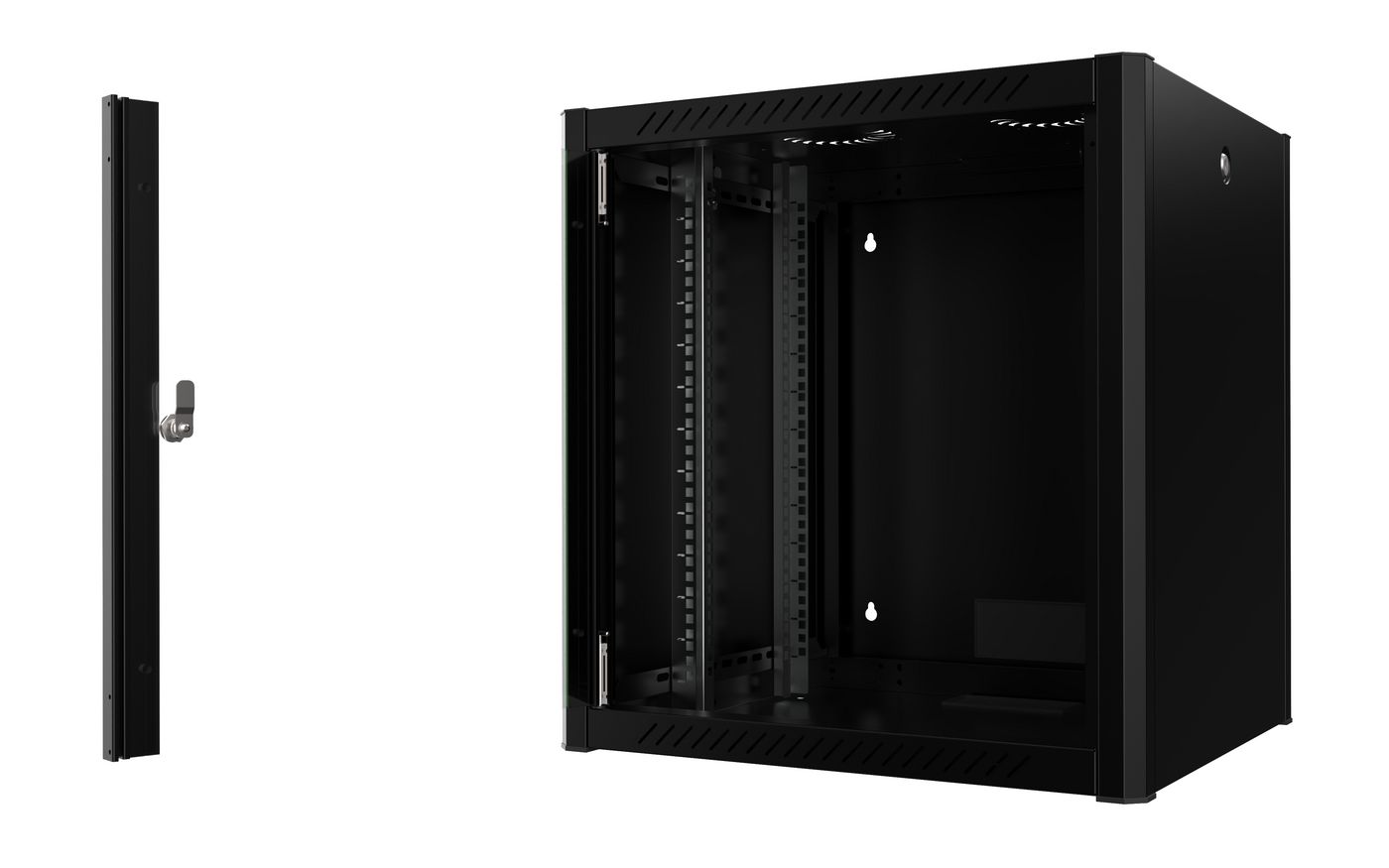

19-inch Pro series wall-mounted cabinet with 12 rack units, 600 × 560 × 645 mm, in black. Against the standard line the side panels are removable and lock separately, and the mounting rails adjust in depth.
The front door is 4 mm antistatic toughened safety glass in an extruded aluminium frame with coloured accent strips at the sides, and it locks. A fan module with up to two fans can be fitted to the ventilation opening in the upper chassis; feet or castor sets are available for free-standing use. The cabinet ships assembled, with mounting rails and a cable entry. Load capacity 80 kg, IP20, passive cooling.
- 12U, 600 × 560 × 645 mm, black, Pro series
- Side panels removable and separately lockable
- Adjustable mounting rails
- Lockable glass door, 4 mm toughened and antistatic
- 80 kg capacity, IP20, passive cooling
- Delivered assembled
Made by
Lanview stands for 19" rack accessories in the catalogue: blank and vented panels with snap-in fixing, cable management panels with cable entry and shelves in 1U and 2U – the parts that make a network and video cabinet tidy and serviceable. Technical data on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Features (21)
- Adjustable mounting rails
- Yes
- Assembly required
- No
- Cable entry point
- Yes
- Cooling type
- Passive
- Features Material
- Glass, Steel
- Features Typ
- 19" Wall Mounted Rack
- Features – Key lock on the side panel
- Yes
- Frame type
- Closed
- Front door construction
- Glass/Steel
- International protection code
- IP20
- Key lock
- Yes
- Lenkrollen
- No
- Maximum load
- 80 kg
- Mounting hole shape
- Round
- Produktfarbe
- Black
- Rack capacity
- 12U
- Rack rails
- Yes
- Removable side panels
- Yes
- Soundproof
- No
- Tastensperre
- Yes
- Vormontiert
- Yes
Other features (1)
- Dimensions (WxDxH)
- 600x560x645 mm
Weight & dimensions (1)
- Size (inches)
- 19 "
