6MP AI Vandal Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
SHD-1370FPW is an aluminium in-ceiling housing finished white to RAL 9003. It measures ø205x103 mm (ø8.07x4.05") and weighs 770 g (1.70 lb); the ceiling hole has to be cut to ø181 mm (ø7.12"). Tile thicknesses of 10 to 70 mm (0.4 to 2.8") are supported, with TR20 mount screws. Cabling passes through conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25). Up to 3 kg (6.61 lb) can be carried, with a ceiling board maximum of 6.5 kg (14.30 lb); supported cameras include PNV-A6081R, XNV-6083R, XNV-6123R and XNV-6083RZ. In-ceiling housing in aluminiumWhite, RAL 9003ø205x103 mm, 770 gCeiling hole ø181 mm, tile thickness 10~70 mmMax. load 3 kgFor PNV-A6081R, XNV-6083R, XNV-6123R, XNV-6083RZ
Not in stock · delivery 3-4 days
On the SPB-VAN89W the top cover is made of aluminium plus polycarbonate, while the dome bubble uses hard-coated polycarbonate (PC). The top is white to RAL9003 and the bubble is transparent smoked. The manufacturer states Ø177x93.7mm (Ø6.97x3.69") and 350 g (0.77lb). Supported products include XNV-9083RZ and XNV-6123R; further compatible models can be found in the manufacturer's compatibility overview. Smoked dome coverTop cover of aluminium and polycarbonateHard-coated polycarbonate bubbleWhite, RAL9003Dimensions Ø177x93.7mm, 350 gFor XNV-9083RZ and XNV-6123R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNV-8083Z
- EAN / GTIN
- 8801089217844
- Weight
- 3.28 kg
- Dimensions (W×H×D)
- 443 × 286 × 190 mm
Description

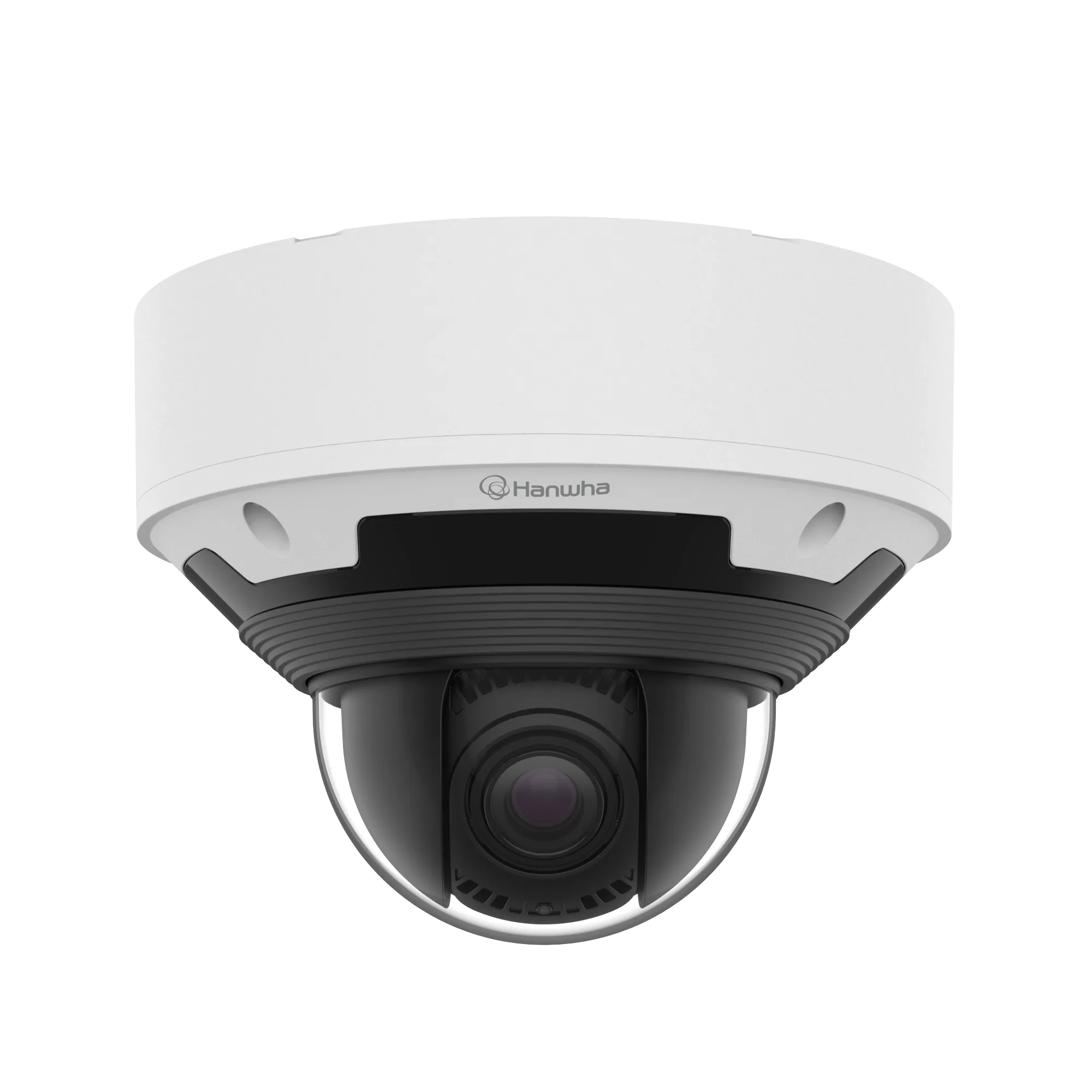

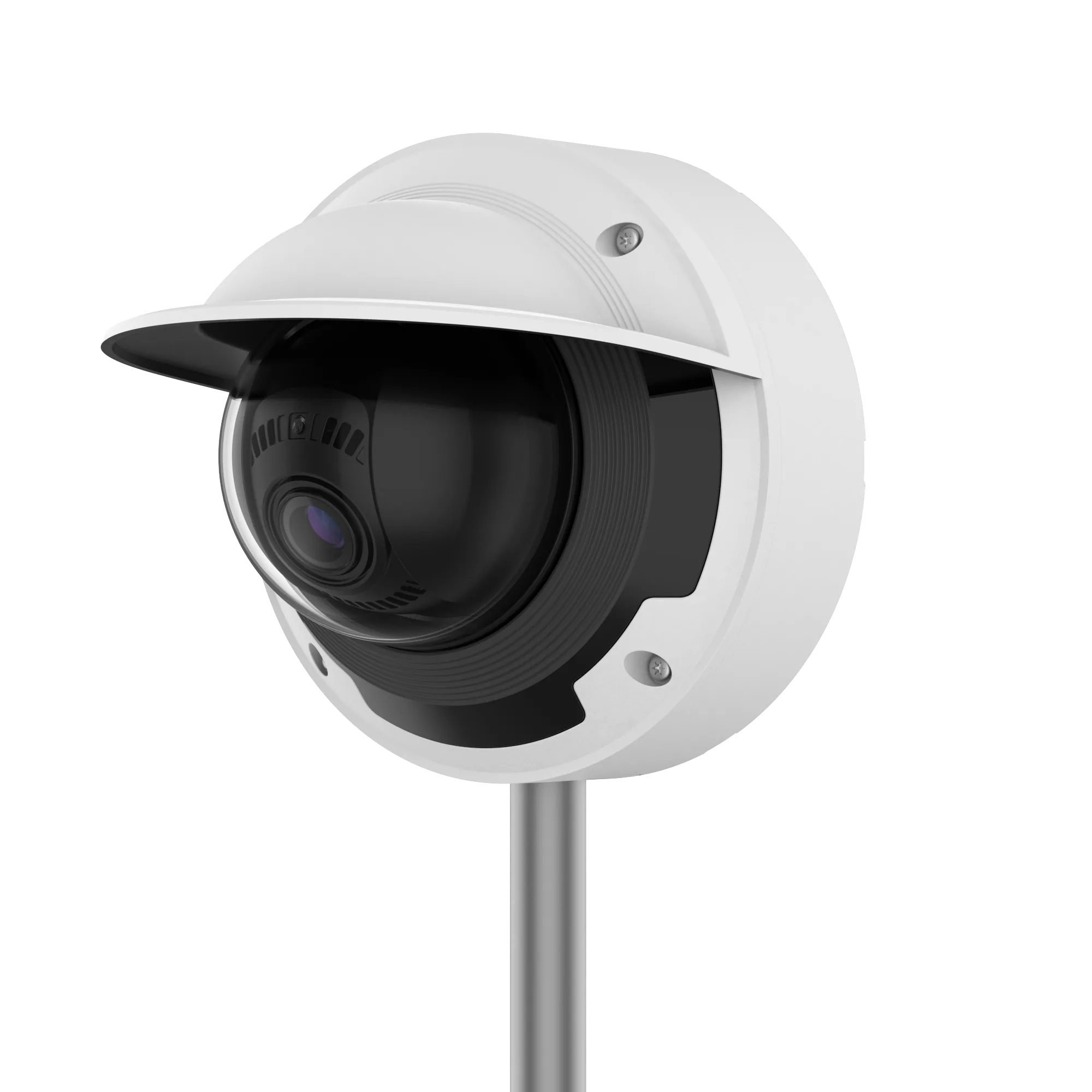

The vandal-resistant AI dome camera XNV-8083Z captures up to 3328 x 1872 pixels (6 MP) on a 1/1.8" CMOS sensor and encodes H.265 and H.264 at a maximum of 30 fps or 25 fps and MJPEG at 30 fps, limited to 5 fps at 6 MP. Its motorised 4.4~9.3 mm varifocal lens (2.1x optical, F1.3 to F2.15) covers 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally from 0.5 m under simple focus, manual focus and an IR-corrected P iris. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, falling to 0 lux with the IR LED on, while extremeWDR operates at 120 dB alongside ICR switching and the AI-based WiseNRⅡ and WiseStreamⅢ functions. NPU-based analysis identifies people, faces and vehicles including cars, trucks, buses, bicycles and motorcycles as well as licence plates, and adds IVA rules for virtual line and area, enter and exit, loitering, direction and intrusion. The dome bubble is hard-coated, and pan, tilt and rotate span 0°~350°, 0°~85° and 0°~340° with remote adjustment for up to 200 cycles.
- 6 MP resolution (3328 x 1872)
- 4.4~9.3 mm motorised varifocal lens (2.1x)
- NPU-based AI object detection with IVA rules
- extremeWDR at 120 dB
- AI-based WiseNRⅡ and WiseStreamⅢ
- Hard-coated dome bubble
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (6)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Virtual area(Appear/Disappear)
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle)
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Vehicle counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- DetectionShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 153.1m(502.22ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 44.1m(144.54ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 15.3m(50.22t)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.4m(14.45ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 61.2m(200.89ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 17.6m(57.82ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 30.6m(100.44ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 8.8m(28.91ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -50°C~+55°C(-58°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max 22.5W, typical 12.1W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4)
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 138°~54°
- Lens / Angular Field of View – Horizontal
- 113°~47°
- Lens / Angular Field of View – Vertical
- 58°~26°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.15
- Lens / Max Aperture Ratio (F number) – Wide
- 1.3
- Lens / Zoom Ratio – Optical
- 2.1x
- Lens – Focal Length (mm)
- 4.4~9.3
- Lens – Focus Control
- Simple focus, Manual
- Lens – Lens Type
- P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 19.1mm(3/4")(M25)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- ø180x135mm(ø7.09x5.31")
- Mechanical – Product Weight
- 2000g(4.41lb)
- Mechanical – RAL Code
- RAL9003
Network (10)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (19)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (4)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Others
- Remote adjustment(Max. 200cycles)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~340°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~85°
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/1.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@6MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.003
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.03
- Video – Resolution
- 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
