6MP AI IR Vandal Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBO-147BA is an adaptor for conduit holes. Its cover is aluminium while the top cover is polycarbonate, and the finish is white. It measures 48.5mm wide, 41mm high and 56.7mm deep, weighing 45g. The conduit hole is sized at 19.1mm (3/4 in, M25). Conduit hole adaptorAluminium with polycarbonate top coverWhite48.5x41x56.7mm, 45g19.1mm (M25) conduit hole
Not in stock · delivery 3-4 days
SHD-1350FPW is an in-ceiling housing made of aluminium with a polycarbonate part, finished white to RAL 9003. At ø205x163 mm (8.07x6.42") it is one of the larger in-ceiling enclosures in the range, and it weighs 1,170 g (2.58 lb). Conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25) are provided for cable routing. The supported model stated is XND-6083RV. In-ceiling housing in aluminium and polycarbonateWhite, RAL 9003ø205x163 mm1,170 gConduit holes 12.7 mm (M20) and 19.1 mm (M25)For XND-6083RV
In stock, ships immediately · delivery 1-2 days
SHD-1370FPW is an aluminium in-ceiling housing finished white to RAL 9003. It measures ø205x103 mm (ø8.07x4.05") and weighs 770 g (1.70 lb); the ceiling hole has to be cut to ø181 mm (ø7.12"). Tile thicknesses of 10 to 70 mm (0.4 to 2.8") are supported, with TR20 mount screws. Cabling passes through conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25). Up to 3 kg (6.61 lb) can be carried, with a ceiling board maximum of 6.5 kg (14.30 lb); supported cameras include PNV-A6081R, XNV-6083R, XNV-6123R and XNV-6083RZ. In-ceiling housing in aluminiumWhite, RAL 9003ø205x103 mm, 770 gCeiling hole ø181 mm, tile thickness 10~70 mmMax. load 3 kgFor PNV-A6081R, XNV-6083R, XNV-6123R, XNV-6083RZ
Not in stock · delivery 3-4 days

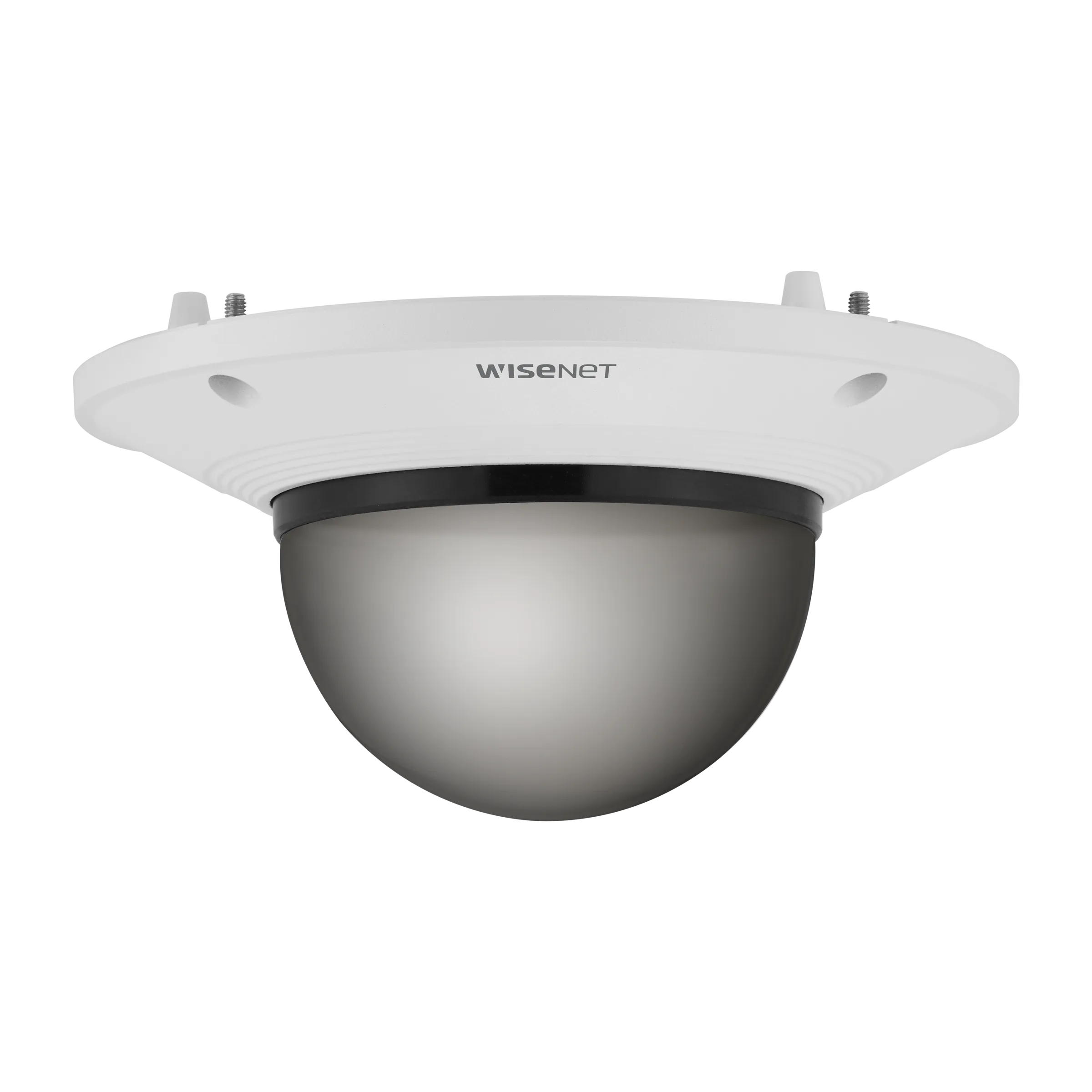

The SPB-VAN85W pairs a white aluminium base top with a transparent smoked polycarbonate (PC) bubble. The white finish corresponds to RAL9003. Stated dimensions are ø178x92mm at a weight of 380 g. The manufacturer lists IP67 and IP66 ratings for this cover. XNV-6083R is among the supported products; for further compatible models the manufacturer refers to its own compatibility overview. Smoked dome coverAluminium base top, polycarbonate bubbleWhite, RAL9003Dimensions ø178x92mm, 380 gIP67, IP66Supported product XNV-6083R
Not in stock · delivery 3-4 days
The SPB-VAN88W is a smoked dome cover made of aluminium with a polycarbonate (PC) dome bubble. Its white finish corresponds to RAL9003. The cover measures Ø160x118mm (Ø6.30"x4.65") and weighs 400 g (0.88lb). The manufacturer lists XNV-C6083R, XNV-C7083R, XNV-C8083R and XNV-C9083R as supported products; further compatible models are documented in the manufacturer's compatibility overview. Smoked dome coverAluminium cover, polycarbonate dome bubbleWhite, RAL9003Dimensions Ø160x118mmWeight 400 gFor XNV-C6083R, XNV-C7083R, XNV-C8083R, XNV-C9083R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNV-8083R
- EAN / GTIN
- 8801089207630
- Weight
- 3.33 kg
- Dimensions (W×H×D)
- 443 × 286 × 190 mm
Description
The XNV-8083R is a vandal-resistant AI IR dome camera with a 1/1.8" CMOS sensor and a maximum resolution of 3328 x 1872 pixels (6 MP). Its motorised 4.4 to 9.3 mm varifocal lens (2.1x optical) opens to F1.3 wide and F2.15 tele and covers 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally from 0.5 m, focusing by simple focus or manually with an IR-corrected P iris. H.265 and H.264 reach up to 30 fps or 25 fps and MJPEG 30 fps, limited to 5 fps at 6 MP; minimum illumination is 0.04 lux in colour, 0.004 lux in black and white and 0 lux with the IR LED on. WiseIR illuminates to 50 m, extremeWDR works at 120 dB, and the AI-based WiseNRⅡ and WiseStreamⅢ functions manage noise and bitrate. A hard-coated dome bubble and adjustment ranges of 0°~360°, 0°~85° and 0°~355° complete the specification.
- 6 MP resolution (3328 x 1872)
- 4.4~9.3 mm motorised varifocal lens (2.1x)
- WiseIR with 50 m range
- extremeWDR at 120 dB
- AI-based WiseNRⅡ and WiseStreamⅢ
- Hard-coated dome bubble
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (6)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle)
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- DetectionShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 153.1m(502.22ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 44.1m(144.54ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 15.3m(50.22ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.4m(14.45ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 61.2m(200.89ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 17.6m(57.82ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 30.6m(100.44ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 8.8m(28.91ft)
Environmental & Electrical (9)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 20W, typical 15.6W
- Environmental & Electrical / Power Consumption – PoE
- Max. 22.5W, typical 17.9W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
- Environmental & Electrical – Power Redundance Failover
- Support
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 138°~54°
- Lens / Angular Field of View – Horizontal
- 113°~47°
- Lens / Angular Field of View – Vertical
- 58°~26°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.15
- Lens / Max Aperture Ratio (F number) – Wide
- 1.3
- Lens / Zoom Ratio – Optical
- 2.1x
- Lens – Focal Length (mm)
- 4.4~9.3
- Lens – Focus Control
- Simple focus, Manual
- Lens – Lens Type
- P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 19.1mm(3/4")(M25)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø180x125mm(7.09x4.92")
- Mechanical – Product Weight
- 1,900g(4.19lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (26)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Alarm Interface – Others
- 12VDC output
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 50m(164.04ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~85°
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/1.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@6MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.004
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.04
- Video – Resolution
- 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
