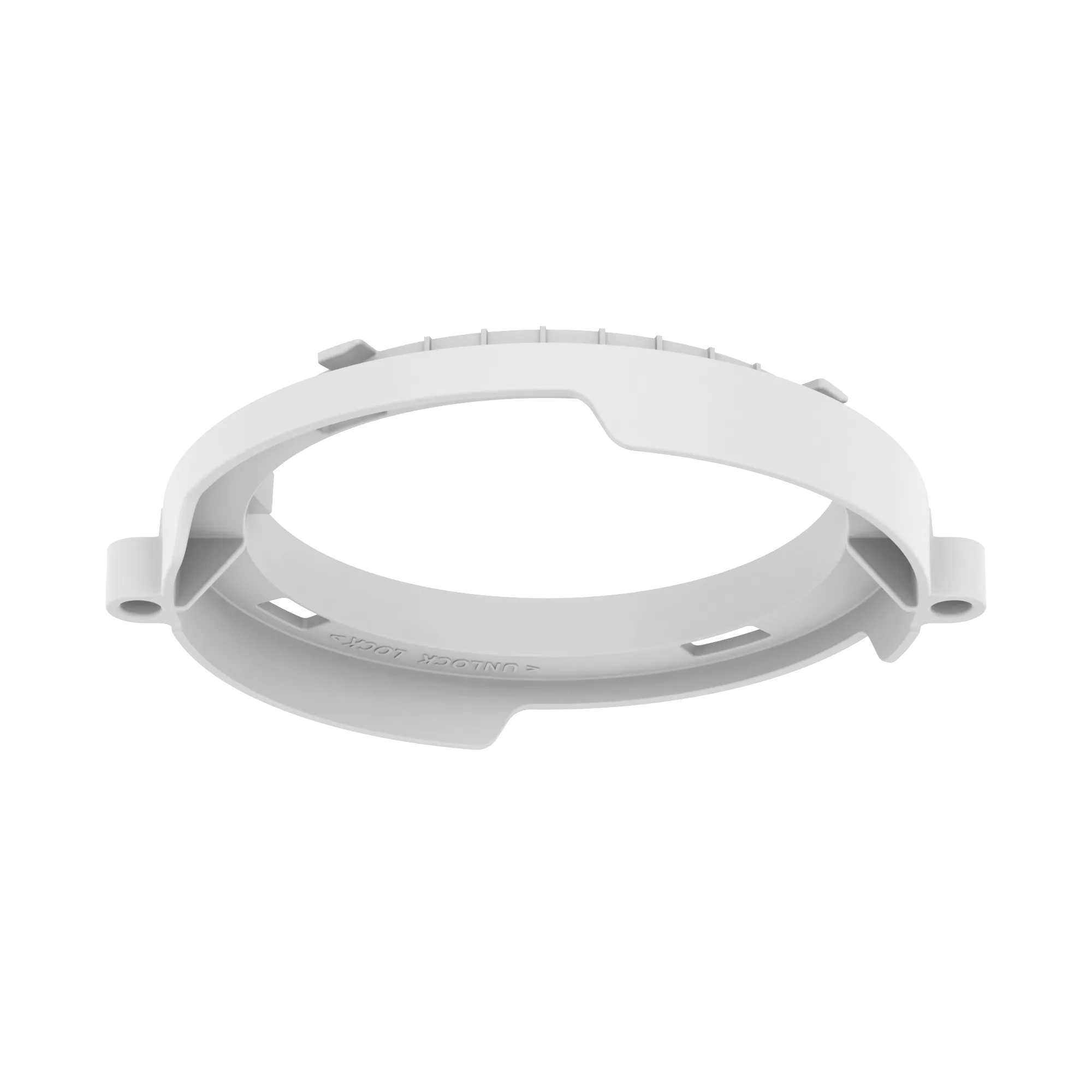

In-Ceiling Housing

The PND-A6081RV is a 2 megapixel network dome camera with infrared illumination and AI analytics, capturing up to 1920x1080 from a 1/2-inch CMOS sensor. It detects people, faces, vehicles and licence plates, narrowing motion events down to the relevant alerts and keeping event lists shorter. Intelligent video analytics uses virtual lines and virtual areas for intrusion, entering, exiting, appearing and loitering, and adds social distancing measurement in crowds as well as face mask detection. Frame rates reach 120fps at 60Hz or 100fps at 50Hz in H.265 and H.264, a maximum of 60 or 50fps with AI enabled, and 15fps in MJPEG. The lens spans 4.38 to 9.33mm with 2.13x optical zoom, opens to F1.3 at wide angle and F2.15 at telephoto and focuses by simple focus from 0.5m through an IR-corrected P iris. Images are still produced at 0.007 lux in colour and 0.0007 lux in black and white, with 0° to 360° pan, -45° to 85° tilt and 0° to 355° rotation. 2 megapixel resolution up to 1920x1080AI object detection for person, face, vehicle and licence plateVideo analytics with virtual line and virtual area4.38 to 9.33mm varifocal lens, F1.3 to F2.150.007 lux in colour, 0.0007 lux in black and white0° to 360° pan and 0° to 355° rotation

The XND-6083RV is a 2MP AI IR dome camera using a 1/2.8" CMOS sensor with a maximum resolution of 1920x1080. H.265 and H.264 run at 120fps/100fps (60Hz/50Hz) with WDR off and 60fps/50fps with WDR on, while MJPEG stays at 30fps. Its motorised 2.8 to 12 mm varifocal lens with 4.3x zoom opens from F1.4 at the wide end to F3.6 at tele and covers 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from a 0.5 m minimum object distance. Minimum illumination is quoted as 0.01 lux in colour and 0.001 lux in black-and-white, with day and night switching handled automatically by ICR. Focus can be set by simple focus or manually, and the camera is aligned through 0° to 360° pan, 0° to 85° tilt and 0° to 355° rotation. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, 4.3x120fps/100fps WDR off, 60fps/50fps WDR on0.01 lux colour, 0.001 lux B/WAutomatic ICR day and night switchingSimple focus or manual focus
