Ajax EN54 Fire Hub Jeweller black
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Matching accessories
The GlandBox mounting box routes fire control panel wiring in from the side through cable glands in line with EN54 standards and is intended for use with the EN54 Fire Hub Jeweller. It offers 16 places for installing cable glands of up to 20 mm in diameter. A bubble level, a UP key and a CIE centre marking assist with alignment, while a tamper button provides sabotage protection. The box measures 10.35 × 8.78 × 1.58 in, weighs 11.82 oz and holds a UL 94 V-0 flammability rating. It operates from 14 °F to 104 °F at up to 75% non-condensing humidity, and the warranty period is 24 months. 16 places for cable glandsCable gland diameter up to 20 mmBubble level, UP key, CIE centre markingTamper buttonDimensions 10.35 × 8.78 × 1.58 in, 11.82 ozUL 94 V-0 flammability rating
Not in stock · delivery 2-3 days
The GlandBox mounting box routes fire control panel wiring in from the side through cable glands in line with EN54 standards and is intended for use with the EN54 Fire Hub Jeweller. It offers 16 places for installing cable glands of up to 20 mm in diameter. A bubble level, a UP key and a CIE centre marking assist with alignment, while a tamper button provides sabotage protection. The box measures 10.35 × 8.78 × 1.58 in, weighs 11.82 oz and holds a UL 94 V-0 flammability rating. It operates from 14 °F to 104 °F at up to 75% non-condensing humidity, and the warranty period is 24 months. 16 places for cable glandsCable gland diameter up to 20 mmBubble level, UP key, CIE centre markingTamper buttonDimensions 10.35 × 8.78 × 1.58 in, 11.82 ozUL 94 V-0 flammability rating
Not in stock · delivery 2-3 days
The EN54 Internal Battery is an internal battery that supplies backup power to CIE devices and range extenders. It is built from 4 × 18650 rechargeable Li-ion cells rated at 7.4 V⎓ nominal voltage and 5 Ah capacity, with a maximum load current of 3.2 A and an end-of-life battery voltage of 6 V⎓. Average power consumption is 50 mAh with LTE only, 70 mAh with Wi-Fi only and 120 mAh with Ethernet only, 102 mAh with Ethernet and cellular in standby, and 140 mAh with LTE, Wi-Fi and Ethernet together. The enclosure measures 6.54 × 3.43 × 0.92 inches, weighs 9.52 oz, carries an IP20 protection class and is rated from 14 °F to 104 °F at up to 75% non-condensing humidity. Batteries are sold as a separate SKU and are not part of the Fire Hub and ReX complete set. The warranty covers 24 months. 4 × 18650 rechargeable Li-ion battery7.4 V⎓ nominal voltage, 5 Ah capacityMaximum load current 3.2 AIP20 protection class6.54 × 3.43 × 0.92 inches, 9.52 oz24-month warranty
Not in stock · delivery 2-3 days
The EN54 Internal Battery is an internal battery that supplies backup power to CIE devices and range extenders. It is built from 4 × 18650 rechargeable Li-ion cells rated at 7.4 V⎓ nominal voltage and 5 Ah capacity, with a maximum load current of 3.2 A and an end-of-life battery voltage of 6 V⎓. Average power consumption is 50 mAh with LTE only, 70 mAh with Wi-Fi only and 120 mAh with Ethernet only, 102 mAh with Ethernet and cellular in standby, and 140 mAh with LTE, Wi-Fi and Ethernet together. The enclosure measures 6.54 × 3.43 × 0.92 inches, weighs 9.52 oz, carries an IP20 protection class and is rated from 14 °F to 104 °F at up to 75% non-condensing humidity. Batteries are sold as a separate SKU and are not part of the Fire Hub and ReX complete set. The warranty covers 24 months. 4 × 18650 rechargeable Li-ion battery7.4 V⎓ nominal voltage, 5 Ah capacityMaximum load current 3.2 AIP20 protection class6.54 × 3.43 × 0.92 inches, 9.52 oz24-month warranty
Not in stock · delivery 2-3 days
The EN54 Internal Battery is an internal battery that supplies backup power to CIE devices and range extenders. It is built from 4 × 18650 rechargeable Li-ion cells rated at 7.4 V⎓ nominal voltage and 5 Ah capacity, with a maximum load current of 3.2 A and an end-of-life battery voltage of 6 V⎓. Average power consumption is 50 mAh with LTE only, 70 mAh with Wi-Fi only and 120 mAh with Ethernet only, 102 mAh with Ethernet and cellular in standby, and 140 mAh with LTE, Wi-Fi and Ethernet together. The enclosure measures 6.54 × 3.43 × 0.92 inches, weighs 9.52 oz, carries an IP20 protection class and is rated from 14 °F to 104 °F at up to 75% non-condensing humidity. Batteries are sold as a separate SKU and are not part of the Fire Hub and ReX complete set. The warranty covers 24 months. 4 × 18650 rechargeable Li-ion battery7.4 V⎓ nominal voltage, 5 Ah capacityMaximum load current 3.2 AIP20 protection class6.54 × 3.43 × 0.92 inches, 9.52 oz24-month warranty
Not in stock · delivery 2-3 days
The EN54 Internal Battery is an internal battery that supplies backup power to CIE devices and range extenders. It is built from 4 × 18650 rechargeable Li-ion cells rated at 7.4 V⎓ nominal voltage and 5 Ah capacity, with a maximum load current of 3.2 A and an end-of-life battery voltage of 6 V⎓. Average power consumption is 50 mAh with LTE only, 70 mAh with Wi-Fi only and 120 mAh with Ethernet only, 102 mAh with Ethernet and cellular in standby, and 140 mAh with LTE, Wi-Fi and Ethernet together. The enclosure measures 6.54 × 3.43 × 0.92 inches, weighs 9.52 oz, carries an IP20 protection class and is rated from 14 °F to 104 °F at up to 75% non-condensing humidity. Batteries are sold as a separate SKU and are not part of the Fire Hub and ReX complete set. The warranty covers 24 months. 4 × 18650 rechargeable Li-ion battery7.4 V⎓ nominal voltage, 5 Ah capacityMaximum load current 3.2 AIP20 protection class6.54 × 3.43 × 0.92 inches, 9.52 oz24-month warranty
Not in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 125733.315.BL
- EAN / GTIN
- 4823114053481
Description
The EN54 Fire Hub Jeweller is a wireless fire alarm control panel that serves as control and indicating equipment (CIE) and also supports intrusion protection devices. It handles up to 40 fire zones, up to 80 rooms and up to 25 security groups, with an event log holding up to 6,000 events. Connected devices include up to 10 intrusion sirens, up to 50 keypads with a built-in buzzer and up to 5 EN54 Fire ReX Jeweller range extenders. Jeweller and Wings each provide a radio range of up to 5,900 ft with GFSK modulation, up to 20 mW ERP and block encryption using a dynamic key. External connectivity comprises one 8P8C Ethernet socket, two micro-SIM slots for 2G and 4G (LTE) and an 802.11 b/g/n Wi-Fi module, with automatic switching in the priority order Ethernet, Wi-Fi, cellular. Automation scenarios can run by alarm, by schedule, by arming and disarming and by temperature, humidity or CO2 concentration, while notifications are sent as push messages, SMS or calls.
- Up to 40 fire zones
- Up to 80 rooms and 25 security groups
- Event log of up to 6,000 events
- Jeweller and Wings up to 5,900 ft
- Ethernet, 802.11 b/g/n Wi-Fi, 2 micro-SIM slots
- Push notifications, SMS and calls
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional features (6)
- Additional features – Access codes
- up to 200 codes
- Additional features – Built-in buzzer
- volume at least 60 dB at a distance of 3.3 ft, volume at least 50 dB at a distance of 3.3 ft
- Additional features – Contactless access (coming soon)
- DESFire® EV1, EV2, ISO14443-А (13.56 MHz)
- Additional features – Control
- codes, Tag key fobs (coming soon), Pass cards (coming soon)
- Additional features – Duress codes
- up to 200 personal codes
- Additional features – LED indication
- red, yellow, green
Additional information (1)
- Additional information – Warranty
- 24 months
Anti-sabotage protection (1)
- Anti-sabotage protection – Lost connection detection
- after 36 s
Autonomous operation (1)
- Autonomous operation – On internal battery
- up to 24 hours, up to 72 hours
Benachrichtigungen (2)
- Benachrichtigungen – Ereignistypen
- Alarms, Video alerts, Faults (for fire alarm devices), Malfunctions (for other Ajax devices), Security state change, System events, Non-security alerts, Automation devices, Smart lock events, Doorbell ringing
- Benachrichtigungen – Unterstützte Benachrichtigungsarten
- Push notifications, SMS, Calls
Capacity (7)
- Capacity – Devices
- up to 10 intrusion sirens;, up to 50 keypads with a built-in buzzer;, up to 5 EN54 Fire ReX Jeweller range extenders., up to 200
- Capacity – Fire zones
- up to 40
- Kapazität – Automatisierungsszenarien
- By alarm., By schedule., By arming/disarming., By temperature, humidity, CO2 concentration., By pressing Button., By touching LightSwitch., up to 64
- Kapazität – Benutzer
- Any number of admin users within the CIE limit., PRO accounts for installers., PRO accounts for installation and monitoring companies., Access management for users., up to 200
- Kapazität – Ereignisprotokoll
- up to 6,000 events, up to 500 events
- Kapazität – Räume
- up to 80
- Kapazität – Sicherheitsgruppen
- bis zu 25
Communication (6)
- Communication – Frequency bands
- 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz
- Communication – Jeweller communication technology
- Two-way communication., Advanced sabotage protection., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps.
- Communication – Maximum effective radiated power (ERP)
- up to 20 mW
- Communication – Radio communication range
- bis zu 1800 m
- Communication – Radio signal modulation
- GFSK
- Communication – Wings communication technology
- Two-way communication., Advanced sabotage protection., Block encryption featuring a dynamic key., Data packages reload in case of transmission errors., Photo delivery check.
Communication channels (6)
- Communication channels – Automatic switching between communication channels
- Instant switching between Ethernet, Wi-Fi, and SIM., Instant switching between 4G (LTE) and 2G networks of one SIM., Switching between SIMs takes up to 4 minutes.
- Communication channels – Cellular frequencies
- 2G, 4G (LTE)
- Kommunikationskanäle – Ethernet
- 1 8P8C-Stecker
- Kommunikationskanäle – Mobilfunk
- 2 Steckplätze für Micro-SIM
- Kommunikationskanäle – Priorisierung von Kommunikationskanälen
- Ethernet, WLAN, Mobilfunkverbindung
- Kommunikationskanäle – WLAN
- Modul 802.11 b/g/n

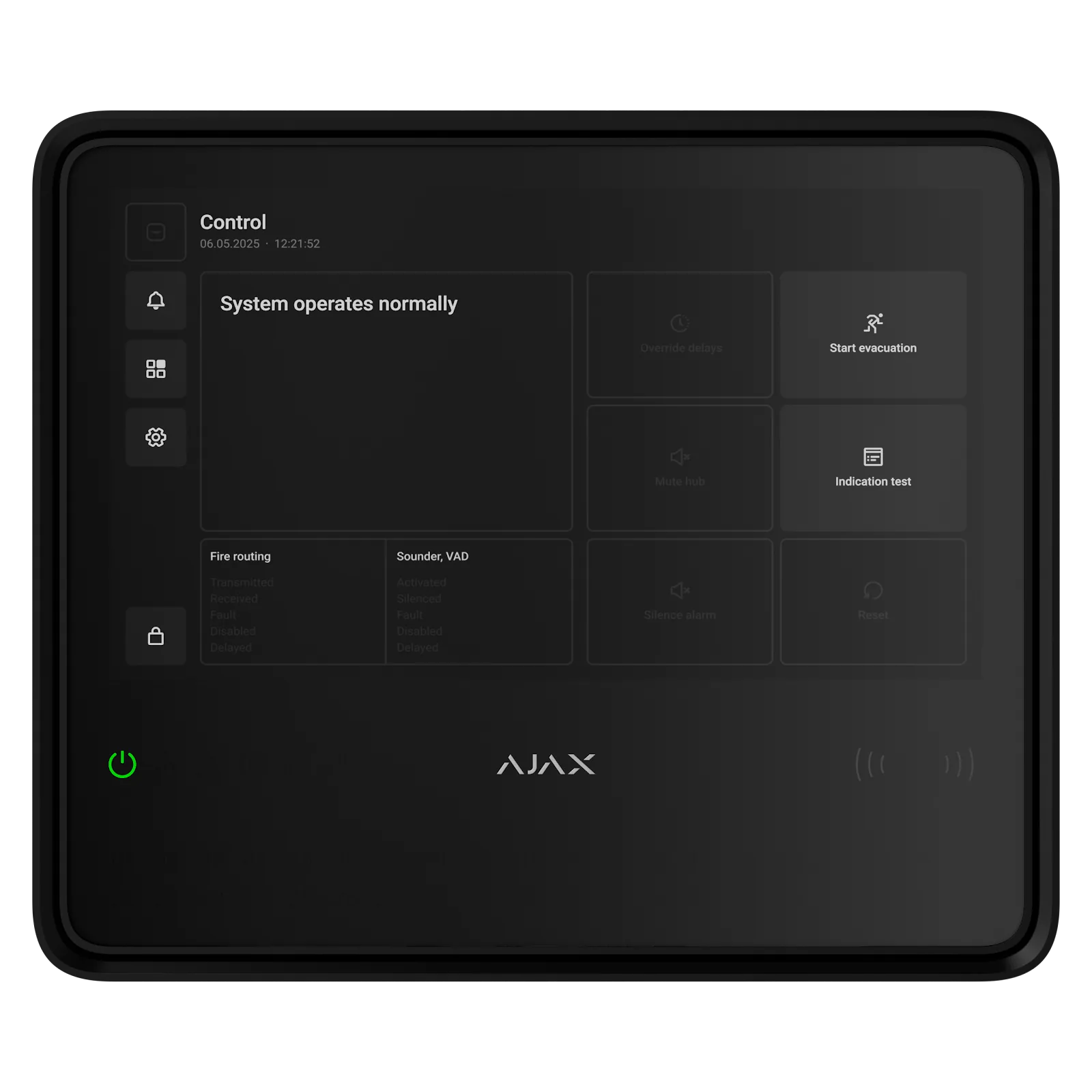

Display (4)
- Display – Diagonal
- 10.1″
- Display – Matrix type
- IPS
- Display – Resolution
- 1024 × 600 px
- Display – Sensor
- capacitive
Enclosure (6)
- Enclosure – Dimensions
- 10.35" × 8.78" × 2.11"
- Enclosure – Flammability rating
- UL 94 V-0
- Enclosure – Operating humidity
- up to 75% non-condensing
- Enclosure – Operating temperature range
- from 14 °F to 104 °F
- Enclosure – Protection class
- IP20
- Enclosure – Weight
- 3.36 lbs
Fire alarm system management (2)
- Fire alarm system management – Fire alarm control
- start evacuation, reset, mute buzzer, silence / resound sounders, override delays (coming soon), indication test
- Fire alarm system management – Indication of fire alarms and faults
- display, LED indicators, sound
Monitoring (2)
- Überwachung – Ereignistypen
- Systemalarme und -ereignisse, Panikknopf-Koordinaten, Fotoverifizierung
- Überwachung – Unterstützte Protokolle
- SIA (DC-09), SurGard (Contact ID)
Outputs (5)
- Outputs – Energy consumption
- up to 60 W
- Outputs – External power supply
- 10–30 V⎓
- Outputs – Maximum inductive/capacitive load
- up to 2 A at 30 V⎓
- Outputs – Maximum resistive load
- up to 2 A at 30 V⎓
- Outputs – Operating mode
- bistable
Photo verification (4)
- Fotoverifizierung – Anzahl der Fotos in einer Serie
- von 1 bis 5 Bilder
- Fotoverifizierung – Arten der Fotoverifizierung
- Photo by alarm, Photo by scenario, Photo on demand, Photo by schedule, Photo by arming/disarming
- Photo verification – Photo delivery time
- bis zu 9 s
- Photo verification – Photo resolution
- up to 960 × 720 pixels
Power supply (2)
- Power supply – External
- 110–240 V, 50/60 Hz
- Power supply – Internal
- 7.4 V⎓, 5 Ah/10 Ah
Sabotage protection (1)
- Sabotage protection – Protection against spoofing
- device authentication
