Ajax GlandBox black
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Fits
The EN54 Fire Hub Jeweller is a wireless fire alarm control panel that serves as control and indicating equipment (CIE) and also supports intrusion protection devices. It handles up to 40 fire zones, up to 80 rooms and up to 25 security groups, with an event log holding up to 6,000 events. Connected devices include up to 10 intrusion sirens, up to 50 keypads with a built-in buzzer and up to 5 EN54 Fire ReX Jeweller range extenders. Jeweller and Wings each provide a radio range of up to 5,900 ft with GFSK modulation, up to 20 mW ERP and block encryption using a dynamic key. External connectivity comprises one 8P8C Ethernet socket, two micro-SIM slots for 2G and 4G (LTE) and an 802.11 b/g/n Wi-Fi module, with automatic switching in the priority order Ethernet, Wi-Fi, cellular. Automation scenarios can run by alarm, by schedule, by arming and disarming and by temperature, humidity or CO2 concentration, while notifications are sent as push messages, SMS or calls. Up to 40 fire zonesUp to 80 rooms and 25 security groupsEvent log of up to 6,000 eventsJeweller and Wings up to 5,900 ftEthernet, 802.11 b/g/n Wi-Fi, 2 micro-SIM slotsPush notifications, SMS and calls
Not in stock · delivery 2-3 days
The EN54 Fire Hub Jeweller is a wireless fire alarm control panel that serves as control and indicating equipment (CIE) and also supports intrusion protection devices. It handles up to 40 fire zones, up to 80 rooms and up to 25 security groups, with an event log holding up to 6,000 events. Connected devices include up to 10 intrusion sirens, up to 50 keypads with a built-in buzzer and up to 5 EN54 Fire ReX Jeweller range extenders. Jeweller and Wings each provide a radio range of up to 5,900 ft with GFSK modulation, up to 20 mW ERP and block encryption using a dynamic key. External connectivity comprises one 8P8C Ethernet socket, two micro-SIM slots for 2G and 4G (LTE) and an 802.11 b/g/n Wi-Fi module, with automatic switching in the priority order Ethernet, Wi-Fi, cellular. Automation scenarios can run by alarm, by schedule, by arming and disarming and by temperature, humidity or CO2 concentration, while notifications are sent as push messages, SMS or calls. Up to 40 fire zonesUp to 80 rooms and 25 security groupsEvent log of up to 6,000 eventsJeweller and Wings up to 5,900 ftEthernet, 802.11 b/g/n Wi-Fi, 2 micro-SIM slotsPush notifications, SMS and calls
Not in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 125718.314.BL
- EAN / GTIN
- 0810031991143
Description

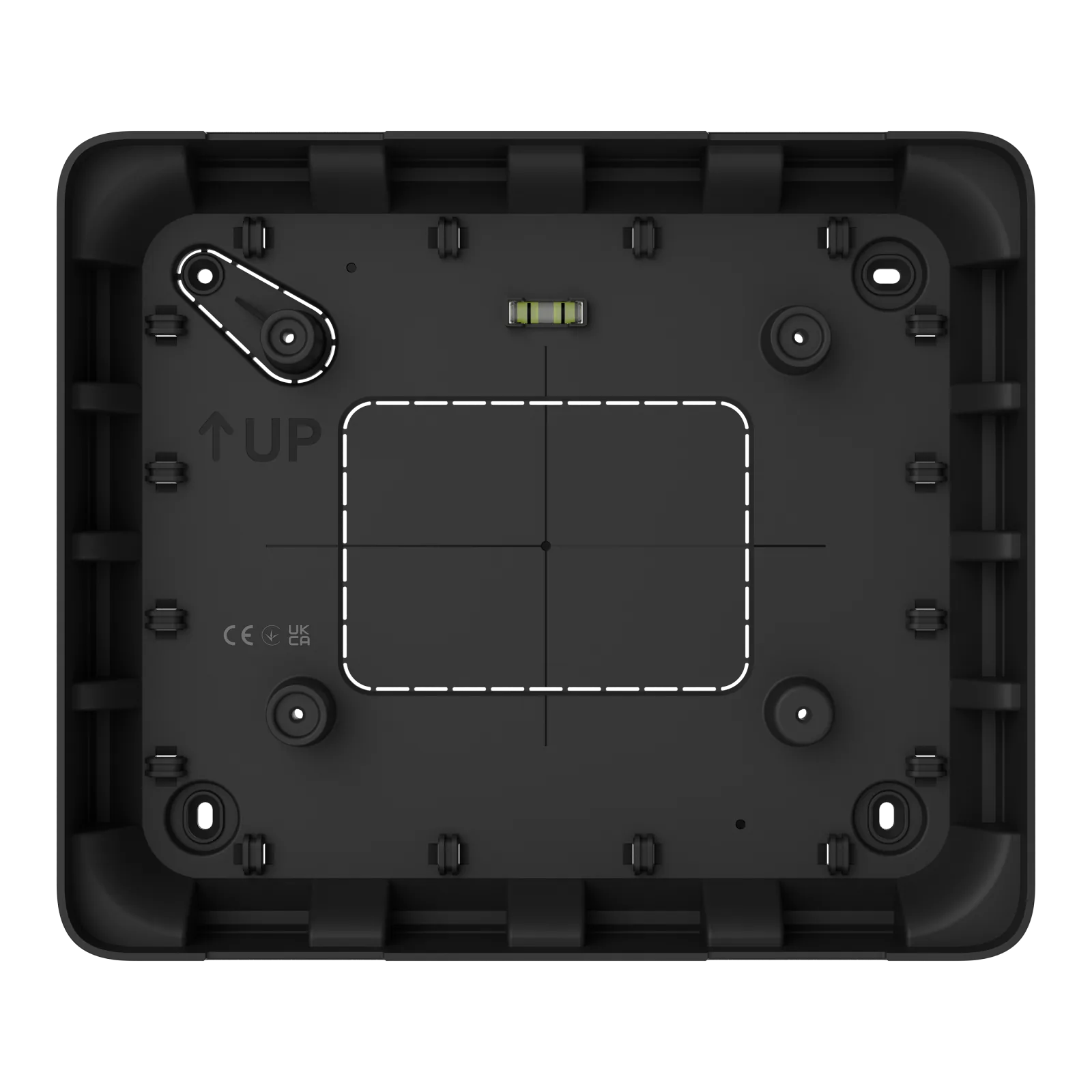

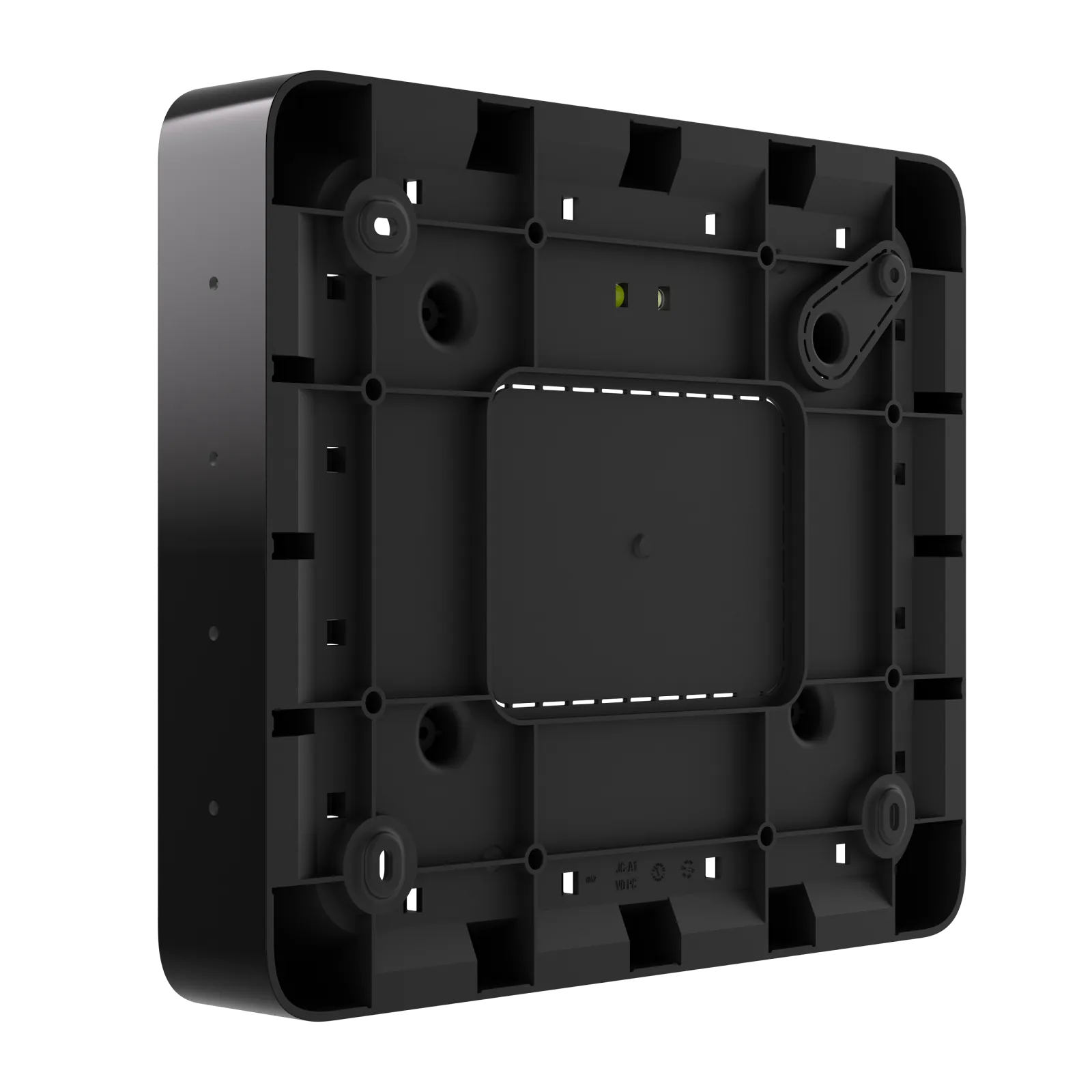

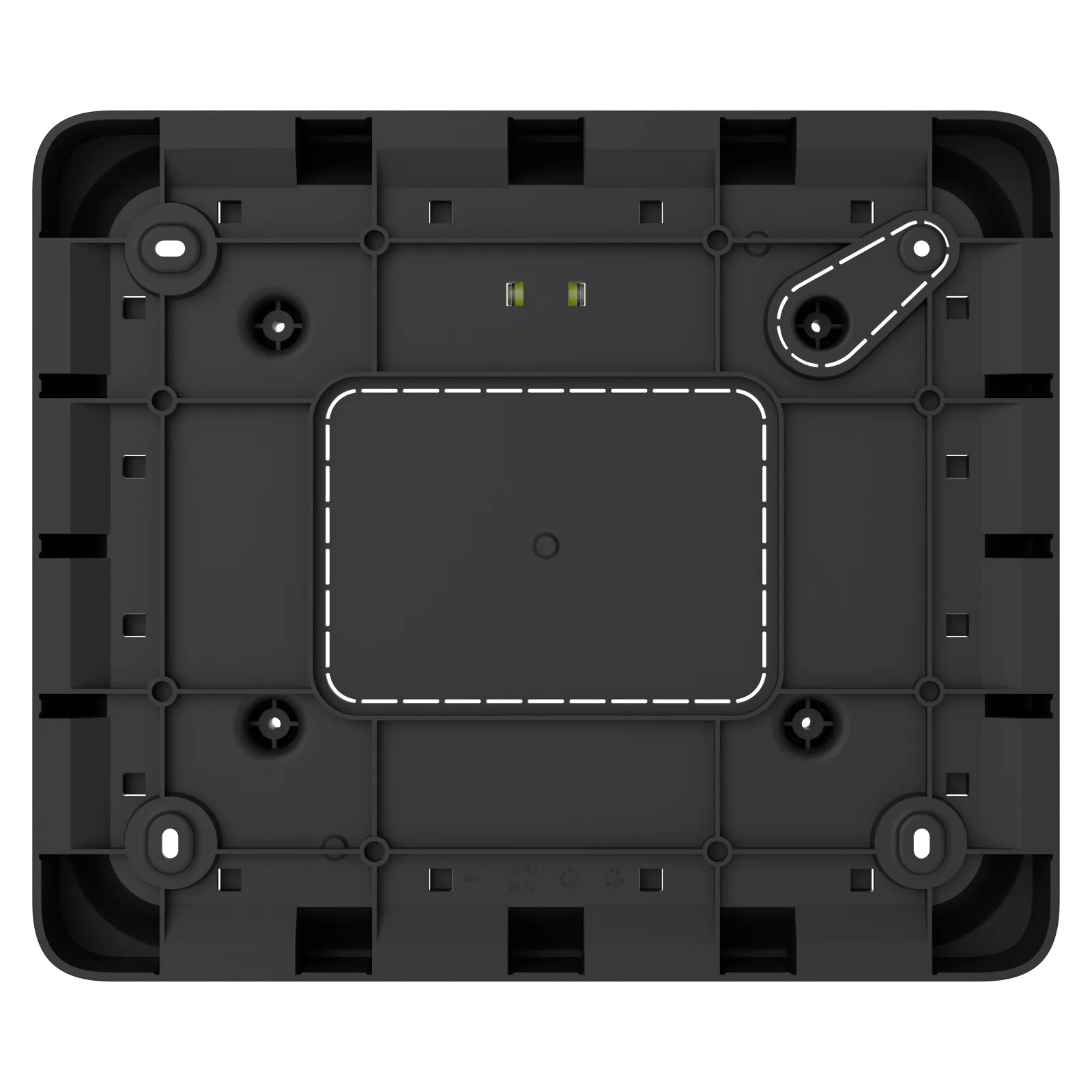

The GlandBox mounting box routes fire control panel wiring in from the side through cable glands in line with EN54 standards and is intended for use with the EN54 Fire Hub Jeweller. It offers 16 places for installing cable glands of up to 20 mm in diameter. A bubble level, a UP key and a CIE centre marking assist with alignment, while a tamper button provides sabotage protection. The box measures 10.35 × 8.78 × 1.58 in, weighs 11.82 oz and holds a UL 94 V-0 flammability rating. It operates from 14 °F to 104 °F at up to 75% non-condensing humidity, and the warranty period is 24 months.
- 16 places for cable glands
- Cable gland diameter up to 20 mm
- Bubble level, UP key, CIE centre marking
- Tamper button
- Dimensions 10.35 × 8.78 × 1.58 in, 11.82 oz
- UL 94 V-0 flammability rating
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional information (1)
- Additional information – Warranty
- 24 months
Key features (4)
- Key features – Aids for easy installation
- Bubble level, UP key, CIE center marking
- Key features – Cable gland diameter
- up to 20 mm
- Key features – Places to install cable glands
- 16
- Key features – Sabotage protection
- tamper button
Product (5)
- Product – Dimensions
- 10.35" × 8.78" × 1.58"
- Product – Flammability rating
- UL 94 V-0
- Product – Operating humidity
- up to 75% non-condensing
- Product – Operating temperature range
- from 14 °F to 104 °F
- Product – Weight
- 11.82 oz
