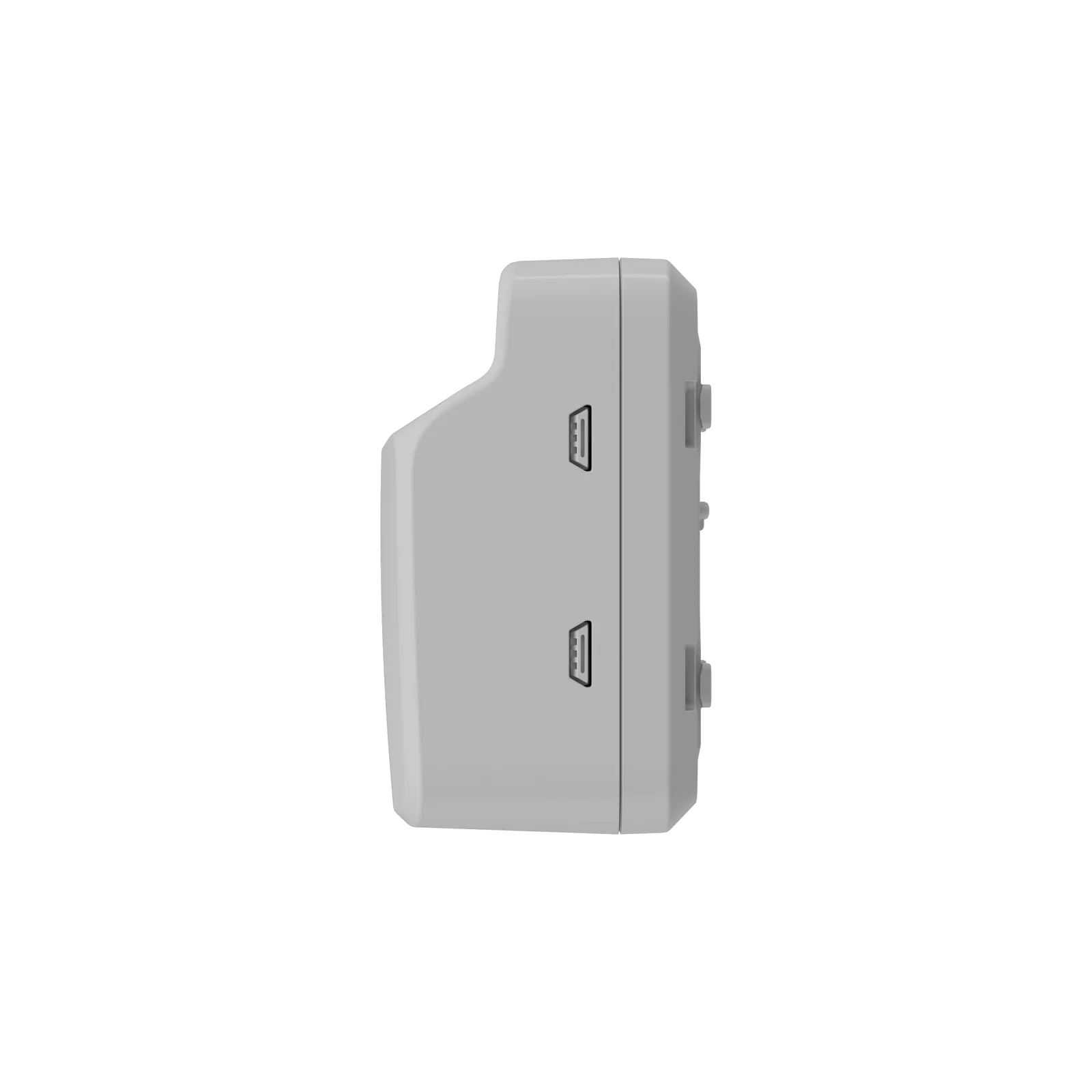

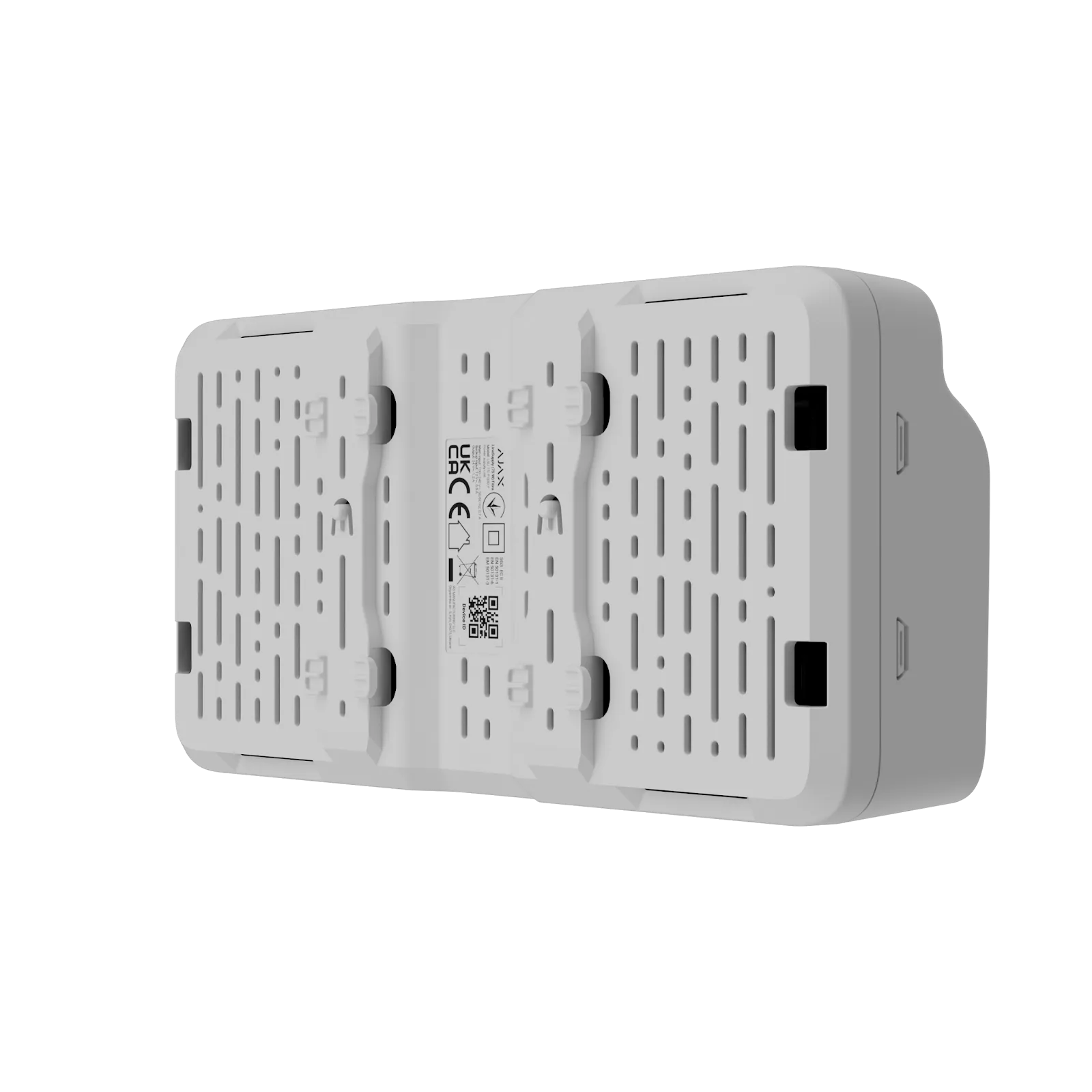

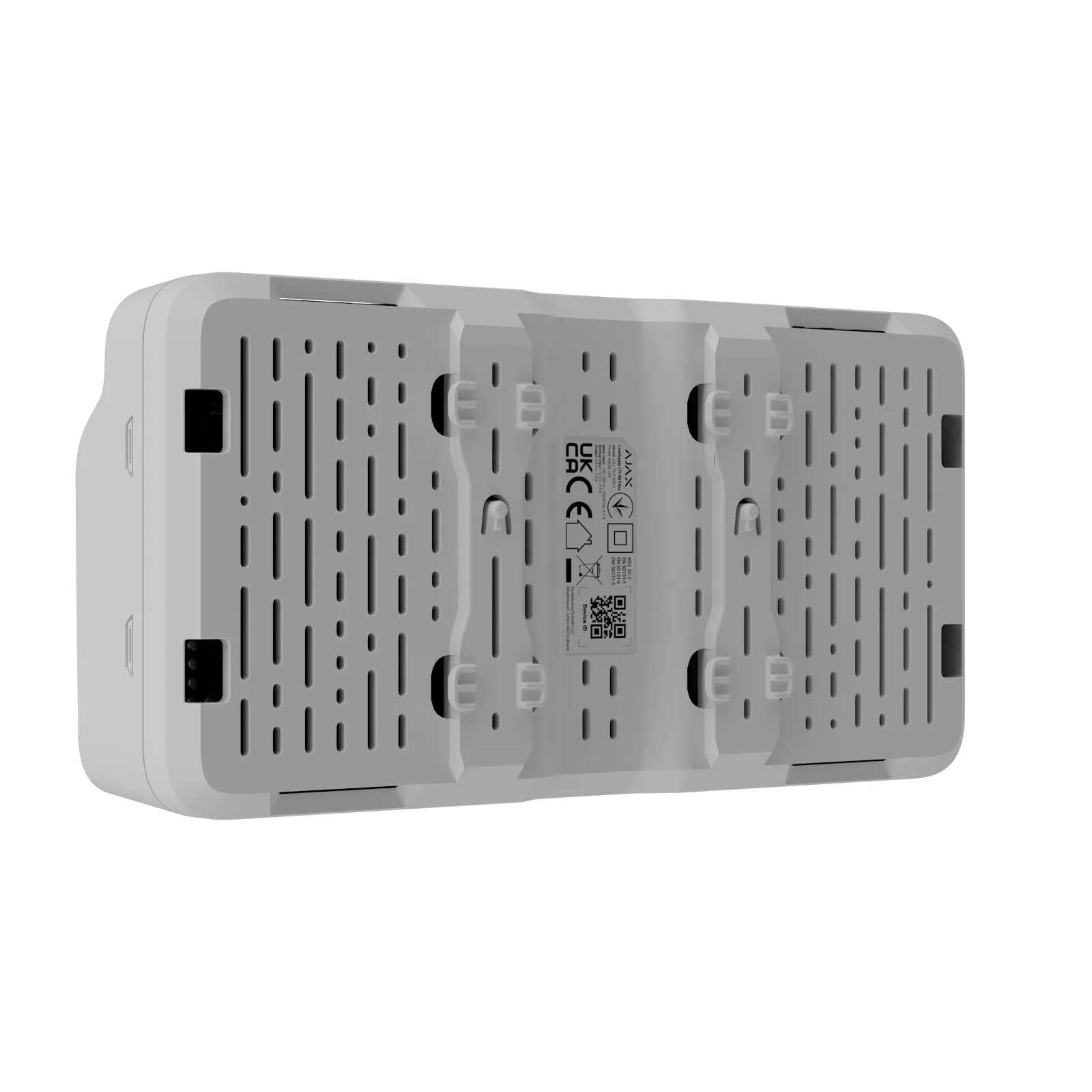

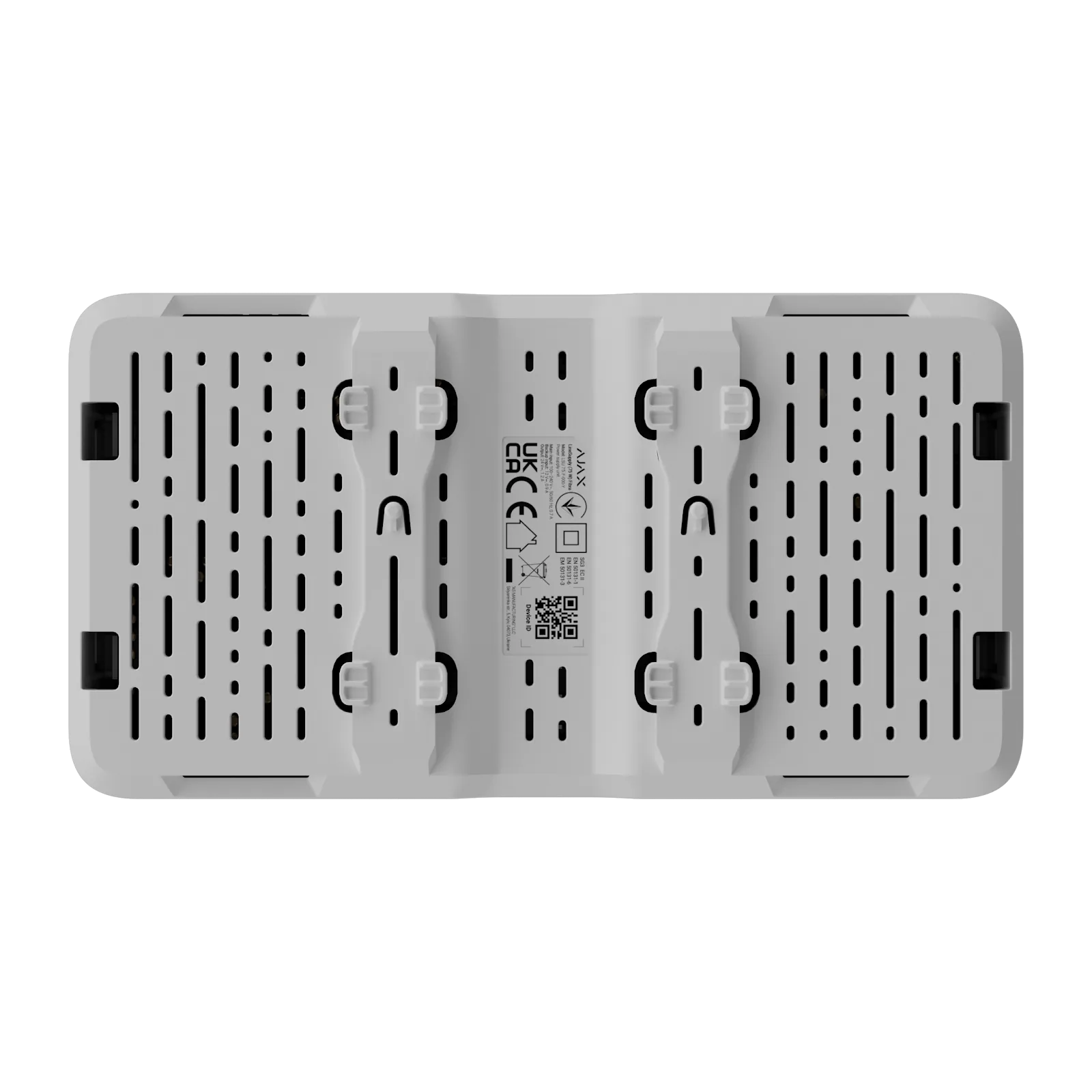

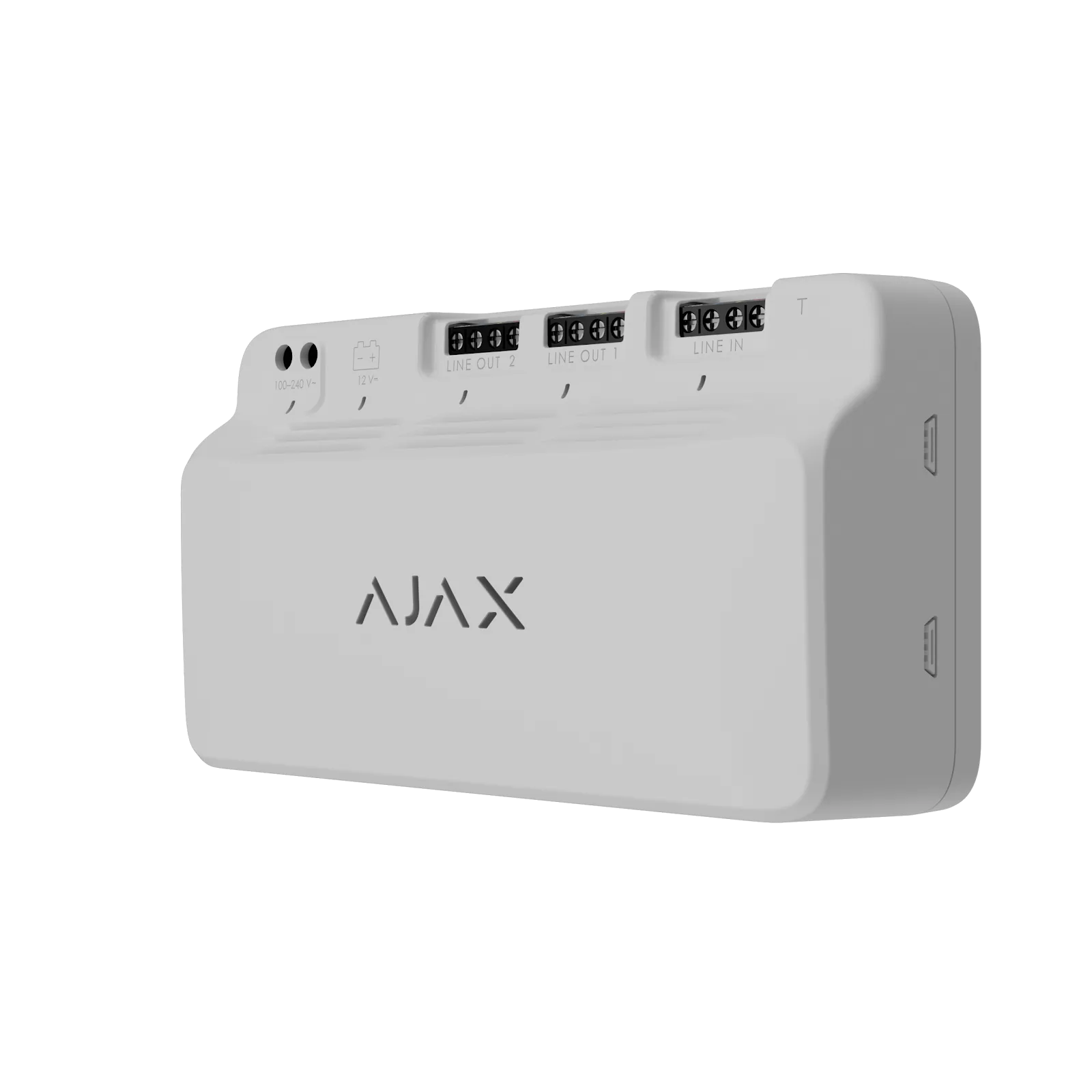

Ajax Superior LineSupply (75 W) Fibra white
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 117733.181.WH1
- EAN / GTIN
- 4823114072949
Description
The module supplies additional power to security devices on the Fibra line and is wired in with a 4-core cable at any point of that line. Up to 6,500 ft are permitted between the module and the hub as well as between the module and the last Fibra device on each line, and one input line is provided. Mains supply is 100–240 V~, 50/60 Hz, with a device nominal voltage of 12 V⎓ and type A classification. Backup power comes from a 12 V⎓ battery of 7 to 17 Ah capacity, recharged to 80% in up to 24 hours; low battery voltage is 11.3 V⎓, recovery voltage 14.3 V⎓, end-of-life voltage 10.5 V⎓, and the minimum energy level in the charged state is 100%. Maximum peak-to-peak ripple battery voltage is 5%, compliant with EN 50131-6. Power output is 30 W per output line and 15 W for charging the backup battery, complemented by overvoltage protection on the Fibra signal lines, device authentication and communication loss detection after 36 s.
- Mains input 100–240 V~, 50/60 Hz
- Device nominal voltage 12 V⎓, type A
- Backup battery 12 V⎓ with 7 to 17 Ah
- Power output 30 W per output line
- Overvoltage protection on the Fibra signal lines
- Ripple 5%, compliant with EN 50131-6
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional information (1)
- Additional information – Warranty
- 24 months
Communication (4)
- Communication – Connection
- to any point of the Fibra line
- Communication – Fibra communication technology
- Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote configuration in the Ajax apps.
- Communication – Line connection
- 4-core cable
- Communication – Wired connection range
- between the module and the hub — up to 6,500 ft;, between the module and the last Fibra device on each line — up to 6,500 ft.
Enclosure (6)
- Enclosure – Dimensions
- 6.3" × 3.35" × 2.09"
- Enclosure – Electric shock protection
- Class III
- Enclosure – Operating humidity
- up to 75%
- Enclosure – Operating temperature range
- from 14 °F to 104 °F
- Enclosure – Weight of the black device
- 11.18 oz
- Enclosure – Weight of the white device
- 11.36 oz
Line connection (3)
- Line connection – Cable length
- up to 6,500 ft
- Line connection – Number of input lines
- 1
- Line connection – Number of output lines
- 2
Power supply (12)
- Power supply – Backup
- 12 V⎓ battery with a capacity from 7 to 17 Ah
- Power supply – Device’s nominal voltage
- 12 V⎓
- Power supply – End-of-life battery voltage
- 10.5 V⎓
- Power supply – Low battery recovery voltage
- 14.3 V⎓
- Power supply – Low battery voltage
- 11.3 V⎓
- Power supply – Main
- 100–240 V~, 50/60 Hz
- Power supply – Maximum current consumption at nominal voltage
- 6 A
- Power supply – Maximum output peak-to-peak ripple battery voltage
- maximum peak-to-peak ripple battery voltage: 5% (compliant with EN 50131-6), maximum RMS ripple battery voltage: 180 mV (compliant with VdS 2115)
- Power supply – Maximum time to recharge a battery of maximum capacity to 80%
- up to 24 hours
- Power supply – Minimum energy level for a backup battery in the charged state
- 100%
- Power supply – Power output
- per output line — 30 W;, to charge the backup battery — 15 W.
- Power supply – Type
- type A
Sabotage protection (3)
- Sabotage protection – Communication loss detection
- after 36 s
- Sabotage protection – Protection against overvoltage
- on the Fibra signal lines
- Sabotage protection – Protection against spoofing
- device authentication
