SB4 - Mini Professionell
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 weeks
Product data
- Manufacturer
- Securitbox
- Article number
- SB4-Mini
Description

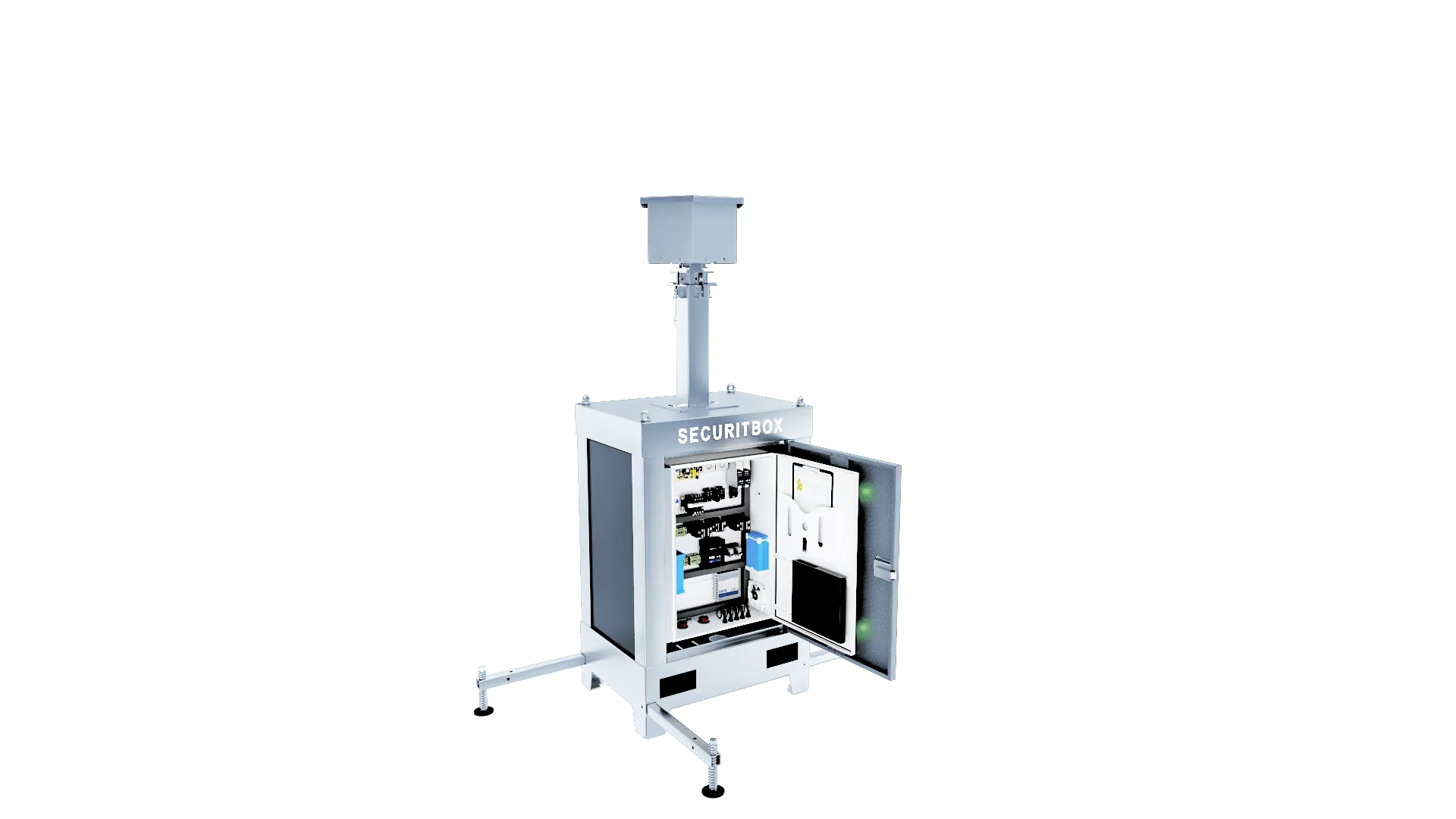

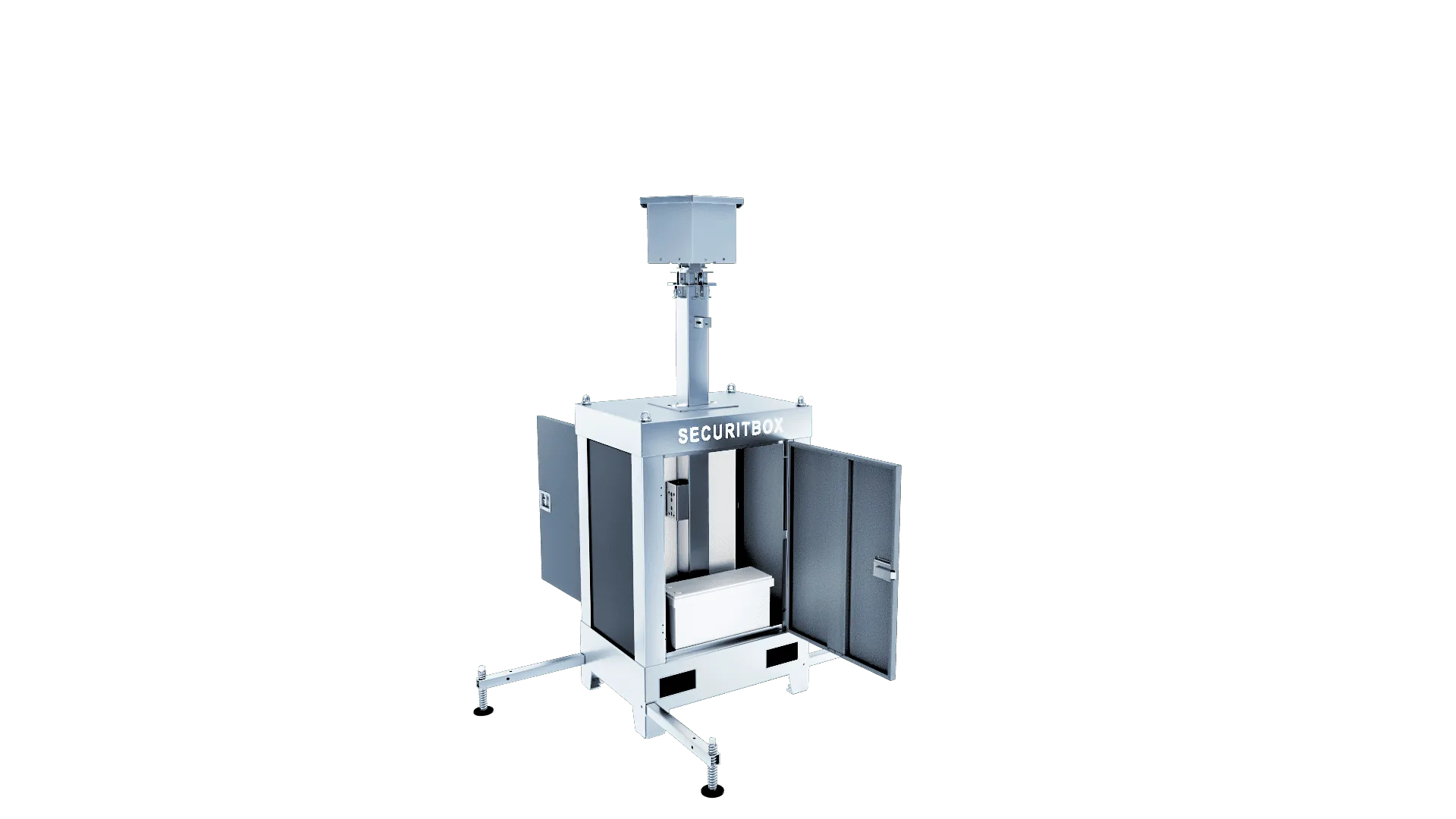

The SB4-Mini is the compact version of the mobile video tower: 60 × 80 × 110 cm footprint, 220 cm high with the mast lowered, around 200 kg empty. The telescopic mast reaches 4.20 metres and can go to 6 metres; it carries up to 65 kg.
The steel structure is fully hot-dip galvanised, with doors and walls additionally coated electrostatically. Four fork pockets and lifting eyes on every side let the tower be moved by forklift, crane or trailer; four extending stabilisers secure the stand. Two units can be stacked.
The mast is raised by a CE-approved hand winch with 900 kg of pull, stops automatically at the top and is held by four steel cables. A cable conduit carries the wiring up under cover. This makes the SB4-Mini suitable for building sites, car parks and events where the larger towers do not fit.
- Footprint 60 × 80 × 110 cm, 220 cm high, around 200 kg
- Telescopic mast 4.20 m, up to 6 m possible, 65 kg capacity
- Steel structure 100 % hot-dip galvanised
- Four fork pockets and lifting eyes, four stabilisers
- CE-approved hand winch, 900 kg pull, automatic stop
- Mast secured by four steel cables, cable conduit against vandalism
Made by
Securitbox from Aachen builds mobile security towers for construction sites, yards and events: the SB4 and SB4 Mini models with solar or mains power, cameras, lighting and alarming – usable without fixed infrastructure. The catalogue holds the towers and their equipment: LED floodlights, cabinet heaters, advertising films and sets. AI4Vision is a Securitbox partner; configuration and terms are settled with trade partners per project.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Dimensions & weight (5)
- Dimensions & weight – Maximum height of the telescopic mast
- 4.20 metres, and up to 6 metres possible.
- Mast dimension (extended)
- 100 × 80 × 60 × 40 cm
- Maximum mast load
- 65 kg
- Overall dimensions (L × W × H)
- 60 × 80 × 110 cm (220 cm with mast)
- Unladen weight
- ca. 200 kg
Material & finishes (2)
- Doors and walls
- verzinkt & elektrostatisch lackiert
- Teleskopmast
- hot-dip galvanised, durable and weather-resistant
