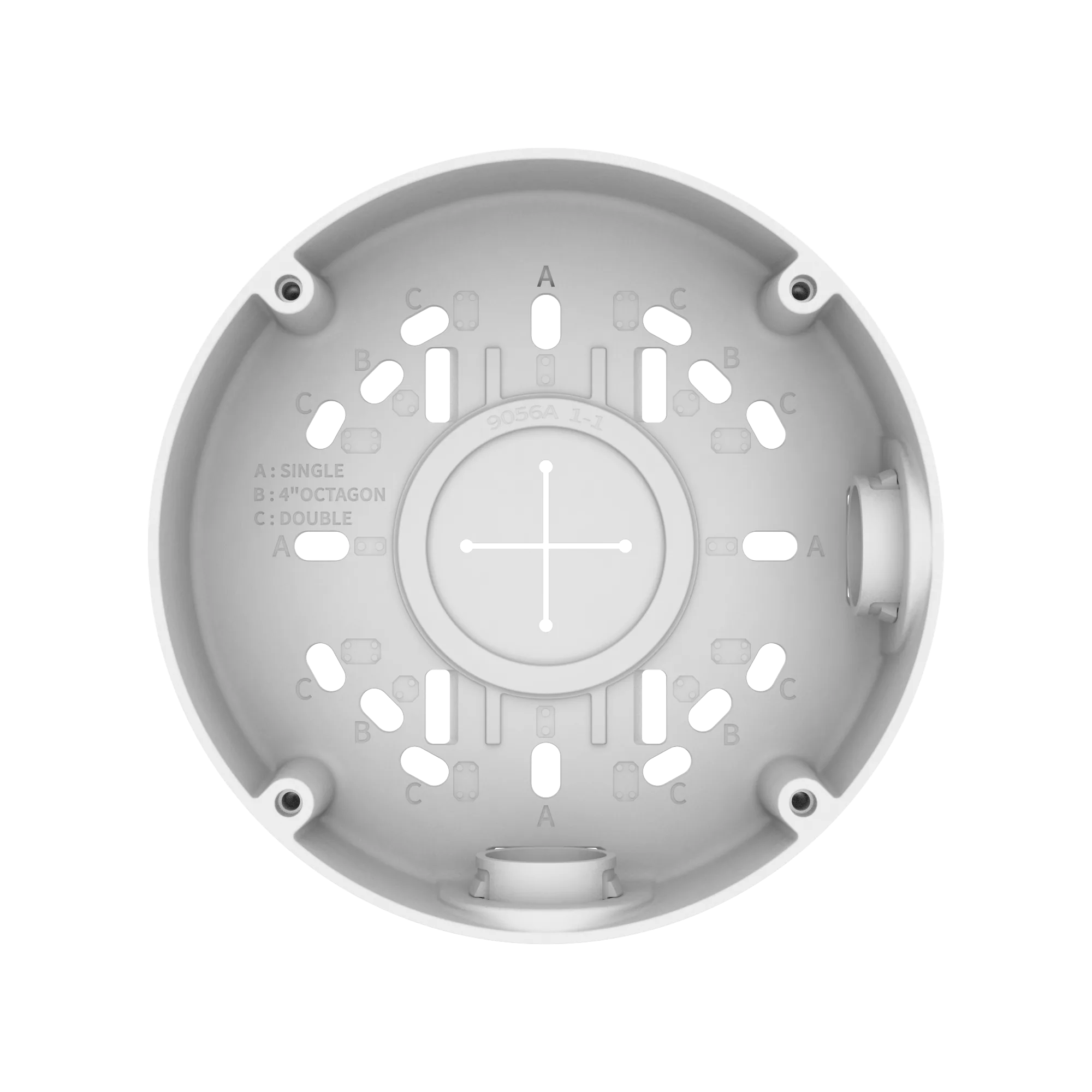

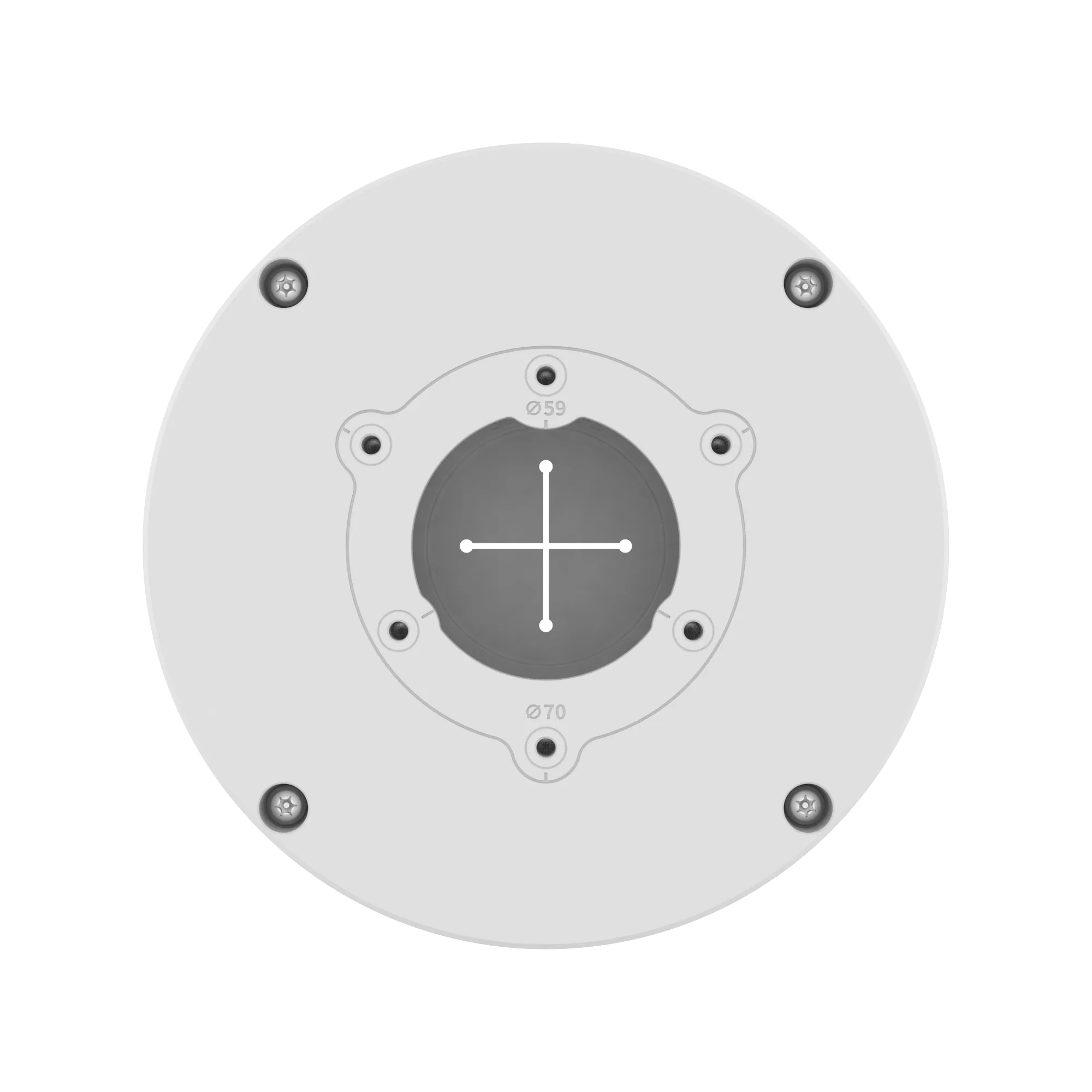

Back Box

The QNO-C8083R is a 5MP infrared bullet camera using a 1/2.8" CMOS sensor with a maximum resolution of 2592x1944. Its motorised varifocal lens covers 3.2 to 10.2 mm (3.2x) at F1.6 wide and F3.1 tele, uses a DC auto iris with IR correction and simple focus, and spans 95 to 29 degrees horizontally, 69 to 21 degrees vertically and 126 to 36 degrees diagonally from 1.2 m. H.265/H.264 encoding runs at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps with a maximum of 5fps at 5MP, and up to five streaming profiles can be delivered at once, assisted by the AI-engine functions WiseStream III and WiseNR II. Sensitivity is 0.07 lux in colour and 0.007 lux in black and white at 1/30 sec and 30 IRE, infrared reach is 30 m (98.42ft), and 120 dB WDR works alongside automatic ICR switching. AI-engine (NPU) analytics provide object detection for people and vehicles (car, truck, bus, bicycle, motorcycle), motion detection, virtual line and virtual area rules, while a Micro SD/SDHC/SDXC slot holds up to 256 GB. 1/2.8" CMOS, max. 2592x19443.2 to 10.2 mm motorised varifocal (3.2x)0.07 lux colour / 0.007 lux BW30 m (98.42ft) IR viewable length120 dB WDR, WiseNR II, WiseStream IIIMicro SD/SDHC/SDXC up to 256 GB

The QNO-C9083R is an infrared bullet camera with a 1/2.8" CMOS sensor delivering a maximum of 8MP at 3840x2160. Streaming is available in H.265, H.264 and MJPEG, running at 30fps/25fps (60Hz/50Hz) in H.265/H.264 and 30fps in MJPEG with a maximum of 5fps at 8MP, spread across up to five profiles. The motorised varifocal lens works from 3.2 to 10.2 mm (3.2x) at F1.6 wide and F3.1 tele, combines a DC auto iris with IR correction and simple focus, and covers 104 to 31 degrees horizontally, 55 to 17 degrees vertically and 124 to 35 degrees diagonally from 1.2 m. At 1/30 sec and 30 IRE the camera records 0.06 lux in colour and 0.006 lux in black and white, day/night switching is automatic via ICR, and WDR reaches 120 dB. Local recording is supported by a Micro SD/SDHC/SDXC slot for cards up to 256 GB. 1/2.8" CMOS, max. 3840x2160 (8MP)3.2 to 10.2 mm motorised varifocal (3.2x)0.06 lux colour / 0.006 lux BW120 dB WDR, ICR day/night switchingH.265, H.264, MJPEG, up to 5 profilesMicro SD/SDHC/SDXC up to 256 GB

The XNV-A6016R is a compact outdoor IR network dome camera whose 1/2.8" CMOS sensor delivers up to 1920 x 1080 pixels (2 MP). Its 3.0 mm fixed-iris lens at F1.6 is focused manually and covers 108° horizontally, 59° vertically and 127° diagonally from an object distance of 0.4 m. H.265 and H.264 run at up to 60 fps or 50 fps and MJPEG at 30 fps, with minimum illumination of 0.027 lux in colour and 0.0027 lux in black and white. Image processing includes automatic ICR day and night switching together with BLC, HLC, WDR and SSDR. A USB Type-C port serves preview and installation only and requires a WiFi dongle, while adjustment spans 0°~351° pan, 0°~64° tilt and ±90° rotation. 2 MP resolution (1920 x 1080)3.0 mm lens with fixed F1.6 iris108° horizontal field of viewUp to 60 fps in H.265/H.264Day and night (ICR), BLC, HLC, WDR, SSDR0.027 lux colour, 0.0027 lux black and white
