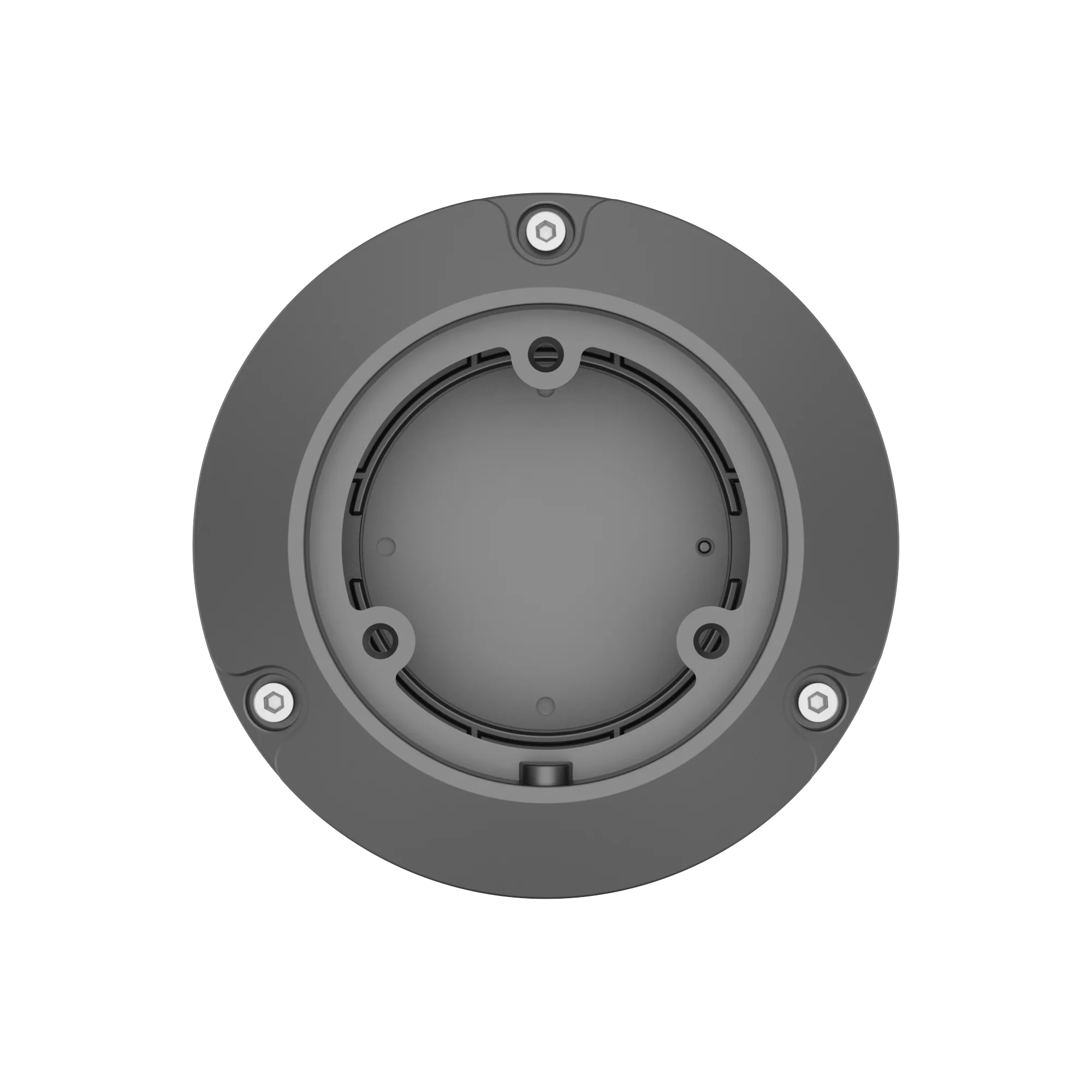

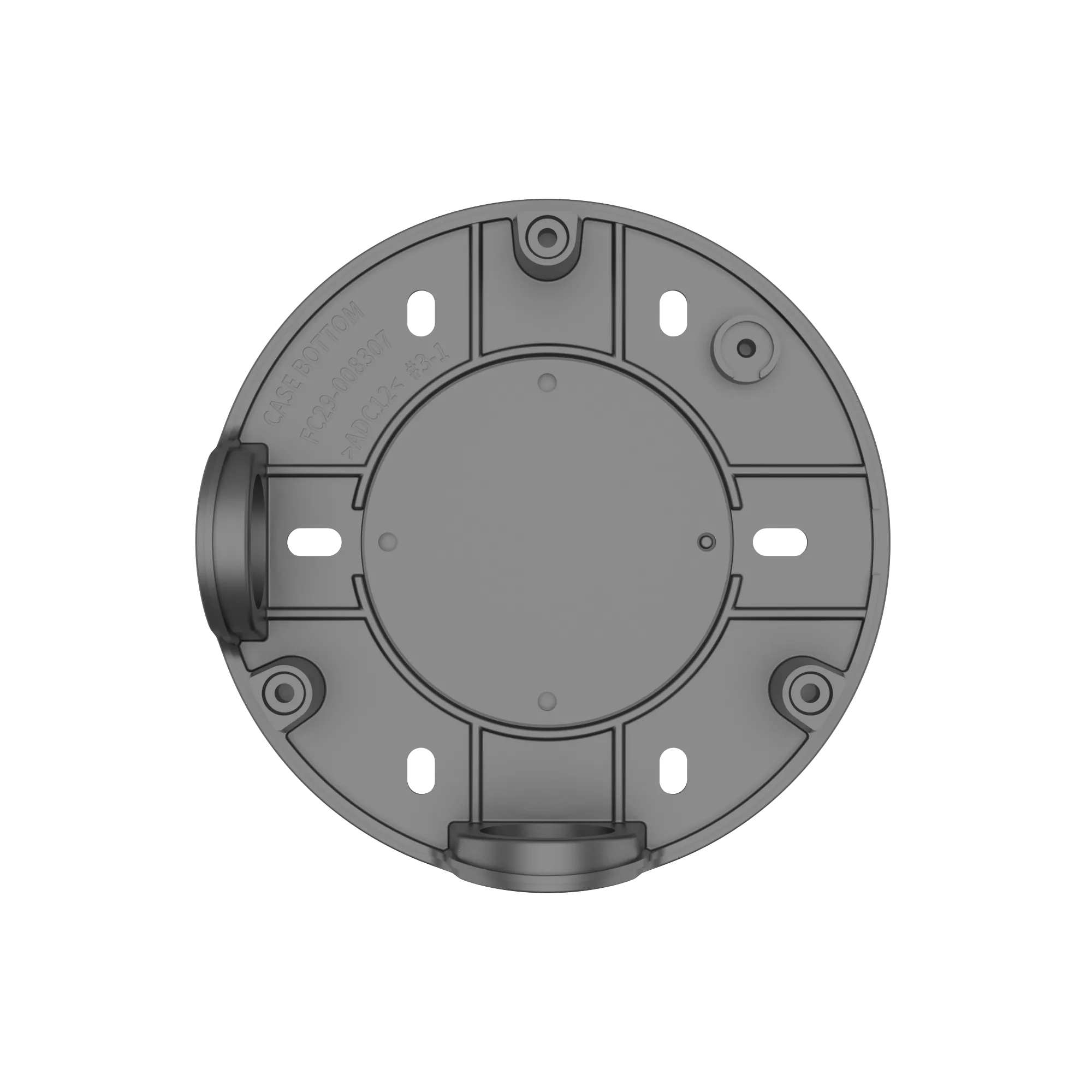

Bullet Back Box

The HCO-6070R is an analog HD bullet camera with infrared illumination and a 3.2 to 10mm varifocal lens at F1.6, covering 110° to 32° horizontally, 55° to 18° vertically and 128° to 37° diagonally. A 1/2.8-inch CMOS sensor produces 1920x1080 at 30fps (NTSC) or 25fps (PAL), and focus is set manually through an IR-corrected DC auto iris from a 0.5m object distance. The camera still works at 0.11 lux in colour and 0.011 lux in black and white, and with the IR LED switched on it goes down to 0 lux with a 30m viewable length. The housing is rated IP66 and IK10. BNC output can be set to AHD, TVI, CVI or CVBS and spans up to 500m over 5C2V coaxial cable. Picture quality is supported by an automatic ICR filter, BLC, HLC, 120dB WDR, SSNRⅣ, defog and four motion detection areas, with plug-and-play installation and dual power. 3.2 to 10mm varifocal lens at F1.61/2.8-inch CMOS sensor, 1920x108030m IR viewable length, 0 lux with IR LEDIP66 and IK10 rated housing120dB WDR, SSNRⅣ, defogAHD/TVI/CVI/CVBS BNC output up to 500m

As an analog HD bullet camera with IR LEDs, the HCO-6080R uses a motorised 3.2 to 10mm varifocal lens offering 3.1x optical zoom and simple focus. Its 1/2.8-inch CMOS sensor captures 1920x1080 at 30fps (NTSC) or 25fps (PAL), with a field of view from 110.2° to 32° horizontally, 55.4° to 18° vertically and 128.4° to 36.6° diagonally. Sensitivity is stated as 0.11 lux in colour and 0.011 lux in black and white, dropping to 0 lux with the IR illumination active and a 30m viewable length. The enclosure meets IP66 and IK10, minimum object distance is 0.5m and the DC auto iris is IR corrected. AHD, TVI, CVI and CVBS can be selected at the BNC output, which carries up to 500m over 5C2V coaxial cable. An automatic ICR filter, BLC, HLC, 120dB WDR, SSNRⅣ and defog process the image, and installation is plug and play with dual power. Motorised 3.2 to 10mm varifocal lens (3.1x)Simple focus with IR-corrected DC auto iris1/2.8-inch CMOS sensor, 1920x108030m IR viewable length, IP66 and IK10120dB WDR, SSNRⅣ, defogAHD/TVI/CVI/CVBS BNC output up to 500m

With 4MP resolution and a 1/3-inch CMOS sensor, the QNO-7022R is an IR bullet camera recording up to 2560 x 1440 pixels. Its 4 mm fixed focal length at F1.6 produces a field of view of 79° horizontally, 42° vertically and 92° diagonally. H.265 and H.264 reach up to 30fps/25fps (60Hz/50Hz) at all resolutions, MJPEG 15fps and a maximum of 2fps at 4MP, and several streams can be output at the same time. Colour capture works from 0.15 lux (F1.6, 1/30sec), black and white from 0.015 lux, and from 0 lux with the IR LED active. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR meet motion, tampering and defocus detection across four zones. Hallway view at 90° and 270°, LDC support and a 128 GB Micro SD/SDHC/SDXC slot are available. 4MP resolution (2560 x 1440)4 mm fixed focal lens, F1.6Field of view 79° H, 42° V, 92° D120 dB WDR, hallway view 90°/270°, LDCMicro SD/SDHC/SDXC slot, 128 GB

Rated IP66 and IK10, the QNO-7032R is an IR bullet camera with 4MP resolution on a 1/3-inch CMOS sensor and up to 2560 x 1440 pixels. Its 6 mm fixed focal length at F2.0 gives a narrow field of view of 49° horizontally, 28° vertically and 56° diagonally, with an IR length of 30 m. H.265 and H.264 supply up to 30fps/25fps (60Hz/50Hz) at all resolutions, MJPEG 15fps and no more than 2fps at 4MP, each with multiple streaming. Colour images begin at 0.15 lux (F2.0, 1/30sec), black and white at 0.015 lux, and 0 lux with the IR LED switched on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR complement motion, tampering and defocus detection across four zones, joined by hallway view at 90° and 270°, LDC support and a 128 GB Micro SD/SDHC/SDXC slot. 4MP resolution (2560 x 1440)6 mm fixed focal lens, F2.0Field of view 49° H, 28° V, 56° D30 m IR length, IP66 and IK10 rated120 dB WDR, hallway view 90°/270°, LDC

The QNO-7082R is an IR bullet network camera with 4MP resolution, a 1/3-inch CMOS sensor and up to 2560 x 1440 pixels. Its motorised varifocal lens from 3.2 to 10 mm at 3.1x zoom covers 99° to 30° horizontally, 53° to 17° vertically and 116° to 35° diagonally, with an aperture from F1.6 to F2.9. H.265, H.264 and MJPEG are supported, H.265 and H.264 reaching up to 30fps/25fps (60Hz/50Hz) and MJPEG 15fps or a maximum of 2fps at 4MP, and multiple streaming is available. Colour needs only 0.1 lux (F1.6, 1/30sec), black and white 0.01 lux and 0 lux with the IR LED on, while the IR viewable length is 30 m (98.42ft). ICR day/night switching, 120 dB WDR, BLC and SSDR work together with motion, tampering and defocus detection plus hallway view at 90° and 270° and LDC, and focusing uses simple focus with a DC auto iris. 4MP resolution (2560 x 1440), up to 30fpsMotorised varifocal lens, 3.2 to 10 mm (3.1x)30 m IR viewable length120 dB WDR, ICR day/nightHallway view 90°/270°, LDC support

The QNO-8010R is an IR bullet network camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 5 megapixels (2592 x 1944). Its fixed 2.8 mm lens at F2.0 covers 105° horizontally, 77° vertically and 136° diagonally. H.265 and H.264 operate at 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps, dropping to a maximum of 2fps at 5MP, with multiple streaming supported. Colour capture is possible from 0.15 lux, black and white from 0.015 lux and from 0 lux with the IR LED active. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR complement tampering, motion and defocus detection across four motion zones. A CVBS output assists installation and the Micro SD/SDHC/SDXC slot holds up to 128 GB. 5MP resolution (2592 x 1944)2.8 mm fixed lens, F2.0Field of view 105° H, 77° V, 136° D120 dB WDR, ICR day/nightMicro SD/SDHC/SDXC slot up to 128 GB

As an IR bullet network camera, the QNO-8020R resolves up to 5 megapixels (2592 x 1944) through its 1/2.8-inch CMOS sensor. The fixed 4 mm lens at F1.6 shows 80° horizontally, 59° vertically and 106° diagonally. H.265 and H.264 reach 30fps/25fps (60Hz/50Hz), MJPEG 15fps and no more than 2fps at 5MP, each with multiple streaming. Colour images are produced from 0.15 lux, black and white from 0.015 lux, and 0 lux once the IR LED is on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR work together with tampering, motion and defocus detection over four motion zones. A CVBS output is available for commissioning, and the Micro SD/SDHC/SDXC slot accepts up to 128 GB. 5MP resolution (2592 x 1944)4 mm fixed lens, F1.6Field of view 80° H, 59° V, 106° D120 dB WDR, ICR day/nightMicro SD/SDHC/SDXC slot up to 128 GB
