Flush mount
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SHP-1730FPW
- EAN / GTIN
- 8801089226143
- Weight
- 3.78 kg
- Dimensions (W×H×D)
- 360 × 330 × 318 mm
Description

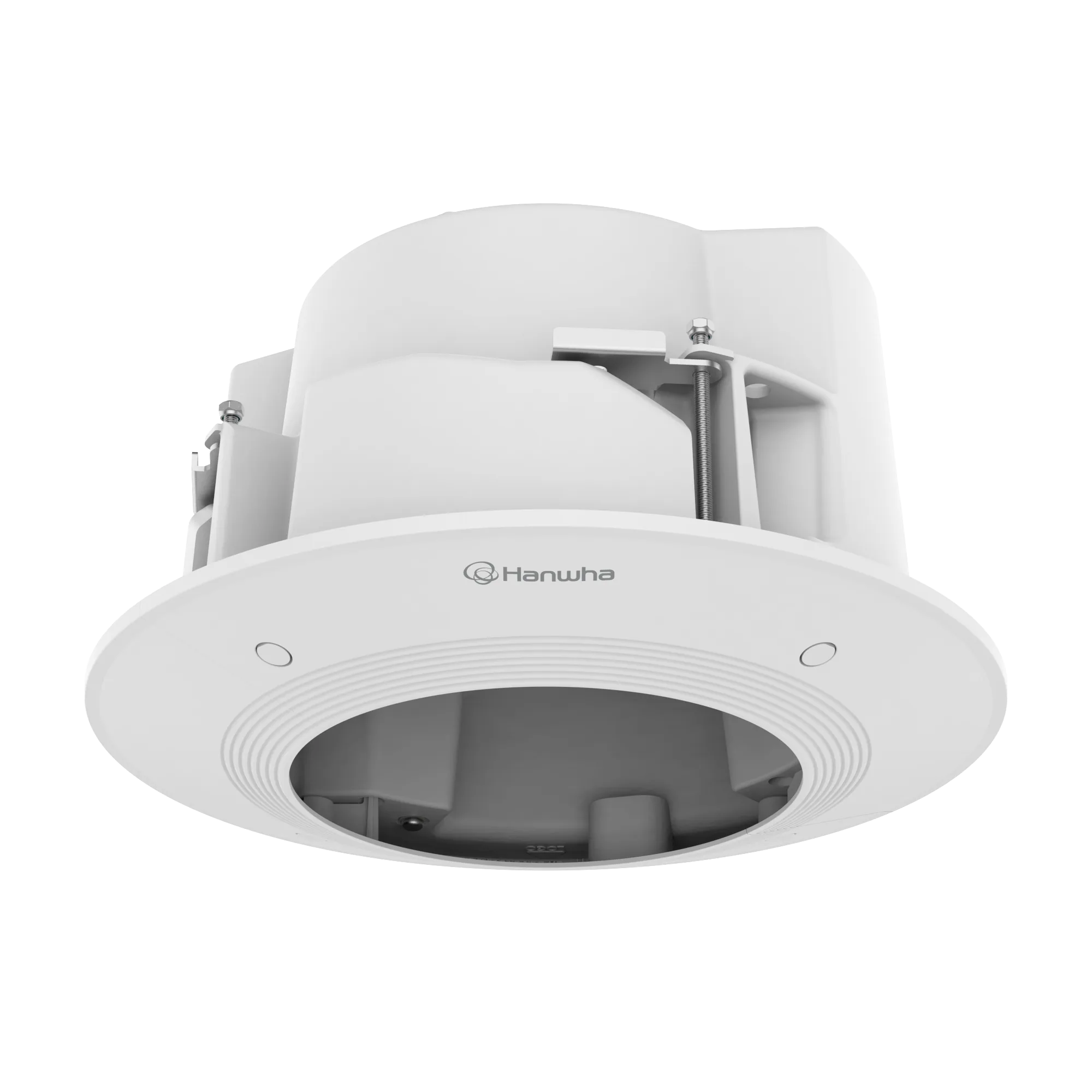

The SHP-1730FPW is an in-ceiling mount in white to RAL9003 with an aluminium enclosure and a polycarbonate (PC) top cover. It measures ø311x188mm (ø12.24x7.40") at 2450g (5.40lb) and requires a ceiling hole size of ø266mm (ø10.50"). Ceiling tiles of 10~70mm (0.4~2.8") thickness can be fitted, using TR20 and T30 mount screw sizes. Maximum load is 7kg (15.43lb), with 15kg (33.10lb) stated for the ceiling board. Conduit holes of 19.1mm (3/4") (M25) and 12.7mm (1/2") (M20) are present; supported products are XNP-C7310R and XNP-C9310R.
- Enclosure aluminium, top cover polycarbonate (PC)
- White RAL9003
- ø311x188mm (ø12.24x7.40") / 2450g (5.40lb)
- Ceiling hole size ø266mm (ø10.50")
- Max. load 7kg (15.43lb), ceiling board 15kg (33.10lb)
- For XNP-C7310R, XNP-C9310R
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Mechanical (9)
- Conduit hole
- 19.1mm(3/4")(M25), 12.7mm(1/2")(M20)
- Max. load
- 7kg(15.43lb) ※ Maximum load of ceiling board: 15kg(33.10lb)
- Mechanical – Color
- White
- Mechanical – Material
- PC(Polycarbonate), Aluminum
- Mechanical – RAL Code
- RAL9003
- Mount Screw size
- TR20, T30
- Product dimensions / weight
- ø311x188mm(ø12.24x7.40") / 2450g(5.40lb)
- Supported products
- XNP-C7310R, XNP-C9310R ※ For further compatible models, please visit our website or use Toolbox
- Tile thickness
- 10~70mm(0.4~2.8")
