64CH Video Decoder
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SPD-152
- EAN / GTIN
- 8801089218957
- Weight
- 0.82 kg
- Dimensions (W×H×D)
- 252 × 189 × 93 mm
Description

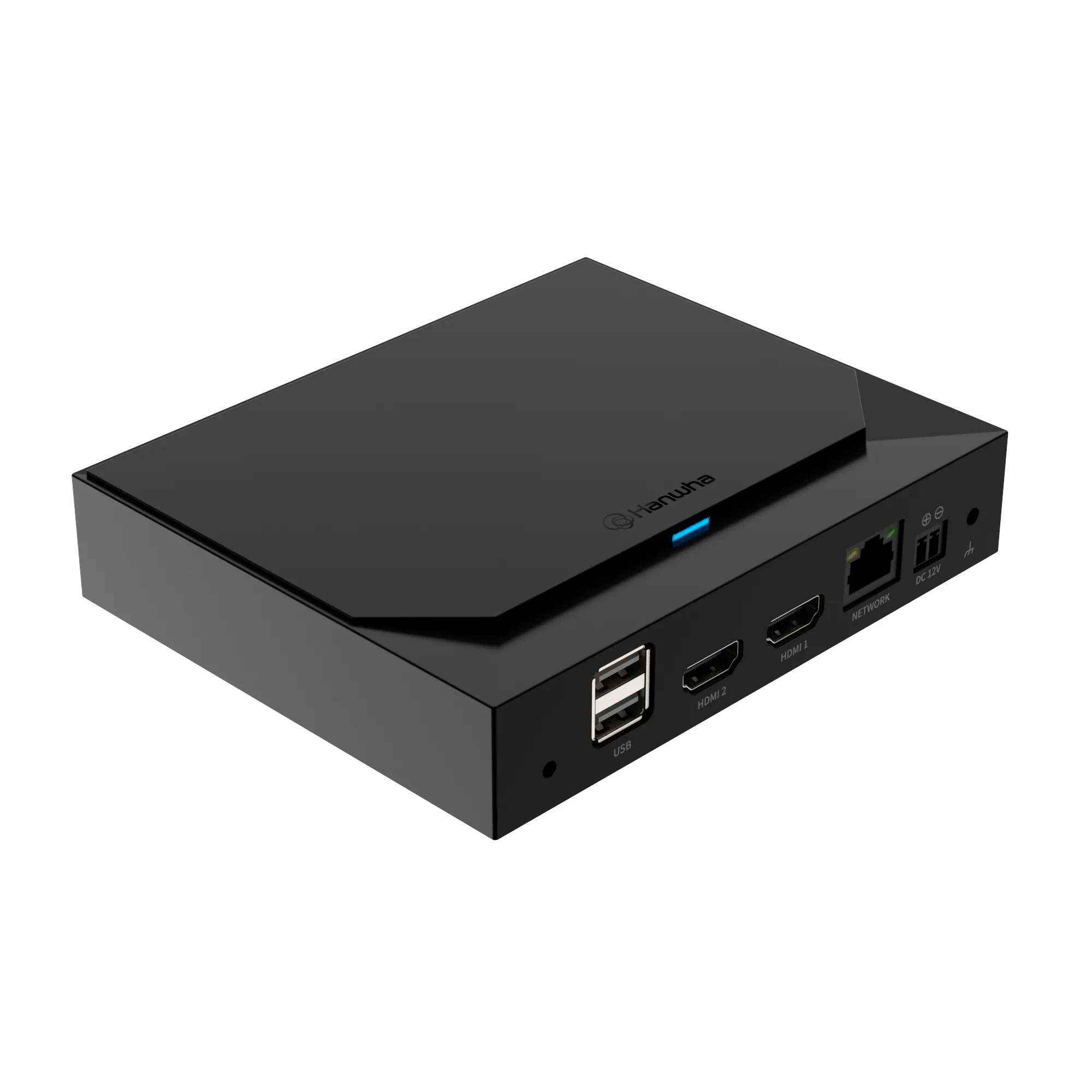

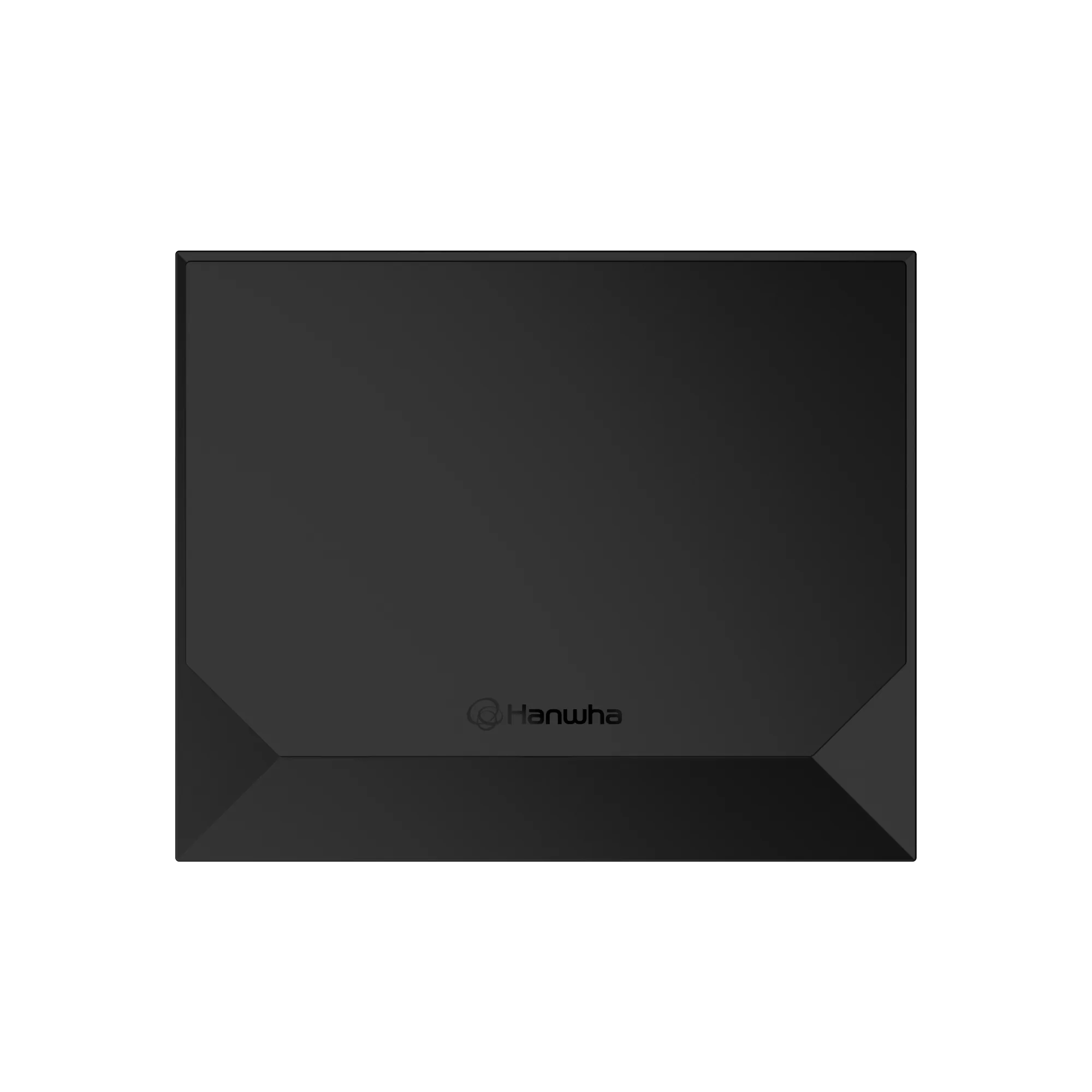

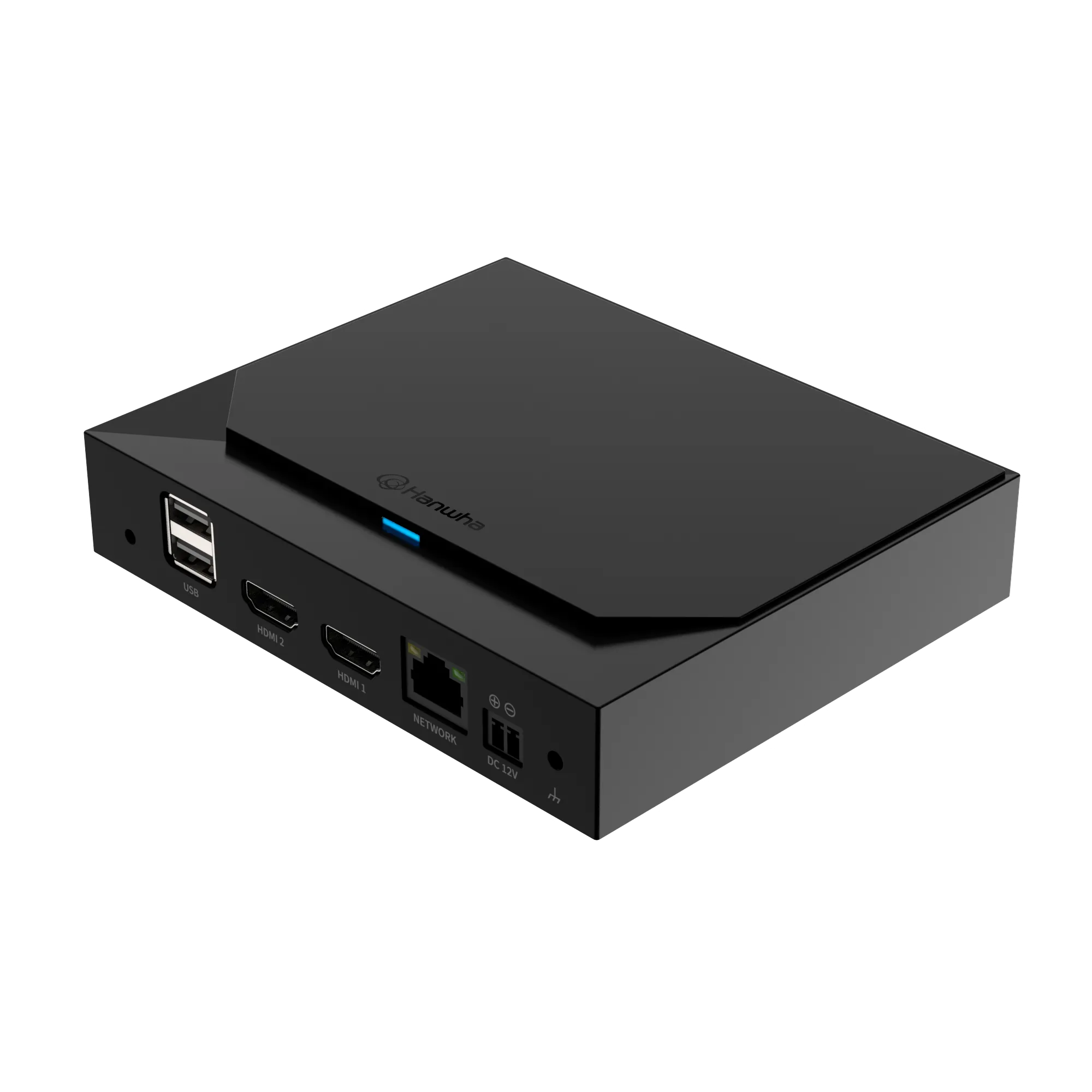

The SPD-152 is a network video decoder built around an embedded CPU and embedded Linux for operation on one monitor. It decodes H.265, H.264 and MJPEG at up to 8M@60fps or 12ch*2MP@30fps; in clone mode HDMI#1 shows up to 64 channels, while expand mode allows a maximum of 36 on HDMI#1 and 25 on HDMI#2. HDMI#1 outputs up to 4K with audio and HDMI#2 up to 1080p without audio, and the output formats include 3840 X 2160@30Hz, 2560 X 1440@30Hz, 1920 X 1080@60Hz and 1280 X 1024@60Hz. Up to 20 layouts with sequence support are possible, audio is handled as G.711, G.726 or AAC, and management runs through the local UI, web viewer or SSM; connectivity is one 10/100/1000BASE-T port with a maximum of 150Mbps plus ONVIF, SUNAPI and RTSP. Power can be supplied as 12VDC (max. 11.0W) or PoE to IEEE802.3af (max. 12.95W). The black metal and plastic housing measures 140.0 x 29.5 x 115.4mm (5.51 x 1.16 x 4.54") at 260g (0.58 lb) and provides two USB 2.0 ports plus power and network LEDs; installation is monitor-back or pole mount. Permitted operation is 0°C to +40°C at 20% to 85% RH.
- Network video decoder on embedded Linux
- H.265, H.264, MJPEG, up to 8M@60fps
- Dual HDMI output, HDMI#1 up to 4K
- Clone mode up to 64 channels on HDMI#1
- ONVIF, SUNAPI, RTSP, max. 150Mbps
- 12VDC or PoE (IEEE802.3af)
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Electrical (2)
- Electrical power consumption
- 12VDC, PoE (IEEE802.3af)
- Power consumption
- Max. 11.0W (12V DC), Max. 12.95W (PoE)
Environment (1)
- Operating temperature
- 0°C to +40°C (32℉ to 104℉)
Environmental (1)
- Environmental – Operating Humidity
- 20% ~ 85% RH
Mechanical (3)
- Colour / material
- Black / Metal & Plastic
- Dimension(WxHxD)
- 140.0 x 29.5 x 115.4mm(5.51 x 1.16 x 4.54")
- Weight
- 260g (0.58 lb)
Software (10)
- Software / Video – Max. Decoding Performance
- 8M@60fps, 12ch*2MP@30fps
- Software Audio Codec
- G.711 / G.726 / AAC
- Software Export/Import
- Configuration Export/Import
- Software Management
- Local UI, Web-Viewer, SSM
- Software Protocol
- Max. 100,000 (System log), RTP, RTSP, HTTP, CGI (SUNAPI), ONVIF
- Software Security
- IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware
- Software Time Setting
- NTP/Manual
- Software Video Codec
- H.265/H.264/MJPEG
- Software Video Layout
- Up to 20, Sequence support
- Video Division/Monitor
- Clone mode : (HDMI#1) Max. 64, Expand mode : (HDMI#1) Max. 36, (HDMI#2) Max. 25
System (9)

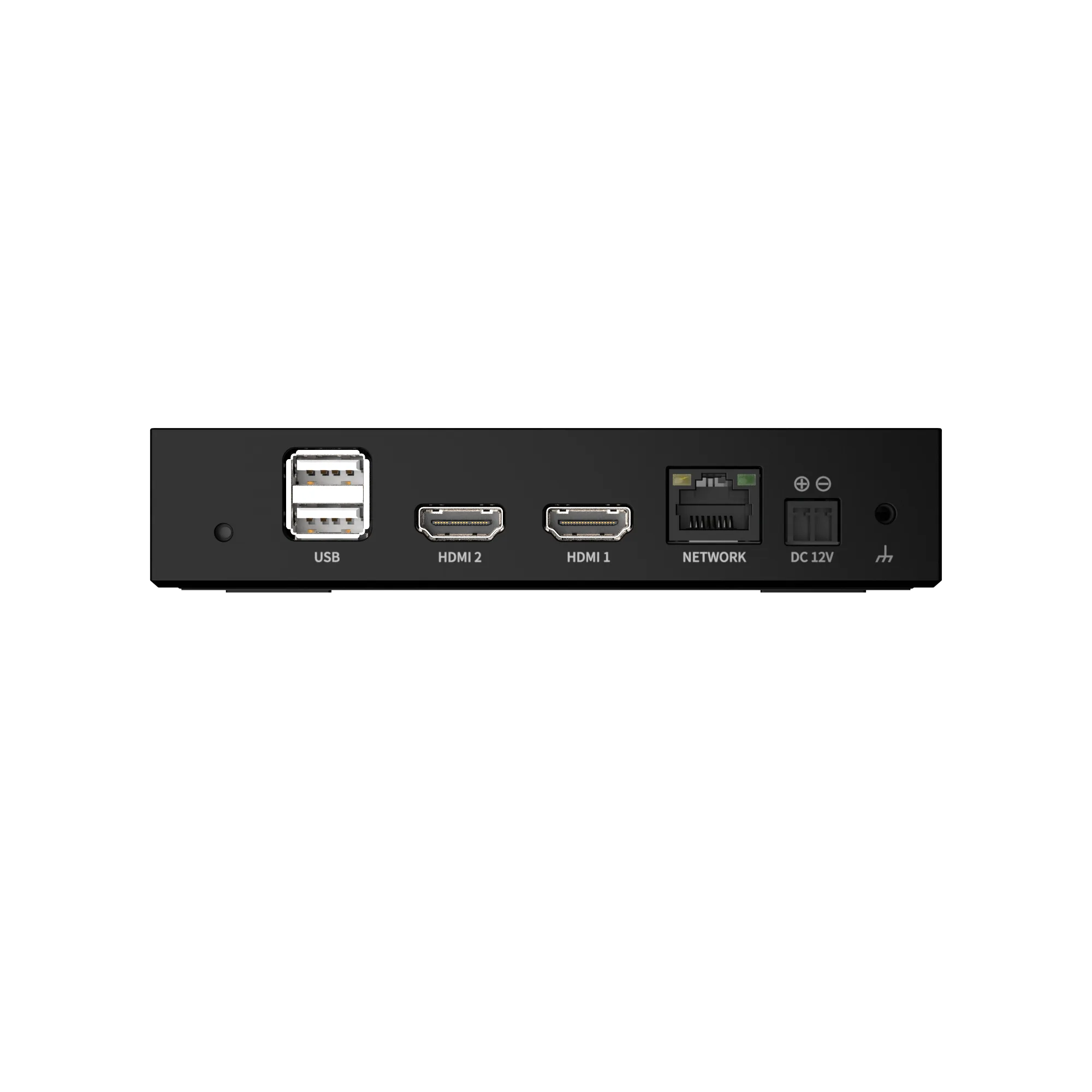

- External Ethernet
- 1EA (10/100/1000BASE-T)
- External LED
- Power, Network
- External USB
- 2EA(USB 2.0)
- Operating System
- Embedded Linux
- System CPU
- Embded CPU
- System Network Bandwidth
- Max. 150Mbps
- Video Output HDMI#1
- 1EA (up-to 4K), Audio support
- Video Output HDMI#2
- 1EA (up-to 1080p), Audio not support
- Video Output Video-out Format
- 3840 X 2160@30Hz (HDMI#1) 2560 X 1440@30Hz (HDMI#1) 1920 X 1080@60Hz (HDMI#1, HDMI#2) 1280 X 1024@60Hz (HDMI#1, HDMI#2) 1280 X 720@60Hz (HDMI#1, HDMI#2)
