Tilt Mount
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Fits
Wall mount 5MP camera with AI analytics and infrared. The 1/2.8" CMOS sensor outputs up to 2592x1944, running 30fps/25fps (60Hz/50Hz) in H.265/H.264 and 30fps in MJPEG with a 5fps maximum at 5MP. Its 1.6mm lens at F1.6 produces a panoramic view of 175° horizontally and 125° vertically at a 0.3m minimum object distance, with a 25° tilt lens for eye level monitoring and 15m IR viewable length. The AI engine drives the analytics events including loitering detection and line crossing detection, WiseNRⅡ noise reduction with SSNRⅤ, and WiseStreamⅢ. Business intelligence functions cover people counting, vehicle counting, queue management and heatmap. WDR is rated 120dB, the compact housing uses an anti-ligature rounded edge design, and tilt travel is -25°~+25°. 5MP, up to 2592x19441.6mm lens, F1.6, 175° x 125°15m IR viewable length, 25° tilt lensAI analytics with loitering and line crossing detectionPeople counting, vehicle counting, queue management, heatmap120dB WDR, WiseNRⅡ, WiseStreamⅢ
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SBV-140TBW
- EAN / GTIN
- 8801089229618
- Weight
- 0.33 kg
- Dimensions (W×H×D)
- 209 × 119 × 101 mm
Description

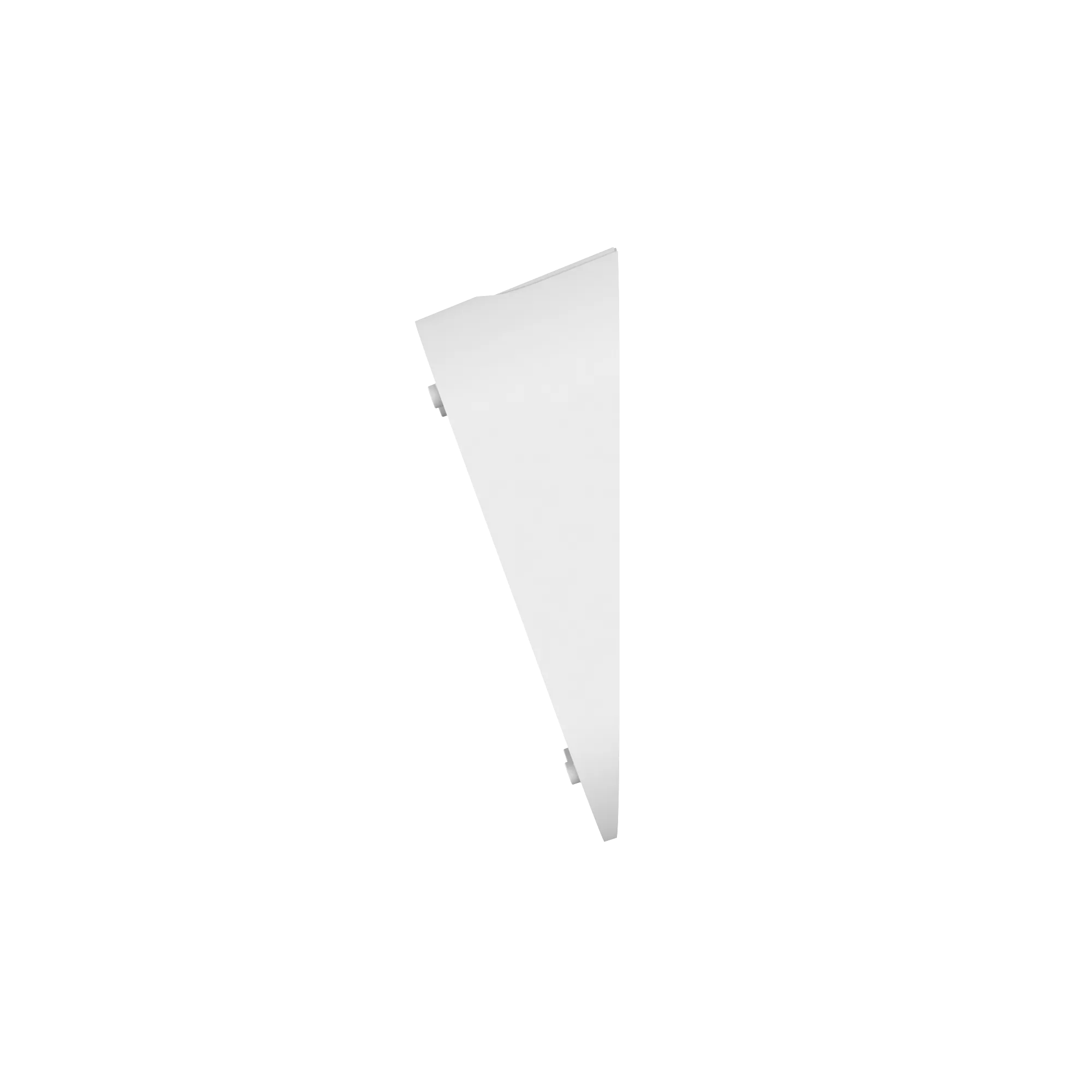

The SBV-140TBW is an aluminium tilt mount finished in white to RAL9003. The part measures 83.5x175.2x60.8mm and weighs 208g. Its tilt range is 20°, with no pan or rotation range provided. Maximum load is 1.5kg, the conduit hole is 19.1mm (3/4", M25) and the mount screw size is TR20. The specification names the TNV-C8011RW as the supported product.
- Aluminium tilt mount
- White, RAL9003
- Dimensions 83.5x175.2x60.8mm, 208g
- Tilt range 20°
- Max. load 1.5kg
- Supports TNV-C8011RW
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Mechanical (9)
- Conduit hole
- 19.1mm(3/4")(M25)
- Max. load
- 1.5kg
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum
- Mechanical – RAL Code
- RAL9003
- Mount Screw size
- TR20
- Pan / Tilt / Rotate Range
- None / 20° / None
- Product dimensions / weight
- 83.5x175.2x60.8mm / 208g
- Supported products
- TNV-C8011RW ※ For further compatible models, please visit our website or use Toolbox
