Power supplies for DIN rail mounting
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Fits
The UP-EXT-CABLE is a connection cable that powers a UP-EXT-SET wherever no PoE feed is available at the installation point. The matching PS-DIN-AC/48/40 power supply is ordered separately; in principle the cable works with any power supply whose output is 48-56VDC and which provides at least 40W. Cable length is 2m, and the weight is 0.04 kg both net and gross. The stated operating range covers -40 to +75°C. Power cable for UP-EXT-SETMatching PS-DIN-AC/48/40 power supply ordered separatelyUsable with 48-56VDC and at least 40WLength 2mOperating temperature -40 to +75°C
Not in stock · delivery 1-2 days
The UP-EXT-R2 is a 19-inch subrack that holds up to 16 IP and PoE extenders of the UP-EXT-SET series. It serves purely for mechanical mounting inside the cabinet and does not supply the individual extenders, whose power comes from the PoE being transmitted. Where no PoE is present, each UP-EXT-SET has to be powered individually. Fitting the media converters is straightforward, and all the mounting accessories required are included. The subrack occupies 2U at 63mm depth, weighs 0.42 kg net and is specified for -40 to +75°C. 19-inch design, 2U x 63mmHolds up to 16 UP-EXT-SET unitsMechanical mounting only, no power feedMounting accessories includedOperating temperature -40 to +75°C
Not in stock · delivery 1-2 days

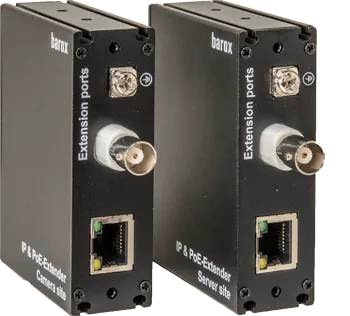

Devices of the UP-EXT-SET series carry 10/100Mbps Ethernet together with PoE and PoE+ over coaxial cable or twisted-pair UTP cable across distances of up to 300m. They ship and operate as a pair, the UP-EXT-CAM on the camera side and the UP-EXT-SERV on the server side, and a BNC to two-wire terminal adapter is part of the delivery. Power comes from the existing PoE or, at the central end, from a separately ordered supply; no software configuration is needed and diagnostic LEDs indicate the operating state. Suitable transmission media are RG59 coaxial cable or similar and data cable from Cat5 upwards. Each transfer device draws 2W, measures 82 x 25 x 63mm, reaches IP30 protection and mounts on a plate with the supplied flanges or, sixteen at a time on 2U, in the UP-EXT-R2 subrack. IP and PoE extender for coaxial or UTP cableDistances up to 300mPoE-af (15W) and PoE-at (30W)Power supply via PoE or 48VDC1 x 10/100BaseT RJ45, BNC female extender port2W power consumption per device, IP30
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Barox
- Article number
- PS-DIN-AC/48/40
- Weight
- 0.27 kg
- Dimensions (W×H×D)
- 40 × 90 × 100 mm
Description
This compact industrial power supply suits DIN rail or table mounting and serves DIN rail mountable switches, media converters and further devices. Connection is made by screw terminals to a 110/230VAC mains, with an admissible input range of 85-264VAC and 120-370VDC. Consumption depends on the device being supplied and amounts to 45W at most, while thermal power loss is stated as 16 BTU/h. Operation is specified between -20° and +70°C. The housing measures 40 x 90 x 100mm (WxHxD) and weighs 0.25 kg net, 0.27 kg gross.
- DIN rail or table mounting
- Supply voltage 85-264VAC / 120-370VDC, screw terminal
- Maximum power consumption 45W
- Operating temperature -20° to +70°C
- Dimensions 40 x 90 x 100mm (WxHxD)
Made by
Barox from Switzerland builds network technology for video security: managed and unmanaged PoE switches for desktop, 19" rack, DIN rail and outdoor cabinets with an extended temperature range, fibre media converters, PoE injectors and midspans, coax and Ethernet extenders for moving analogue installations to IP, plus industrial and redundant power supplies. AI4Vision is an authorised distributor; every device comes with technical data and its data sheet, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Dimensions
- 40 x 90 x 100mm (WxHxD)
- Feeding
- 110/230VAC
- Installation method
- DIN rail mounting
- Life cycle
- Normal
- Operating temperature
- -20° to +70°C
- Power consumption
- Depending on the device being supplied, Max. 45W
- Supply voltage
- 85-264VAC, 120-370VDC, Schraubklemmen
- Thermal power loss
- 16 BTU/h
- Weight
- Gross weight: 0.27 kg, Net weight: 0.25 kg
