Product data
- Manufacturer
- Hanwha Vision
- Article number
- PNB-A9092
- EAN / GTIN
- 8801089236302
- Weight
- 1.26 kg
- Dimensions (W×H×D)
- 265 × 175 × 166 mm
Description

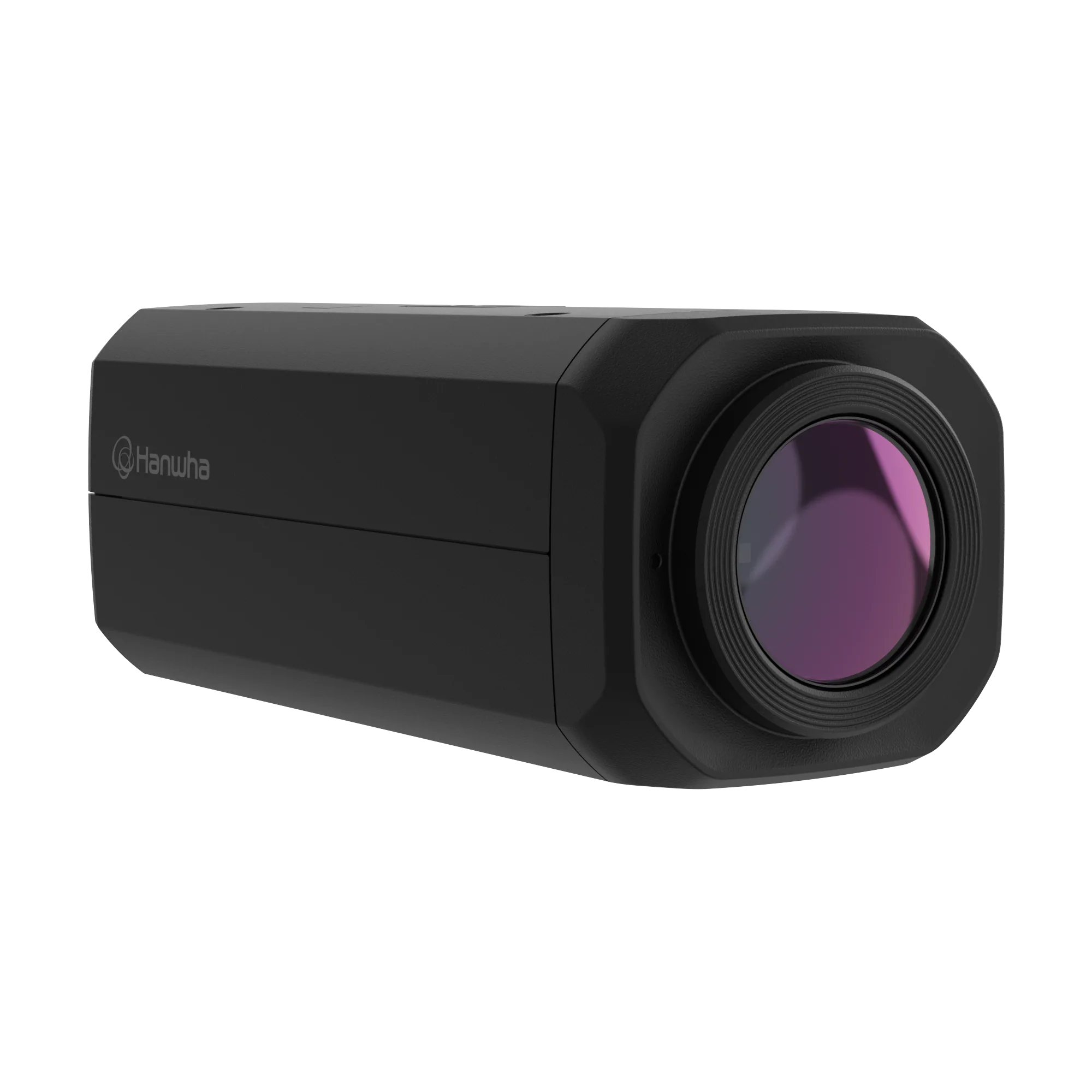

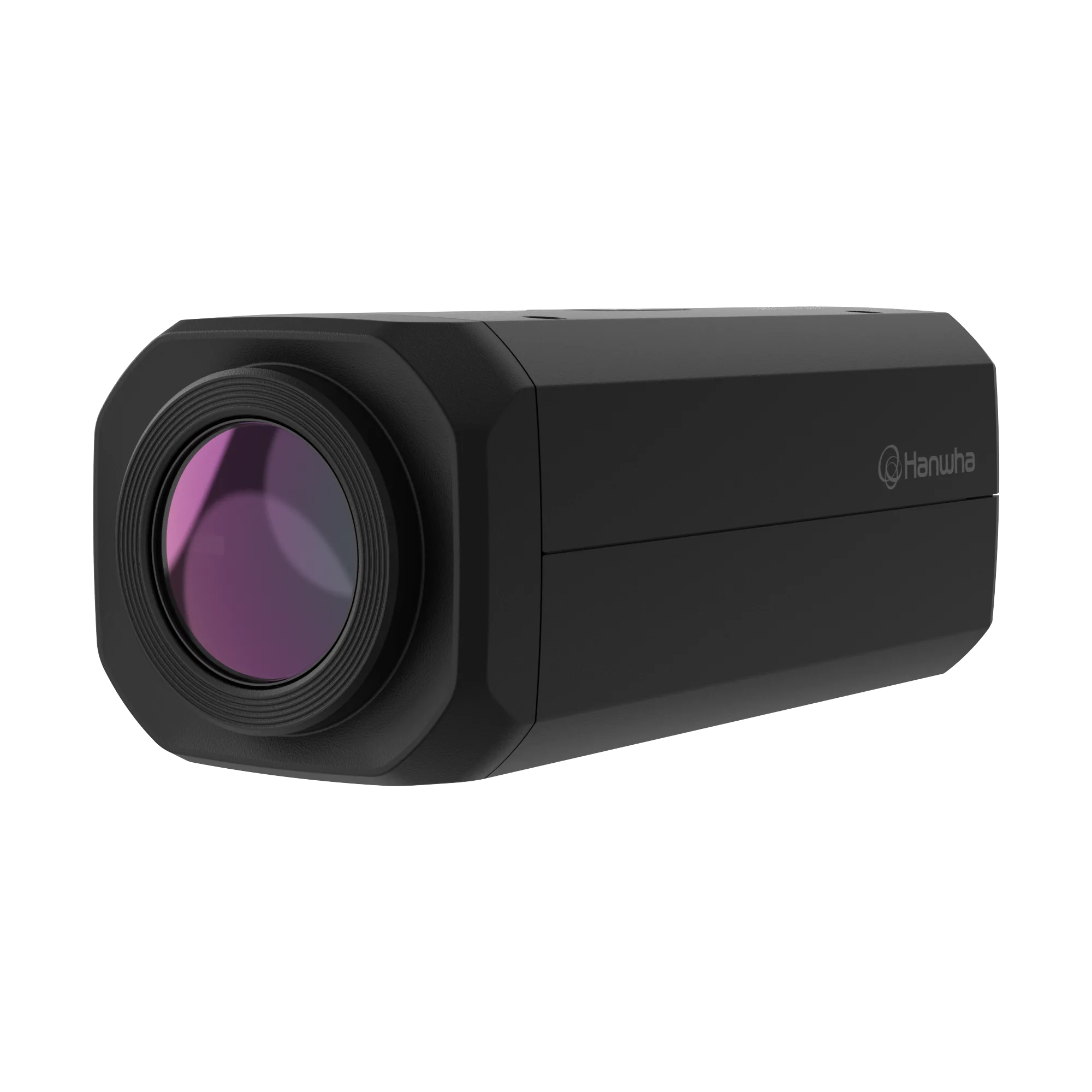

The PNB-A9092 combines a 1/1.2-inch CMOS sensor of 8 megapixels and up to 3840x2160 with a permanently fitted 15 to 50mm telephoto lens for longer ranges. Optical zoom is 3.33x, the aperture runs from F1.67 at wide angle to F3.5 at telephoto, the field of view spans 42.7° to 12.6° horizontally, 24.1° to 7.2° vertically and 49° to 14.3° diagonally, and the minimum object distance is 2.5m. H.265 and H.264 deliver 30fps at 60Hz or 25fps at 50Hz, MJPEG reaches 30fps and no more than 5fps at 8MP. Low-light figures are 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR switching. BLC, HLC, 120dB WDR and SSDR compensate for backlight, while WiseNRⅡ based on the AI engine and SSNRⅤ handle noise. WisePower monitoring, dynamic privacy masking and similarity search with BLAZE round out the feature set.
- 8 megapixel resolution up to 3840x2160
- Integrated 15 to 50mm telephoto lens with 3.33x zoom
- 42.7° to 12.6° horizontal field of view
- 0.015 lux in colour, 0.0015 lux in black and white
- 120dB WDR, AI-based WiseNRⅡ and SSNRⅤ
- Dynamic privacy masking
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (9)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Audio detection, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Face
- Age, Gender, Face mask, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Similarity Search
- Support
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 730.7m(2,397.32ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 195.0m(639.66ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 73.1m(239.73ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 19.5m(63.97ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 292.3m(958.93ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 78.0m(255.86ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 146.1m(479.46ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 39.0m(127.93ft)
Environmental & Electrical (10)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 11.5W, typical 10.9W
- Environmental & Electrical / Power Consumption – PoE
- Max. 13.6W, typical 12.7W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – EPA(Effective Projected Area)
- 0.0153㎡
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
- Environmental & Electrical – Power Redundance Failover
- Support
- Environmental & Electrical – WisePower
- Power monitoring
General (6)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 1TB x 2slot(Total 2TB)
- General / Memory – Flash
- 8GB eMMC
- General / Memory – RAM
- 4GB
- General / SoC – Dual NPU
- Support
- General / SoC – Type
- Wisenet 9
Lens (10)
- Lens / Angular Field of View – Diagonal
- 49°~14.3°
- Lens / Angular Field of View – Horizontal
- 42.7°~12.6°
- Lens / Angular Field of View – Vertical
- 24.1°~7.2°
- Lens / Max Aperture Ratio (F number) – Tele
- 3.5
- Lens / Max Aperture Ratio (F number) – Wide
- 1.67
- Lens / Zoom Ratio – Optical
- 3.33
- Lens – Focal Length (mm)
- 15~50
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- Adaptive P iris
- Lens – Min. Object Distance
- 2.5m(8.2ft)
Mechanical (5)
- Mechanical – Color
- Black
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- 82(W)x76(H)x190(D)mm(3.23x2.99x7.48")
- Mechanical – Product Weight
- 1020g(2.25lb)
- Mechanical – RAL Code
- RAL9005
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 5 profiles, 3 virtual channel support
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps)
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
- Network – Smart Codec
- WiseStream(Based on AI engine)
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (25)

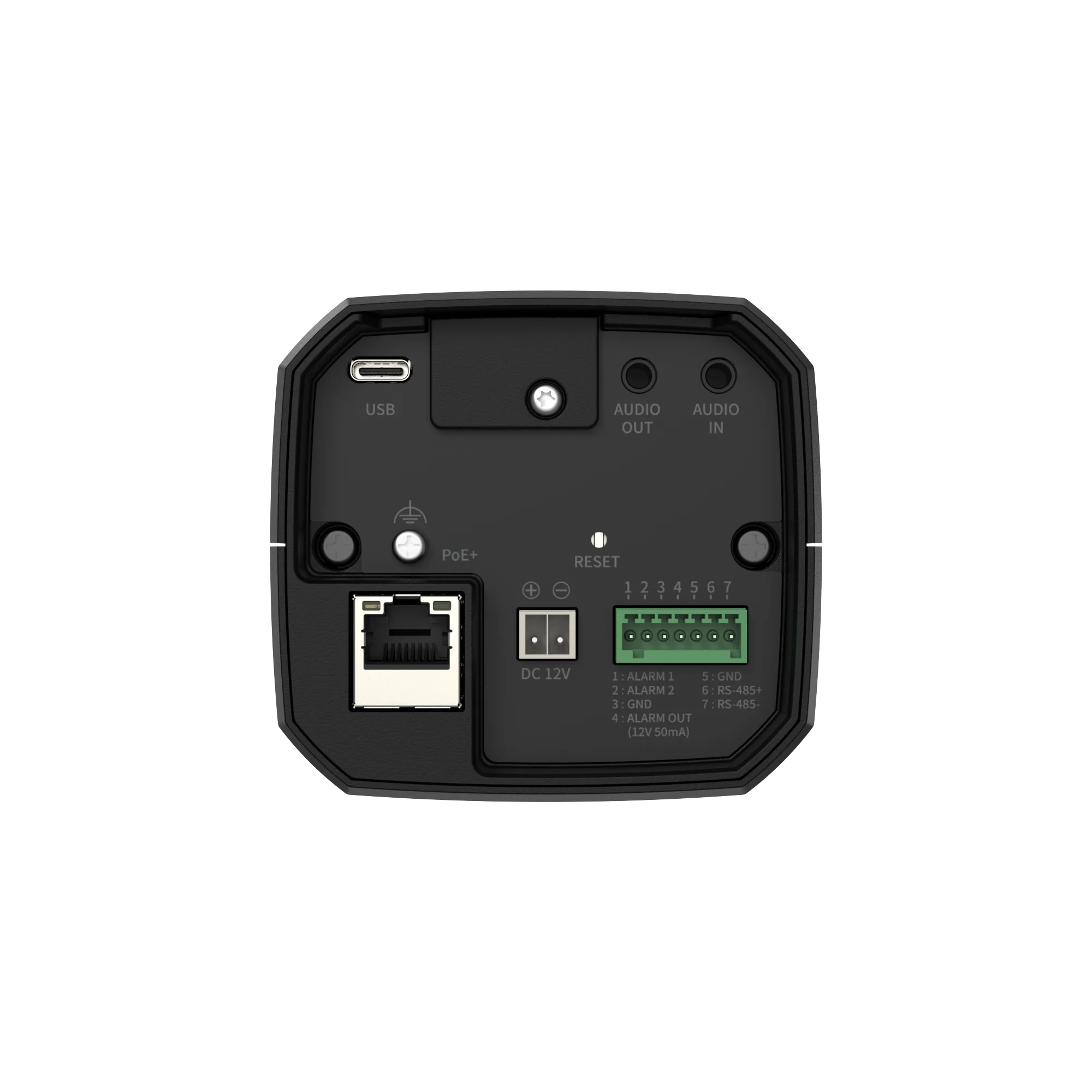

- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Alarm Interface – Others
- 12VDC output
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/30,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
- Operational / Privacy Masking – Dynamic Privacy Masking: Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 8point Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption
- Operational – Audio In
- Selectable(mic in/line in), Built-in mic
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Serial Interface
- RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Security (11)
- Security – Access Control
- IP-based access control, MAC-based access control, Auto logout
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256), Secure element
- Security – Security Certificate
- Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
- Security – Supply Chain Security
- SBOM
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/1.2"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@8MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.0015
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.015
- Video – Resolution
- 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
- Video – Video Out
- USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.
