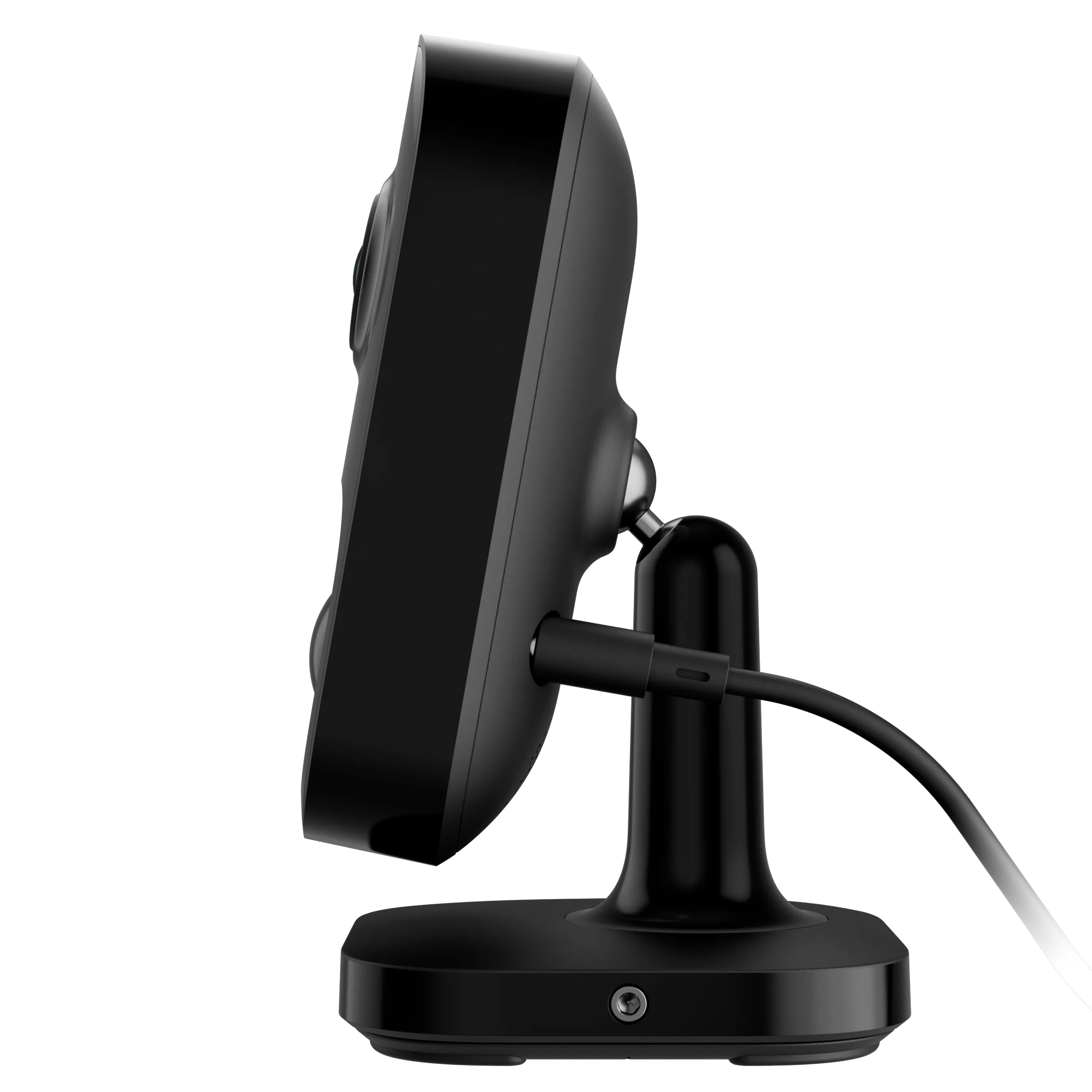

Ajax IndoorCam black
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 111567.303.BL1
Description
A 4 MP CMOS sensor produces video at up to 2688 × 1520 px across viewing angles of 110° horizontally and 60° vertically. Encoding uses H.264, while HDR improves the accuracy of detail in bright and dark scenes. Connectivity is handled by an 802.11 b/g/n module on 2.4 GHz along with the Jeweller and Wings communication technologies, and the stream reaches an NVR or Ajax Cloud Storage over JetSparrow, an encrypted peer-to-peer video protocol. Movement is registered by a built-in PIR sensor combined with software image frame analysis over a distance of up to 13 ft, and AI distinguishes people, pets and vehicles. Smart IR illumination reaches up to 26 ft and adjusts its intensity in real time to avoid overexposure. A microphone, a speaker rated 65 dB ± 3 dB, the G722 audio codec and always-active noise suppression and echo cancellation support two-way communication; the device is conformant with ONVIF® Profile S.
- 4 MP CMOS sensor, up to 2688 × 1520 px
- Viewing angles 110° horizontal, 60° vertical
- Wi-Fi 802.11 b/g/n, 2.4 GHz
- AI object detection: people, pets, vehicles
- Smart IR illumination up to 26 ft
- Conformant with ONVIF® Profile S
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional information (1)
- Additional information – Warranty
- 24 months
Communication channel (2)
- Communication channel – Jeweller and Wings communication technologies
- Proprietary wireless communication technologies to transmit commands, alarms, events, and photo verifications. They serve as a backup communication channel when the device is added to the hub.
- Communication channel – Wi-Fi
- 802.11 b/g/n module, 2.4 GHz
Enclosure (5)
- Enclosure – Dimensions
- 5.04" × 2.91" × 2.99"
- Enclosure – Operating humidity
- up to 90% with no condensation
- Enclosure – Operating temperature range
- from 32 °F to 104 °F
- Enclosure – Protection class
- IP20
- Enclosure – Weight
- 8.29 oz
Key features (11)
- Key features – Audio codec
- G722
- Key features – Audio processing
- Always active noise suppression and echo cancellation.
- Key features – LED indication
- An LED indicator shows the actual state of the device.
- Key features – Microphone
- For two-way communication and sound recording at the site.
- Key features – Motion detection
- The device detects movement using a built-in PIR sensor and software image frame analysis.
- Key features – ONVIF®
- conformant with ONVIF® Profile S, The device implements ONVIF® H.265 (HEVC) encoding, transmission of motion detection and AI recognition events, control over Wide Dynamic Range (WDR), and other image settings — not ONVIF® profile or add-on conformant.
- Key features – Object detection
- People., Pets., Vehicles., using AI
- Key features – Smart IR illumination
- up to 26 ft, Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low-light conditions.
- Key features – Speaker volume
- 65 dB ± 3 dB
- Key features – Two-way communication
- Clear and loud voice communication between users and the device.
- Key features – Visual verification of Ajax alarms
- The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app.
PIR detection (4)
- PIR detection – Motion detection angle
- horizontal: 110°, vertical: 60°
- PIR detection – Motion detection distance
- up to 13 ft, Depends on the sensitivity level adjusted in the device settings.
- PIR detection – Sensitive elements
- 1 × PIR sensor
- PIR detection – Sensitivity
- 3 levels, Adjusted by a PRO or a user with admin rights in Ajax apps.
Power supply (2)
- Power supply – Device power consumption
- up to 8 W
- Power supply – Power supply unit
- 12 V⎓ ± 20%, 1 А
Sabotage protection (7)
- Sabotage protection – Authentication
- via Ajax Cloud, Without local access rights.
- Sabotage protection – Communication loss detection
- Wi-Fi: can be set from 30 s, Jeweller/Wings: after 36 s, Detection time depends on Ajax Cloud connection and Jeweller or Jeweller/Fibra settings.
- Sabotage protection – Holding screw
- secures the device on the mounting panel
- Sabotage protection – OTA signature verification
- Secure automatic firmware update.
- Sabotage protection – Privacy
- Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.
- Sabotage protection – Secure Boot
- Protection against firmware spoofing.
- Sabotage protection – mTLS
- Encrypted connection for data protection.
Video stream (7)
- Video stream – Camera
- 4 MP CMOS sensor
- Video stream – Camera viewing angles
- horizontal: 110°, vertical: 60°
- Video stream – Dynamic range
- HDR, Improves the accuracy of detail in bright and dark scenes.
- Video stream – Resolution
- up to 2688 × 1520 px
- Video stream – Storage options
- NVR, Ajax Cloud Storage
- Video stream – Video codec
- H.264
- Video stream – Video protocol
- JetSparrow, Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
