MOUNTING-KIT AM-21P V01

The SD9367-EHL is a 2MP outdoor PTZ camera with 40x optical zoom. A 1/2.8" progressive CMOS provides up to 1920x1080 (2MP) and the auto-focus lens runs f = 4.25 ~ 170 mm (40x zoom) at F1.6 ~ F4.95 with a DC-iris, covering 65.7° ~ 1.9° horizontal, 39.4° ~ 1.1° vertical and 73.0° ~ 2.1° diagonal. Pan range is 360° endless and tilt spans -20° ~ +90° with an effective 220° of coverage via auto flip, both axes moving at 0.05° ~ 450°/sec; control adds 256 preset locations with 128 presets per tour, auto pan and auto patrol modes and 8x digital zoom. Shutter time reaches from 1 sec. to 1/100,000 sec., minimum illumination is 0.05 lux @ F1.6 (Color)(30IRE) and below 0.005 lux @ F1.6 (B/W)(30IRE), and WDR Pro, a removable IR-cut filter and electronic image stabilisation are included. Vision Object Analytics distinguishes people from vehicles and AI-based Smart Tracking Advanced follows moving people, processed on a multimedia SoC with 8 GB flash and 2 GB RAM. Recording runs to MicroSD/SDHC/SDXC cards up to 1TB or to network-attached storage, and the housing is rated IP66, IK10 and NEMA 4X. 2MP PTZ, up to 1920x108040x optical zoom with auto focus and EIS360° endless pan at 0.05° ~ 450°/sec256 presets, 128 presets per tourVision Object Analytics and Smart Tracking AdvancedIP66, IK10 and NEMA 4X protection

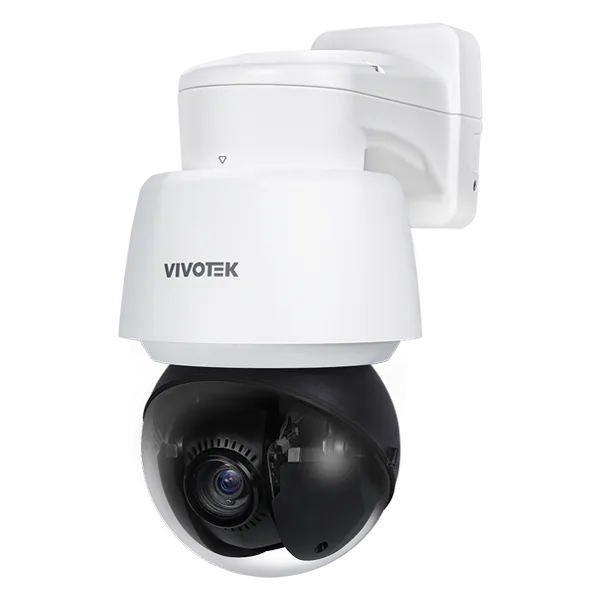

With 5MP and 30x optical zoom, the SD9387-EHL is an outdoor PTZ camera. Its 1/2.8" progressive CMOS reaches 2560x1920 (5MP) and the auto-focus lens operates at f = 4.94 ~ 148.24 mm (30x zoom), F1.3 ~ F4.6 with a DC-iris, capturing 54.1° ~ 1.9° horizontal, 41.2° ~ 1.4° vertical and 65.7° ~ 2.4° diagonal. Pan range is 360° endless and tilt covers -20° ~ +90° with an effective 220° via auto flip; both axes reach 0.05° ~ 450°/sec, and 256 preset locations with 128 presets per tour, auto pan mode, auto patrol mode and 8x digital zoom complete the movement functions. Shutter time spans 1 sec. to 1/100,000 sec., minimum illumination is 0.045 lux @ F1.3 (Color)(30IRE) and below 0.005 lux @ F1.3 (B/W)(30IRE), backed by WDR Pro, a removable IR-cut filter and electronic image stabilisation. Vision Object Analytics identifies people and vehicles while AI-based Smart Tracking Advanced follows moving people, processed on a multimedia SoC with 8 GB flash and 2 GB RAM. Recording is written to MicroSD/SDHC/SDXC up to 1TB or to network-attached storage, and the housing carries IP66, IK10 and NEMA 4X ratings. 5MP PTZ, up to 2560x192030x optical zoom with auto focus and EIS360° endless pan, -20° ~ +90° tilt256 presets, 128 presets per tourVision Object Analytics and Smart Tracking AdvancedIP66, IK10 and NEMA 4X protection

IR Speed Dome, 5M 30fps, H.265, 30x Optical Zoom, IR 200M, WDR Pro, 3DNR, PoE/DC48V/AC24V, I/O*2/1, Two way audio, Micro SDXC, IP66, IK10, NEMA 4X

The SD9384-EHL is an outdoor PTZ camera built around a 1/2.8" progressive CMOS sensor with a maximum resolution of 2560x1920 (5MP). Its 30x optical zoom lens with auto focus runs from f = 4.94 to 148.24 mm at F1.3 ~ F4.6 with DC-iris, covering 54.1° to 1.9° horizontally, 41.2° to 1.4° vertically and 65.7° to 2.4° diagonally. The head pans endlessly through 360° and tilts from -20° to +90° at 0.05° to 450° per second, storing 256 preset locations and 128 presets per tour. Eight IR LEDs with Smart IR reach up to 200 metres, and minimum illumination is 0.03 lux at F1.3 in colour, 0.005 lux in black and white. WDR Pro, a removable IR-cut filter, an IP66 / IK10 / NEMA 4X housing and a -40°C to 60°C temperature range complete the specification. 30x optical zoom with auto focus and EIS2560x1920 (5MP) maximum resolutionIR illumination up to 200 m with Smart IR360° endless pan, -20° to +90° tiltIP66, IK10 and NEMA 4X housing-40°C to 60°C operating range

The SD9368-EHL is an outdoor PTZ camera with a 1/2.8" progressive CMOS sensor and a maximum resolution of 1920x1080 (2MP). Its 40x optical zoom lens with auto focus spans f = 4.25 to 170 mm at F1.6 ~ F4.95 with DC-iris, covering 65.7° to 1.9° horizontally, 39.4° to 1.1° vertically and 73.0° to 2.1° diagonally. Panning is endless through 360° and tilt runs from -20° to +90° at 0.05° to 450° per second, with 256 preset locations and 128 presets per tour. Eight IR LEDs with Smart IR are effective up to 250 metres, and minimum illumination is 0.04 lux at F1.6 in colour, 0.005 lux in black and white. WDR Pro, a removable IR-cut filter, an IP66 / IK10 / NEMA 4X housing and a -40°C to 60°C temperature range complete the camera. 40x optical zoom with auto focus and EIS1920x1080 (2MP) maximum resolutionIR illumination up to 250 m with Smart IR360° endless pan, -20° to +90° tiltIP66, IK10 and NEMA 4X housing-40°C to 60°C operating range

The SD9394-EHL is an outdoor PTZ camera with AI functions delivering 3840x2160 pixels (8MP) from a 1/1.8" progressive CMOS sensor. The lens offers 32x optical zoom with auto focus, f = 6.5 ~ 212 mm, F1.4 ~ F4.9 and P-iris, covering 63.5° ~ 2.0° horizontally, 37.4° ~ 1.1° vertically and 70.7° ~ 2.3° diagonally. Eight IR LEDs illuminate up to 250 meters with Smart IR, and minimum illumination is stated as 0.02 lux @ F1.4 (Color)(30IRE), 0.06 lux @ F1.4 (Color)(50IRE), <0.005 lux @ F1.4 (B/W) and 0 lux with IR illumination on. Panning is endless over 360° and tilt runs -20° ~ +90° with 220° effective coverage via auto flip, both at 0.05° ~ 450°/sec, alongside 256 preset locations, 128 presets per tour, auto pan mode, auto patrol mode and 8x digital zoom. The housing is rated IP66, IK10 and NEMA 4X, the temperature range is -40°C ~ 55°C, and Smart Tracking Advanced follows moving people and vehicles. 3840x2160 (8MP), 1/1.8" progressive CMOS32x optical zoom, f = 6.5 ~ 212 mm, P-irisIR illuminators up to 250 meters with Smart IR360° endless pan, -20° ~ +90° tiltIP66, IK10 and NEMA 4X protection-40°C ~ 55°C temperature range
