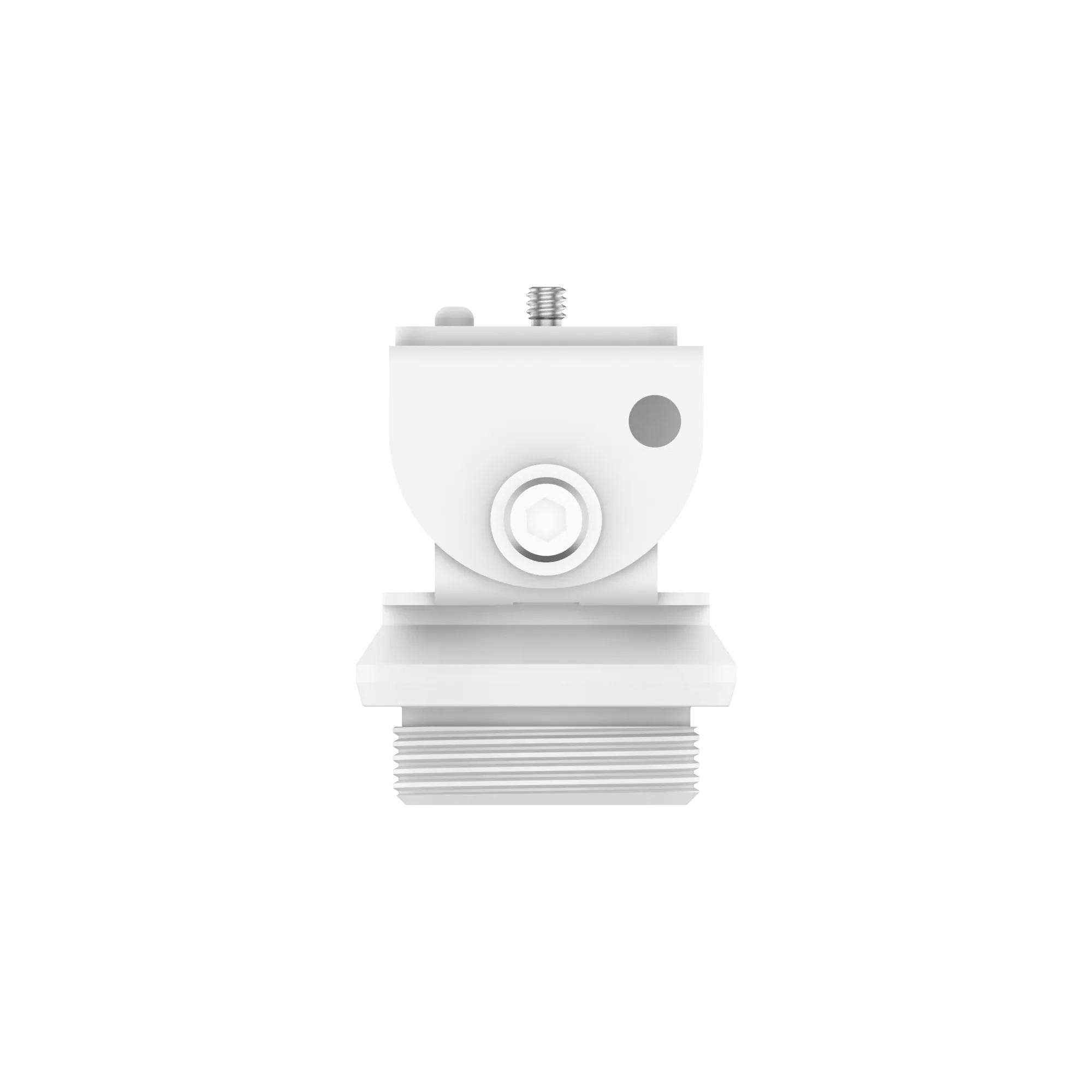

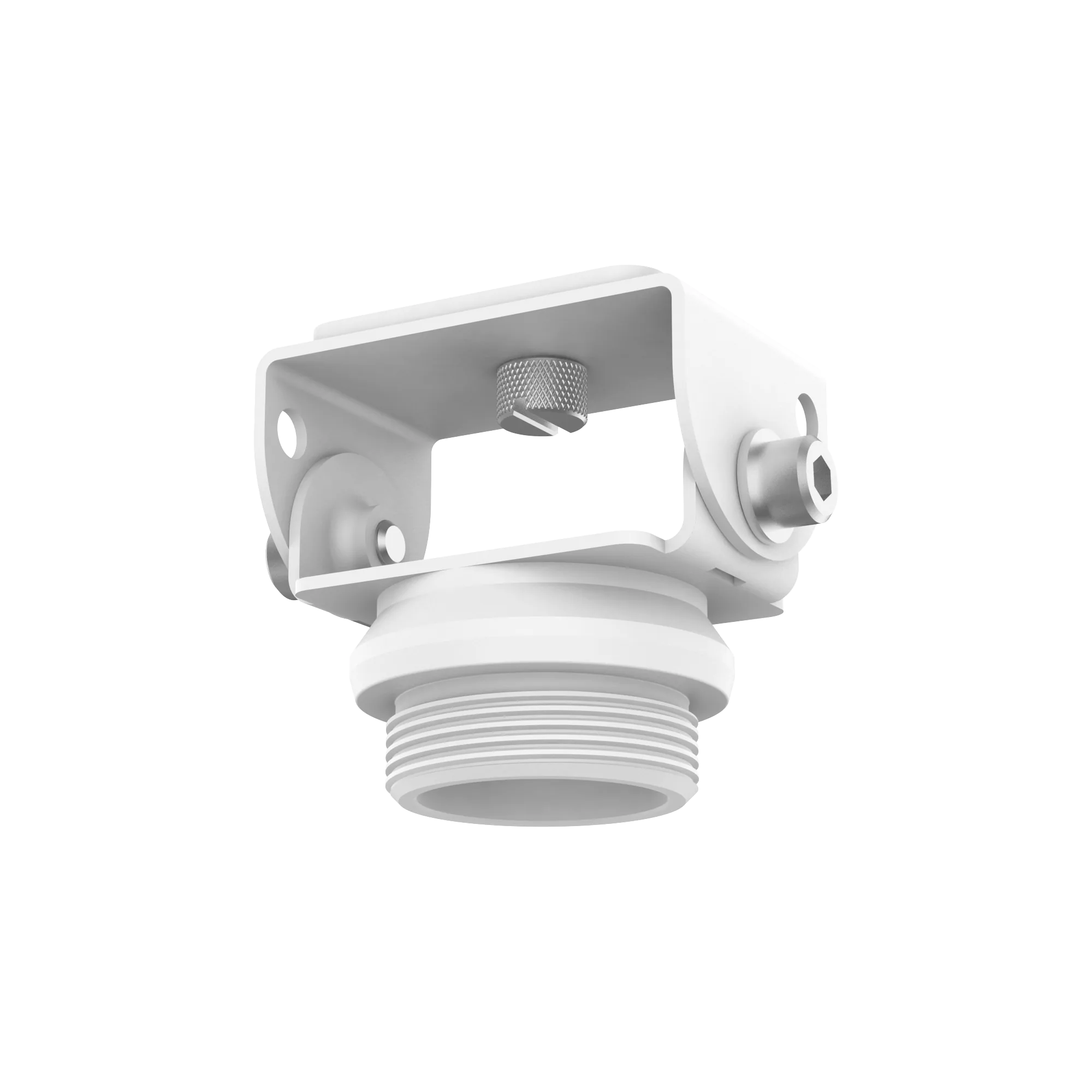

Ceiling Mount

The TNM-C3620TDR pairs a 2MP visible channel with a QVGA thermal channel in a compact, lightweight housing intended for indoor use. AI-based object classification runs on the visible channel only and identifies persons, while temperature is monitored remotely across the -20 ~ 130°C range and evaluated through six quadrangle ROI areas. H.265/H.264 reaches 30fps/25fps(60Hz/50Hz) and MJPEG 30fps, with Main, Baseline and High profiles, MJPEG, WiseStreamⅡ and CBR or VBR bitrate control. Analysis and privacy tools include eight motion detection zones as 8-point polygons, 24 polygonal privacy masks in gray, green, red, blue, black, white or mosaic, flip and mirror, and digital image stabilization using a built-in gyro sensor. Connectivity is metal shielded RJ-45(10/100BASE-T) with unicast for up to 20 users and multicast support, complemented by one alarm input and two alarm outputs, a selectable audio input, line out, and video out via CVBS and micro USB Type B for installation. Bi-spectrum 2MP visible and QVGA thermalAI object classification (person), visible channel onlyRemote temperature monitoring -20 ~ 130°CSix quadrangle ROI areas24 privacy masks and eight motion detection zonesRJ-45(10/100BASE-T), unicast for up to 20 users

The TNM-C3622TDR is a compact, lightweight bi-spectrum camera for indoor use, combining a 2MP visible channel with a QVGA thermal channel. Maximum frame rate is stated as 8fps, and AI processing is available for the visible image only, where it classifies persons. Temperature is monitored remotely within the -20 ~ 130°C range, evaluated through six quadrangle ROI areas and checked for abnormal readings so that heat-related risks can be observed. Compression covers H.265/H.264 Main/Baseline/High and MJPEG with WiseStreamⅡ and CBR or VBR control, while streaming supports unicast for up to 20 users, multicast and up to six profiles. Further equipment includes eight motion detection zones as 8-point polygons, 24 polygonal privacy masks in seven variants including mosaic, digital image stabilization with a gyro sensor, one alarm input and two alarm outputs, a selectable audio input with line out, and metal shielded RJ-45(10/100BASE-T). QVGA thermal and 2MP visible resolutionMax. framerate 8fpsTemperature detection range -20 ~ 130°CAbnormal temperature detectionAI available for the visible image onlySix quadrangle ROI areas for temperature monitoring
