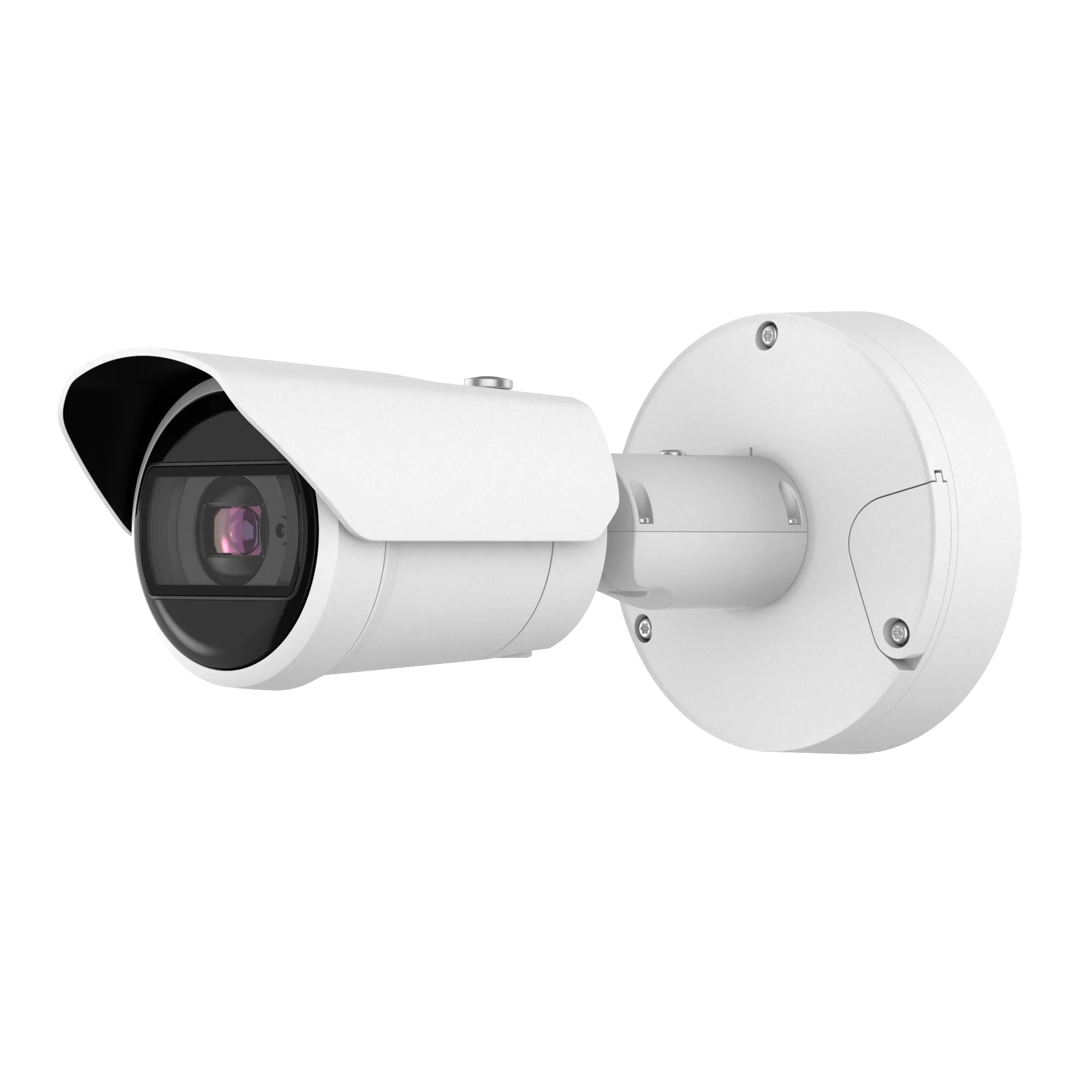

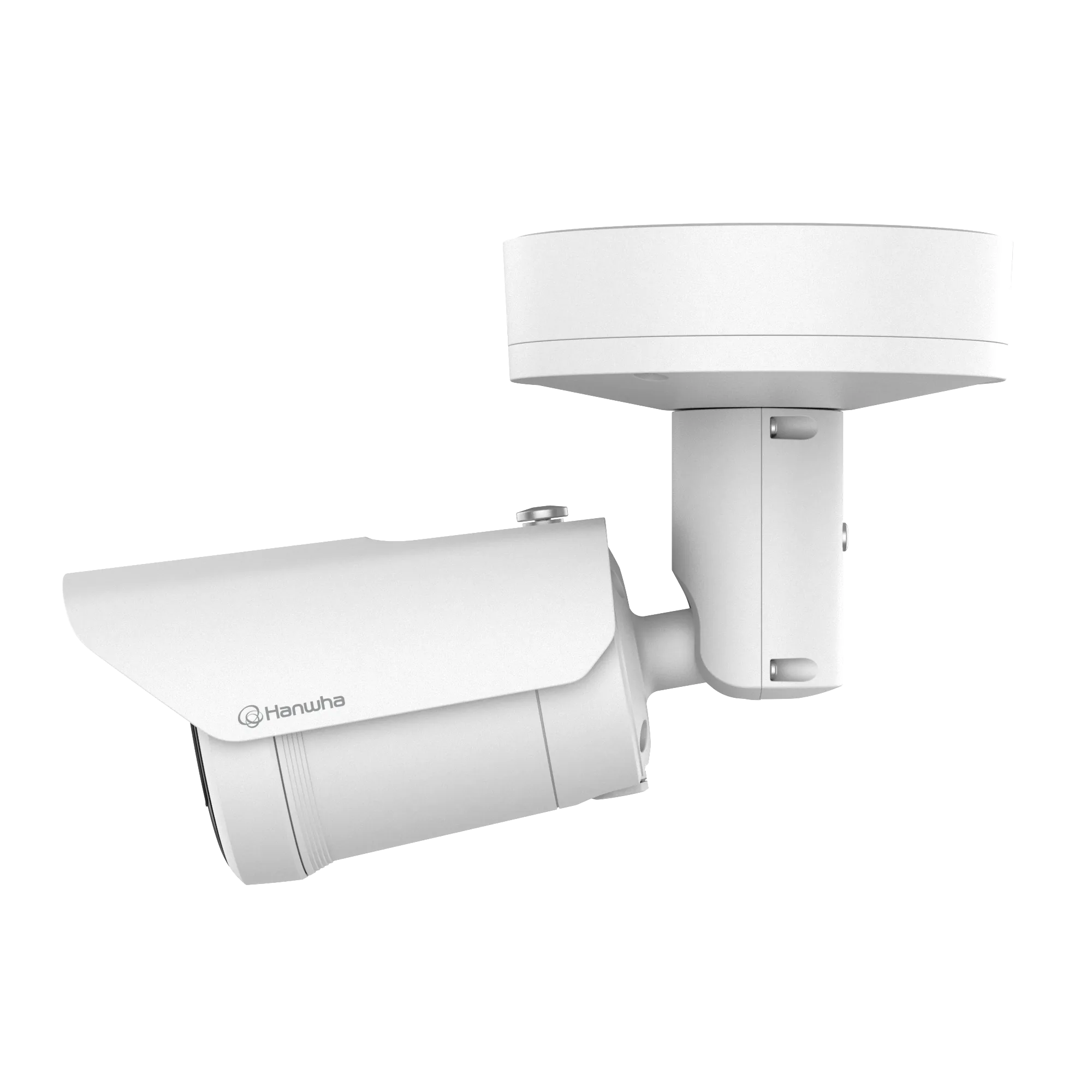

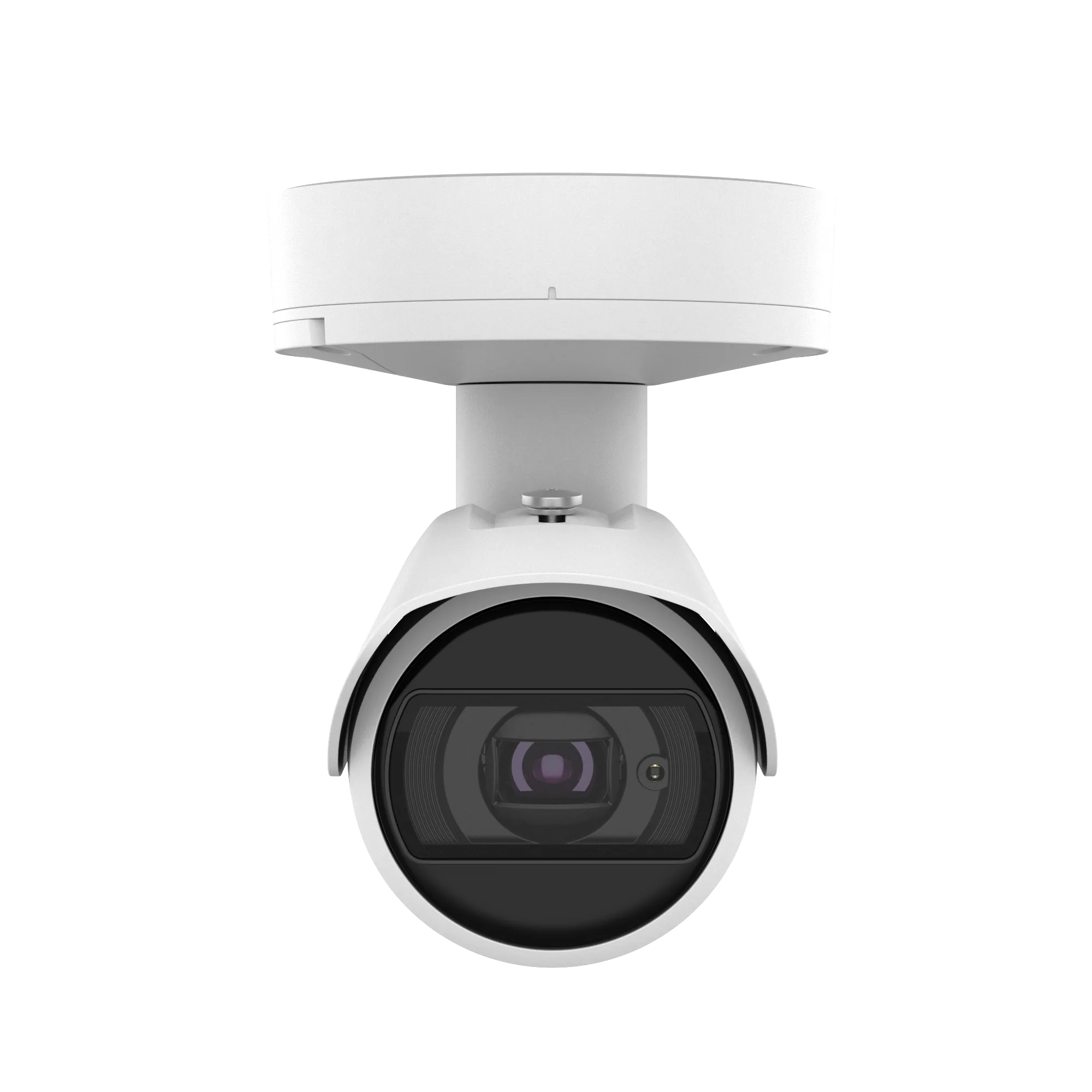

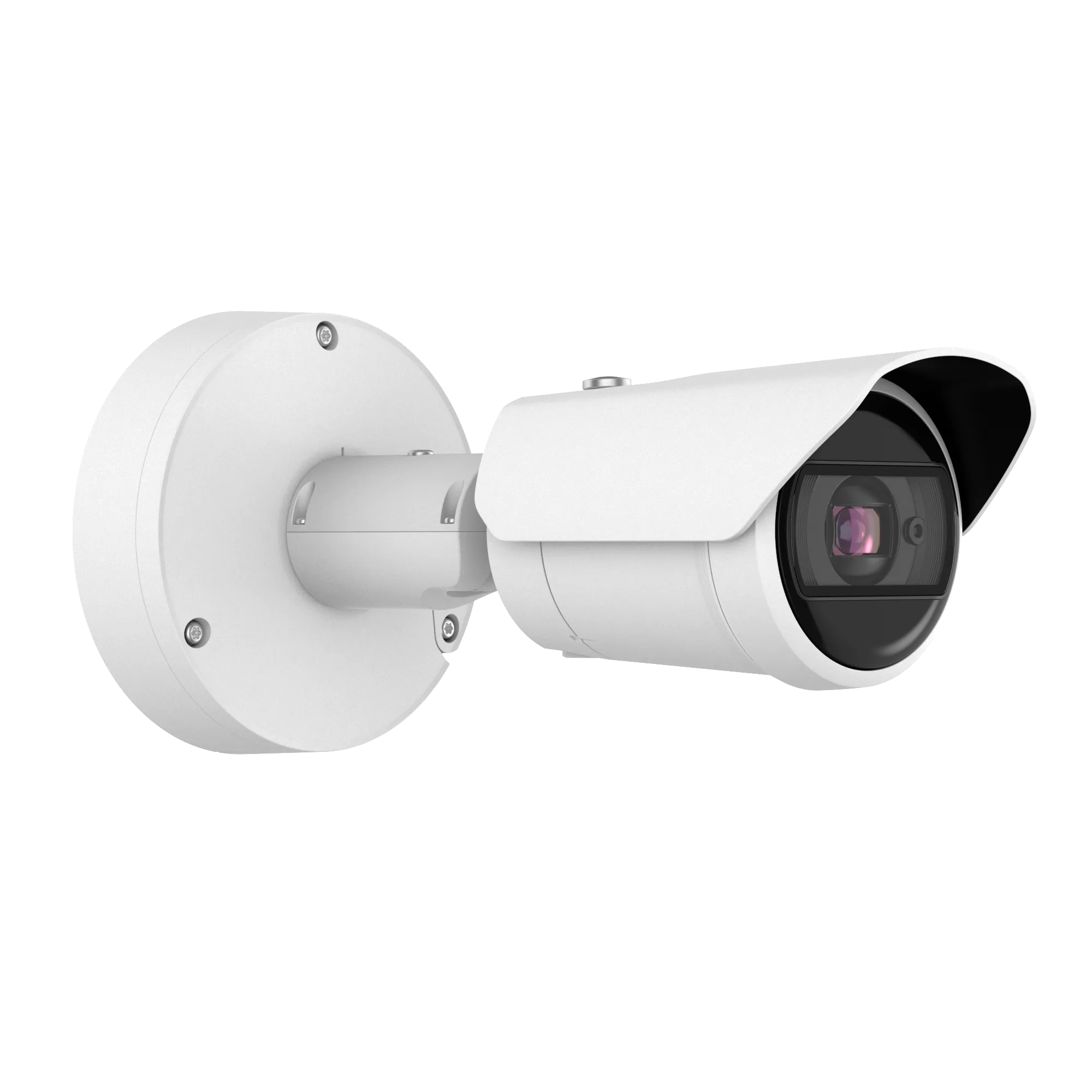

2MP AI IR Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
Conduit hole adaptor made of aluminium and finished in white to RAL9003. It measures 54.1x43.5x40mm and weighs 27g. The conduit hole has a diameter of 19.1mm and corresponds to M25. Listed supported products are QNV-C6083R, QNV-C8083R, QNV-C9083R and PNM-C16013RVQ. Aluminium, white RAL9003Dimensions 54.1x43.5x40mmWeight 27gConduit hole 19.1mm (M25)For QNV-C6083R, QNV-C8083R, QNV-C9083R, PNM-C16013RVQ
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNO-C6083R
- EAN / GTIN
- 8801089208033
- Weight
- 2.17 kg
- Dimensions (W×H×D)
- 348 × 174 × 178 mm
Description
This AI bullet camera works with a 1/2.8 inch CMOS sensor, resolves up to 1920x1080 and reaches 60fps/50fps (60Hz/50Hz) in H.265 and H.264, while MJPEG runs at 30fps. Its motorised varifocal lens covers 2.8 to 12 mm with 4.3x optical zoom, an aperture of F1.4 at the wide end and F3.6 at tele, and a horizontal field of view between 120 and 27 degrees. Minimum illumination is 0.01 lux in colour and 0.001 lux in black and white at 1/30 sec and 30 IRE, with WiseIR illumination reaching 40 m (131.23ft). Day and night switching is handled automatically by ICR, extremeWDR spans 150 dB, and digital image stabilisation relies on a built-in gyro sensor. Streaming uses H.265, H.264 and MJPEG together with WiseStream II and WiseStream III, and focus can be set by simple focus or manually.
- 1/2.8 inch CMOS, up to 1920x1080
- 2.8~12 mm varifocal, 4.3x optical zoom
- 60fps/50fps in H.265/H.264
- WiseIR range 40 m (131.23ft)
- extremeWDR 150 dB, ICR day and night
- DIS with built-in gyro sensor
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (6)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle)
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- DetectionShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 159.9m(524.76ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 22.2m(72.74ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 16.0m(52.48ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 2.2m(7.27ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 64.0m(209.90ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 8.9m(29.09ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 32.0m(104.95ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 4.4m(14.55ft)
Environmental & Electrical (9)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -20°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 12.5W, typical 10W
- Environmental & Electrical / Power Consumption – PoE
- Max 12.95W, typical 10.8W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – EPA(Effective Projected Area)
- 0.02㎡
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 1slot
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 2GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 143°~32°
- Lens / Angular Field of View – Horizontal
- 120°~27°
- Lens / Angular Field of View – Vertical
- 63°~15°
- Lens / Max Aperture Ratio (F number) – Tele
- 3.6
- Lens / Max Aperture Ratio (F number) – Wide
- 1.4
- Lens / Zoom Ratio – Optical
- 4.3x
- Lens – Focal Length (mm)
- 2.8~12
- Lens – Focus Control
- Simple focus, Manual
- Lens – Lens Type
- Adaptive P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum, PC(Polycarbonate), Hard-coated window
- Mechanical – Product Dimensions
- ø93.4x276.6mm(3.68x10.89")
- Mechanical – Product Weight
- 1,640g(3.62lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (25)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 40m(131.23ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 150
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~90°
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.001
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.01
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
