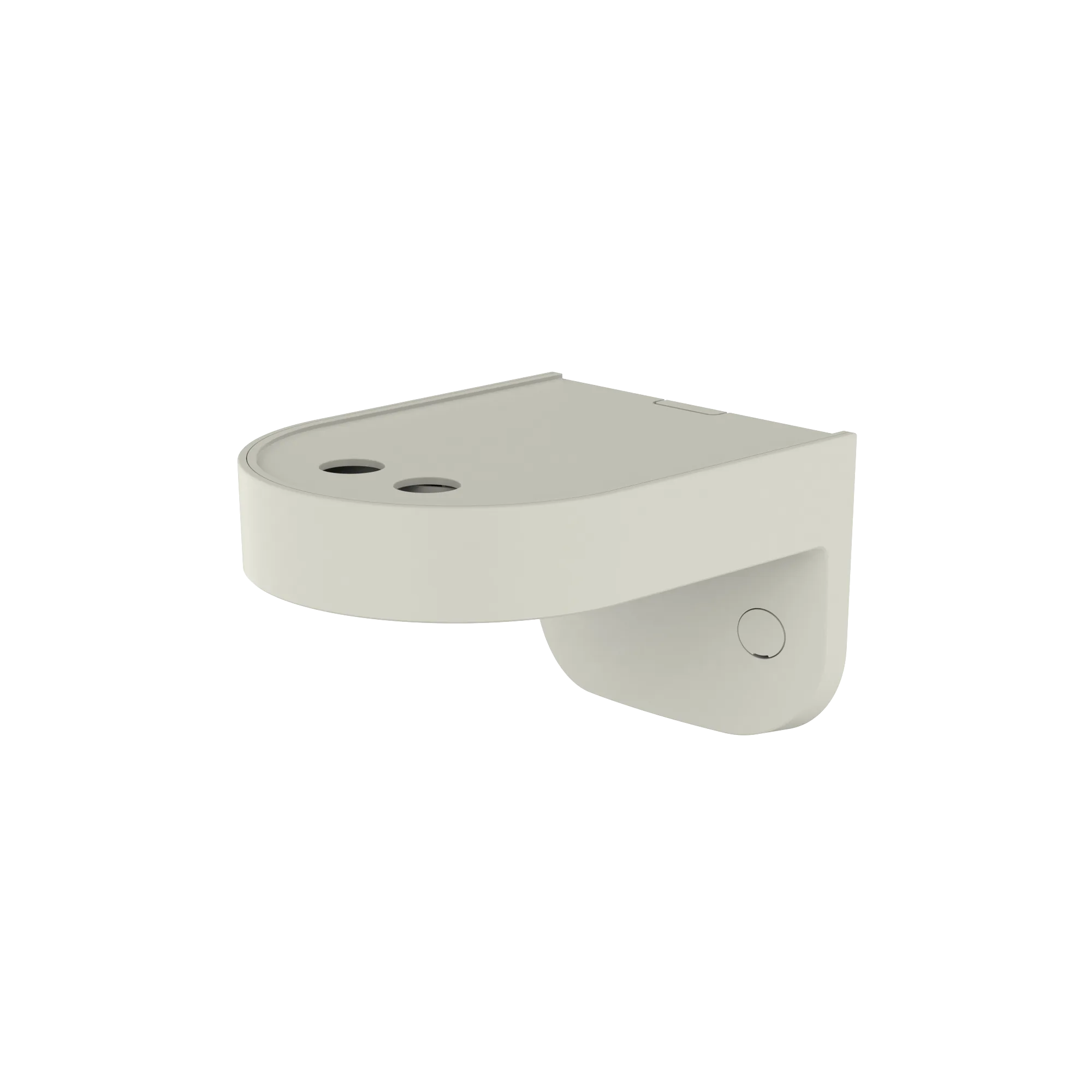

Wall Mount

The HCD-6080R is an analog HD dome camera with IR LEDs and a motorised varifocal lens covering 3.2 to 10mm, a 3.1x optical zoom range. Its 1/2.8-inch CMOS sensor records 1920x1080 at 30fps (NTSC) or 25fps (PAL), with a field of view from 110.2° to 32° horizontally, 55.4° to 18° vertically and 128.4° to 36.6° diagonally. The camera is rated at 0.11 lux in colour at F1.6 and 0.011 lux in black and white; with the IR illumination on it operates down to 0 lux and reaches 20m. Video leaves the camera over BNC as AHD, TVI, CVI or CVBS and travels up to 500m on 5C2V coaxial cable. Image handling includes an automatic ICR filter, BLC, HLC, 120dB WDR, SSNRⅣ and motion detection. The DC auto iris is IR corrected, the camera head moves across 0° to 350° pan, 0° to 67° tilt and 0° to 355° rotation, and installation is plug and play with dual power. Motorised 3.2 to 10mm varifocal lens (3.1x)1/2.8-inch CMOS sensor, 1920x10800.11 lux at F1.6 in colour, 0 lux with IR LED20m IR viewable length120dB WDR, SSNRⅣ, motion detectionAHD/TVI/CVI/CVBS BNC output up to 500m

In this vandal-resistant dome camera a built-in 2.8 mm lens with a fixed F2.0 iris sits in front of a 1/2.8 inch CMOS sensor delivering up to 1920x1080. The field of view measures 112 degrees horizontally, 62 degrees vertically and 130 degrees diagonally, with a minimum object distance of 0.2 m (0.66ft). H.265 and H.264 achieve 60fps/50fps (60Hz/50Hz) at all resolutions and MJPEG 30fps, while minimum illumination is quoted as 0.055 lux for both colour and black and white. Day to night switching is electrical, supported by BLC, HLC, WDR at 150 dB, SSDR, SSNR V noise reduction and a defog function. The adjustment range covers 0 to 353 degrees pan, 0 to 59 degrees tilt and 0 to 353 degrees rotation, and analytics include loitering, direction, fog and defocus detection, digital auto tracking, heatmap, people counting, queue detection, tampering, motion detection and alarm handover, plus an SD/SDHC/SDXC slot for up to 256 GB and PoE power. 2.8 mm fixed lens, F2.0, 112 degrees horizontal1920x1080, 60fps/50fps in H.265/H.2640.055 lux in colour and black and whiteWDR 150 dB, SSNR V, defogHeatmap, people counting, queue detectionSD/SDHC/SDXC up to 256 GB, PoE
