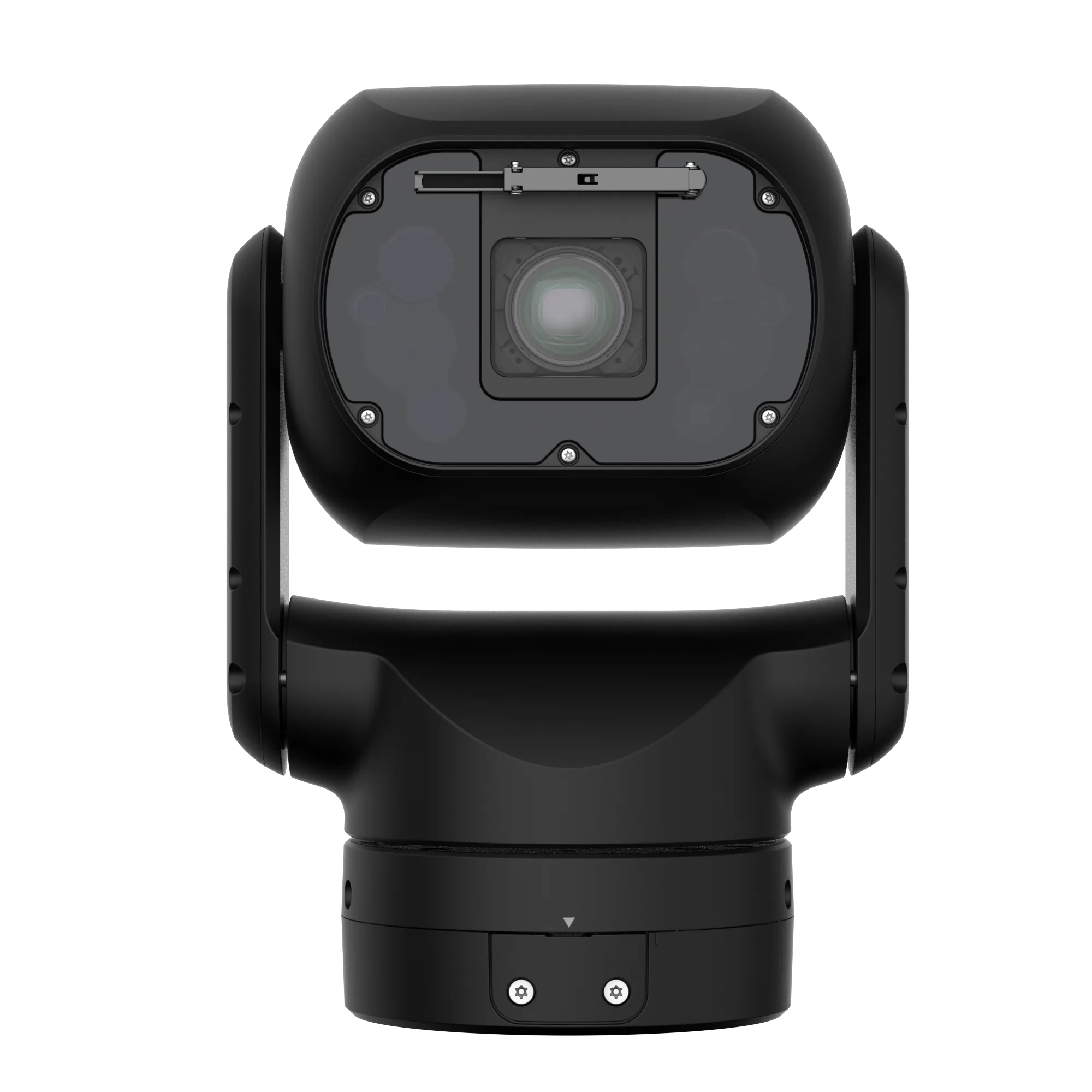

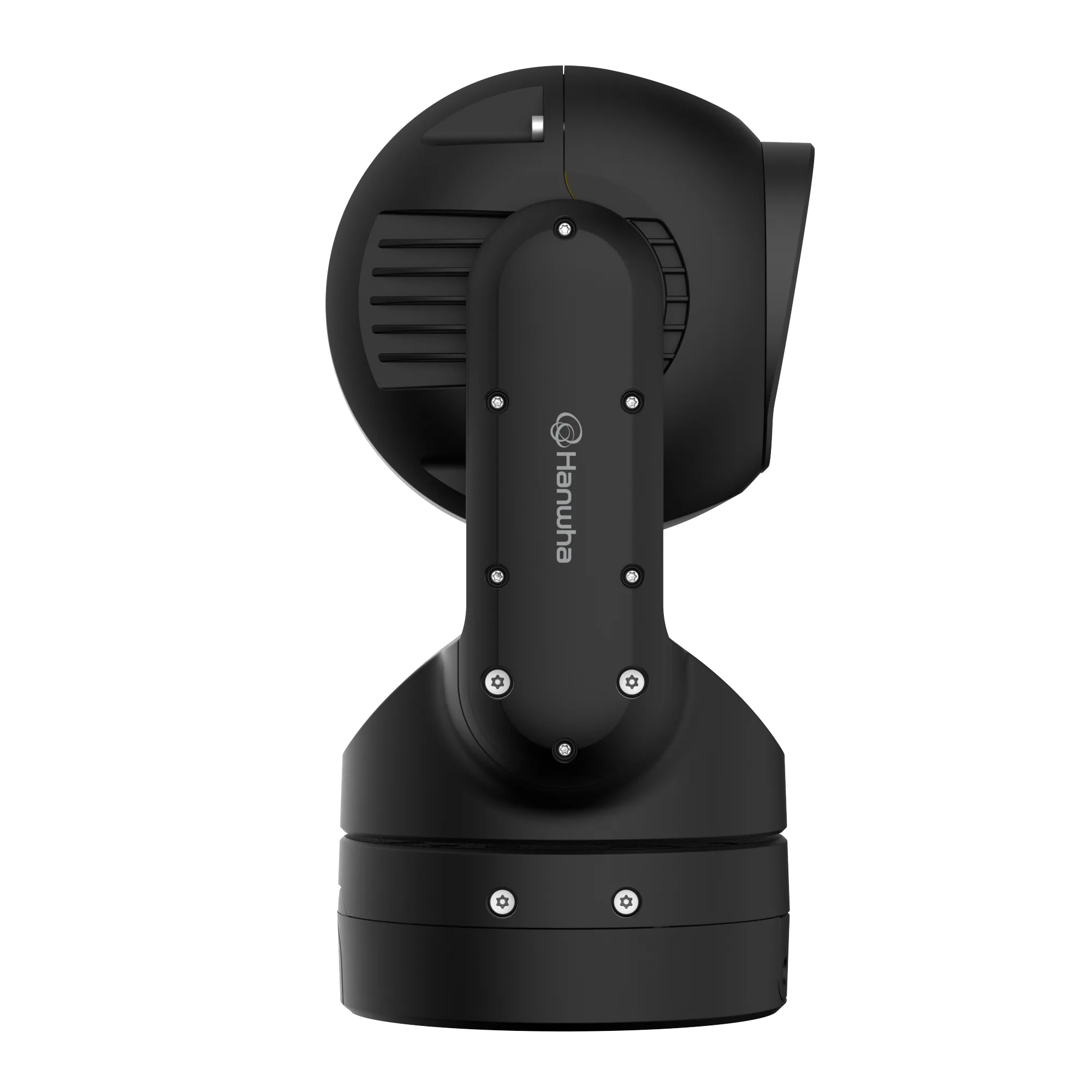

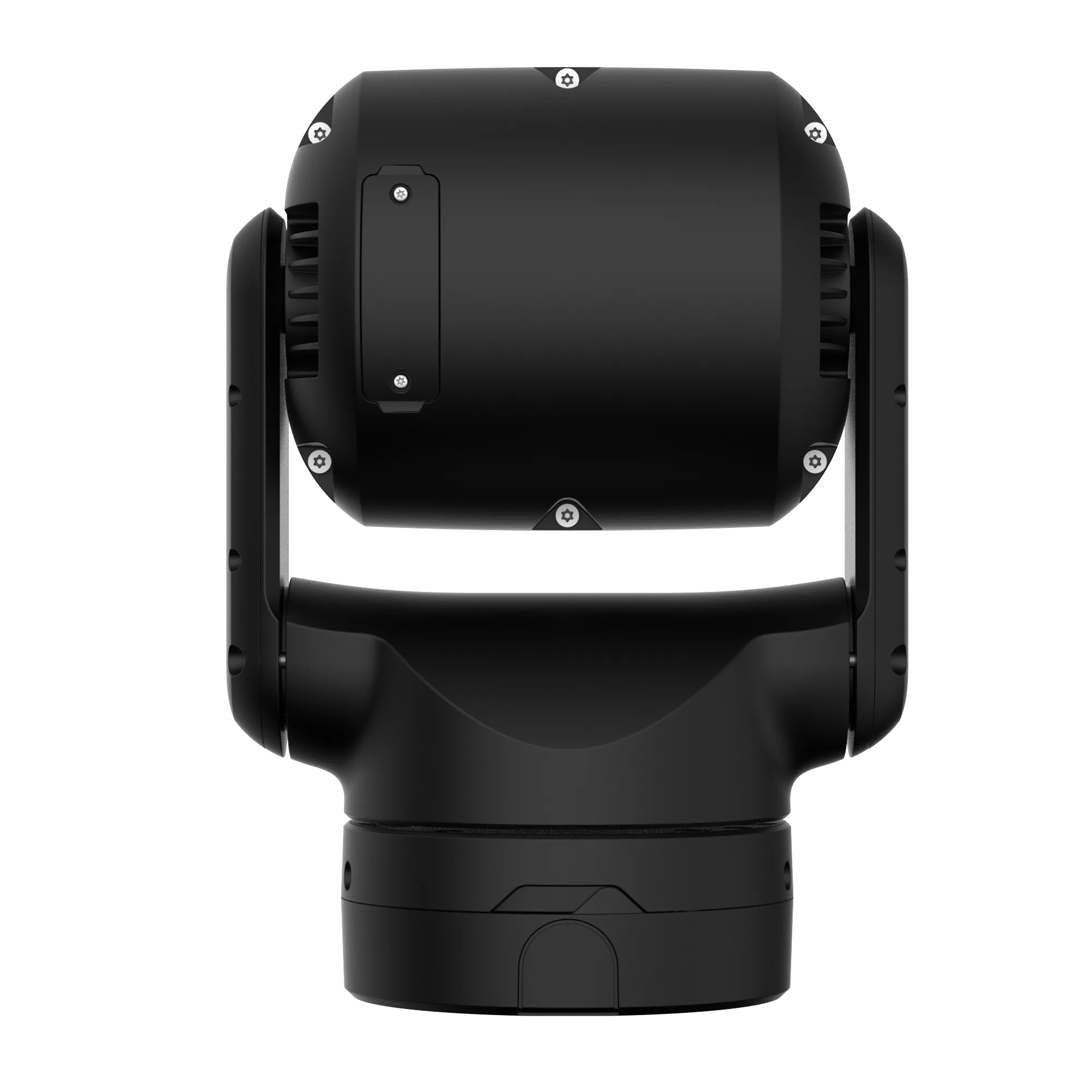

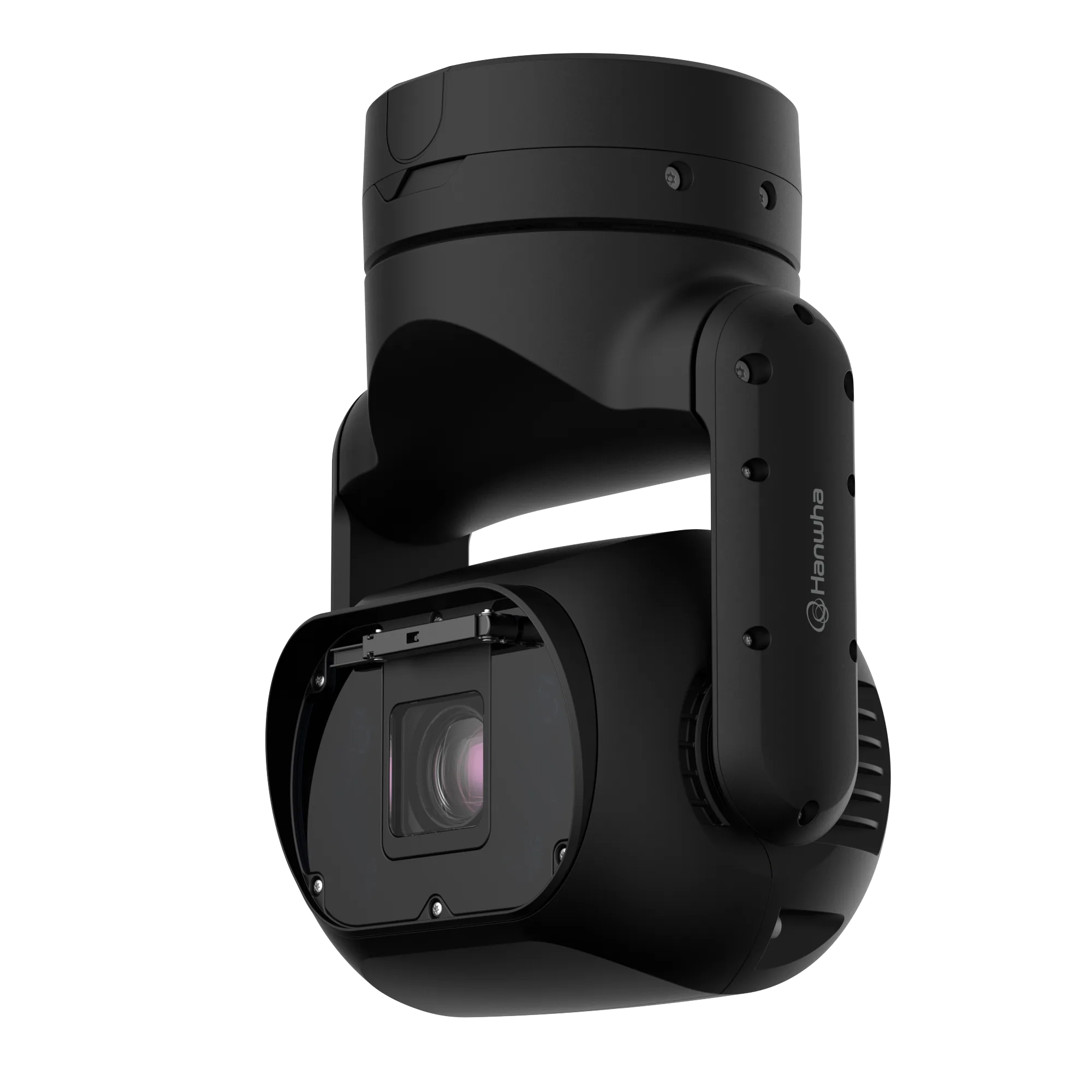

T series Wisenet 9, 2MP AI Rugged PTZ Black
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBP-004PBB is an aluminium mounting converter finished black to RAL9005. It adapts a universal 4-inch, 101.6mm PCD to hole patterns with a 4.75-inch, 120.65mm PCD. The plate measures 155mm in width and depth with a height of 18mm and weighs 340g. TR30 screws are specified. It is intended for the ruggedised PTZ models TNP-A6550RWB, TNP-A7430RWB and TNP-A9430RWB. Mounting converter for ruggedised PTZ camerasAluminium, black RAL9005155x155x18mm, 340g101.6mm PCD to 120.65mm PCDTR30 mount screw
Not in stock · delivery 3-4 days
Aluminium wall and pole mount for ruggedized PTZ cameras, finished in black to RAL9005. It measures 360x210x245mm (WxDxH), weighs 3800g and uses TR30 mount screws. Maximum load is 15kg (33.07lb). The reversible design covers upright, canted and inverted installation positions. Pole installation additionally requires the SBP-150PMW heavy duty pole mount. Supported products are TNP-A6550RWB, TNP-A7430RWB and TNP-A9430RWB. Aluminium, black RAL9005Dimensions 360x210x245mm, 3800gMax. load 15kgTR30 mount screw sizeReversible for upright, canted and inverted mountingFor TNP-A6550RWB, TNP-A7430RWB, TNP-A9430RWB
Not in stock · delivery 3-4 days
The SBP-150PMW attaches camera equipment to poles. The mount is aluminium, finished in white to RAL9003. It measures 310x260x49mm (12.21x10.24x1.93"), weighs 3,200g (7.06lb) and accepts up to 40kg. For pole diameters of ø80~200mm (ø3.15~7.88") a vice grip is used, while poles from ø200mm (ø7.88") are secured with a steel strap. Mounting screws are TR30 and M12, the conduit hole is 19.1mm (3/4", M25), and supported products are the SBP-150NBW and TNO-A26081. Pole mountingAluminium, RAL9003 white310x260x49mm / 3,200gMax. load 40kgPole diameter from ø80mmConduit hole 19.1mm (M25)
Not in stock · delivery 3-4 days
The SBP-156KMW is intended for installation in a building corner. The mount is made of aluminium and finished in white to RAL9003. It measures 276.8(W)x183(H)x158.5(D)mm (10.90x7.20x6.24") and weighs 763g (1.68lb). A load of up to 20kg may be carried. It can be combined with the SBP-156WMW, SBP-250WMW and SBP-400WMW mounts. Corner mountingAluminium, RAL9003 white276.8x183x158.5mm / 763gMax. load 20kgCombines with SBP-156WMW
In stock, ships immediately · delivery 1-2 days
SPP-K004EP is a kit of ruggedized RJ45 push-pull connectors for cable terminations. It is built from thermoplastic and copper alloy, finished in black, and measures 70mm(2.76") at a weight of 21g(0.05lb). Certification covers IP66 and IP68 under the dedicated camera connection requirements. Operation is specified from -50°C~+60°C(-58°F~+140°F) at 0~100% RH(condensing), with storage from -50°C~+50°C(-58°F~+122°F) at the same humidity range. Supported products are TNP-A6550RW, TNP-A6550RWB, TNP-A7430RW, TNP-A7430RWB, TNP-A9430RW and TNP-A9430RWB. Ruggedized RJ45 push-pull connector kitIP66, IP68 certificationOperating temperature -50°C~+60°CThermoplastic and copper alloy constructionSize 70mm(2.76"), weight 21g(0.05lb)For TNP-A6550RW, TNP-A7430RW, TNP-A9430RW and their B variants
Not in stock · delivery 3-4 days
The SPP-C00402EP is a ruggedized RJ45 cable fitted with push-pull connectors, supplied in a length of 2m. Thermoplastic and copper alloy are given as the materials, and the cable is black and yellow. It is certified to IP66 and IP68 (Dedicated Camera Connection Requirements). Operation is rated from -50°C~+60°C(-58°F~+140°F) at 0~100% RH (condensing), storage from -50°C~+50°C(-58°F~+122°F) at 0~100% RH (condensing). Dimension and weight are 2m(78.74")/128g(0.28lb), and the supported products are TNP-A6550RW, TNP-A6550RWB, TNP-A7430RW, TNP-A7430RWB, TNP-A9430RW, TNP-A9430RWB. Ruggedized RJ45 cable with push-pull connectorsCable length 2mIP66, IP68 (Dedicated Camera Connection Requirements)Thermoplastic and copper alloy, black/yellowOperation -50°C~+60°C at 0~100% RH (condensing)Dimension/weight 2m(78.74")/128g(0.28lb)
Not in stock · delivery 3-4 days
The SPP-C00405EP is a ruggedized RJ45 cable fitted with push-pull connectors, supplied in a length of 5m. Thermoplastic and copper alloy are given as the materials, and the cable is black and yellow. It is certified to IP66 and IP68 (Dedicated Camera Connection Requirements). Operation is rated from -50°C~+60°C(-58°F~+140°F) at 0~100% RH (condensing), storage from -50°C~+50°C(-58°F~+122°F) at 0~100% RH (condensing). Dimension and weight are 5000mm(196.85")/285g(0.63lb), and the supported products are TNP-A6550RW, TNP-A6550RWB, TNP-A7430RW, TNP-A7430RWB, TNP-A9430RW, TNP-A9430RWB. Ruggedized RJ45 cable with push-pull connectorsCable length 5mIP66, IP68 (Dedicated Camera Connection Requirements)Thermoplastic and copper alloy, black/yellowOperation -50°C~+60°C at 0~100% RH (condensing)Dimension/weight 5000mm(196.85")/285g(0.63lb)
Not in stock · delivery 3-4 days
The SPP-C00410EP is a ruggedized RJ45 cable fitted with push-pull connectors, supplied in a length of 10m. Thermoplastic and copper alloy are given as the materials, and the cable is black and yellow. It is certified to IP66 and IP68 (Dedicated Camera Connection Requirements). Operation is rated from -50°C~+60°C(-58°F~+140°F) at 0~100% RH (condensing), storage from -50°C~+50°C(-58°F~+122°F) at 0~100% RH (condensing). Dimension and weight are 10m(393.7")/545g(1.2lb), and the supported products are TNP-A6550RW, TNP-A6550RWB, TNP-A7430RW, TNP-A7430RWB, TNP-A9430RW, TNP-A9430RWB. Ruggedized RJ45 cable with push-pull connectorsCable length 10mIP66, IP68 (Dedicated Camera Connection Requirements)Thermoplastic and copper alloy, black/yellowOperation -50°C~+60°C at 0~100% RH (condensing)Dimension/weight 10m(393.7")/545g(1.2lb)
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNP-A6550RWB
- EAN / GTIN
- 8801089252814
- Weight
- 14.93 kg
- Dimensions (W×H×D)
- 535 × 445 × 470 mm
Description
The TNP-A6550RWB is a ruggedized AI PTZ camera whose 1/2.8" CMOS imager resolves up to 1920x1080 and offers formats down to 320x240. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) with WDR off and 30fps/25fps with WDR on, while MJPEG runs at 30fps. The lens spans 4.75 to 261.4 mm for 55x optical zoom and a horizontal field of view from 58.6˚ at wide to 1.23˚ at tele; its DC auto iris opens to F1.6 wide and F6.5 tele, and focus can be automatic, manual, oneshot AF or saved. Colour images start at 0.02 lux, black and white needs 0.002 lux and 0 lux with the IR LED on, and the minimum object distance is 5 m. Pan is endless over 360°, tilt covers 140° (50°~-90°) upright, 165° (75°~-90°) canted and 140° (90°~-50°) inverted, and pan speed runs from 0.024°/sec to 160°/sec with a maximum of 160°/sec on presets.
- 1/2.8" CMOS up to 1920x1080
- 55x optical zoom, 4.75~261.4 mm
- 1760 digital zoom ratio
- F1.6 wide to F6.5 tele, DC auto iris
- 360° endless pan
- 0.002 lux in black and white, 0 lux with IR LED
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (7)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Motion detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Auto tracking
- Analytics / Analytics Events – Normal
- Tampering, Audio detection, Shock detection
- Analytics / Attributes – Face
- Age, Gender, Face mask, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 55035
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 60529 IP68, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 503.7
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471, IEC/EN/UL 62368-1 GS UL cUL CE FCC VCCI CB
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 3577.4m(11736.7ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 68.4m(224.5ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 357.7m(1173.7ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.8m(22.5ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 1430.9m(4694.7ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 27.4m(89.8ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 715.5m(2347.3ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 13.7m(44.9ft)
Environmental & Electrical (10)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 71W, typical 28.3W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – EPA(Effective Projected Area)
- 0.095㎡
- Environmental & Electrical – Input Voltage
- PoE++(IEEE802.3bt type4, Class8)
- Environmental & Electrical – Wind Load
- Sustained 257km/h (160mph)
- Environmental & Electrical – WisePower
- Power mode, Power monitoring, Eco mode
General (6)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot
- General / Memory – Flash
- 8GB eMMC
- General / Memory – RAM
- 4GB
- General / SoC – Dual NPU
- Support
- General / SoC – Type
- Wisenet 9
Lens (11)
- Lens / Angular Field of View – Diagonal
- 65.5˚(Wide)~1.39˚(Tele)
- Lens / Angular Field of View – Horizontal
- 58.6˚(Wide)~1.23˚(Tele)
- Lens / Angular Field of View – Vertical
- 34.8˚(Wide)~0.71˚(Tele)
- Lens / Max Aperture Ratio (F number) – Tele
- F6.5
- Lens / Max Aperture Ratio (F number) – Wide
- F1.6
- Lens / Zoom Ratio – Digital
- 1760
- Lens / Zoom Ratio – Optical
- 55
- Lens – Focal Length (mm)
- 4.75~261.4
- Lens – Focus Control
- Auto, Manual, Oneshot AF, Focus save
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 5m(16.4ft)
Mechanical (6)
- Mechanical / Material Management – Declaration
- RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
- Mechanical – Color
- Black
- Mechanical – Material
- Aluminum, PC(Polycarbonate), ITO Glass
- Mechanical – Product Dimensions
- Upright Normal/Inverted : 293.4(W)x205.6(D)x399.9(H)mm (11.55x8.09x15.74") Upright Canted : 293.4(W)x301.9(D)x363.6.9(H)mm (11.55x11.89x14.31")
- Mechanical – Product Weight
- 10.4kg(9.4kg: Excluding installation part)
- Mechanical – RAL Code
- RAL9005
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- RJ-45 Push-pull Connector(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205, Syslog
- Network – Smart Codec
- WiseStream(Based on AI engine)
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (30)
- Operational / Alarm Interface – Others
- Support alarm I/O via optional I/O box
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/30,000sec
- Operational / Light Viewable Length – IR
- 600m(1,968.50ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Dynamic Privacy Masking: Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
- Operational – Audio In
- Support via optional I/O box
- Operational – Audio Out
- Support via optional I/O box
- Operational – Auto Tracking
- Support, Object auto tracking(Person/Vehicle), Target lock tracking
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Direction Indicator
- Support
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – Ice Removal
- Window, Pan
- Operational – Installation Direction
- Upright, Inverted, Canted
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip&Mirror
- Operational – Water Removal
- Support(with Wiper)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
- Operational – Wide Dynamic Range (dB)
- 120
Pan (8)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 360° Endless
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- Upright: 140°(50°~-90°), Canted: 165°(75°~-90°), Inverted: 140°(90°~-50°)
- Pan / Tilt / Rotate / Pan Speed – Manual
- 0.024°/sec~160°/sec
- Pan / Tilt / Rotate / Pan Speed – Preset
- Max. 160°/sec
- Pan / Tilt / Rotate / Tilt Speed – Manual
- 0.024°/sec~160°/sec
- Pan / Tilt / Rotate / Tilt Speed – Preset
- Max. 160°/sec
- Pan / Tilt / Rotate – Preset Accuracy
- ±0.07°
- Pan / Tilt / Rotate – Sequence
- Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Security (11)
- Security – Access Control
- IP-based access control, MAC-based access control, Auto logout
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256), Secure element
- Security – Security Certificate
- Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
- Security – Supply Chain Security
- SBOM
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.002 lux (1/30sec,F1.6), 0Lux(IR LED On)
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.02Lux(F1.6, 1/30sec)
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
