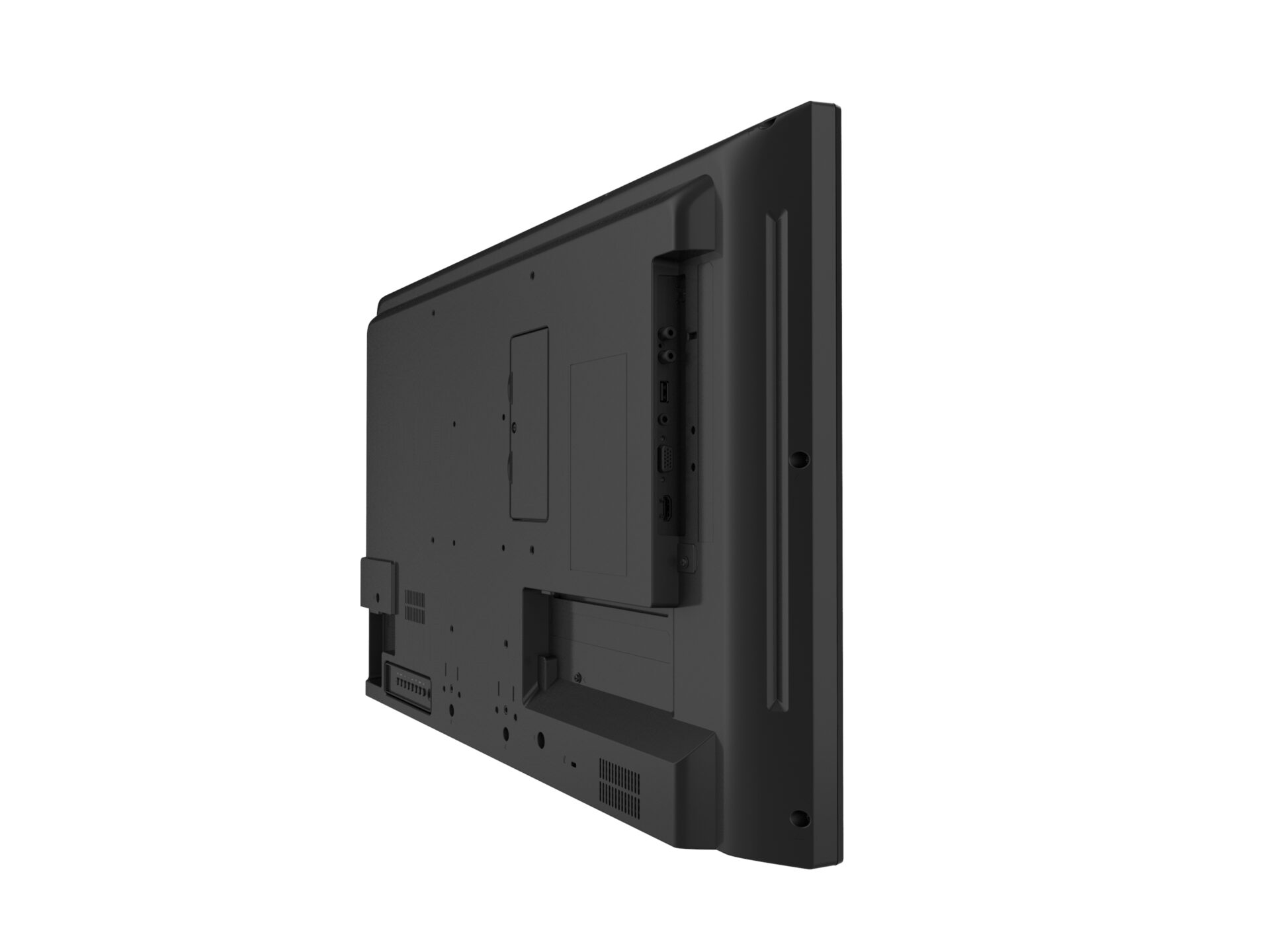

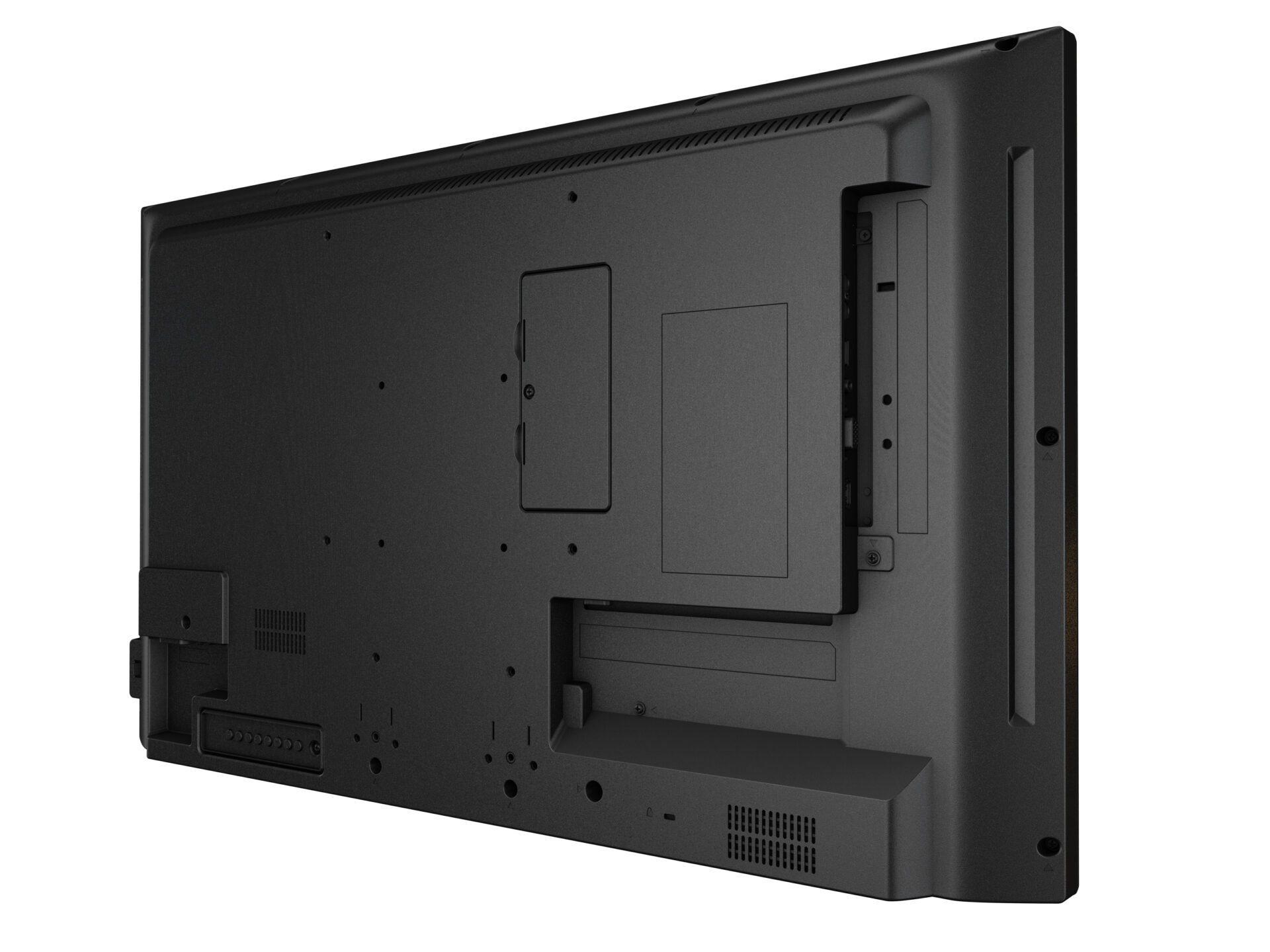

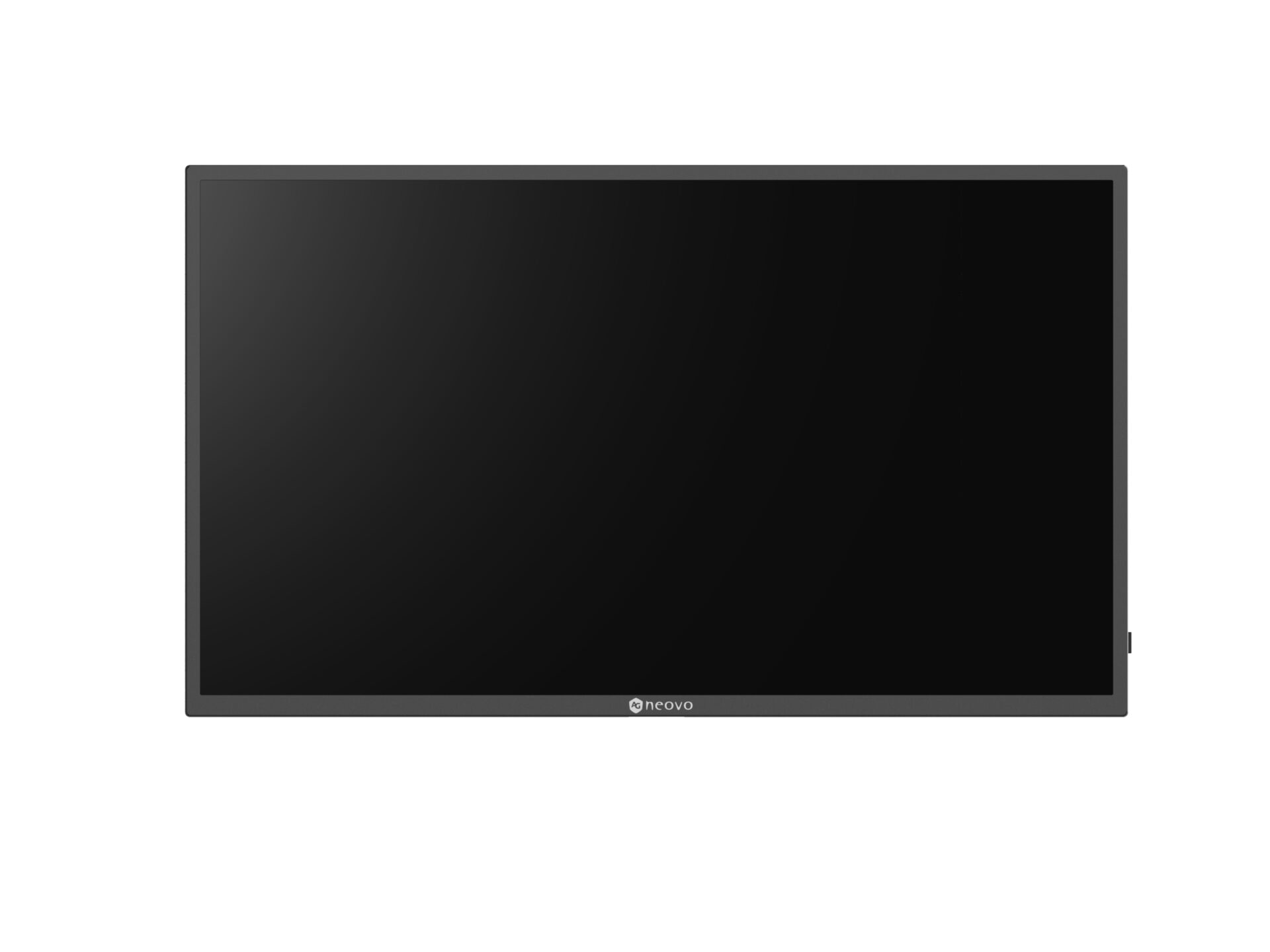

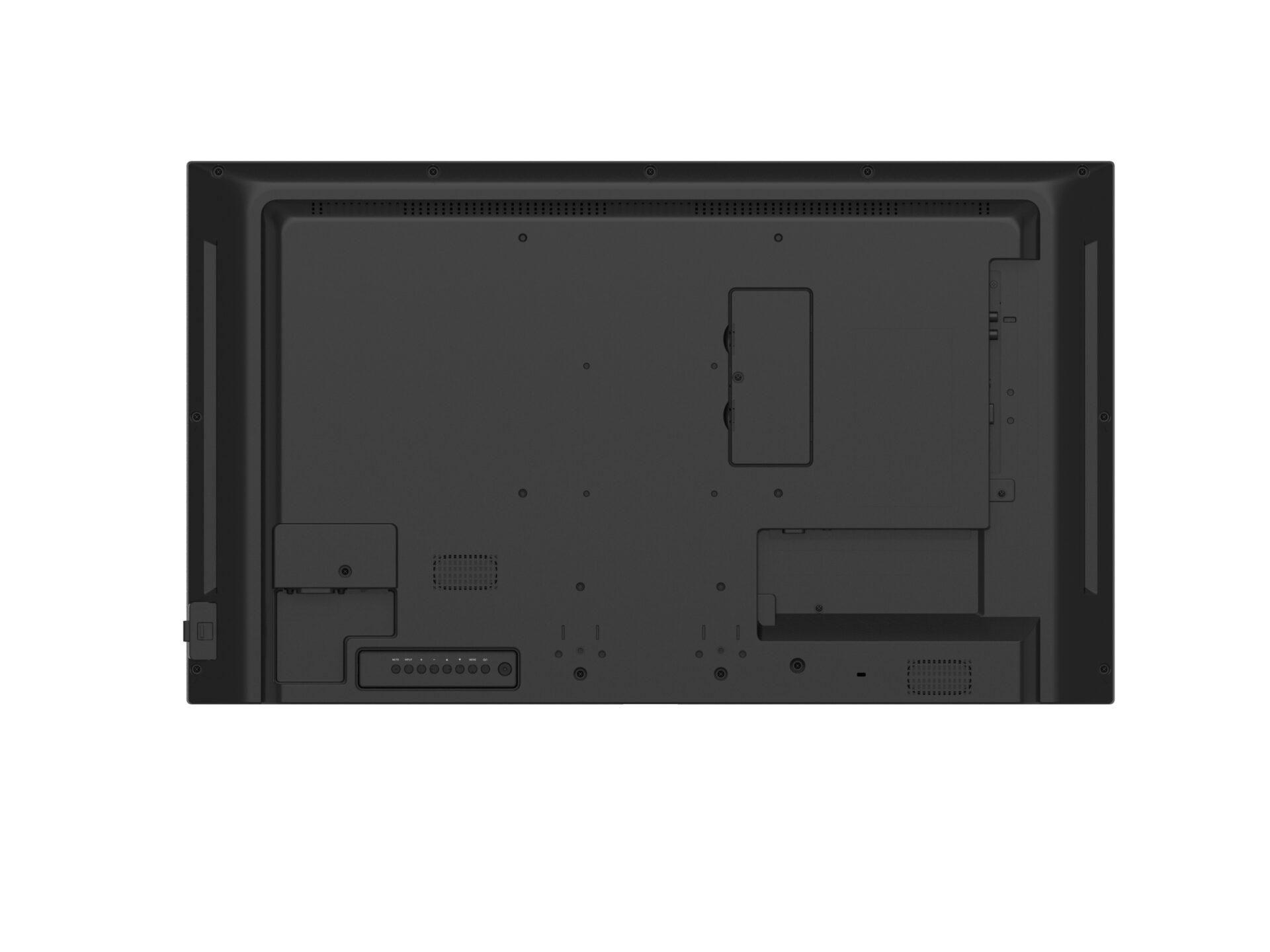

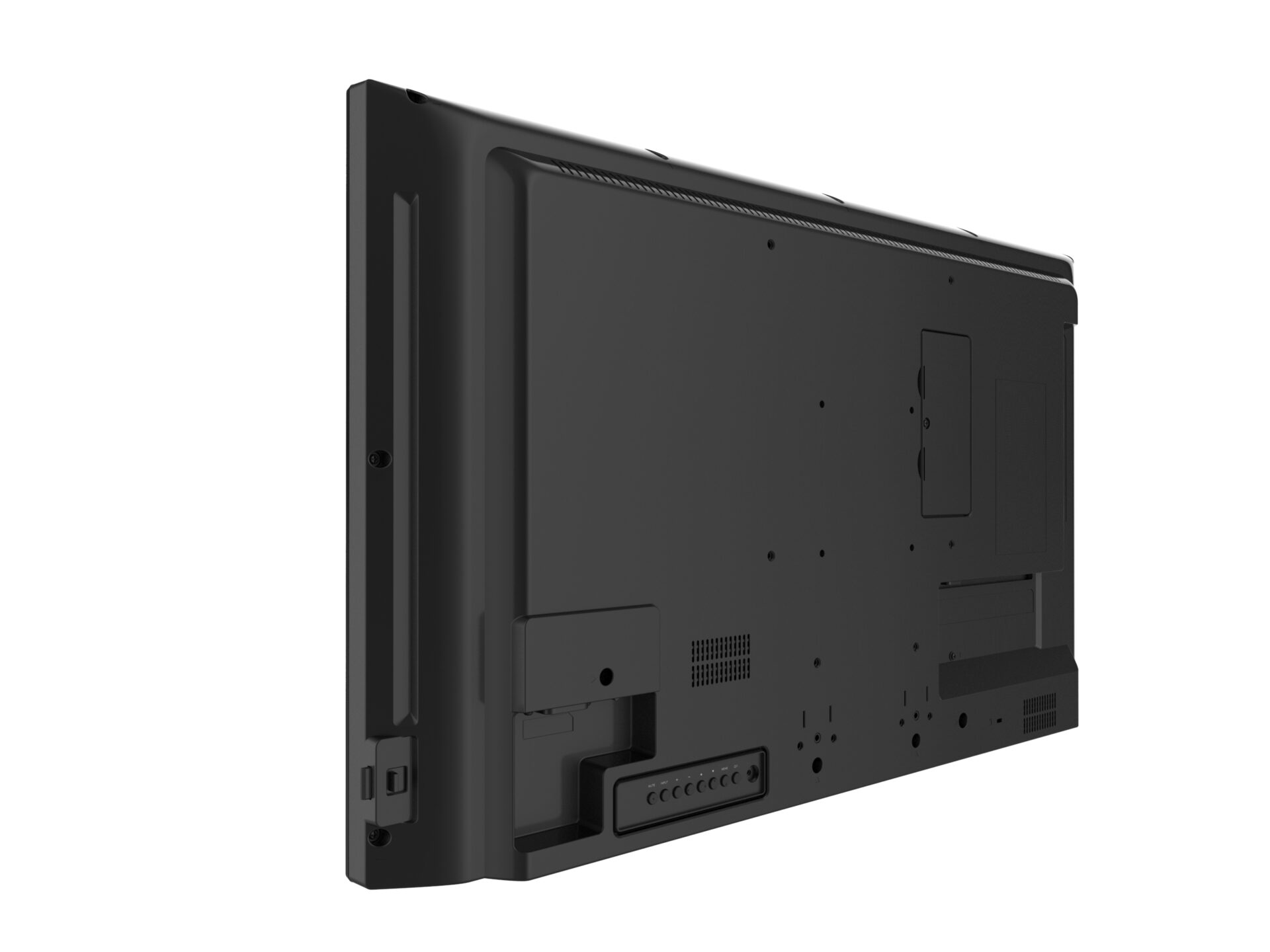

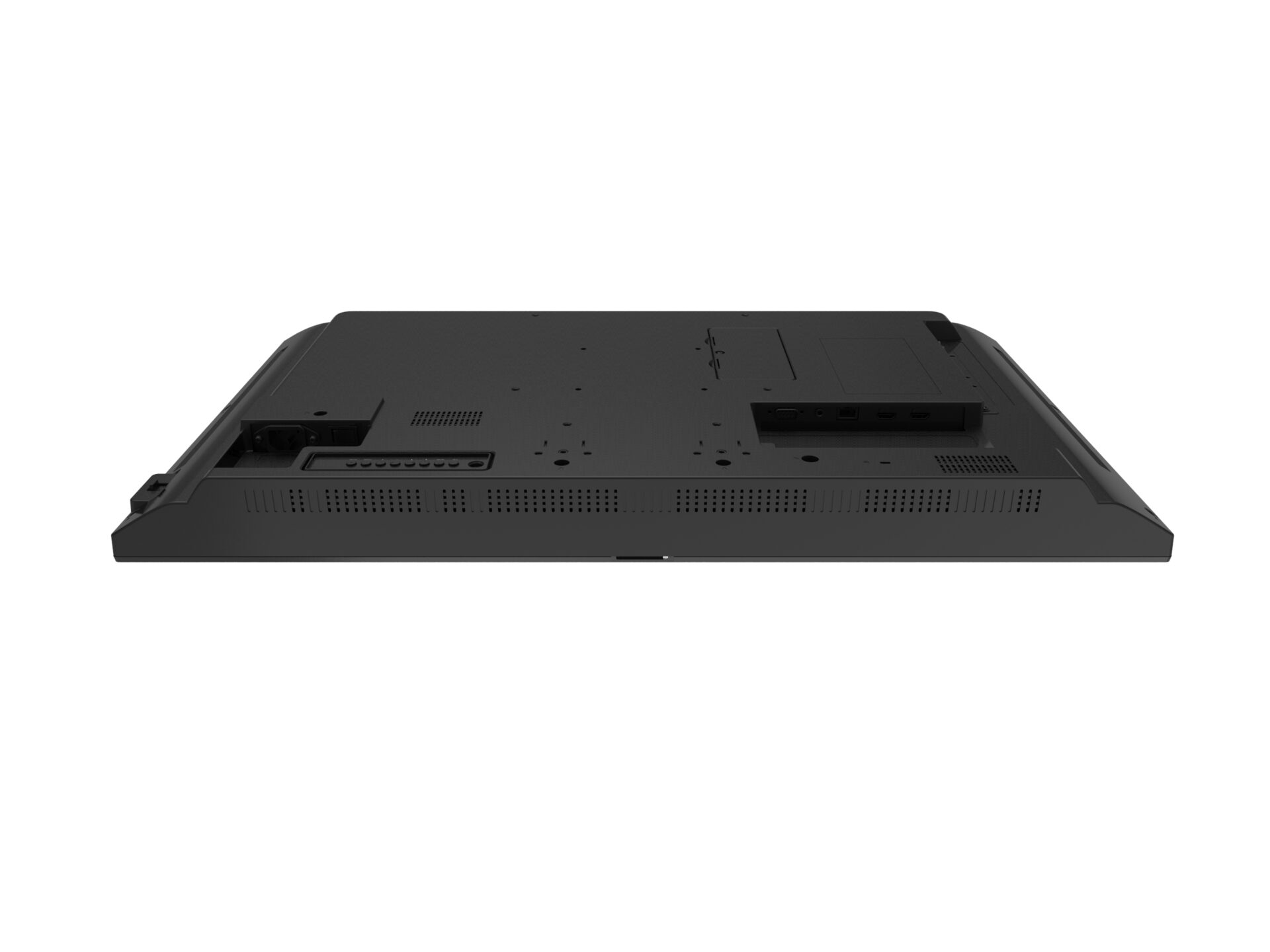

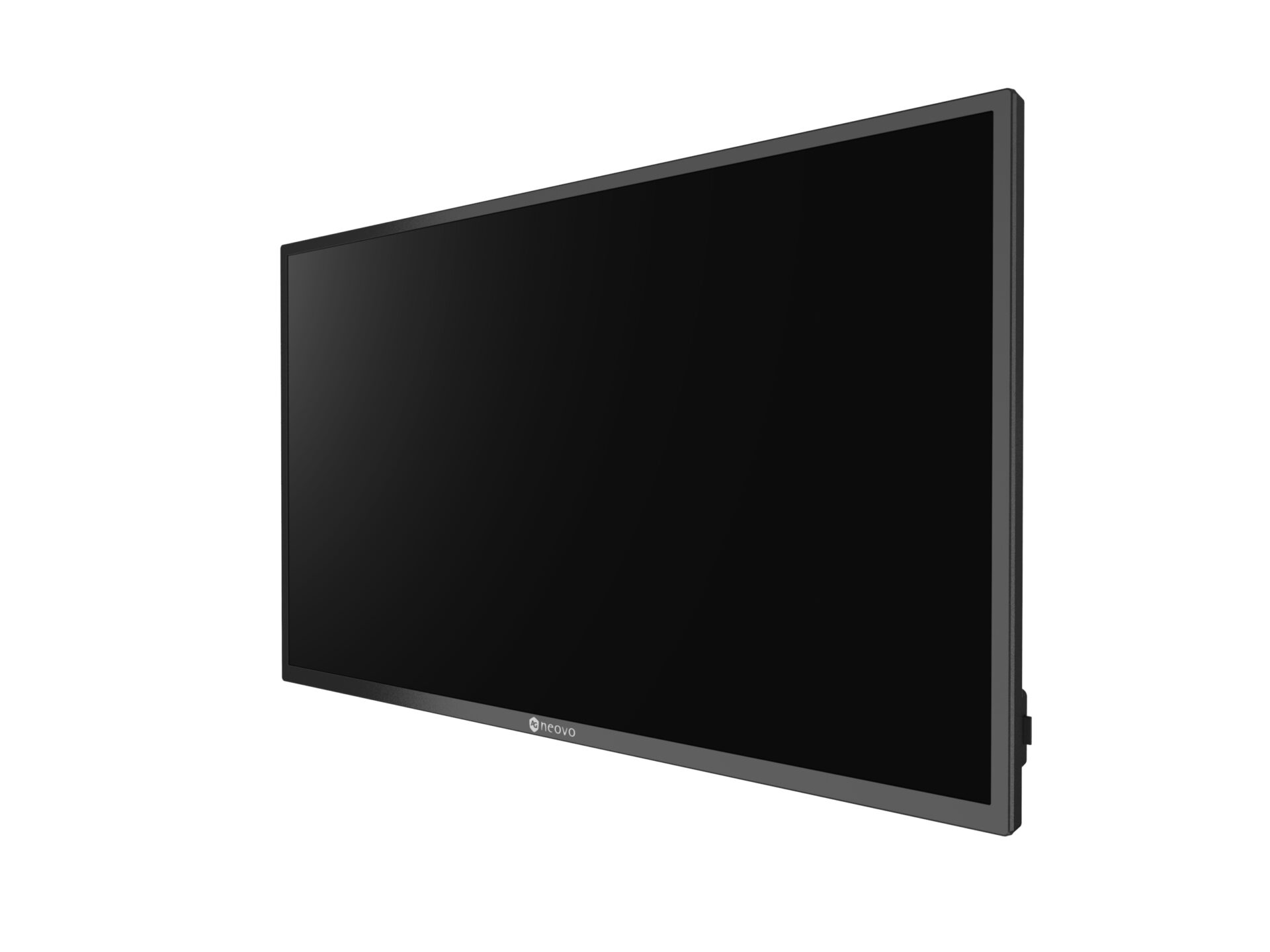

PM-3202, 32-Inch 1080P Slim Bezel Digital Signage Display
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The CMP-01 is a steel ceiling mount pole for professional displays. Used together with the WMK-03, LMK-01 or LMK-02 tilt mounts, it lets various viewing angles be set. Its height is adjustable and the pole swivels 360° to the right and to the left. Each side carries up to 60.0 kg (132.3 lb). The unit is finished in black. Steel ceiling mount pole360° swivel right/left60.0 kg (132.3 lb) capacity per sideAdjustable heightBlack finishCombines with WMK-03, LMK-01, LMK-02
In stock, ships immediately · delivery 1-2 days
The LMK-02 is a steel wall mount kit that accommodates displays from 32 to 55 inches. Its rated load capacity is 80.0 kg and it supports mounting patterns up to 440 x 330 mm. Tilt adjustment from -15° to 0° angles the screen downwards, and the finish is black. Built from selected quality steel, the bracket provides dependable stability in demanding environments. One set weighs 3.8 kg net and 4.4 kg gross, with packaging measuring 556.0 x 245.0 x 54.0 mm. Fits 32 to 55 inch displays80.0 kg weight capacityTilt -15° to 0°Mounting pattern up to 440 x 330 mmSteel construction, black3.8 kg net weight
In stock, ships immediately · delivery 1-2 days
Rated for 60.0 kg, the WMK-03 holds professional displays securely. Its free-angle tilt from -15 to 0 degrees saves space and allows the screen to be matched to the viewing direction at the installation site. VESA patterns of 100 x 100, 200 x 100 and 200 x 200 mm are supported for displays from 15 to 48 inches. The mount is made of steel with an electronic coating in black and measures 248.0 x 230.0 x 45.0 mm when assembled. Net weight is 2.2 kg, with ten pieces per carton and 420 pieces per pallet. 60.0 kg weight capacityTilt range -15 to 0 degreesFits displays from 15 to 48 inchesVESA 100 x 100, 200 x 100 and 200 x 200 mmSteel with electronic coating, black2.2 kg net weight, ten pieces per carton
In stock, ships immediately · delivery 1-2 days
The DMC-01 is a desk clamp mount whose arm uses two joints, so the screen can be swivelled, tilted, height-adjusted and rotated. Pivot covers 360° and the swivel range is 90° / 90°. Through the 75 x 75 mm and 100 x 100 mm VESA patterns it takes displays weighing up to 10 kg. Steel, aluminium alloy and plastic are used, with an electronic coating in silver with black. One pallet holds 72 pieces. Desk clamp mount with two joints360° pivot, 90° / 90° swivelVESA 75 x 75 mm / 100 x 100 mmDisplay weight up to 10 kgSteel, aluminium alloy and plasticElectronic coating, silver with black
Not in stock · delivery 3-4 days
The ES-02 is an ergonomic monitor stand for 15" - 24" displays using 75 x 75 mm and 100 x 100 mm mounting patterns. Height adjusts over 130.0 mm (5.1"), the swivel range is 360°, tilt runs from -5° to +25°, and the 90° pivot switches between landscape and portrait. Display weights from 2.0 - 8.0 kg (4.4 - 17.6 lb) are supported. Cable management guides the connection cables behind the stand. The stand is made of plastic in black and ships 5 pieces per carton. Monitor stand for 15" - 24" displays2.0 - 8.0 kg (4.4 - 17.6 lb) weight capacity130.0 mm (5.1") height adjustment360° swivel, -5° to +25° tilt90° pivot landscape/portraitIntegrated cable management
Not in stock · delivery 3-4 days
The LMA-01 is a wall mount arm for displays from 32 to 65 inches with a load rating of 30.0 kg. Tilt from -15° to +15° and 90° of swivel to each side allow the screen to be aimed precisely. Extension is adjustable between a minimum wall distance of 105.0 mm and a maximum of 562.0 mm. Integrated cable routing keeps the connection cables out of sight and away from unwanted access. The arm is made of steel, aluminium alloy and plastic in black and silver, and accepts mounting patterns up to 400 x 400 mm. Product dimensions are 500.0 x 450.0 x 105.0 mm, and one set has a gross weight of 9.3 kg. Fits 32 to 65 inch displays30.0 kg weight capacityTilt -15° to +15°Swivel 90° / 90°Wall distance 105.0 mm to 562.0 mmMounting pattern up to 400 x 400 mm
Not in stock · delivery 3-4 days
The LMA-02 is a full-motion extendable wall mount bracket for displays from 32 to 65 inches, rated for loads up to 50.0 kg. Its arm extends from a wall distance of 64.0 mm out to 510.0 mm, so the screen can be positioned freely within a room. Viewing angles are refined through -20° to +10° of tilt and 60° of swivel to the right and left. The all-metal construction is finished in black and accepts mounting patterns up to 600 x 400 mm. One set weighs 7.0 kg net and 7.5 kg gross, packed in a carton measuring 700.0 x 222.0 x 70.0 mm. Fits 32 to 65 inch displays50.0 kg weight capacityExtension 64.0 mm to 510.0 mmTilt -20° to +10°Swivel 60° / 60°Mounting pattern up to 600 x 400 mm
Not in stock · delivery 3-4 days
WMA-01 is a wall mount arm that lets display position and orientation be changed without tools. The arm swivels 90 degrees to the right and to the left and extends between 70.0 mm and 463.0 mm from the wall, so on-screen content can be shared in multi-user settings. Its rugged construction of steel, aluminium alloy and plastic includes integrated cable management. VESA patterns of 75 x 75, 100 x 100, 200 x 100 and 200 x 200 mm are supported for displays from 17 to 48 inches weighing up to 25 kg. Net weight is 3.1 kg, with four pieces per carton and 120 pieces per pallet. 25 kg capacity, displays from 17 to 48 inches90 degree swivel to the right and leftWall distance from 70.0 mm to 463.0 mmVESA 75 x 75 through 200 x 200 mmSteel, aluminium alloy and plasticIntegrated cable management
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- PM-3202
- EAN / GTIN
- 4710739597028
Description
The PM-3202 is a slim bezel digital signage display with a 32 inch panel and FHD 1920 x 1080 (16:9) resolution. Brightness is 350~499 cd/㎡ and operating time is rated 16/7, in landscape orientation only. A scheduler integrated into the OSD menu triggers content by input source, time and day using the IR remote, alongside USB playback and a black-level setting, while the embedded image enhancer applies 3D deinterlacing and noise reduction. AG Neovo's patented Anti-Burn-in™ Technology counters LCD burn-in and ghosting. Interfaces include HDMI, VGA, RS232 (9-pin D-Sub), LAN over RJ45, USB Type-A, audio and IR, plus an RCA stereo audio output, an IR output and two 10W speakers. Neovo Controller provides remote management of displays from a single interface; the casing is black with a plastic rear cover.
- 32 inch panel, FHD 1920 x 1080 (16:9)
- Integrated content scheduler in the OSD
- Patented Anti-Burn-in™ Technology
- Image enhancer with 3D deinterlace and noise reduction
- HDMI, VGA, RS232, RJ45 and USB Type-A
- Remote management with Neovo Controller
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Anti-Burn-in
- Yes
- Aspect Ratio
- 16:9
- Audio Out
- Stereo Audio Jack (RCA)
- Brightness
- 350 cd/m², 350~499 cd/㎡
- Casing Colour
- Black
- Certifications & Compliance
- FCC, CE, LVD, UKCA, WEEE, RoHS, REACH, ICES-003 Issue 7
- Contrast Ratio
- 4000:1
- Display Colour
- 16.7M
- External Control
- IR, RJ45, RS232
- Features
- Speaker
- Frequency (H)
- 28 kHz-92 kHz
- Frequency (V)
- 48 Hz-85 Hz
- HDMI
- 2.0 x 3
- Humidity
- DMC-01, ES-02
- Humidity
- 10%-90% (non-condensing), 20%-80% (non-condensing)
- IK Rating
- LMA-01, LMA-02, LMK-02, WMA-01, WMK-03
- IR Out
- 3.5 mm Phone Jack
- Innovation
- Anti-Burn-in Technology
- Inputs
- Audio, HDMI, IR, RJ45, RS232, USB Type-A, VGA
- Internal Speakers
- 10W x 2
- Kensington Security Slot
- Yes
- LAN
- RJ45 x 1
- Max. Resolution
- FHD 1920 x 1080
- On Mode
- 42W (On)
- Operating Time (Internal)
- 16/7
- Orientation
- Landscape only
- Outputs
- Audio, IR
- Packaging
- 7.8 kg (17.2 lb)
- Packaging (W x H x D)
- 818.0 x547.0 x 139.0 mm (32.2 x 21.5" x 5.5")
- Panel Size
- 31.5"
- Panel Size on Carton
- 32.0"
- Panel Type
- VA
- Pixel Pitch
- 0.364 mm
- Product w/o Base
- 5.7kg (12.6 lb)
- Product w/o Base (W x H x D)
- 726.5 x 425.4 x 65.1 mm (28.6" x 16.8" x 2.6")
- RS232 In
- 9-Pin D-Sub
- Rear Cover Material
- Plastic
- Resolution
- FHD 1920 x 1080 (16:9)
- Response Time
- 5 ms
- Sizes
- 32"-43"
- Software
- Neovo Controller
- Standby Mode
- < 0.5W
- Supplied
- Batteries, HDMI Cable, Power Cord, Quick Start Guide, Remote Control
- Surface Treatment
- Anti-Glare Treatment (Haze 2%), 3H
- Temperature
- -20°C-60°C (-4°F-140°F), 0°C-40°C (32°F-104°F)
- Tilt
- CMP-01 + LMK-02, CMP-01 + WMK-03
- USB
- 2.0 x 1 (Service Port / Media Playback)
- VESA FPMPMI
- Yes (100 x 100 & 200 x 200 mm)
- VGA
- 15-Pin D-Sub x 1
- Viewing Angle (H/V)
- 178°/178°
- Viewing Angles
- 178/178
- Visibility
- Black-level Adjustment, Gamma Selection
